Summary of Contents for Hybrid+ ALTIUM 12

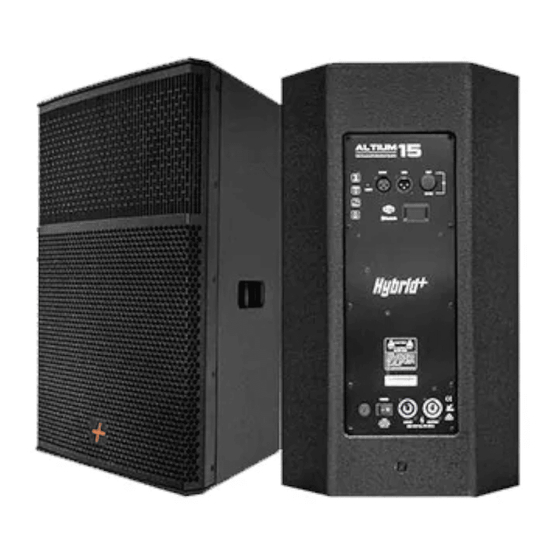

- Page 1 ALTIUM 15/12 2000W, SELF-POWERED FULL RANGE SPEAKER REV Z0 22-02-2022...
-
Page 2: Important Precautions
USER MANUAL - ALTIUM15 /12, 2000W SELF-POWERED FULL RANGE SPEAKER IMPORTANT PRECAUTIONS Never use your speaker near heat radiating appliances such as stoves and heaters. SYMBOL ALERTING THE OPERATOR TO FOLLOW IMPORTANT OPERATING INSTRUCTIONS AND PRECAUTIONS DETAILED IN THIS DOCUMENT. Do not operate your speaker on a surface or environment which may impede the normal flow of air around the speaker. -
Page 3: User Interface Elements
USER MANUAL - ALTIUM15 /12, 2000W SELF-POWERED FULL RANGE SPEAKER INTRODUCTION USER INTERFACE ELEMENTS Rear Panel Congratulations on your purchase of the new Hybrid+ Altium15/Altium12 powered speaker, and thank you for your confidence in the Hybrid+ brand. You are amongst the growing number of audio professionals who have made Hybrid+ one of Southern Africa’s leading brands of professional and commercial audio systems. - Page 4 USER MANUAL - ALTIUM15 /12, 2000W SELF-POWERED FULL RANGE SPEAKER 1: POWERCON IN CONNECTOR 5: INPUT CONNECTOR Main power switch, switching the speaker ON or OFF. Once the speaker is switched ON, the Speaker Input. LCD screen will illuminate. The XLR input female connector can be configured as a mono balanced input or a stereo unbalanced input.
-
Page 5: Lcd Screen
USER MANUAL - ALTIUM15 /12, 2000W SELF-POWERED FULL RANGE SPEAKER 7: LCD SCREEN 9: LIMIT LED The LCD screen informs the operator of important information, changing page displays when A red LED indicates when the speaker has reached its optimum SPL performance and the the encoder is activated (Toggle pressed). - Page 6 Pin 1 – Ground Pin 1 – Ground Open the Bluetooth application on your mobile device or PC/laptop and find the device starting with HYBRID+_ followed by 6 Alphanumerics (HYBRID+_XXXXXX). Enable the Pin 2 – Non-Inverting Input (+) Pin 2 – Right Input connection to this device.
- Page 7 Open the WiFi application on your mobile device or PC/Laptop and find the network starting the adverse effect. The master level has a range of -33dB to +6dB. with HYBRID+_ followed by 6 Alphanumerics (HYBRID+_XXXXXX). Enable connection to this network. It will prompt you for a Password. Type in the factory default password as Pressing the encoder once will toggle the display to the next menu page.
-
Page 8: User Precautions
USER MANUAL - ALTIUM15 /12, 2000W SELF-POWERED FULL RANGE SPEAKER USER PRECAUTIONS All functions and settings can now be edited using the sofware app, with a few added features using the Utilities tab: SPEAKER PROTECTION 1) Mono Balanced / Stereo Unbalanced switch (Factory default is set to Mono Balanced) Your Altium15/Altium12 Self-Powered Speaker automatically protects itself to a certain 2) Preset selection scroll bar: degree from DC voltages, clipped waveforms and subsonic (20Hz<) frequencies, however,... -
Page 9: Specifications
SPECIFICATIONS Cabinet Precision CNC manufacturing process Cabinet Precision CNC manufacturing process Construction Braced 15mm Birch plywood Construction Braced 15mm Birch plywood Pressurized Tongue and Groove assembly Pressurized Tongue and Groove assembly Cabinet 4 coats of Textured Half Gloss Black Paint, Ultratex V3 (USA) Cabinet 4 coats of Textured Half Gloss Black Paint, Ultratex V3 (USA) Finish and...
