Summary of Contents for Nexvoo N420

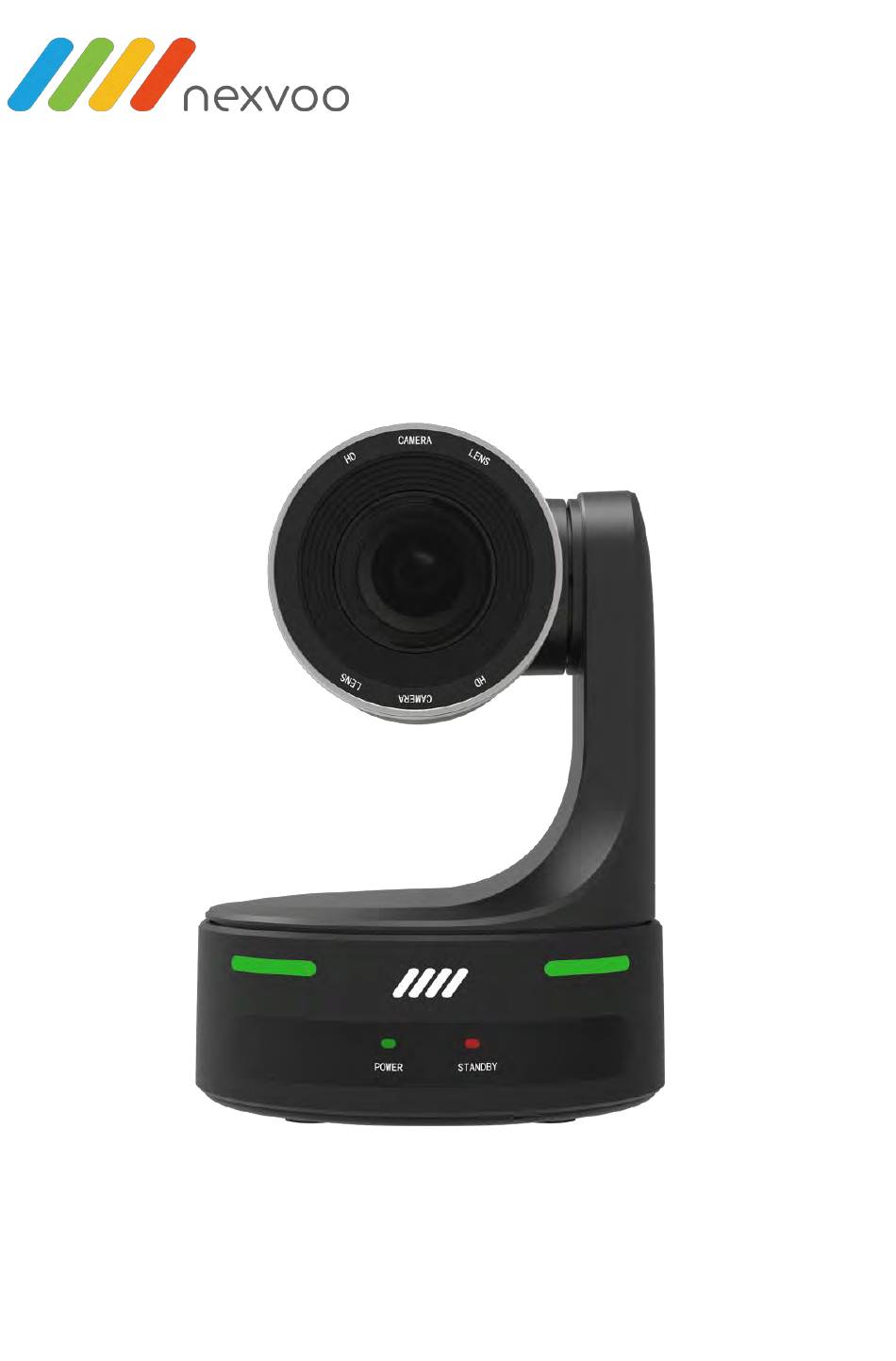

- Page 1 Nexvoo PTZ Video Camera USER MANUAL (Model: N412 & N420)
- Page 2 Video conference camera overview Preface Thank you very much for using Nexvoo PTZ video camera. Please read this manual in detail and use accordingly. This manual introduces the function of video camera, opening and operation principle in detail. The PTZ video camera is high-quality and flexibility with a remote pan355° /tilt 120° operation and image flip, and a DSP dealing integration module input.
- Page 3 Packing list Please check up all devices inside while open package. Remote controller (1) Video camera------------------------1 Remote controller------------------1 USB cable----------------------------1 HDMI cable---------------------------1 Power adapter----------------------1 RS232 cable--------------------------1 Bracket--------------------------------1 User manual-------------------------1 Video camera (1) USB cable (1) HDMI cable (1) Power adapter (1) Rs232 cable (1) Bracket ( ) 1 User manual (1)
- Page 4 Parts and Introduction 1.Lens 2.Sensor for the remote control 3.Power lamp 4.Standby lamp 5.Tally lamp 6.RJ-45 network video output 7.RS-422/485 VISCA/PELCO 8.HDMI video output 9.Line-in 10.3G-SDI HD video output 11.IR select switch 12.USB3.0 video output 13.VISCA RS-232 IN/OUT connector 14.DC IN 12V input 15.Power on/off 14 15 16.Local hole...
-
Page 5: Remote Controller
Remote Controller IR transmit POWER PAN-TILT RESET CAMERA SELECT POSITION: (Number area; PRESET: press PRESET then press 1-9 for set up preset position) RESET: (Press RESET and then press1-9 for eliminate preset position) MENU S-OUT: SWITCH TO 720P50 PAN-TILT ; HOME for return middle position CLOSE THE MENU DATA-SCREEN: Switching color mode Reserved buttons have no function... - Page 6 VISCA RS-232 Video camera Windows D-Sub 9 pin 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.N.C. 7.RTS 8.N.C. 8.CTS Video camera EVI Camera or Mini DIM 8 pin serial 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD...
- Page 7 Basic Operation Basic Operation A、PTZ control 1. The camera is powered on, and the pan/tilt reset action will be performed automatically. 2. Press the arrow keys to change the direction of the cameraWhile checking the image on the screen, press the desired arrow key. To move the camera little by little, just press the button once.
- Page 8 Operate multiple cameras with the remote control 1. Set a different remote control address in the serial port option of the camera menu that you want to operate remotely. 2. Set the remote control to send different infrared address channels by using the remote control F1-F4 combination shortcut keys.
- Page 9 Due to product iteration, the product menu is subject to change without The Menu prior notice, subject to the actual object . Serial Port MENU This option can set protocol, address, baud rate, speed scale, speed limit when the camera is Serial Port>...
- Page 10 The Menu 1.Serial Port Settings Serial Port Settings Sub Menu Protocol: Can set auto/visca/pelco-p/pelco-d. Serial Port Settings> Address: Can set camera serial communication address. Protocol: <Auto> Address: <1> Address Fixed: This option is used to cover automatic distributing order under VISCA Address Fixed: <OFF>...
- Page 11 The Menu 3.Exposure Settings Exposure Settings Sub Menu Backlight Can be adjustable in auto mode, Exposure Settings> open/off. De-Flicker:This option can set the reflesh AE Mode: <Auto> frequency of camera to resolve problem of Backlight: <OFF> image blink caused by light source. De-Flicker: <OFF>...
- Page 12 The Menu Image Settings Sub menu 5.Image Settings 2D NR: 2D noise reduction, 0-15. Image Settings> 3D NR: 3D noise reduction, 0-15. 2D NR: <8> Bright: Can set image bright, 0-15. 3D NR: <8> Contrast: Can set image contrast, 0-15. Bright: <8>...
- Page 13 The Menu 8.Network Settings Network Settings Sub menu Can check the network information of camera, Network Settings> can set the DHCP on/off. DHCP: <OFF> IP Address: 192.168.1.118 Subnet mask: 255.255.255.0 Default gateway: 192.168.1.1 Back> Roll Change [HOME] Enter [CLOSE] Back 9.System Settings System Settings Sub menu Language: Camera menu operation language...
- Page 14 Network Connections Connection mode Connection mode Direct connection mode: connect the camera directly to the computer with a network cable. Network connection mode: connect the camera to the Internet network, and access the network through a router or switch. Users can log in to the device through the browser. The computer must have the network segment where the camera IP is located.
- Page 15 Configuration System 1) System settings: display the basic information of the device (not adjustable), time configuration is used to configure the system time; 2) System maintenance: can be used for software upgrade, restore factory settings and restart the device. Internet 1) Basic Configuration.
- Page 16 Configuration Image Image parameters The image parameters interface can make the following adjustments to the image effect. Image adjustment: it can set picture brightness, contrast, saturation, sharpness, chroma, 3D noise reduction and other functions. Exposure: Exposure mode, shutter speed, gain, aperture, etc. can be set. Image enhancement: video format can be set, left and right mirroring, up and down mirroring, backlight compensation.
-
Page 17: Technical Parameter
Due to the continuous iteration of the product, if there Technical parameter is any parameter change, it is subject to the actual product. Image Sensor SONY 1/2.8" Progressive CMOS Pixels 3.1/3.5 Megapixels Image Sensor，2.07 Megapixels Effective Pixels Resolution 1080p60/50/59.94,1080i60/50/59.94,1080p30/25/29.97,720p60/50 Signal PAL/NTSC Lens 12X/20X... - Page 18 Nexvoo, Inc. Asia office: No.56-58, North 5F, Huoju Plaza, Huoju Road, Huli district, Xiamen city, Fujian province, China support@nexvoo.com USA office: 9325 Uptown Drive, Suite 900 IN 46256 Indianapolis, USA support@nexvoo.com EMEA office: Poort van Midden Gelderland Rood 22 6666 LT Heteren, Netherlands...
