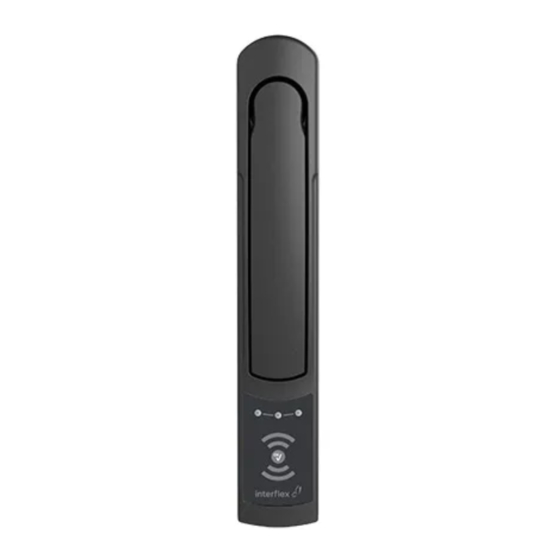

- Page 1 IF-191 Server Cabinet Lock FA-191-xxx...
-
Page 2: Table Of Contents
Maintenance, cleaning, and disinfection ................15 Technical specifications ..................... 16 Disposal ..........................16 Declarations of conformity ....................17 EU Declaration of Conformity ................... 17 UK Declaration of Conformity ................... 17 © 2022 Interflex Datensysteme GmbH | IF-191 Server Cabinet Lock | 06.22... -
Page 3: General Information
Subsequent changes are not meant to be made. Default Rittal old Modulan Cabinet Backset MD Item Number Comment [mounting dimension in mm] Default 060TLR03 Modulan 22-3 060TLR03 M-MD Rittal 060TLR03S01 Push mechanism © 2022 Interflex Datensysteme GmbH | IF-191 Server Cabinet Lock | 06.22... -
Page 4: Scope Of Delivery
Control via time profiles from IF-6040 and IF-6020 access control systems Encrypted data exchange Booking response via LED display while credential is being read Black list for lost credentials prevents unauthorized access © 2022 Interflex Datensysteme GmbH | IF-191 Server Cabinet Lock | 06.22... -
Page 5: Target Group
This document is solely intended for experts and people trained in electrical engineering. Only perform the actions described in this document if you belong to this target group. Interflex Datensysteme GmbH is not liable for any damages caused by improper installation or initial operation. 1.5 Intended use The server cabinet lock IF-191 is designed for opening and closing server cabinet doors. -
Page 6: Installation And Configuration
2 Installation and configuration 2 Installation and configuration 2.1 Mounting to cabinet The Server Cabinet Lock can be mounted to all standard server cabinets. In addition, Interflex offers adapters for other server cabinets that are not compatible with the rotary locking mechanism. Prerequisites ü... - Page 7 Cover cap, long Cover cap, short Fastening screw for locking spindle To mount the Server Cabinet Lock on a standard cabinet, proceed as follows: 1. Loosen the retaining clip © 2022 Interflex Datensysteme GmbH | IF-191 Server Cabinet Lock | 06.22...
- Page 8 2. Hang the Server Cabinet Lock in the cutout on the door and press the spindle into the locking mechanism 3. Screw the locking mechanism to the Server Cabinet Lock from the inside of the door using screws © 2022 Interflex Datensysteme GmbH | IF-191 Server Cabinet Lock | 06.22...
- Page 9 2 Installation and configuration 4. Fasten the retaining clip with screw 5. Place the lock housing on the spindle and fasten it to © 2022 Interflex Datensysteme GmbH | IF-191 Server Cabinet Lock | 06.22...
- Page 10 The Server Cabinet Lock can alternatively be connected to power via the USB C socket on the bottom of the device. The connection is protected by a cover. © 2022 Interflex Datensysteme GmbH | IF-191 Server Cabinet Lock | 06.22...
- Page 11 2. Hold the Server Cabinet Lock against the inside of the door and mark the area where the cables can be inserted 3. Drill the hole within this marking Installation After pre-assembly, proceed as described for the standard cabinet. © 2022 Interflex Datensysteme GmbH | IF-191 Server Cabinet Lock | 06.22...
- Page 12 After pre-assembly, proceed as described for the standard cabinet. Vertiv Server Cabinet Lock Top linkage holder 2 mounting screws for offset drive 3 mounting screws for Compensating joint for linkage Server Cabinet Lock Bottom linkage holder © 2022 Interflex Datensysteme GmbH | IF-191 Server Cabinet Lock | 06.22...
-
Page 13: Configuration
The technical manuals can be found on our website: https://interflex.com/de-de/services/wissenszentrum/ 3 Operation The signaling is described in the sections Opening doors [} 14] and Activating/deactivating the permanently open mode. © 2022 Interflex Datensysteme GmbH | IF-191 Server Cabinet Lock | 06.22... -
Page 14: Opening Doors
Error reading the credential Green Configurable with door Authorized credential initialization card (sound during motor flag) Reading error Credential unauthorized, the reason can be retrieved from DoorManager under Diagnostics © 2022 Interflex Datensysteme GmbH | IF-191 Server Cabinet Lock | 06.22... -
Page 15: Activating/Deactivating The Permanently Open Mode
Do not use any aggressive cleaning agents or disinfectants for cleaning. If necessary, clean the surface with a soft, damp cloth. Only use disinfection agents that are specifically intended for disinfecting sensitive metallic surfaces and plastics. © 2022 Interflex Datensysteme GmbH | IF-191 Server Cabinet Lock | 06.22... -
Page 16: Technical Specifications
Once its service life comes to an end, the device must be disposed of properly as electronic waste. You can dispose of the device yourself or return it to the supplier. © 2022 Interflex Datensysteme GmbH | IF-191 Server Cabinet Lock | 06.22... -
Page 17: Declarations Of Conformity
The original manual is in German. Other languages are translations of the original manual. Version: 06.22 Interflex Datensysteme GmbH +49 711 1322 - 0 Epplestraße 225 (Haus 3) interflex.info@allegion.com 70567 Stuttgart, Germany www.interflex.com © 2022 Interflex Datensysteme GmbH | All specifications are subject to change without notice.
