For instruction video,
scan QR-code.
EN
Mounting instructions
DE
Montageanleitung
FR
Consignes d'installation
NL
Montagevoorschrift
ES
Instrucciones de montage
IT
Istruzioni di montaggio
PT
Manual de montagem
WALL_2225_2245_Mounting_Instr.indd 1

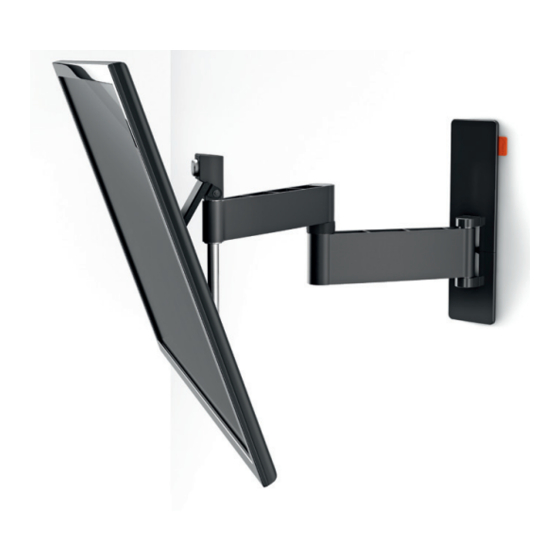

WALL 2225
Οδηγίες συναρμογής
EL
SV
Montageföreskrifter
PL
Instrukcja montażu
RU
Инструкция по сборке и установке
CS
Návod k montáži
SK
Návod na montáž
HU Szerelési előírás
WALL 2245
TR
Montaj kılavuzu
RO Instrucţiuni de montaj
UK
Вказівки по монтажі
BG Инструкции за монтаж
設置の説明書
JA
ZH
Advertisement
Related Manuals for vogel's WALL 2245
Summarization of Contents
Screen Attachment
Attach Mounting Strips to Screen
Fix the mounting strips (C) to the TV screen, ensuring clear access to connectors.
Secure Strips to TV Screen
Fasten the strips (C) to the screen using the correct bolts (G), referring to screen manual.
Prepare Strips by Loosening Bolts and Removing Caps
Loosen bolts on strips (C) and remove protective caps (R) for subsequent steps.
Slide Mounting Bars onto Screen Strips
Slide the mounting bars (B) over the strips (C) attached to the television screen.
Finalize Strip Attachment: Tighten Bolts and Replace Caps
Tighten all bolts securely and re-attach the protective caps (R) to the bars (B).
Wall Mounting Procedure
Remove Wall Mount Covers
Slide off the decorative covers (Q) from the wall mount (A) before wall installation.
Drill Wall Mounting Holes
Drill pilot holes into the wall according to the specified diameter and depth.
Secure Wall Mount to Wall
Screw the wall mount (A) firmly to the wall using appropriate fixings.
TV Installation and Final Adjustments
Re-attach Decorative Covers
Slide the decorative covers (Q) back onto the wall mount (A) after TV attachment.
Loosen and Remove TV Thumbscrews
Loosen the upper thumbscrew and remove the lower thumbscrew for TV removal.
Hook TV onto Wall Mount
Hang the TV onto the wall mount (A) by engaging the upper thumbscrew in the V-recess.
Position and Secure TV Level
Level the TV and then tighten both thumbscrews to secure its position.
Cable Management and Tilt Adjustment
Route cables neatly and adjust screen tilt by tightening/loosening screw S.
Detach TV from Wall Mount
Procedure to safely remove the TV from the wall mount by adjusting thumbscrews.
