Turn your DUMB switches Smart and control them from anywhere in the world. The Smart Wi-Fi Switch
module supports up to three gang switches in one-way and two-way wiring system and turns any traditional
switch control into smart and wireless control while keeping traditional manual control intact.
Control connected loads and lights from anywhere using Wi-Fi, an internet connection and the Homcloud
Smart app; that is all you need, no hub required.
Simplify control of your home - schedule lights and connected loads to turn on/off at specific times or based
on sunrise/sunset, easily group smart devices into rooms, and create scenes to activate multiple lights or
switches at once.
PRODUCT FEATURES
2.
Works with 802.11 b/g/n 2.4GHz wireless network (no hub required);
Wi-Fi network configuration with EZ (Smart Config) and AP(Access Point) mode;
Supports up to 3-gang switches using DIP switch;
Supports Max load up to 230V/10A
Use Switch 1 to configure Wi-Fi network
Supports OTA upgrade
Supports device sharing with family;
CE certified;
Works with Amazon Alexa, Google Home and IFTTT;
CAUTION:
• DO NOT TOUCH ANY CABLE WHEN THE ELECTRIC CURRENT IS ACTIVE
• DO NOT WET OR KEEP HUMIDITY AND SOURCES CLOSE
• MAXIMUM TOTAL CURRENT 10 A. DO NOT EXCEED THE RECOMMENDED LIMITS.
• MAXIMUM POWER 2300 W. DO NOT EXCEED THE RECOMMENDED LIMITS.
• KEEP OUT OF REACH OF CHILDREN
• USE ONLY IN THE INDOOR ENVIRONMENT
• INSTALLATION OF THE DEVICE MUST BE CARRIED OUT BY A PROFESSIONAL INSTALLER OR ELECTRICIAN
PRODUCT DESCRIPTION
3.

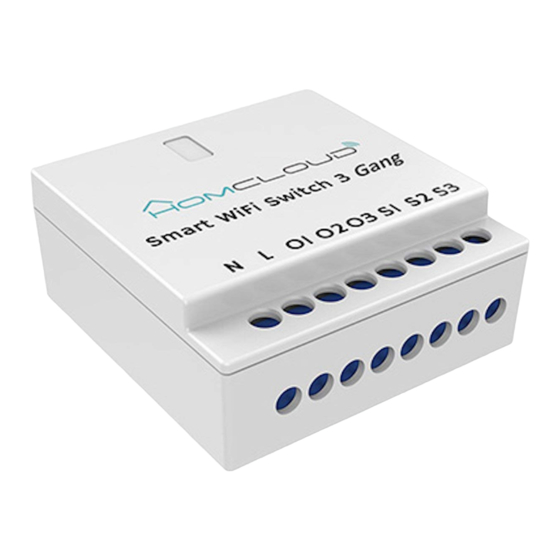

Illustration of the 3 gang switch and its components:
User Manual ENGLISH - 3 Gang Wi-Fi Smart Switch
MODELLO: SP-SW3R --- CODICE HOMCLOUD: AS-SM3

Advertisement

loading
Need help?

Need help?

Do you have a question about the AS-SM3 and is the answer not in the manual?

Questions and answers

Summary of Contents for HOMCLOUD AS-SM3

  • Page 1 Control connected loads and lights from anywhere using Wi-Fi, an internet connection and the Homcloud Smart app; that is all you need, no hub required.
  • Page 2 N: Neutral Wire input port  L: Live Wire input port  O1: Live Wire output port 1, Light input port 1  O2: Live Wire output port 2, Light input port 2  O3: Live Wire output port 3, Light input port 3 ...
  • Page 3: Product Specifications

    Con la presente, Life365 Italy S.p.A., dichiara che questo dispositivo wireless è conforme ai requisiti essenziali e ad altre disposizioni correlate della direttiva 2014/53/UE del Parlamento Europeo e del Consiglio. La dichiarazione può essere consultata presso il sito web www.homcloud.com/doc. “Homcloud” è un marchio registrato di Life365 Italy S.p.A.
  • Page 4 Note:please disconnect the power before operation Remark: Below blue wire is neutral wire(N)  The red wire is live wire(L)  Wiring diagram of one way switch: Wiring diagram of two way switch: Remark: The connection of two-way switch is only valid in the above connection mode, and access to O3/S3 is invalid Wiring diagram of three way switch:...
  • Page 5 4)Wiring diagram of single pole dual control switches as Traveler system Remarks: Two way and three way switch connecting into dual control switch, please refer to one way switch connecting way shown as below. 5)Wiring diagram of AC powered Motor curtain – WITH BOTTON...
  • Page 6  INSTALL APP AND REGISTER AN ACCOUNT 6.1 Scan the following QR code to download Homcloud APP for Android and iOS System. Or you can search and download the APP named as ‘Homcloud’ from Apple store and Google Play. 6.2 Launch the APP and register an account with your email address or mobile number then login;...
  • Page 7 5s. Please pay attention to electrical safety directions before this operation. To prevent electric shock, do not touch the RF wire terminal and antenna body. 7.3 Launch the Homcloud APP and login, Click Add Devices -> All -> ‘Other product’ to start pairing the device.
  • Page 8 AP mode: Click AP Mode, make sure your APP is internet available .And device and APP both  work in AP mode. Confirm to input the SSID and Password of Wi-Fi network, then select the Device AP name with SmartLife-xxxx in Wi-Fi list then back to App to finish the device adding. 7.7 Remove device 1) Click “Remove Device”...
  • Page 9 UI for three way switch 2) Shadow control UI The button is connected to the Homcloud module and access the bidirectional control between the wall  button and the app in the phone. Press the wall button connected to S1 once (up or down) to open / close the roller shutter / curtain etc.
  • Page 10  8.1 Login your Alexa Account on PC or Mobile Phone 8.2 Link your Homcloud account to Alexa account (Mobile Phone as sample) Tap "Skills" in the hamburger menu, then search "SmartLife". Select " SmartLife " and tap "ENABLE" to enable the Skill.
  • Page 11 9.1 Login your Google Home Account on Mobile Phone 9.2 Link your Homcloud account to Google Home account (Mobile Phone as sample) Tap "Home Control" in the hamburger menu on the Google Home app's home page, then tap "+".
  • Page 12 Find "Smart Life" in the list. In the new window, select your device account’s region, type your device account and password, and then tap "Link Now". After you assign rooms for devices, your devices will be listed in the Home Control page. 9.3 Voice control your devices Now you can control your smart devices through Google Home.
  • Page 13 10.3 Setup the IFTTT applet From My Applets, click New Applet to create a new Applet. Create a trigger Click “this” to determine a trigger. You can search for “smart life” to choose a Smart life Trigger. As listed, the smart switch supports “Turned on”...
  • Page 14 For example: “IF 3R-Switch-Module is turned on, then send me an email at xxxxxxx@gmail.com” is created as an IFTTT applet. Q: The device fails to be added in account? A: 1. Make sure the Wi-Fi network is 802.11 b/g/n 2.4GHz; 2.
