Attention:
If not obey the instruction to operate, it might cause financial loss and light injury or heavy injury.
Introduction

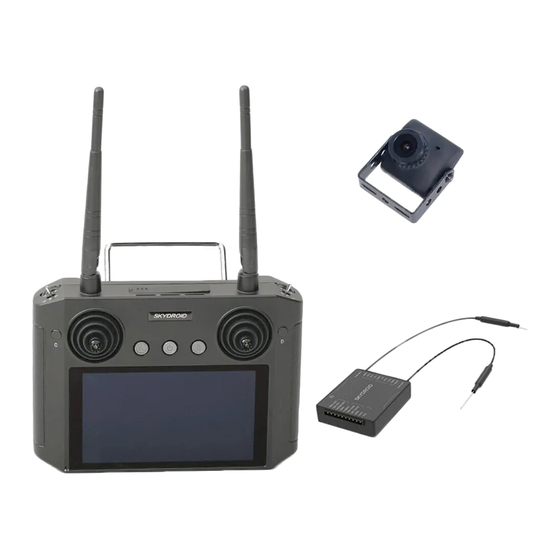

1、 Product Characteristics
series adopts GaoTongXiaolong 625 processor, equipped with Android embedded system,
R12
advanced SDR technology, and super protocol stack, so that the image is clearer, lower delay, far
distance, stronger anti-interference, to which aircraft, robots, industrial control equipment can be
applied.
2、Main usage and Application range
It is used for remote control operation of helicopter, fixed wing, multi-rotor wing, car, ship and
other video image transmission (with optional camera), data transmission, and control of UAV
flight
3、 Spec and Parameters
Model
Working Voltage
Frequency
Upgrade
Dimension
Duration of Flight
Application
Model
Working Voltage
Dimension
Frequency
SKYDROID
Remote Controller Parameter
H12
4.2V
2.400-2.483GHz
APP upgrade
190*152*94mm
6-20 hours
helicopter, fixed wing, multi-rotor wing, car, ship
Receiver Parameter
R12
4.5-5.5V
51*41*13
2420-2480MHz
User Manual
1
Channels
radio-frequency
power
FHSS
Weight
Battery
Charging Port
Channel
Working current
Weight
Modulation Type
31
20DB@CE/23DB@FCC
FHSS
530g
10000mA/H
TYPE-C
31
140MA@5V
14g
QPSK
Advertisement
Table of Contents
Related Manuals for Skydroid R12
Summary of Contents for Skydroid R12
- Page 1 SKYDROID User Manual Attention: If not obey the instruction to operate, it might cause financial loss and light injury or heavy injury. Introduction 1、 Product Characteristics series adopts GaoTongXiaolong 625 processor, equipped with Android embedded system, advanced SDR technology, and super protocol stack, so that the image is clearer, lower delay, far distance, stronger anti-interference, to which aircraft, robots, industrial control equipment can be applied.
-
Page 2: Remote Controller
4、Introduction on RC letters Remote Controller Long press the power button for 4 seconds to open the remote controller. Remark Remark 2.4G 3dB Antenna Pump Switch B Mode E Switch Rotor X2、Y2 Dial G Button D Return C Dial H Rotor X1、Y1 AB Point Setting F 5.5 inch Screen... -
Page 3: Mode Key
Receiver Name Description Name Description RED LED Red Led 2.4 ANT Antenna GN LED Green LED MODE KEY Mode Key Camera interface USB 5V DM/CH9 USB Upgrade DP/CH10 Interface Data Transfer Interface /CBUS Expansion Interface SBUS SBUS 2.4G ANT Antenna Receiver Status light Receiver Status Solid Green light... - Page 4 6、Working Condition Power and Charging: H12 series has a built-in integrated rechargeable lithium battery, compatible with the market standard Micro USB interface, and a power adapter of 5V specification (such as USB charger for digital products like mobile phones and cameras) for charging.
-
Page 5: Usage And Operation
Usage and Operation 1、Pre check and preparation ① Check whether the remote control power is sufficient before use. ② Before use, please check whether the antenna is placed as required to obtain the best effect. ③ Please make sure the firmware has been upgraded to the latest version for the first use. ④... - Page 6 Status bar ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ （1）Bluetooth opening prompt （2）WIFI Signal （3）SIM card prompt window (the picture shows the state without SIM card inserted) （4）Power display (charging status in the picture) （5）Time display （6）View background process （7）...
- Page 7 H12Tool Introduction （1）For switching the hand settings （2）For checking rubber capacity （3）For matching the remote controller with other receivers (the matching method is introduced below) （4） For checking the image returned by the camera （5）In the advanced options, you can adjust the channels, upgrade the rocker firmware, check the signal strength, modify the receiver serial port baud rate (password needs to get from the technicians) Frequency Matching...
- Page 8 （2） Rocker Calibration H12Tool (1)Put the rocker G, H back to the center, and then turn off he remote controller (2) Long press D button to power on, and release D button after turning on the remote controller (3) When calibrating the rockers, please check the rubber capacity in the H12Tool and open the auxiliary calibration.
-
Page 9: Transportation And Storage
Common Questions and Solutions 1. Can other APPs be installed on the remote controller? The remote controller terminal permissions are all open, without any special software and limited software installation and unloading. 2. Data transmission cannot be connected Check whether it is connected to the remote controller at UDP type, and whether the listening port is 14551. - Page 10 FCC Statement: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause...
