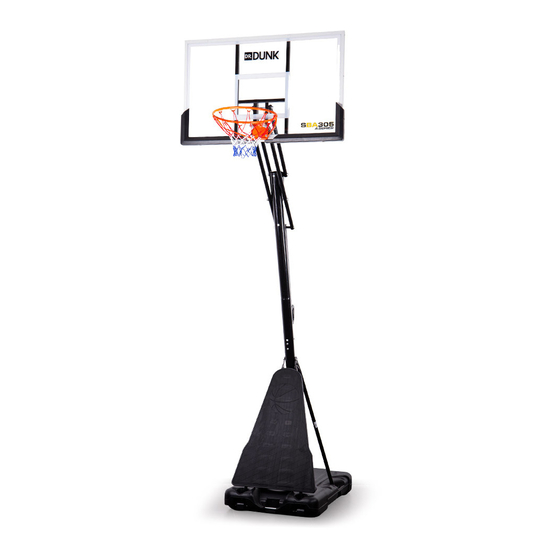

Heavy-Duty
Basketball Stand
SBA305 - A series
Video Tutorial:
Assembly
User Manual
[Revision 2.0 March 2020]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this
manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2020 Dr. Dunk
Advertisement
Table of Contents
Related Manuals for Dr. Dunk SBA305
Summary of Contents for Dr. Dunk SBA305
- Page 1 Heavy-Duty Basketball Stand SBA305 - A series Video Tutorial: Assembly User Manual [Revision 2.0 March 2020] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 2: Safety
Heavy-Duty Basketball Stand - SBA305 - A Series Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the... - Page 3 Heavy-Duty Basketball Stand - SBA305 - A Series General Electrical Safety General Electrical Safety General Service Information • Inspect electrical equipment, extension • Electrically grounded equipment must • The equipment must be serviced or cords, power bars, and electrical fittings...
-
Page 4: Safety Symbols
Heavy-Duty Basketball Stand - SBA305 - A Series Safety Symbols The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc, replace them. - Page 5 Heavy-Duty Basketball Stand - SBA305 - A Series Carbon-Monoxide Hazard Pull Hazard Slope / Fall Injury Hazard "Slam Dunk" Warning Do not use the product in Be aware that the product Be aware that using the Do NOT attempt "slam dunk"...
-
Page 6: Table Of Contents
Heavy-Duty Basketball Stand - SBA305 - A Series Table of Contents Safety ..............................2 Safety Symbols ............................4 Parts Identification ........................... 7 Assembly and Set-Up ........................11 Operation ............................16 Height Adjustment ............................16 Moving the Basketball Stand ........................16 Reference Images ............................ -
Page 7: Parts Identification
Heavy-Duty Basketball Stand - SBA305 - A Series Parts Identification Part No Name & Specification Qty. Remarks Connect backboard brace (longer) (T) & outer lifter A1, A2, A3, A4 M12*180MM pole (EE) Connect link block of top pole (Z) & backboard... - Page 8 Heavy-Duty Basketball Stand - SBA305 - A Series Part No Name & Specification Qty. Remarks Link block of top pole Base Backboard Protector pad Outer lifter pole Inner lifter pole Wheel bracket Large spring E&OE © 2020 Dr. Dunk...
- Page 9 Heavy-Duty Basketball Stand - SBA305 - A Series NOTE: Please measure all hardware and check the you have the correct quantities before starting assembly. Some spacers may not be on the bolts as shown. Disassemble and re-assemble where needed. E&OE...
- Page 10 Heavy-Duty Basketball Stand - SBA305 - A Series E&OE © 2020 Dr. Dunk...
-
Page 11: Assembly And Set-Up
Heavy-Duty Basketball Stand - SBA305 - A Series Video Tutorial: Assembly and Set-Up Assembly When the pole joint Connect the top pole (W), middle pole (X) has a burr or pipe end and bottom pole (Y). Pay close attention to deformation, strike the the direction of these three poles. - Page 12 Heavy-Duty Basketball Stand - SBA305 - A Series Secure the rim (AA) on the backboard (CC) with bolts H1 – H3 and M1 – M3. Note that the 2pcs. Of small springs (R) must be installed on the top 2 holes of the rim (AA) with bolts H1 – H4).
- Page 13 Heavy-Duty Basketball Stand - SBA305 - A Series Install the link block (Z) at the top end of the top pole (W) with bolts K1 – K4. The bushing (K2) must be put at the side of the top pole with bolt K1 to prevent the top pole from bending out of shape.
- Page 14 Heavy-Duty Basketball Stand - SBA305 - A Series This end should face the backboard. Hang the other end of the large spring (HH) on bolt E1 with a wrench. Remove the bolt holding the lifter pole. This will allow you to adjust the distance between the backboard and the spring.
- Page 15 Heavy-Duty Basketball Stand - SBA305 - A Series For safety reasons, it is recommended to fill up the tank with sand instead of water. If a small leak develops, water might run, allowing the stand to fall over and cause personal injury and /or death or property damage. Place the base on a smooth surface only, away from any sharp objects that might be able to puncture it.
-
Page 16: Operation
Heavy-Duty Basketball Stand - SBA305 - A Series Operation Height Adjustment As shown in the image below, hold the lifting handle bar (EE) and move it up or down. Moving the Basketball Stand 1. Adjust the basketball stand to its lowest height level before moving it. -
Page 17: Reference Images
Heavy-Duty Basketball Stand - SBA305 - A Series Reference Images Height adjuster should be facing the rear of the unit E&OE © 2020 Dr. Dunk... -
Page 18: Specifications
Heavy-Duty Basketball Stand - SBA305 - A Series Specifications Material Steel Frame and Rim Backboard Shatterproof polycarbonate Nylon Backboard Dimension 130 x 80cm Backboard to ground Height Adjustment 295-370cm Rim to ground Height Adjustment 230cm-305cm Main Tube Diameter 8.6cm Rim Inner Diameter... - Page 19 ©2020 Dr. Dunk. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
