Summary of Contents for OSHIMA OB-900

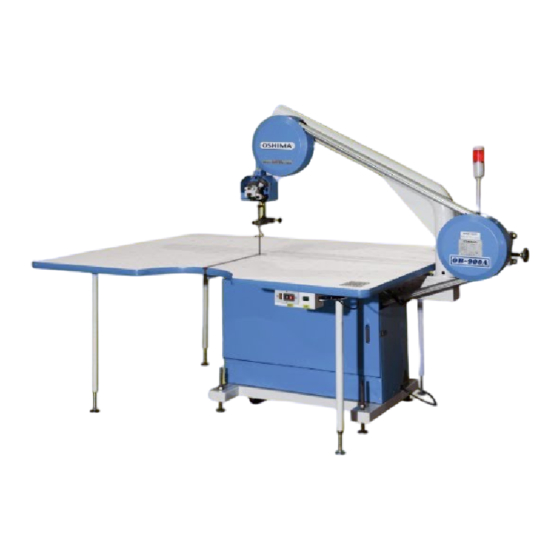

- Page 1 欢迎使用“欧西玛”带状式裁剪机 Thank you for choosing “OSHIMA” BAND KNIFE CUTTING MACHINE 使用前，请详阅 BEFORE using，PLEASE READ CAREFULLY OB-700 OB-700A OB-700EA OB-900 OB-900A OB-900EA OB-1200 OB-1200A OB-1200EA 使用说明书 OPERATING MANUAL - 1 -...
-
Page 2: Specifications
1． ( SPECIFICATIONS) Model OB-700/EA OB-700A/I OB-900/EA OB-900A/I OB-1200/EA OB-1200A/I Power 3P/380V 1P/220V 3P/380V 1P/220V 3P/380V 1P/220V Table Size 1200*1500mm 1500*1800 mm 1500*2400 mm 180mm 180mm 280mm Cutting Capacity Arm Length 700mm 900mm 1200mm Knife Size 0.45*10* 3500 mm 0.45*10*3860mm 0.45*10*4560 mm... - Page 3 grinding stones work evenly. e) Please always keep the machine and its parts clean (such as: electronic components, blower, and bearings ) and fuel them. Once the knife band is worn out, please replace to prevent from danger. g) After moving and installing machine, please do keep machine in horizontal. h) Please do not replace any parts of the machine, and do leave the maintenance to professional technician.
- Page 4 Assembly of knife (see fig.6.7.and A new knife is coiled. Uncoil the knife carefully. Install the knife to the pulley (B) and hold the knife on the pulley with the knife clip. Install the knife similarly on the pulley (C). 4 Finally install the knife on the pulley (A).
- Page 5 Securing cutter frame (see fig.10) Carry the frame to the cutting shop. Set the frame to a desired operating height with the adjusting screw (21). Lock the position with the nuts (21-1) attaching the table legs (4) to the underside of the table (3) with screws. Turn and lower the table support screws (4-1) till they come into contact with the sole plates (22).
- Page 6 【D】CUTTING OPERATION 9. Cutting (see fig.13.) Switch on the power supply. Turn on the blower. An air layer is formed between cloths to be cut and the table surface so that the cloths can be moved lightly on the table. Holing the cloths with both hands, feed them to the knife.
- Page 7 error code and the motor comes to standing. To reset the protection function, eliminate the cause of failure and press the stop key (reset key) on the control panel (9). Be sure the motor is dead standing when pressing the stop (reset) key. 【E】GRINDER Normal grinding condition (see fig.15.16.and 17.) It is normal to have sparks generated...
- Page 8 Wear of knife and grinding stones (see fig.20.) The knife or the grinding stones are worn if the knife is not ground (or sparks are not generated when the grinder lever is pulled.) Loosen the lock nut. Pull the grinder lever. And turn the wing screw counterclockwise slowly.
- Page 9 【F】REPLACEMENT OF KNIFE 18. When to replace The width of a brand new knife is 10mm and reduces little by little each time ground. Replace the knife if the width is reduced to about 3mm. 19. Removal of knife (see fig.21) a) Remove the table plate (13).
- Page 10 - 10 -...
- Page 11 700AB014 砂輪止滑圈 Ring 700AB043 刀具合固定座 Fixed base 700AA017 固定塊 Fixed block 梅花手柄(M8*40L) ZW0053 Shaft 700AB016 升降軸心 Axis (for OB-700/900) 1200AB001 升降軸心 Axis（for OB-1200） 700AB011 刀座固定塊 Fixed block for the knife base 700AB017 刀座 Knife base 梅花手柄(M8*40L) ZW0053 Shaft 700AB018 墊塊 (刀座內) Wad (inside the knife base) 700AB051 刀帶擋杆...
- Page 12 - 12 -...
- Page 13 Cover for the knife 刀帶輪 700AB041 Band knife 1 組 錐形止環ψ24*ψ21.3*ψ20*5 JF3001 Stop ring 刀片下蓋護罩 700AB047 Cover for the knife 墊圈 700AB012 刀蓋 555MM(鋁軌) Knife cover(FOR OB-700) ZW0336 刀蓋 650MM Knife cover(FOR OB-900) ZW0338 刀蓋 850MM Knife cover(FOR OB-1200) ZW0348 - 13 -...
- Page 14 - 14 -...
- Page 15 鼓風機 220V DM0201-2 Blast furnace 傳動皮帶輪(小) 700AB034 Wheel for pass belt (small) 仿中古輪(美國輪)3” ZW0132 Wheel 水平調整杆”長 M18*220L 700AB053 Horizontal adjusted rod 三相交流馬達(鋼板)4P 11HP 卧 DM0142 Motor 下層機組 700AA001 Plate(for OB-700) 下層機組 900AA001 Plate(for OB-900) 下層機組 1200AA001 Plate(for OB-1200) - 15 -...
- Page 16 - 16 -...
- Page 17 機械 零件目錄 NO.4 序號 部件編號 部件名稱規格 數量 Ref No Parts No Description Customer 培林 UCF205(需車溝) JB1025 Bearing 墊圈 700AB012 1 組 錐形止環ψ24*ψ21.3*ψ20*5 JF3001 Stop ring 傳動皮帶輪(大) 700AB042 Wheel for pass belt (big) 培林 UCF205 JB1025 Bearing 單列向心球軸承 608ZZ JB2061 Bearing 三角皮帶...
- Page 18 - 18 -...
- Page 19 Wind outlet 支撐杆 700AA016 Holding rod 水平調整杆”短”M18*195L 700AB054 Horizontal adjusted rod (short) 刀具上導片/刀具下導片 Knife guide 700AB029/030 工作臺 1500*1200*35MM ZA3253 Working table(for OB-700) 工作臺 1800*1500*35MM ZA3255 Working table(for OB-900) 工作臺 2400*1500*35MM ZA3256 Working table(for OB-1200) 變頻器 BBVFD007B21A DZ0301-1 Inverter 刀具導片調節杆 700AB031 Adjusted rod for the knife guide 臺板固定片...
- Page 20 - 20 -...
- Page 21 - 21 -...
- Page 22 - 22 -...
- Page 23 裁剪机变频器参数一鉴表 (VFD-B 系列) 顺序号 参数名 出厂值 单位 设定范围 现已更改为 定义单位比例常数 K 00-05 0.01 0.01-160.00 60HZ(700A) 最高频率 01-00 60HZ 0.01HZ 50-400HZ 50HZ(900A) 700(700A) 参数保护密码 00-08 00-65535 900(900A) 63(700A) 输出频率下限 01-08 00-100% 76(900A) 加速时间 01-09 0.1-3600 减速时间 01-10 0.1-3600 The list of inverter’s parameter (VFD-B 系列) order Description of...
- Page 24 1200 用 6 个 JD2048 Screw 平墊圈ψ6*ψ16*1.5 1200 用 12 个 JF1009 Ring 彈簧墊圈 6 1200 用 6 个 JF2006 Spring pad 0.45*3500 刀片 OB-700 專用 JG5064 Knife 0.45*3860 刀片 OB-900 專用 JG5063 Knife 0.45*4560 刀片 OB-1200 專用 JG5061 Knife 磨刀石ψ65*ψ59*ψ7.8*13 Grinding stone JF0010 水平尺...
- Page 25 - 25 -...
- Page 26 - 26 -...
- Page 27 Trouble Shooting Code Possibility Trouble shooting Inverter detects the electricity is 1. Check if the electricity for the abnormal motor and for the inverter is compatible. 2. Check if U-V-W of the inverter is short 3. Check if the connection of the motor is short or connecting to the ground 4.
- Page 28 The output electricity is over the 1. check if the motor is overload inverter capacity. 2. decelerate the setup value of the torque. 3. increase the capacity of the inverter output OL 1 The inner component is too high 1. check if the motor is overload and the relay reacts.
- Page 29 stop, inverter stops output Internal memory IC data input is Send back to the supplier for abnormal maintenance Internal memory IC data output is 1. press RESET and set up the abnormal parameter to be the original value 2. Send back to the supplier for maintenance Inverter detects the circuit is Send back to the supplier for...
