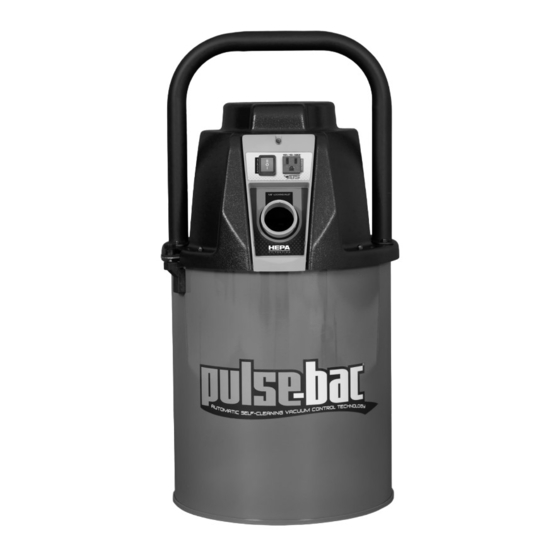

- Page 2 552, 552H & 576 OPERATO R S SER VI CE MAN UAL...
-
Page 3: Table Of Contents
Introduction to 500 mk.2 Series ............3 Patents and Awards ..............3 Specifications ...............3 Operation ..................4 Safety Tips During Operation ..............4 Emptying Tank ..................5 Servicing your Pulse-Bac® ...............6 Filter Instalation & Replacement ............7 HEPA Filter Replacement ..............8 Motor replacement ................9 Printed Circuit Board Replacement ...........10 Troubleshooting ................10 Limited Warranty ................11... -
Page 4: Introduction
This manual will help you to get the most from your purchase. Pulse-Bac® 500 MK.2 Series Vacuums are shipped free from defects; however you should make an initial inspection to ensure that no damage has occurred during shipping and familiarize yourself with the operation and proper use of your new Pulse-Bac®. -
Page 5: Unpacking & Checking Carton Contents
It can also cause harm to the operator. Listed below are the recommended extension cords for different lengths for use with your Pulse-Bac®. Do not use any other size of extension cord with your Pulse-Bac® but the sizes listed below. -
Page 6: Introduction To 500 Mk.2 Series
Pulse-Bac® Automatic Pulse-Clean Technology. This technology prevents the filters from clogging and losing suction during operation. Pulse-Bac 500 MK.2 series dust vacuums are designed to be used with hand-held power tools to capture, collect and control dust or for every day clean up of dry, non-combustible materials. -
Page 7: Operation
• To reduce risk of electrical shock, do not expose to rain and always store indoors. • Never operate the Pulse-Bac® dust vacuum in the presence of explosive vapors. • Always unplug the Pulse-Bac® when not in use and before servicing. -
Page 8: Emptying Tank
EMPTYING TANK • Remove the 2 knobs holding the Head Assembly on the Tank. (Refer Figure 2: Empty Tank) • Remove the Head Assembly using the handle on the Head Assembly and place it on a flat surface where It is safe from falling. •... -
Page 9: Servicing Your Pulse-Bac
SERVICING YOUR PULSE - BAC With regular use the Pulse-Bac® vacuum may require repair of critical components from time to time. This section of your manual will provide information for a qualified technician to make repairs to the machine when required. -
Page 10: Filter Instalation & Replacement
FILTER INSTALLATION & REPLACEMENT The 552 comes with two Individuallytested HEPA Certified filters installed. The 552H has an additional HEPA IEST RP CC007.3 filter installed. To replace twist on filters and ensure proper filter installation in the unit follow instructions below. -
Page 11: Hepa Filter Replacement
HEPA FILTER REPLACEMENT 552H Model HEPA Filter Removal: Figure 4 Step 1. Turn the switch to off position and unplug the power cord. Step 2. Remove the 4 x nuts, #10- 32 acorn, holding the top cover. Remove the 4 screws (405487) holding the Switch Panel to remove the Top Cover Step 3. -
Page 12: Motor Replacement
SERVICE DEPARTMENT 866.954.9700 Step 5. Place the motor mounting For 552 Models, follow steps 1-3 M-F 8AM-5PM of HEPA Filter Replacement (pg. plate on motor so that the 8) before completing the following 3mounting holes are aligned with steps. -
Page 13: Printed Circuit Board Replacement
PRINTED CIRCUIT BOARD REPLACEMENT Step 1. Disconnect the Pulse- Bac® from the electrical power Figure 6 source. Step 2. Remove the top cover assembly by removing the 4 1/4“- 20 Cap Nuts and the 4 screws (405487) holding to Switch Panel to remove the Top Cover. -
Page 14: Limited Warranty
Pursuant to the specific terms and conditions set forth herein, Pulse-Bac Vacuum Systems, LLC. (“Pulse-Bac Vacuums”) warrants all products manufactured by Pulse-Bac Vacuums™ for a period of one (1) year from any defects in materials and workmanship arising under normal usage and care. Components manufacturers offer separate warranty periods. -
Page 15: Important Notice
All products returned are subject to evaluation by Pulse-Bac Vacuums before any credit is issued. All credits are issued in the way there were received and may take up to 4-6 weeks after receipt of delivery.
