Summary of Contents for DASHCLEAN G32

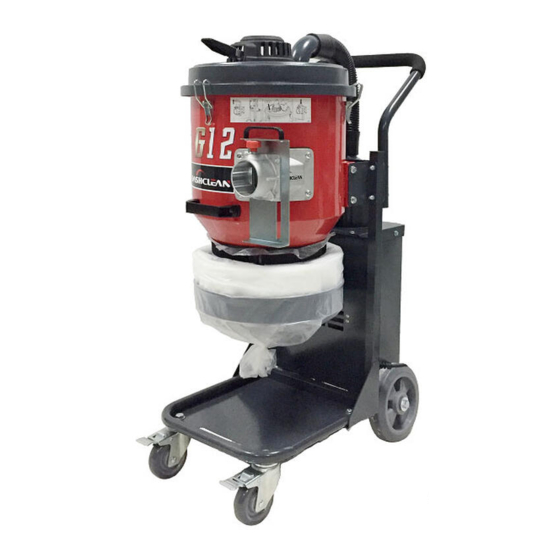

- Page 1 . d a s h c l e a n . c n Operating Manual Dust Extractor G12/G18/G22/G32 Read all instructions carefully before use...
- Page 2 Operating Manual G12/G18/G22/G32 Introductions Dear Valued Customer, Thank you for your trust to Dashclean and for your choosing the single phase, 2 stage HEPA dust extractor! We hope the machine will be to your satisfaction and meet your expectations. Dashclean is a manufacturer of dust extractors, industrial vacuums, air scrubbers, floor tools, accessories, and etc.
-
Page 3: Table Of Contents
Dust collecting and bagging……………….….….….….…. Filter change…………………….. ….….….….….….……… 13.1 Changing of main filter…………….….….….….….……… 13.2 Changing of HEPA filter……………….….…….….….……… Problem solving……………………….….….….….….……… Exploded view and part list- G12/G18…….….….….…… 15.1 G12 /G18 wagon frame assy……………………………… 15.2 G12 motor complete assy, 230v…………………………… 15.3 G12 motor complete assy, 120v……………………………... -
Page 4: Unpacking
Do not use to pick up any substances that is burning or smoking substances, such as cigarettes and matches, or hot ashes. Dashclean shall, under no circumstances, be deemed liable for any accidents or damage caused if the machine is used for other applications. -
Page 5: Identification Of Main Parts
Operating Manual G12/G18/G22/G32 Identification of main parts filter purge handle vacuum meter inlet open/close plate power switch die-casting inlet unit hour meter continuous fold bag assy. HEPA chamber 4” front swivel casters, lockable main filter chamber 8” wheels ergonomic handle page- 5 2020 rev. -
Page 6: Technical Data
Operating Manual G12/G18/G22/G32 Technical data data unit voltage max. power current 13.8 m3/h max. air flow mbar max. vacuum inch noise level dB(a) 65x42x107 65x42x107 dimensions with carton inch 25.6x16.5x42 25.6x16.5x42 weight data unit voltage max. power current m3/h max. air flow mbar max. -
Page 7: Declaration Of Conformity
And the machine or parts must be sent to us carriage free unless otherwise agreed. A warranty repair shall be conducted in a Dashclean facility only or in an authorized Technical Support Centre. If the repair claims appear warranty invalid, the costs relating to repair and/or replacement of parts shall be charged to the buyer. -
Page 8: Safety Precautions
Operating Manual G12/G18/G22/G32 Safety precautions The employer must inform and train the user according to the provisions of applicable laws. Use of the machine by untrained and unauthorized persons is strictly forbidden. Read the complete instruction manual before operating your dust extractor. Pay particular attention to the safety regulations. -
Page 9: Electric Safety
Operating Manual G12/G18/G22/G32 Electric safety Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. -
Page 10: Grounding Instructions
Operating Manual G12/G18/G22/G32 Grounding instructions The dust extractor must be grounded. If a dust extractor malfunctions or breakdowns, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The dust extractor is equipped with a cord having an equipment-grounding conductor and grounding plug. -
Page 11: Filter Cleaning Process
Operating Manual G12/G18/G22/G32 2) Filter cleaning process The machine is designed for filter cleaning by reverse air “jet-pulse”. The filter must be cleaned from time to time. This must be done before changing the bag collection system and should also be done when work is completed or whenever there is a poor suction. -
Page 12: Filter Change
Operating Manual G12/G18/G22/G32 Assemble the holder onto the machine and strap the opening facing upwards with the belt. Pull down the outside end and close it using a zip tie. Before changing a fold bag or a regular bag, make sure the filter cleaning cycle has been completed. -
Page 13: Problem Solving
Operating Manual G12/G18/G22/G32 Problem solving The machine is designed and manufactured for a specific severe environments and tasks. Its filter, seals, attachments, and fittings are customized or selected specifically for the applications. Please note that the machine must be protected from knocks and blows. -
Page 14: Exploded View And Part List
Operating Manual G12/G18/G22/G32 Exploded view and part list- G12 /G18 page- 14 2020 rev. 4.0... - Page 15 Drop-down fold bag BC00225 Fold bag holder BD01016 G12/G18 wagon frame assy ** BD01021 G12 Motor complete assy, 230v ** BD01024 G12 Motor complete assy, 120v ** BD01017 G18 Motor complete assy, 230v ** BD01016 G18 Motor complete assy, 120v **...
-
Page 16: G12 /G18 Wagon Frame Assy
Operating Manual G12/G18/G22/G32 BD01016, G12 /G18 wagon frame assy POS. Part Number Description BC00765 Wagon frame base BD00530 Front wheel kit BD00385 Real wheel kit BD00382 L bracket kit BD01018 Chassis kit BH00110 Rubber seal BD00345 Handle kit BC00404 Back plate... -
Page 17: G12 Motor Complete Assy, 230V
Operating Manual G12/G18/G22/G32 BD01021, G12 Motor complete assy, 230v page- 17 2020 rev. 4.0... - Page 18 Operating Manual G12/G18/G22/G32 Part list- BD01021, G12 Motor complete assy, 230v POS. Part Number Description BK00029 Semi-dome nut M8 BH00082 Seal washer M8 BC00387 Filter cover BM00287 HEPA filter BC00388 HEPA chamber BM00344 Motor seal BK00035 Bolt M6x12 BM00071 Female spacer L76.5...
-
Page 19: G12 Motor Complete Assy, 120V
Operating Manual G12/G18/G22/G32 BD01024, G12 Motor complete assy, 120v page- 19 2020 rev. 4.0... - Page 20 Operating Manual G12/G18/G22/G32 Part list- BD01024, G12 Motor complete assy, 120v POS. Part Number Description BK00029 Semi-dome nut M8 BH00082 Seal washer M8 BC00387 Filter cover BM00287 HEPA filter BC00388 HEPA chamber BM00344 Motor seal BK00035 Bolt M6x12 BM00071 Female spacer L76.5...
-
Page 21: G18 Motor Complete Assy, 230V & 120V
Operating Manual G12/G18/G22/G32 BD01017, G18 Motor complete assy, 230v BD01016, G18 Motor complete assy, 120v page- 21 2020 rev. 4.0... - Page 22 Operating Manual G12/G18/G22/G32 Part list- BD01017, G18 Motor complete assy, 230v POS. Part Number Description BK00029 Semi-dome nut M8 BH00082 Seal washer M8 BC00387 Filter cover BM00287 HEPA filter BH00110 Rubber seal BM00587 Motor seal BM00585 Motor 230V 1700W BM00586 Male spacer L84.0...
- Page 23 Operating Manual G12/G18/G22/G32 Part list- BD01016, G18 Motor complete assy, 120v POS. Part Number Description BK00029 Semi-dome nut M8 BH00082 Seal washer M8 BC00387 Filter cover BM00287 HEPA filter BH00110 Rubber seal BM00587 Motor seal BM00610 Motor 120V 1700W BM00586...
-
Page 24: Exploded View And Part List- G22
Operating Manual G12/G18/G22/G32 Exploded view and part list– G22 page- 24 2020 rev. 4.0... - Page 25 Operating Manual G12/G18/G22/G32 POS. Part Number Description BD00387 Cover kit BD00283 Purge handle kit BH00043 Bend connector seal BC00188 D50 bend connector BM00439 D50x560 hose with fittings BC00557 Top cover BM00432 Primary PTFE HEPA Filter BD00611 Hook 95 kit BC00558...
-
Page 26: G22 Wagon Frame Assy
Operating Manual G12/G18/G22/G32 BD00327, G22 wagon frame assy Part list- BD00327, G22 wagon frame assy POS. Part Number Description BC00382 Wagon frame base BD00385 Real wheel kit BD00530 Front wheel kit BH00077 Plastic insert 30x30 BD00382 L bracket kit BD00354... - Page 27 Operating Manual G12/G18/G22/G32 BD00326, Motor complete assy, 230v BD00411, Motor complete assy, 120v page- 27 2020 rev. 4.0...
-
Page 28: G22 Motor Complete Assy, 230V & 120V
Operating Manual G12/G18/G22/G32 Part list- BD00326, Motor complete assy, 230v POS. Part Number Description BK00111 Nut M8 BH00082 Seal washer M8 BC00387 Filter cover BM00287 HEPA filter BH00110 Rubber seal BD00360 Top cover kit BC00388 HEPA chamber BM00344 Motor seal... - Page 29 Operating Manual G12/G18/G22/G32 Part list- BD00411, Motor complete assy, 120v POS. Part Number Description BK00111 Nut M8 BH00082 Seal washer M8 BC00387 Filter cover BM00287 HEPA filter BH00110 Top cover rubber seal BD00360 Top cover kit BC00388 HEPA chamber BM00344...
-
Page 30: Exploded View And Part List- G32
Operating Manual G12/G18/G22/G32 Exploded view and part list– G32 page- 30 2020 rev. 4.0... - Page 31 Operating Manual G12/G18/G22/G32 POS. Part Number Description BD00387 Cover kit BD00283 Purge handle kit BH00043 Rubber seal BC00188 D50 bend connector BM00440 D50x750 hose with fittings BM00441 D50x800 hose with fittings BC00559 Top cover BM00433 Primary PTFE HEPA Filter BD00611...
-
Page 32: G32 Wagon Frame Assy
Operating Manual G12/G18/G22/G32 BD00332, G32 wagon frame assy Part list- BD00332, G32 wagon frame assy POS. Part Number Description BC00383 Wagon frame base BD00385 Real wheel kit BD00530 Front wheel kit BH00031 Plastic insert 30x30 BD00382 L bracket kit BD00364... -
Page 33: G32 Motor Complete Assy, 230V & 120V
Operating Manual G12/G18/G22/G32 BD00412, Motor complete assy, 240v BD00414, Motor complete assy, 120v page- 33 2020 rev. 4.0... - Page 34 Operating Manual G12/G18/G22/G32 Part list- BD00412, Motor complete assy, 240v POS. Part Number Description BK00111 Nut M8 BH00082 Seal washer M8 BC00387 Filter cover BM00287 HEPA filter BH00110 Top cover rubber seal BD00370 Top cover kit BC00388 HEPA chamber BM00344...
- Page 35 Operating Manual G12/G18/G22/G32 Part list- BD00414, Motor complete assy, 120v POS. Part Number Description BK00111 Nut M8 BH00082 Seal washer M8 BC00387 Filter cover BM00287 HEPA filter BH00110 Top cover rubber seal BD00370 Top cover kit BC00388 HEPA chamber BM00344...
-
Page 36: G32 Motor Complete Assy, 230V/50A
Operating Manual G12/G18/G22/G32 BD00622: Motor complete assy, 230v/50A page- 36 2020 rev. 4.0... - Page 37 Operating Manual G12/G18/G22/G32 Part list- BD00622, Motor complete assy, 230v/50A POS. Part Number Description BK00111 Nut M8 BH00082 Seal washer M8 BC00387 Filter cover BM00287 HEPA filter BH00110 Top cover rubber seal BD00370 Top cover kit BC00388 HEPA chamber BM00344...
-
Page 38: Accessories- G12/G18
Operating Manual G12/G18/G22/G32 Accessories– G12/G18 POS. Part Number Description BD00558 Hose kit D40x5.0m BC00033 D40 lower wand BC00034 D40 upper wand BD00030 Floor brush D40x400 BM00004 Spare brush Accessories– G22 / G32 POS. Part Number Description BM00442 Hose assy kit D50x7.5m... -
Page 39: Declaration Of Conformity
Dust extractor DASHCLEAN Dust extractor DASHCLEAN Dust extractor Manufacturer Company: Dashclean Industries Inc. Address: No.68, Danghu Rd, Wuzhong District, Suzhou Jiangsu Province, China Exporter Company: Dashclean Industries Inc. Address: No.68, Danghu Rd, Wuzhong District, Suzhou Jiangsu Province, China Standards Test Reports Certificate No. - Page 40 Operating Manual G12/G18/G22/G32 w w w . d a s h c l e a n . c n No.68, Danghu Road, Wuzhong District, Suzhou Jiangsu Province, China +86 512 6636.5949 biz@dash-clean.com Copyright 2019 DASHCLEAN 2019 REV. 3.0 page- 40...
