- Page 1 BASED ON EN 54-14 PROJECT MANUAL generating confidence...
- Page 2 Trade Center. CUSTOMER SATISFACTION. Certi�icates and Approvals Quality Management System of Mavili Elektronik A.S has been audited and conformed by LPCB (Loss prevention Certi�ication Board) / ENGLAND. ISO 9001:2015 Our Fire Detection and Alarm System products were certi�ied by...

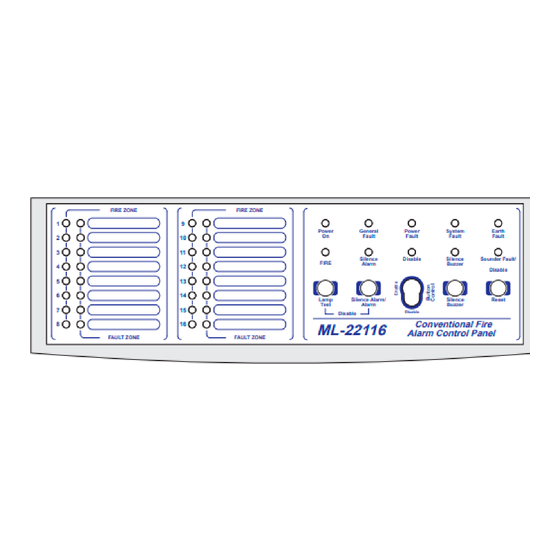

- Page 3 FIRE Alarm Buzzer Disable Lamp Silence Alarm/ Silence Reset Test Alarm Buzzer Disable Disable ML-22116 Conventional Fire Alarm Control Panel FAULT ZONE FAULT ZONE 1st Zone 2nd Zone In conventional system, each building should be de�ined at least zone. www.mavili.com.tr...
- Page 4 Alarm Control Panel FAULT ZONE FAULT ZONE In conventional systems, in case one zone covers more than one �ire compartment, zone boundaries should match with the �ire compartments and base area of the zone should not be over 400m². www.mavili.com.tr...
- Page 5 Audible and/or visual warning devices wiring should provide at least one audible and / or visual operating warning device in case of a short or open circuit in the system. www.mavili.com.tr...
- Page 6 Beam type smoke detectors are composed of 1 receiver and 1 emitter. Receiver and emitter should see each other in max. 100m distance. Receiver and emitter horizontally protects 7.5 m in both sides. With 1 pair of beam detector approximately an area of 1500m² be protected. www.mavili.com.tr...
-
Page 7: Smoke Detector
A heat detector covers a 5 m radius circle area. To avoid “blind points” among coverage areas, detectors’ coverage areas should be overlapping as shown in the �igure above. Thus, every detector covers a square of 7.1m x 7.1m, equaling to 50m². www.mavili.com.tr... - Page 8 If corridors have less than 2 m width, heat detectors can be mounted with max. 10 m gap. Heat detector There is no need to overlap the coverage area of the detectors. If corridors have more than 2 m width, heat detectors are mounted with 7 m gaps according the Table A. www.mavili.com.tr...
- Page 9 Due to cold air layer present just under the ceiling, smoke detectors should not be deeply mounted all the way into the ceiling and should be in the range of of the ceiling height to provide healthy operation of the optical chamber. www.mavili.com.tr...
- Page 10 If the top edge of walls, partitions, racks etc. are less than 300mm from ceiling, they are accepted as walls. In every vertical downward and horizontal direction from a detector, 500mm gaps should be provided. www.mavili.com.tr...
- Page 11 (H), then the conditions in the �igure should be applied. <1m >1m Air conditioner / Ventilation Detectors should not be mounted adjacent to an air inlet if it is closer than or if there is an air �low in the medium more than 1 m/s. www.mavili.com.tr...
- Page 12 If the ceiling is composed of a group of cells, a point type detector within the limits of radius in the Table A can enclose a group of cells. However, the total volume of cells enclosed by a detector should not exceed the value in �igure. www.mavili.com.tr...
- Page 13 Main stories of each stairs landing, detector should be placed. ELEVATOR ELEVATOR 1,5m Detector should be mounted inside area of circle, enclosing elevator doors, which has 1.5 m radius. www.mavili.com.tr...
- Page 14 Supervisor Graphic Monitoring and Control Software Intagrated with environmental Systems and Managing Supervisor; is a specially designed software which shows �ire and fault events and makes possible to monitor and control the �ire alarm system as in architectural and graphical way. IP cameras at the point where the �ire alarm is activated in case of �ire within the scenario can be automatically turned on or manually controlled with IP camera systems working with ONVIF protocol via software integration.
- Page 15 With ONVIF integration, �ire detection system can be software integrated and operate with all ONVIF based security systems. Possibility to communicate with other panels telephone modules ad �ire�ighter’s telephone units. Also, conference call can be done all telephones within network. www.mavili.com.tr...
- Page 16 Other System Other System UART output TCP/IP output Maxlogic addresaable �ire detection system can work as network up to 64 panels. ◗ Thus can be easily applied in big sites such as hospital,warehouse,university etc. ◗ Max. 130.048 devices can be used in Maxlogic Addressable �ire detection system.
- Page 17 Conventional Speaker multisensor detector All events can be monitored from any panel in network. ◗ All panels can be controlled from any panel in network. ◗ Cause-effect scenarios can be created between devices that are located in network. ◗ www.mavili.com.tr...
- Page 18 Fire alarm system or other assistive devices shouldn’t be hindered in case of any assistive devices fails. RS-232 RS-485 GPRS TCP/IP Graphical Monitoring and Control Software Mimic Panel Control and Monitoring devices should be possible to relate easily and without any dif�iculties with location of detector or manual callpoint. www.mavili.com.tr...
- Page 19 With UART connection cable for short distance access, with TCP/IP via internet for long distance TCP/IP can be connected to Supervisor. Superviewer Graph Supervisor Graphical Monitoring and Control Software Superviewer Android Superviewer Android software enables monitoring and control of �ire alarm system without the user's need to be at the computer. www.mavili.com.tr...
- Page 20 �ire�ighter’s telephone handset in the socket and without the need of dialing any number automatically calls the security center by "hot line" feature. Light Fitting <200mm Detectors should be mounted two times far away from the light �itting height. www.mavili.com.tr...
- Page 21 Table A. In case of a �ire risk below the raised �loor, �ire detectors (at least 1 per each independent zone) should be mounted below the �loor according to the values in the Table A. www.mavili.com.tr...
- Page 22 Manual call points should be mounted at walking distance up to 30 m. MCP are also placed near the escape routes. 60m (max.) In case of searching �ire source in the zone, 60 m. walking distance never be exceeded. www.mavili.com.tr...
- Page 23 Manual call points should be mounted on 1.4 m (+/-0.2) height from the �loor. > 2,1m Audible and / or visual warning devices and remote indicators should be mounted at height from �loor and cables should be properly protected. www.mavili.com.tr...
- Page 24 Minimum alarm sound levels can be heard from the all needed places. Alarm devices should be enough quantities in order to provide suggested alarm sound level. To wake sleeping people up, �ire alarm sound level should be at least 75 dB(A) at the edge of the bed. www.mavili.com.tr...
- Page 25 Announce / Alarm Matrix Panel Announce Input One or more microphones should be de�ined as a �ire microphone if �ire status message is needed to provide by a person. Fire microphones access should be limited with only authorised people. www.mavili.com.tr...
- Page 26 JH(st) H (�ire cable) 230V 2X1,5mm LIHH FE 180 50Hz AC EOL: End-of-line resistor Wiring used in �ire detection system should endure effects of �ire and �ire suppression at least 30 minutes or be properly protected to provide such endurance. www.mavili.com.tr...
- Page 27 A gas detector has detection coverage of 7.5 m radius circle. To prevent any “blind points” among the coverage areas, they should be overlapping as shown in the �igure above. Thus, every detector covers a square of 10.6m x 10.6 m, equaling to 112 m2 area. www.mavili.com.tr...
- Page 28 ~150cm Highly poisonous gas, carbon monoxide, occurs on incomplete combustion. It is dif�icult to detect, because it is colorless and odorless. It blocks oxygen in blood cells and, when breathed in high concentrations, may cause fatal poisoning. www.mavili.com.tr...
- Page 29 Methane (natural gas) is an explosive hydrocarbon gas. It is lighter than air and rises to ceiling in case of leakage. Therefore, a natural gas detector must be mounted 5-15 cm below ceiling and 150 cm horizontally within the range of possible gas leakage. www.mavili.com.tr...
-
Page 30: Conventional System
(ML-0140) wiring in conventional system. INTELLIGENT ADDRESSABLE SYSTEM LOOP (-) LOOP (-) LOOP (+) LOOP (+) Ground connection should be made Detector base (ML-0140) wiring in addressable system. * Please contact for short circuit isolated detector base connection diagram. www.mavili.com.tr... - Page 31 ADDRESSABLE SYSTEM Loop - Loop - Loop + Loop + Loop - Loop - Loop + Loop + LOOP (-) LOOP (-) LOOP (-) LOOP (+) LOOP (+) LOOP (+) The connection diagram of addressable manual call point (ML-1710). www.mavili.com.tr...
- Page 32 In this presentation’s images and drawings’ all rights are reserved. Without any written permission, do not use or copy any printed or electronic platform even refer this presentation. These information contains EN 54-14: 2004 standarts, manufacturing �irm recommendations, and product information. These informations are suggestions and Mavili Elektronik Tic. ve San. A.S. do not responsible for these informations, recommandations, and printer errors.
