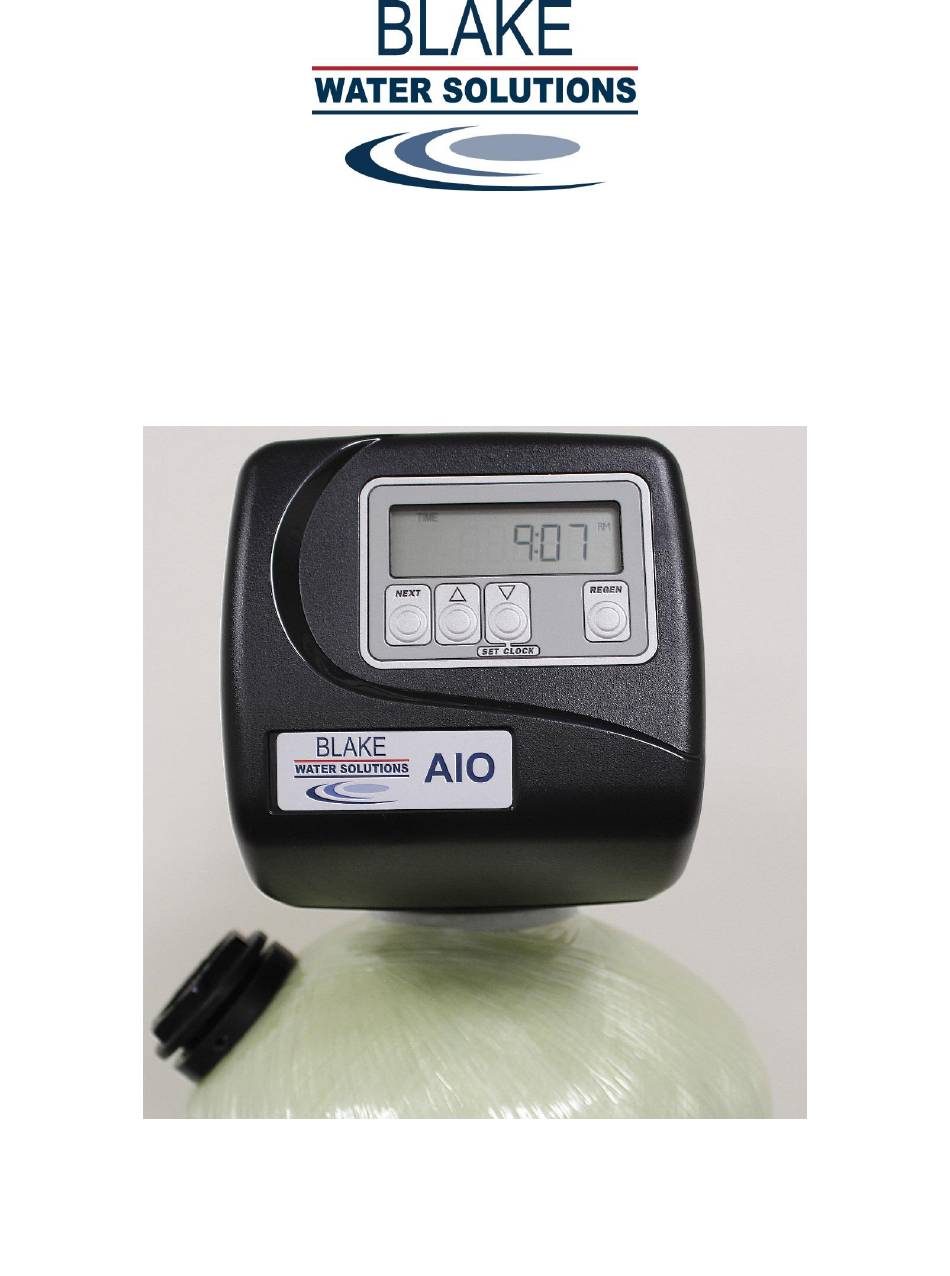

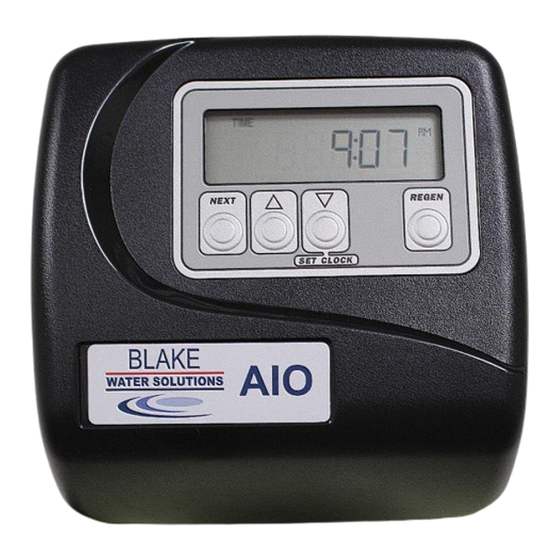

- Page 1 OPERATION AND INSTRUCTION MANUAL SPECIALIST SERIES AERATION FILTER SYSTEM For Residential Filter Systems with Clack WS1EE (4 Button) AIO Control Valve XOWSEEAIO REV 06/2018...
- Page 2 www.blakeequip.com Peak Performance Solutions Index Introduction / Installation Requirements Page 1 Installation & Commissioning Page 2 Filtration Media Loading Page 3 Backwash / Regeneration Cycles Page 4 Bypass Valve Page 5 Controller Page 6 Programming: Setting Time of Day / Installer Settings Page 8 Programming: System Setup Page 9...
-
Page 3: Installation Requirements
1 of 11 Introduction Blake Water Solutions’ Specialist Series™ point-of-entry (POE) Aerating Iron Oxidizer (AIO) filter systems function as a regenerable water treatment unit utilizing oxygen instead of potentially harmful chemicals to rejuvenate and enhance the performance of the selective filtration media. The filtration media provided is specific to the water contaminant or contaminants that your water treatment specialist has identified. -
Page 4: Installation And Commissioning
2 of 11 Installation & Commissioning Note this system is supplied without media installed for ease of transportation and simplifying site location. Refer to the section of this manual for Media Filtration Installation Guide/Commissioning. Place the tank where you want to install the unit making sure the unit is level and on a firm base. During cold weather, the installer should warm the valve to room temperature before operating. - Page 5 3 of 11 Filtration Media Loading Media filtration systems supplied by Blake Water Solutions are shipped without the media preloaded. Aeration/Oxidation filtration media selected for Iron, Manganese, Hydrogen Sulfide removal or (other conditions your equipment supplier has identified) are dependent on many factors and are carefully selected and applied based on reported water conditions at the time of testing.
- Page 6 4 of 11 Backwash / Regeneration Cycle The AIO filter is factory preset to backwash / regenerate every third day at 12:30 am. Only untreated water is available during backwash / regeneration. A complete backwash / regeneration cycle lasts approximately 50 minutes, after which filtered water service is restored.
-
Page 7: Bypass Valve
5 of 11 Bypass Valve The bypass valve can isolate the control valve from the plumbing system in order to perform repairs or maintenance. The bypass consists of two interchangeable plug valves that are operated independently by red arrow-shaped handles. The handles identify the flow direction of the water. - Page 8 6 of 11 Controller Control Operation During Service One of five displays is shown. Pressing NEXT alternates between displays. User 1 - Displays gallons until backwash (not shown if set for time-clock operation). User 2 - Displays number of days until next backwash. User 3 - Displays present flow rate in gallons per minute (always reads 0 because no meter is installed).
- Page 9 7 of 11 Control Operation during Backwash / Regeneration During regeneration, the control displays the time remaining in the step that the valve is either advancing to, or has reached. The step time flashes until the valve completes driving to that step. Once all steps are complete the valve returns to service / normal operation.
-
Page 10: Setting Time Of Day
8 of 11 Programming Screens Setting Time of Day Push NEXT until time of day screen is displayed. Press and hold ▼ until SET TIME is displayed and the hour flashes. Press ▲ or ▼ until the correct hour is displayed. Then press NEXT. - Page 11 9 of 11 System Setup (for reference only – completed during assembly) Step 1S - Press NEXT and ▼ simultaneously for 5 seconds and release. Step 2S – Leave as default setting = “SOFTENING”. Press NEXT to go to Step 3S. Press REGEN to exit OEM Softener System Setup. Step 3S –...
- Page 12 10 of 11 REPLACEMENT PARTS Part # Desc. Photo (not to scale) KT7704AIO WS1EE AIO Valve K74V3005 STACK K74V3011 PISTON K74V3174 REGENERANT PISTON OV32 INLET CHECK VALVE OV15HT AIR DRAW CHECK VALVE H6061 AIR DRAW SCREEN KTSCREEN SCREEN W/ TUBE K74V4144AIO AIR DRAW ASSY COMPLETE AIOGROM...
- Page 13 11 of 11 FILTRATION MEDIA OVERVIEW Media Physical Characteristics Description Birm® is a granular, silica based, manganese dioxide coated, filter media commonly used for the reduction of iron and/or manganese from water supplies. It acts as an insoluble catalyst to Color: black enhance the oxidation reaction between dissolved oxygen in the water and the iron and Density: 40 –...
- Page 14 NOTES:...
- Page 15 NOTES:...
- Page 16 The Blake Group is a growing family of companies dedicated to providing our valued customers with Blake superior products and technologies in commercial, industrial, and residential markets, compliant with industry standards and meeting all facets of our customers’ expectations. GROUP CONNECTICUT MASSACHUSETTS NEW HAMPSHIRE...
