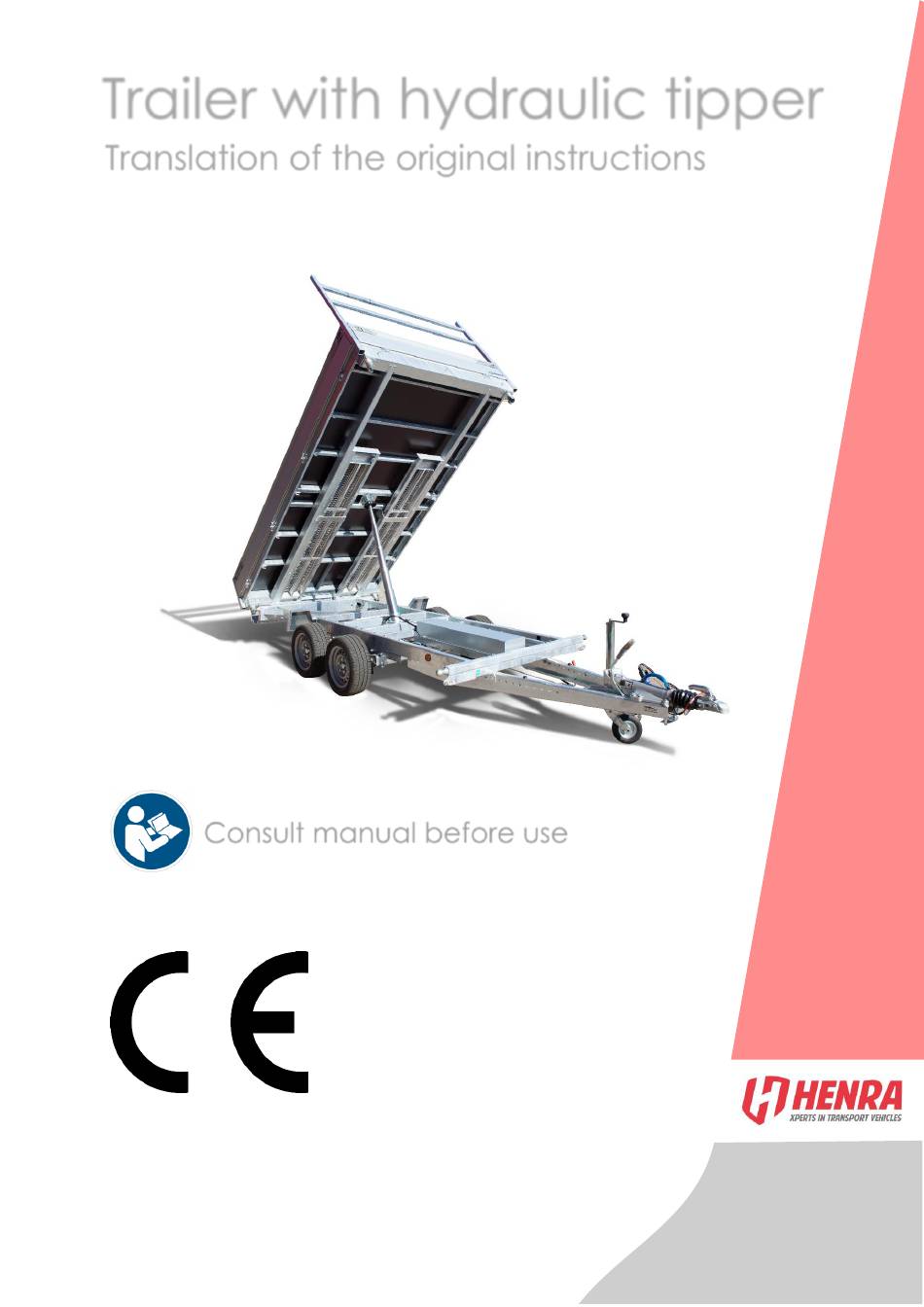

- Page 1 Trailer with hydraulic tipper Translation of the original instructions Consult manual before use Henra Aanhangwagens BV +31 (0)478 64 22 00 Oploseweg 10 5825 HN Overloon info@henra.nl Nederland www.henra.nl...
- Page 2 Driving ..........................11 Loading and unloading ....................11 Tipping the trailer ......................12 Tipping instructions ......................13 Safety & enviroment .......................15 Maintenance ........................16 Troubleshooting ........................17 End lifecycle ........................18 Henra Aanhangwagens BV +31 (0)478 64 22 00 Oploseweg 10 5825 HN Overloon info@henra.nl Nederland www.henra.nl...
- Page 3 With any questions or uncertainties regarding this manual please contact your local dealer. Yours sincerely, Henra Aanhangwagens BV Henra Aanhangwagens BV +31 (0)478 64 22 00 Oploseweg 10 5825 HN Overloon info@henra.nl...

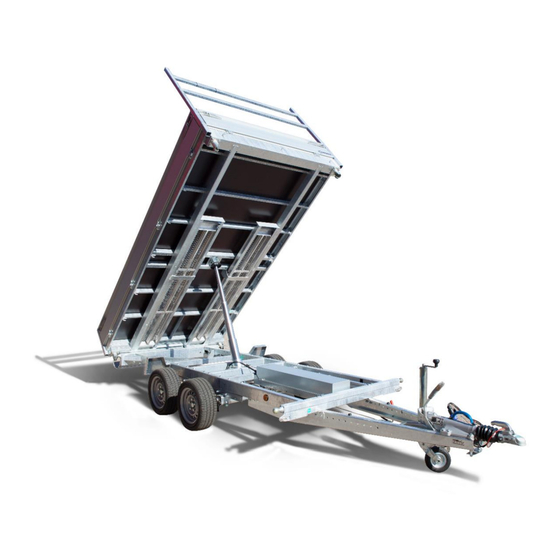

- Page 4 DATA OF THE TRAILER DESCRIPTION The Henra tipper is specially designed for the professional user, so for intensive use. The load on the trailer can be unloaded in three directions using a five-stage hydraulic cylinder. The hydraulic cylinder can be operated by hand, an electric motor or both. By simply placing the locking pins on the different locking cones the tipping platform will tip backward or sideways.
-
Page 5: Manufacturer Data
Definition NEN-EN-ISO 7010 Code General safety symbol W001 Warning battery charging W026 Warning entrapment W019 Warning electric charge W012 Consult manual before use M002 Henra Aanhangwagens BV +31 (0)478 64 22 00 Oploseweg 10 5825 HN Overloon info@henra.nl Nederland www.henra.nl... -
Page 6: Technical Specifications
48°/1230mm stroke/ Maximum tipping angle Backwards limited stroke end Sideways electronic safety Total loading capacity – empty weight Maximum work load Consult COC for data Henra Aanhangwagens BV +31 (0)478 64 22 00 Oploseweg 10 5825 HN Overloon info@henra.nl Nederland www.henra.nl... -
Page 7: Electric Scheme
Reversing light Pink Continuous 12V supply Orange Controlled 12V supply Grey Ground for pin 10 Black/White Ground for pin 9 Red/White Henra Aanhangwagens BV +31 (0)478 64 22 00 Oploseweg 10 5825 HN Overloon info@henra.nl Nederland www.henra.nl... -
Page 8: Standard Parts
TRAILERPARTS STANDARD PARTS For any questions contact your local Henra dealer. Partnumber Henra Part description 2700 kg 3500kg 3500kg tridem 201-8000110 Knott Axle 1350kg 20° 1150x1640 201-804110 Knott Axle 1800kg 20° 1150x1640 201-90101 Knott brake compensator Tandem 201-90102 Knott brake compensator Tridem... -
Page 9: Optional Parts
OPTIONAL PARTS For any questions contact your local Henra dealer. Partnumber Henra Part Description 299-110 Adjustable support leg 004-509 Hydraulic handpump 004-516 Emergency (combination with electric) 003-820 Control case tipping 003-821 Remote control tipping 213-409 External battery charger 005-305 Hand winch PL/KP 185... -
Page 10: Guidelines For Safe Use
• Connect the electrical connector to the towing vehicle and check the trailer lights. • Release the trailer brake. Henra Aanhangwagens BV +31 (0)478 64 22 00 Oploseweg 10 5825 HN Overloon info@henra.nl Nederland... -
Page 11: Loading And Unloading
The used loading tools must require the EN 12915- norm. Henra Aanhangwagens BV +31 (0)478 64 22 00 Oploseweg 10 5825 HN Overloon info@henra.nl... - Page 12 • If your trailer is fitted with a remote control for the tipping function. Always be aware off the surrounding working field! Henra Aanhangwagens BV +31 (0)478 64 22 00 Oploseweg 10 5825 HN Overloon info@henra.nl Nederland www.henra.nl...
- Page 13 TIPPING INSTRUCTIONS The Henra 3-way tipper can tip backwards, left side and right side. By moving the locking pins in the locking cones the three different tipping functions can be engaged. Don’t tip the tipping platform forward, because it will damage certain trailer components.
- Page 14 Move the right locking pin to the left front locking cone. Lock the pin in place and attach the chain. With the locking pins in place the tipping platform will tip to the left side. Before driving always secure the two locking pins! Henra Aanhangwagens BV +31 (0)478 64 22 00 Oploseweg 10 5825 HN Overloon info@henra.nl...
- Page 15 Make sure the maximum tow bar force isn’t reached and the minimum tow bar force respected. • Check before driving if the jockey wheel is turned up and secured. Henra Aanhangwagens BV +31 (0)478 64 22 00 Oploseweg 10 5825 HN Overloon info@henra.nl Nederland www.henra.nl...
-
Page 16: Maintenance
MAINTENANCE We recommend that you have your trailer serviced by a Henra dealership. You are responsible for any maintenance. We recommend you follow the following maintenance timetable. Frequent Part Check Action Check before first Battery Liquid If needed top up... -
Page 17: Troubleshooting
Replace hydraulic component Not enough hydraulic fluid Check for leaks, refill hydraulic fluid Decline speed Dirty decline valve Contact local Henra dealer to platform clean valve Trailer lights Defect light bulb Replace light bulb Defect DC connector Replace DC connector... - Page 18 The dispose of batteries can be returned to manufacturer/supplier confirm EU- guidelines 2006/66/EG • Electric components can be disposed at a waste processing company confirm EU- guidelines 2012/19/EU Henra Aanhangwagens BV +31 (0)478 64 22 00 Oploseweg 10 5825 HN Overloon info@henra.nl Nederland...
- Page 19 Henra Aanhangwagens BV +31 (0)478 64 22 00 Oploseweg 10 5825 HN Overloon info@henra.nl Nederland www.henra.nl...
