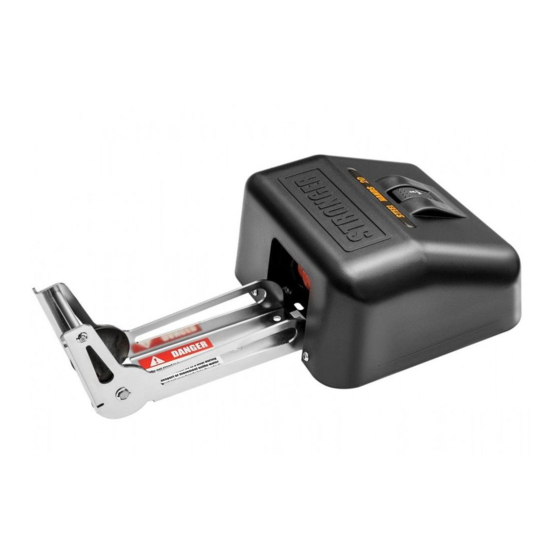

- Page 1 Safety, Installation, and Operation Manual for Anchor Winch STRONGER «STELL HANDS 20» STRONGER «STELL HANDS 30» STRONGER «STELL HANDS 35» STRONGER «STELL HANDS 35S» STRONGER «STELL HANDS 35PRO»...
- Page 2 9 LIST OF SPARE PARTS 1 DESCRIPTION “STRONGER” anchor is designed to lift and lower the anchor. The winch is designed with the function of free dropping (free fall) of the anchor for models 20, 30, 35,35S and model 35PRO with the additional function of anchor lapping to the water level and a further free fall anchor dumping.
-
Page 3: Power Cable
15 min 15 min 15 min 15 min 15 min dimensions 375x325x18 375x325x18 375x325x180 375x325x180 375x325x180 0 mm 0 mm weight 9 kg 8 kg 9.2 kg 9.2 kg 9.2 kg STRONGER reserves the right to change specifications without notice. - Page 4 1. Never let anyone be in front of the winch anchor. If the anchor rope breaks, the anchor may cause serious injury. 2. Always use the anchor rope manufactured by STRONGER. Never change the anchor rope to a rope of another material, or a wire cable; the winch may fail.
-
Page 5: Winch Installation
21. Route the end of the anchor rope into the transparent polymeric tube supplied with the anchor winch to prevent cuts and abrasion of rope on the bottom of the pond, which leads to the destruction of the anchor rope. 22. - Page 6 1. Place the anchor roller on the deck in the right place. It is important that the roller of the anchor roller goes out beyond the edge of the boat, so that the anchor does not catch or fall on the boat’s body when it falls or rises.
- Page 7 6. Install the winch and the anchor roller on the deck, secure them with seven M8 bolts, by inserting the washers from the back of the deck, which are in the set of fasteners. Depending on the thickness of the deck and the material, which it is made of, it may be necessary to strengthen it in the place of fastening, as described earlier.
- Page 8 9. Remove the protective film from the winch spool by freeing the anchor rope, unwind 8~12 in. (20~30 cm) of the anchor rope. 10. Install the winch cover and secure it with 4 bolts. Thread the anchor rope through the window on the front of the winch cover.
- Page 9 Using a product without a thermal relay can lead to a fire and a threat to your life! By no means change its position and disconnect it from the power cable! 11. Press the “Down” button — the spool with the anchor rope is unlocked, (for the SH 35PRO winch, unlocking will occur after the anchor rope has been unwound from the reel by 1.20 cm).
- Page 10 Remote control button for the anchor winch The remote control button can be installed in any convenient place, e.g. on the torpedo dashboard of the boat. The button is not included in the scope of supply of the winch and it can be purchased separately at the winch purchase site or from any other authorized dealer.
- Page 11 Installation of the wireless control unit Attach the radio control module to the mounting plate of the relay. Connect the winch connector 1 to the connector 2 of the radio control module. Connect the connector 4 of the winch to the connector 3 of the radio control module. The winch is ready for operation.
-
Page 12: Operation
After securing the U-shaped arm for anchor, check the reliability of the knot to prevent loss of the anchor. 6 OPERATION The operating principle of the “STRONGER” anchor winch Lowering the anchor: By pressing the “Down” button (bottom of the button), located on the top of the winch, or the remote... - Page 13 winches. After the anchor has started a free lowering, release the button and it will automatically return to its original position. For the SH 35PRO winch, when the “Down” button is pressed, the winch will smoothly lower the anchor by 1.20 m into the water with the help of a motor, and then the anchor will be released freely.
-
Page 14: Maintenance
For SH-35 model For SH-35S model 7 MAINTENANCE Care and maintenance To prolong the life of the winch, the user must maintain his or her anchor winch once a year. All the main parts of the winch mechanism must be lubricated, and the consumable elements of the winch must be replaced, if necessary, as well. -
Page 15: Warranty
Be sure the anchor enters the anchor roller cleared of silt. 8 WARRANTY This warranty is granted to the direct purchaser, without transfer to third parties. STRONGER reserves the right to repair or replace any part of the winch that could fail or be defective within one year from the date of purchase at its discretion. - Page 16 9 LIST OF SPARE PARTS MODELS SH-20, SH-30, SH-35, SH-35S 1. Frame 2. Electric motor 3. Spool 4. Frame distance bar 5. Control button panel 6. Up/Down button 7. Motor hold-down bolt 8. Cover fastening bracket 9. Bracket fastening bolt 10.
- Page 17 9 LIST OF SPARE PARTS MODELS SH-20, SH-30, SH-35, SH-35S 1. Frame 2. Electric motor 3. Spool 4. Frame distance bar 5. Control button panel 6. Up/Down button 7. Motor hold-down bolt 8. Cover fastening bracket 9. Bracket fastening bolt 10.
- Page 18 EN 14492-1:2006+A1:2009 EN 60034-1:2010 2017 Anchor Winch Model Serial number Release date 2019 Stronger LLC.
