Summarization of Contents
3. COMPONENT OPERATION

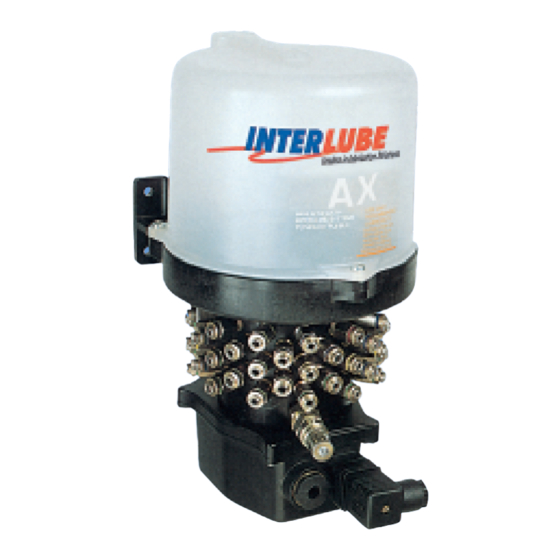

3.1. AX Pump Operation
Details the operation of the AX pump, its variations, motor, cam assembly, and lubricant delivery mechanism.
3.2. Programming the AX
Explains how to set cycle times for AX1 & AX2 using dip switches and for AX3 using a rotary switch.
5.0 Recommended Preventative Maintenance
5.1 Inspection Procedures
Outlines recommended checks for proper operation, including inspecting lubrication points, fittings, and lines.
7.0. Service Procedures
7.1. Lid Assembly Replacement AX1& 2.
Step-by-step guide for removing and installing the lid assembly on AX1 and AX2 models.
7.2. Reservoir Paddle Assembly Replacement AX1 & 2.
Instructions for removing and replacing the reservoir paddle assembly on AX1 and AX2 models.
7.3. Reservoir Replacement AX1 & 2.
Procedure for removing and installing the reservoir on AX1 and AX2 models.
7.4. Wiring Diagrams. AX1 & 2
Illustrates wiring connections for AX1 and AX2, including voltage and terminal block details.
7.5. Replacement of Motor Assembly AX1 & 2.
Procedure for replacing the motor assembly on AX1 and AX2 models.
7.6. Replacement of P.C.B. AX1 & 2.
Steps for removing and installing the Printed Circuit Board (PCB) assembly on AX1 and AX2.
7.7. Cam Assembly Replacement AX1 & 2.
Guide for removing and installing the cam assembly on AX1 and AX2 models.
7.8. AX3 Reservoir Replacement.
Procedure for removing and installing the reservoir on AX3 models.
7.9. AX3 Paddle Replacement.
Steps for removing and installing the paddle assembly on AX3 models.
7.10. AX3 Motor Replacement.
Procedure for replacing the motor assembly on AX3 models.
7.11. AX3 Replacement of PCB.
Steps for accessing and replacing the Printed Circuit Board (PCB) on AX3 models.
ACCESSORIES
ELBOW CONNECTORS
Details part numbers and thread sizes for various elbow connectors used in the lubrication system.
STRAIGHT CONNECTORS
Lists part numbers and thread sizes for straight connectors used in the lubrication system.
LOOMING ACCESSORIES
Provides part numbers for spirall binding and tape accessories for cable management.
GREASE
Information on recommended grease grades, including Premium Grade NGLI 000/FG3,0 and NLGI Grade 2.
