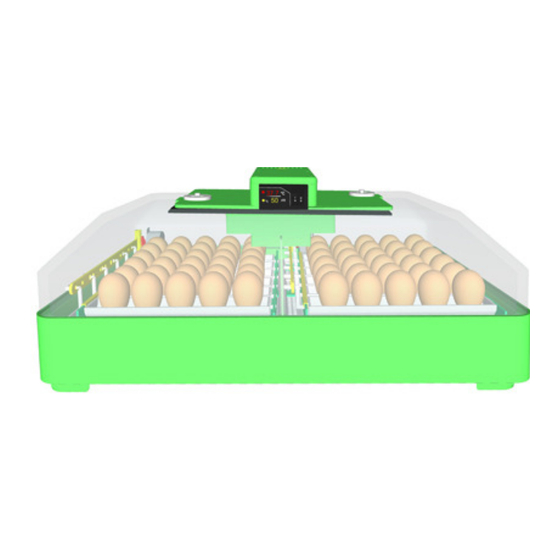

cimuka PD60 SH User Manual
  1. Manuals
  2. Brands
  3. cimuka Manuals
  4. Farm Equipment
  5. PD60 SH
  6. User manual

cimuka PD60 SH User Manual

Egg incubators
Hide thumbs
Table of Contents

Advertisement

Quick Links

CiMUKA EGG INCUBATORS
PD30 / PD60
Please read the instructions in this user manual carefully before use the incubator.
IMPORTANT!
Keep this user manual safe for future reference.
USER MANUAL
Parts of Models ........ 2 - 4
Quick Guide........5
Ventilation.......6
Egg Handling.......7
Humidity Adjustment...............11
TM
Safety Labeling.........22
Product Information.............23
30 ........ 12-15
1
PD SERIES
PD30 SH / H
PD60 SH / H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD60 SH and is the answer not in the manual?

Questions and answers

Related Manuals for cimuka PD60 SH

Summary of Contents for cimuka PD60 SH

  • Page 1: Table Of Contents

    CiMUKA EGG INCUBATORS PD SERIES PD30 / PD60 Please read the instructions in this user manual carefully before use the incubator. IMPORTANT! Keep this user manual safe for future reference. PD30 SH / H USER MANUAL Parts of Models …….. 2 - 4 Quick Guide……..5...

  • Page 2: Parts Of Models

    PD SERIES Parts of Model – PD30 Control Panel Digital Controller Fan protecting cover Conturn 30 (only for SH models) CS40Y – hatchery basement Base Adjustable air out holes Cover of control panel Power inlet module ( on/off button) Temperature/humidity sensor with filter...
  • Page 3 PD SERIES Parts of Model – PD60 Control Panel Digital Controller Fan protecting cover Conturn CS40Y – hatchery basement Hatching Separator Base Adjustable air out holes Cover of control panel Power inlet module ( on/off button) Temperature/humidity sensor with filter...
  • Page 4 PD SERIES PD30 PD60 Accessories Conturn 1 pc 2 pc CS40Y 1 pc 1 pc 2 pc 2 pc Conturn Adapter 1 pc 1 pc Conturn Distribution Cable 1 pc Power Cable 1 pc 1 pc 1 pc 1 pc QT13 –...

  • Page 5: Quick Guide

    PD SERIES Quick Guide - Remove all packing material carefully. - Please identify and check all parts of model. (see page 2-4 ) - Fill humidity tray with water (1 channel). Picture 1 - Place CS40Y hatchery basement and Conturn 30 to the base.

  • Page 6: Placement Of Models

    To supply oxygen in proper level and remove carbon dioxide, Air in ventilation is essential. In PD series models, ventilation is supplied automatically with fan and Air in air-in / air out holes. Air-out ventils are adjustable. Be sure that your air out ventils and air in holes are open.

  • Page 7: Egg Handling

    PD SERIES Egg Handling Eggs must be collected carefully and stored in good conditions up to setting. Quality of eggs is very important for hatchery results. Sanitizing eggs before storage is an effective method for killing or decreasing the amount of microorganisms in egg surface. You must know that sanitation processes does not only kill the bacteria, but it can also kill the chick embryo in the egg.
  • Page 8 “save” adjusted value. SAVE donE donE Note: PD series models are not equipped with humidifier but humidity set point must be adjusted to desired level to get high / low Recommended temperature and Humidity values for different humidity alarms.
  • Page 9 PD SERIES To Lock Screen on/off Remaining time for next cooling When main screen is active, When main screen is active, Press button and release to check Press buttons together / 3s on/oFF remaining time for next cooling 11.27 to lock and unlock screen...
  • Page 10 PD SERIES Humidity Adjustment Humidity adjustment in incubators is for providing adequate water loss from eggs. And also high humidity levels for last 2-3 day are also very important. Egg needed to lose between 13-16 % water depending on the species during incubation period. Weighing of eggs during incubation is most trustable method to find proper humidity needed to good hatching results for particular poultry species.

  • Page 11: Humidity Adjustment

    PD SERIES Air out ventils can also be used for humidity adjustment Air out ventils 1/3 open Half open Full open Highest humidity Lowest humidity CAUTION! Never close air-out ventils more than 1/3. CAUTION! Air –out ventils should be fully open during hatching period.

  • Page 12: Egg Turning / Conturn

    PD SERIES Conturn motor provides continuous turning, Egg Turning / Conturn 4 hours (1 turn per 4 hour for 220VAC and per 3.20 hour for 110VAC models) Adjustment Conturn 30 base Conturn Egg Rack Rack fixing bar Rack fixing pins...
  • Page 13 PD SERIES Conturn 30 base and main turner bar have holes for adjustments of channels. In standard, it comes with 6 channels. It can be used for hen and smaller eggs without any change. Conturn 30 has 13 holes shown below.
  • Page 14 PD SERIES CAUTION ! Never set eggs on the position small end top. Eggs must be set small end down or horizontal. QT13- Quail Egg Tray (optional) QT13 Standard egg rack holds 9 pc quail egg, QT13 quail rack are placed directly onto the standard channel and holds 13 quail eggs in one rack and help you to place smaller size quail eggs than normal.
  • Page 15 PD SERIES GT03 GT03 – Goose Egg Rack ( optional) GooseEgg Rack has been designed for large goose eggs. Goose eggs must set racks as horizontal position, small end a bit lower about 10 degree. This helps chicks for easy hatching. And periodic cooling of goose eggs is advisable.

  • Page 16: Active Periodic Cooling(Apc)

    Cimuka presents Active Periodic Cooling (APC) function with 2 different modes as “cooling for a time (clt)” and “cooling for a set (clS)” Both modes have designed to simulate natural behavior.
  • Page 17 PD SERIES Active Periodic Cooling (APC) Menu -Press U + D together / 3s to enter the menu 37.7 hct: max cooling time ( minute) -Use T /H buttons to pass next / before parameter. Heater /humidifier cut off time for clt mode.
  • Page 18 PD SERIES Unfortunately, the best hatch rates can be reached with which parameter combination is not known for different species yet. But Cimuka Research Team is collecting data from our research center and customers for different APC application results and advises below details for Cooling for a Set (clS) mode.
  • Page 19 PD SERIES Active Periodic Cooling (APC) function behavior at “cooling for a set ( clS)” mode given in the graph for below parameters . APC Parameters Display settings Cooling mode Cooling start time Cooling cycle 24 h Cooling set point C ( set –adjusted data) -8.0 C...

  • Page 20: Egg Setting And Hatching

    PD SERIES Setting and Hatching Eggs must be hold in Conturn30 up to the last 2-3 day of incubation and then transferred to hatchery basement for last 3 day of incubation. Eggs are placed to hatchery tray at horizontal position freely. Don’t forget to change temperature/ humidity values last 2-3 day of incubation.

  • Page 21: Incubation Records

    PD SERIES PD30 H / PD60 H manual turning PD series incubators without Conturn 30 can be used for last 3 day of incubation as a hatcher or can be used for all incubation period by manual turning. 180 degree manual turning should be done min 3 - 4 times in a day up to...

  • Page 22: Cleaning Up And Service

    Egg Incubation is a continuous work. Please keep your model in your control. Cimuka or sale agents will not be held responsible for any loss of eggs or chicks under any circumstances. Almost all parts of Cimuka incubators have easy spare changing and plug and play features.

  • Page 23: Factors Affecting Hatchability

    PD SERIES Factors Effecting Hatchability - Incorrect incubation settings. - Turning problems. - Very low or very high incubation room temperature. - Inadequate room ventilation. - High egg storage times . - Electric cut offs. - Inadequate or wrong sanitary procedures for eggs or machine.

  • Page 24: Recommended Incubation Values

    PD SERIES Recommended Incubation Values Typical incubation periods and recommended temperature / humidity values for the species are given below. Incubation periods, temperature and humidity values can change for particular species. Please check literature or ask your dealer for information.
  • Page 25 Cimuka Kulucka Makineleri ve Ekipmanlari Ltd Sti. Head Office 1214.Sok. 21/3 Ostim Yenimahalle –ANKARA / TURKEY +90 (312) 349 55 66 – +90 (312) 348 1111 cimuka@cimuka.com www.cimuka.com...
