- Page 1 INSTALLATION INSTRUCTIONS SOLARFOX® SF-600 - NEW OUTDOOR GENERATION MODEL SERIES 2020 –...
-
Page 2: Table Of Contents
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 Table of contents General information - Solarfox® SF-600 ......................4 Scope of delivery..............................4 Preparations for installation and set-up ......................5 Additional advice concerning wall characteristics and mounting ..............7 Installation of the display ............................ 8 Installation of the anti-theft panels ........................ - Page 3 SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 Table of illustrations Illustration 1 – Front and back view SF-600 ......................... 4 Illustration 2 – Connection pattern SF-600 ........................5 Illustration 3 – Display registration: setup.solar-fox.com ................... 6 Illustration 4 – Wall distance ............................7 Illustration 5 –...
-
Page 4: General Information - Solarfox® Sf-600

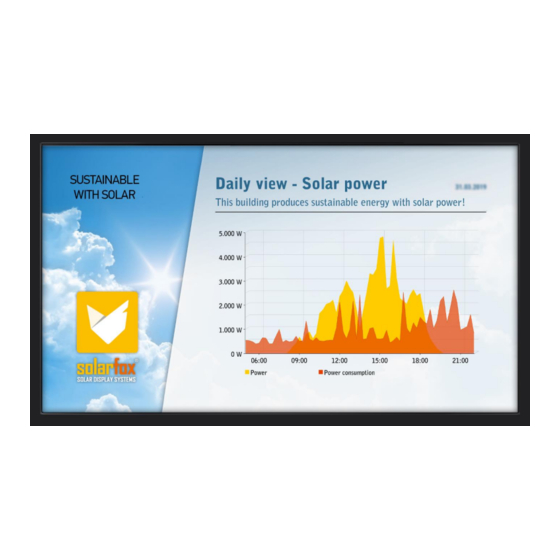

-30° to 50° C. A high-quality anti-reflection glass with vandalism protection and the very high brightness for use in bright light conditions make the new Solarfox® Outdoor series an eye-catcher. The flat construction with a depth of only 8.5 cm provides a visually appealing and secure wall mounting. In outdoor applications, it provides protection against moisture, humidity, heat, dust, vandalism and theft. -
Page 5: Preparations For Installation And Set-Up
HDMI cable (standard scope of supply: 20m) to the inside area. It must be connected to the SOLARFOX® Connection Kit. The connection cable between the display and the Solarfox® Connection Kit can be routed through a 16mm empty pipe. We generally recommend a wired connection via RJ45 / Ethernet. Optionally, the Connection Kit can also be connected via WiFi (WLAN). -
Page 6: Illustration 3 - Display Registration: Setup.solar-Fox.com
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 Please note that the HDMI fiber optic cable has two different ends. It is possible to remove the plug attachment to make it easier to pass the cable through walls and pipes. We recommend a pipe diameter of 16 mm. -
Page 7: Additional Advice Concerning Wall Characteristics And Mounting
For wall mounting or installation in a niche, the distance around the display must be 50 mm (A + B). For niche installations, we therefore recommend the following dimensions for the niche: SOLARFOX® SF-600 46 ": (LxWxD) 1169 mm x 724 mm x 127 mm SOLARFOX® SF-600 55 ": (LxWxD) 1310 mm x 780 mm x 127 mm Illustration 5 –... -
Page 8: Installation Of The Display
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 5. Installation of the display First, look for a clean and flat surface. When unpacking, make sure that the surface of the screen or frame is not scratched and avoid any heavy pressure on the surface. You should therefore thoroughly check the surface for objects such as screws or dirt. -
Page 9: Illustration 7 - Distance For Drilling For 46" And 55" Display
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 Use the supplied wall mount and mark the drill holes on the mounting wall (upper and lower holes - marked in red). Use a spirit level to position the frame. (refer to Illustration 7 – Distance for drilling for 46“... -
Page 10: Illustration 9 - Installing The Mount On The Display
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 Attach the wall mount to the display. To do so use the inner holes (B) for the 46 "model and the outer (A) ones for the 55" model. Use the 4 screws already attached to the display. (refer to Illustration 9 – Installing the mount on the display) Illustration 9 –... -
Page 11: Illustration 10 - Opening The Connection Covers
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 Procedure for opening the connection cover on the back of the device: Silicone rod Illustration 10 – Opening the connection covers In case the cable is not lead through the wall on the back, it may as well be lead upwards or downwards using the openings in the mount. -
Page 12: Illustration 11 - Display-Connections
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 DC / 230V HDMI cable to Illustration 11 – Display-connections SOLARFOX® Connection Kit Installing the display on the wall Screw one hexagon screw into each of the top two dowels and allow them to protrude approx. 5 mm. Now the display along with the wall mount can be hung in the upper screws. -
Page 13: Installation Of The Anti-Theft Panels
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 6. Installation of the anti-theft panels Slide the 2 cover plates sideways over the wall mount. Screw the cover plates together with the included anti-theft screws at the top and bottom. -
Page 14: Installation Of The Solarfox® Connection Kit
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 7. Installation of the SOLARFOX® Connection Kit Install the SOLARFOX® Connection inside or outside in an area that is protected against vandalism. Illustration 13 – Connection scheme Install the PG-bolting on the IP65 protected module case. -
Page 15: Illustration 15 - Solarfox® Connection Kit
Illustration 15 – SOLARFOX® Connection Kit 4) Insert a power cable and the fiber-optic HDMI cable and a network cable through the PG bolting into the module case. 5) Connect HDMI and LAN to the Solarfox control computer. ETHERNET / LAN HDMI Illustration 16 –... -
Page 16: Activation And Setup
8.1 Starting the display setup For your display to display content, you must first connect to the Internet for the SOLARFOX® system. To do so, the network settings and the account data must be configured. There are basically two options for configuring your display. -
Page 17: Option B - Configuration Via Webinterface (Manual)
1) Connect a conventional USB keyboard to the control computer (minicomputer) in the Connection Kit. Basically any keyboard with a USB port is suitable. 2) Use a separate HDMI cable to connect a second screen to the Solarfox® control computer's HDMI output to navigate through the setup. -
Page 18: Configuration Of The Integrated Timer
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 8.2 Configuration of the integrated timer The time the Samsung monitor switches on and off can be configured on a daily basis. It is operated via the included Samsung remote control. - Page 19 SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 To use the remote control, the following code must be entered (factory-set): PIN: 4655 ⍟ Auto. On Use the included Samsung remote and press the Home button. Then the menu appears. Then use the arrow keys to go to Automatic On / Off and press the Enter key.
-
Page 20: Limiting The Brightness / Energy-Saving Mode
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 8.3 Limiting the brightness / Energy-saving mode The brightness settings can be found in the menu. Use the infrared remote to set the brightness: MENU → System → Eco solution → ENTER ⍟... -
Page 21: Maintenance
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 9. Maintenance 9.1 General advice concerning care and maintenance Clean the glass regularly to ensure a clear view of the display. Use a soft cloth, lukewarm water and mild soap or glass cleaner. -
Page 22: Ideal Picture Quality And Avoiding Ablation Of Afterimages
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 9.3 Ideal picture quality and avoiding ablation of afterimages Ideal picture quality Due to manufacturing conditions, about 1 pixel out of a million (1 ppm) is lighter or darker than normal in this display. -
Page 23: Technical Information
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 11. Technical information SF-600 46" SF-600 55" Product description Screen diagonal 116,8 cm (46") 138,7 cm (55") Size (LxHxD) 1069.0 x 623.6 x 85.0 mm 1260.6 x 731.4 x 85.0 mm Size incl. -
Page 24: Technical Drawings
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 12. Technical drawings DISPLAY WALL MOUNT WALL View: FROM ABOVE Illustration 19 – Wall mount – cross section SOLARFOX® SF-600 46“ SOLARFOX® SF-600 55“ View BACK (without anti-theft panels) Illustration 20 – Back with wall mount SOLEDOS GmbH | SOLARFOX®... - Page 25 SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 SOLARFOX® SF-600 46“ Wall mount without display Illustration 21 – Technical drawing SF-600 46" SOLARFOX® SF-600 55“ Wall mount without display Illustration 22 – Technical drawing SF-600 55" SOLEDOS GmbH | SOLARFOX®...
-
Page 26: Configuration Of Solarfox® Content
SOLARFOX® INSTALLATION INSTRUCTIONS SF-600 | Version 1.3 | 11-2019 13. Configuration of SOLARFOX® content ® Please refer to the separate manual for SOLARFOX online administration for more information concerning the configuration of the slideshow. This can be downloaded at „Service“ –> „Download“ at www.solar-fox.com...
