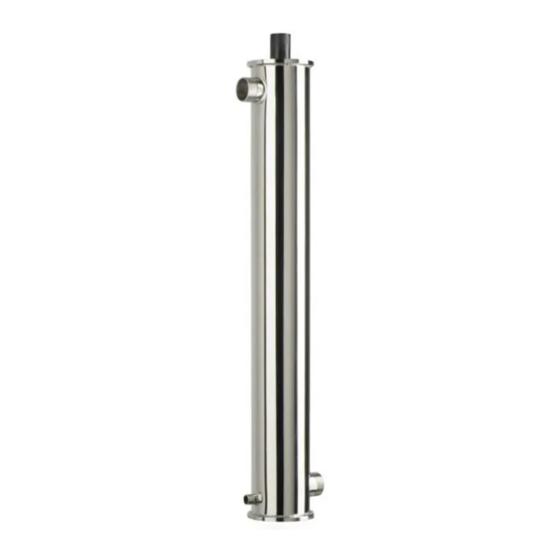

- Page 1 ULTRAVIOLET DISINFECTION EQUIPMENT FOR THE TREATMENT OF DRINKING WATER SINGLE LAMP AL-AL Chamber Mod. 405-405C-412-440-480 Power supply model: AL-AL MANUAL OF INSTALLATION, USE AND SERVICING English 03-2022 Rev.C...
- Page 2 INDEX Introduction .................................1 General Principles ..............................2 Instruction for installation and setting at work ......................3 Installation scheme recommended .........................4 UV Installation ..............................5 UV chamber assembling ..........................5 Lamp connection ............................6 Detailed drawing of the UV-Chamber ......................7 Electrical scheme ..............................8 Display Information (Troubleshooting) ........................9 AL version (without display) ........................9 version (with display) ........................
-
Page 3: General Principles
General Principles Information about UV irradiation The UV sterilizers of the SINGLE LAMP series have been planned specially for destroying harmful bacteria and viruses present in your water. Their working is based on a physical principle which is a warranty of security: the output of ultra-violet irradiation. - Page 4 Appropriate separate collection for the subsequent start-up of the disused equipment for recycling, treatment and environmentally compatible disposal helps to avoid possible negative effects on the environment and on health and favors the re-use and / or recycling of the materials it is composed of the equipment.
- Page 5 3.1 Installation scheme recommended...
- Page 6 UV Installation 4.1 UV chamber assembling Mount the valves kit supplied with the system . Unscrew the sleeve bolts: Insert the quartz sleeves carefully centring the spring at the bottom plate of the UV chamber: Insert the o-ring Ø 23x4 into the quartz sleeve:...
- Page 7 Screw again the sleeve bolts and insert the lamp holder spring into the sleeve: Carry out the hydraulic test, verifying that o-rings are watertight and that there’re not water leaks outside the sleeve bolts or inside the quartz sleeves. Insert the UVC lamp into the quartz sleeve: Important! Handle the lamps using gloves 4.2 Lamp connection...
- Page 8 4.3 Detailed drawing of the UV-Chamber...
-
Page 9: Electrical Scheme
Electrical scheme... - Page 10 Display Information (Troubleshooting) 405-405C-412-440-480 AL 405-405C-412-440-480 AL 405-405C-412-440-480 AL Vertical Horizontal 6.1 AL version (without display) ANOMALY POSSIBLE CAUSES SOLUTIONS ❑ ❑ NO SIGN OF LIFE NO FEED CHECK ❑ ❑ BURNED FUSES REPLACE: ❑ ❑ RED LED ON LAMP DISCONNECTED CHECK ❑...
- Page 11 6.2 AL version (with display) DISPLAY MESSAGES – Start up: No Power (Connect to power supply) 01.0 Identification of the software revision Working days count down (lamp life 1 year) DISPLAY INFORMATIONS – Working hours: ◄┘ Press for less than 1 sec to show the lamp working hours: Press Ok <...
-
Page 12: Display Off
Note: if within 5 sec it is not "confirmed", the days-meter comes back to the current counting value AL2: Indicates lamp failure. Check: Lamp connection. If lamp is burned by testing another lamp. If lamp starter has failed by testing a new lamp. In case of lamp replacement press and hold for less than 5 seconds the (◄┘) button to restart the working days count down. -
Page 13: Technical Data Sheet
Optional N/O max 100 mA-250V Rev. 03-2022 Maintenance The UV System of SINGLE LAMP series have been projected and realized by productor with simple and functional principles which make the checking procedures and the periodical servicing particularly easy. The main points which characterize the ordinary servicing are the following: check quarterly the quartz sleeves, which contain the UV lamps, in order to ensure the maximum disinfection, for the cleaning. - Page 14 Only original replacement parts from the supplier must be used. The following are the recommended service intervals for replacement parts: UV lamp change - once per 365 days. UV quartz sleeve clean - frequency depends on the quality of the water. O-ring for quartz sleeve-once per year.
-
Page 15: Warranty Conditions
In no case the integral replacement of the product is forseen and any responsibility of sita is excluded for delays in the delivery of the goods to the customer, for claims of third parties towards the customer, for losses of goods, costs (installation, servicing and maintenance, transports, and so on) and damages of the customer due to the defect. -
Page 16: Ec Declaration Of Conformity
S.I.T.A. Italian Company for Water Treatment EC DECLARATION OF CONFORMITY The undersigned hereby declares, under full responsibility, that the unit: UV STERILIZER SINGLE LAMP SERIES Chamber Mod. 405-405C-412-440-480 Power supply model: AL-AL2 IS IN COMPLIANCE WITH • 2014/35/UE (low voltage directive) •...
