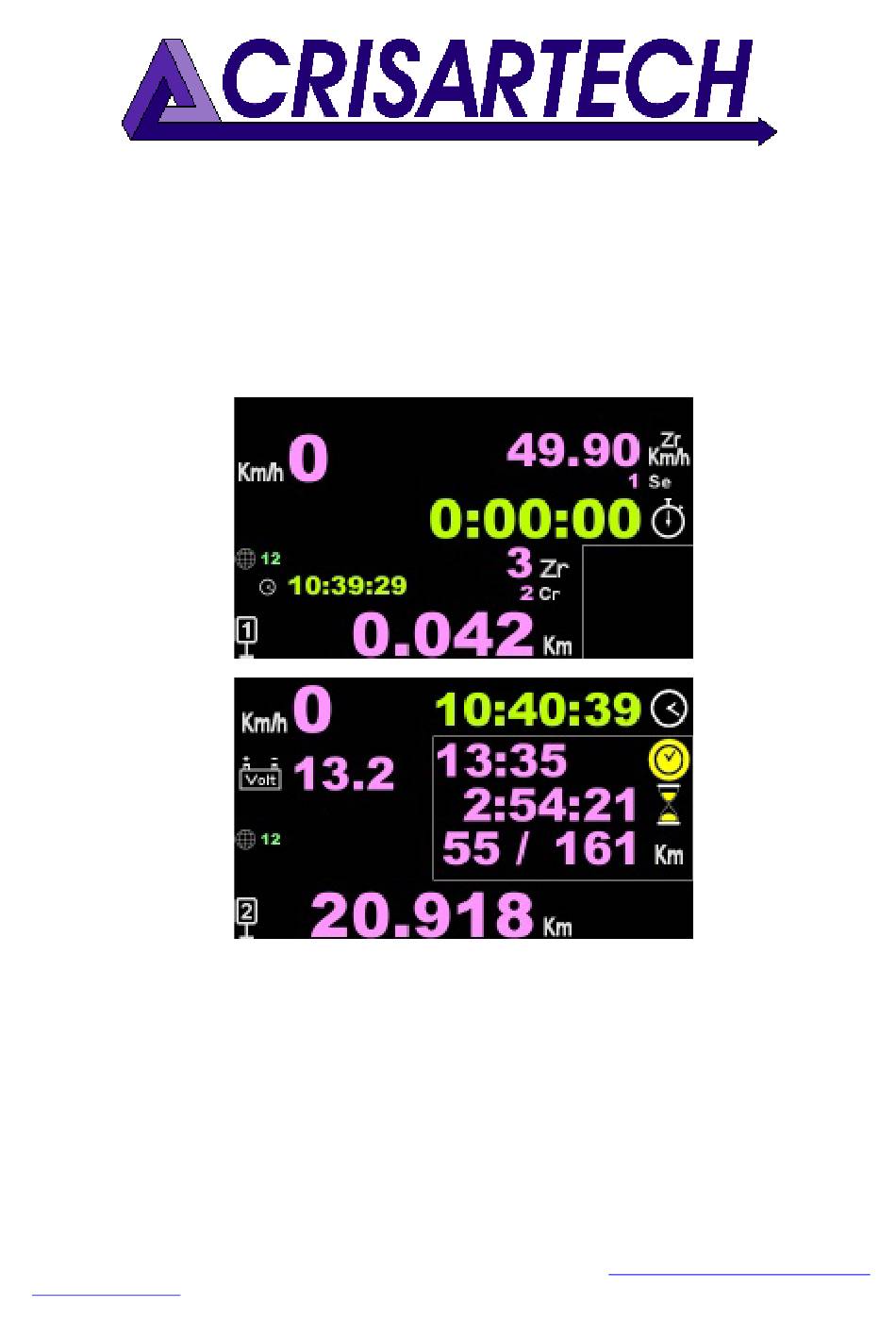

- Page 1 RR400/420 Regularity timer getting started Tips and tricks Firmware version 190122 Friday, April 05, 2019 CRISARTECH C. MARQUES +33 (0)5.63.93.25.24 christophe.marques@crisartech.com www.crisartech.com...
- Page 2 Important: videos explaining the operation of the device can be viewed and downloaded on the page: http://www.crisartech.com/fr/rr400.html or Youtube channel CRISARTECH: https://www.youtube.com/user/CRISARTECH The latest program and documentation updates can be found on this page: http://www.crisartech.fr/download/rr400_fr.html Firmware version 190122 - © CRISARTECH 2019 - Page 2 / 29...
-
Page 3: Table Of Contents
Traces with fixed time (0.1 second)....................25 12.3 ..................25 ORRECTION WAYPOINTS DURING SCOUTING 12.4 ......................26 ILE COPYING AND ARCHIVING “GRAVEL CREW” NOTES ANNOUNCEMENT................27 FIRMWARE UPDATES........................28 WELCOME PICTURE UPDATE ......................29 Firmware version 190122 - © CRISARTECH 2019 - Page 3 / 29... -
Page 4: Connections
CRISARTECH. Firmware version 190122 - © CRISARTECH 2019 - Page 4 / 29... - Page 5 If one of the pins is not in place, it is not possible to close the second lock. If this second locking is not properly installed, the connector can not be connected. Firmware version 190122 - © CRISARTECH 2019 - Page 5 / 29...
- Page 6 Caution: the infrared receiver for remote control is placed on the harness, just below the display connector. It must be ensured that lens is not masked and turned towards the co-pilot so that the infrared remote control is fully operational. Firmware version 190122 - © CRISARTECH 2019 - Page 6 / 29...
-

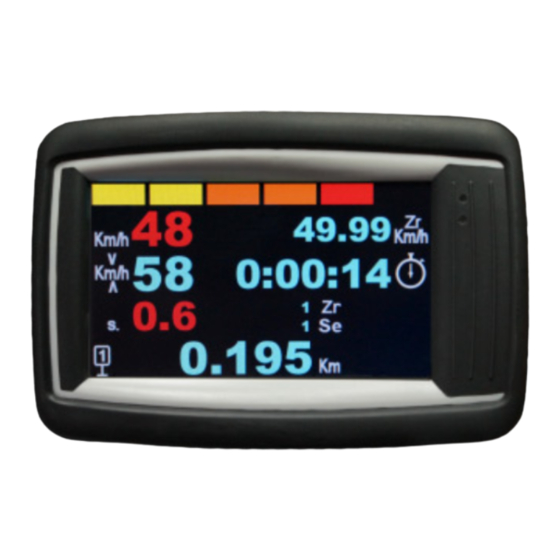

Page 7: Rr420 (With Integrated Interface, Behind Display)
- in last resort, turn off the RR420, place a white cloth on the RR420 and leave the windows open, - do not leave the cloth on the RR420 during use. Firmware version 190122 - © CRISARTECH 2019 - Page 7 / 29... - Page 8 Note: The RR420 provides a power supply for sensors that is protected by an automatically resettable fuse. There is nothing to do in case of a short circuit. Firmware version 190122 - © CRISARTECH 2019 - Page 8 / 29...
-
Page 9: Basic Principles
Warning: if a parameter has been modified, the modification is saved! Do not forget to use the help buttons when in doubt (except expert mode): Firmware version 190122 - © CRISARTECH 2019 - Page 9 / 29... -
Page 10: Forward / Reverse, Stop
The manipulations to do are the following: display the above sign before arriving in the tunnel, press D to block the speed and display the following panel: Firmware version 190122 - © CRISARTECH 2019 - Page 10 / 29... -
Page 11: Main Menu
Note: with remote control: press to lock / unlock GPS speed. 4 Main menu To access the main menu, press the screen (top, middle preferably) and then the yellow button that appears: Firmware version 190122 - © CRISARTECH 2019 - Page 11 / 29... -
Page 12: Vehicle Type Configuration, Tests, Calibration
These points can be "swept" using the up and down arrow keys on the remote control. In OBDII configuration, the red and blue function keys are used to select the type of vehicle. Firmware version 190122 - © CRISARTECH 2019 - Page 12 / 29... -
Page 13: Left Or Right Wheel Choice
If the system allows it (wheel speed sensor or OBDII in ABS mode), the Detailled distances button displays the pulses sent by the sensors via the page (the number of counters can be different according to the configuration): Firmware version 190122 - © CRISARTECH 2019 - Page 13 / 29... -
Page 14: Calibration
Once measurement configuration has been chosen (GPS, OBDII, or sensor), it is necessary to calibrate for your device measures the distances precisely, but especially in the same way as that of the organizer. The RR400 uses a very precise calibration coefficient. Or rather several coefficients:... -
Page 15: Simultaneous Calibration Of The Gps
On the calibration area, just check the box: By calculating the calibration coefficient of the speed sensors, the RR400 calculates the calibration coefficient of the GPS and displays it in an information panel. It must be close to 1. -
Page 16: Calibration History
The distances measured by the sensors left and right and/or the GPS are compared and if a significant difference appears, an alert popup is displayed in the main running screens: Firmware version 190122 - © CRISARTECH 2019 - Page 16 / 29... -
Page 17: Battery Voltage Monitoring
In case of low or high battery level, a warning popup is displayed in the main running screens. The ignition thresholds can be changed in the alerts configuration page and the red led can follow the display of the popup: Firmware version 190122 - © CRISARTECH 2019 - Page 17 / 29... -
Page 18: Operating Modes
ALL the data present on the key, even if they were written with a computer or a tablet, it is advisable to wait ten seconds after the end of the operation, when the display asks to remove the key. Firmware version 190122 - © CRISARTECH 2019 - Page 18 / 29... -
Page 19: Infrared Remote Control
(preceded by the letter F), if this action is not canceled with BACK or EXIT key. Firmware version 190122 - © CRISARTECH 2019 - Page 19 / 29... -
Page 20: New Distance
To program the distances / speeds in ZR, use the arrow pad to move the active box, then simply type the distance or speed and validate with "OK" key: Save with the red key. Firmware version 190122 - © CRISARTECH 2019 - Page 20 / 29... -
Page 21: Entering A Distance On The Fly
If necessary, modify the speed if it was written on the panel, but be careful, the new speed is on the next line! Save the modification (floppy button): the timer recalculates the timing and updates the lead / delay. Then return to the main screen. Firmware version 190122 - © CRISARTECH 2019 - Page 21 / 29... -
Page 22: Shifted Start
RT, when the timer is started. This is the case if the starting point is secret (not indicated in the road book). Example: distances / speeds idem previously: Firmware version 190122 - © CRISARTECH 2019 - Page 22 / 29... -
Page 23: Multispeeds Mode
/ delay. In summary: distance by blue key or multi-speeds timing: no need to record to take into account entering or changing average speed: red key record required Firmware version 190122 - © CRISARTECH 2019 - Page 23 / 29... -
Page 24: Recordings
Remarque : latitude longitude can be copy/pasted in GoogleMap (after removing « ; »). The files are copied automatically in a USB drive when inserted, then archived (see later §). Firmware version 190122 - © CRISARTECH 2019 - Page 24 / 29... -
Page 25: Gps Trace During Scouting
File name is: GP_date_hour.csv 12.3 Correction waypoints during scouting Please see annexe document for this function. GPS auto-correction option is needed. Firmware version 190122 - © CRISARTECH 2019 - Page 25 / 29... -
Page 26: File Copying And Archiving
(if files on USB drive have been lost), delete the archive files. After each race, the archive space should be cleared to free internal flash disk! Firmware version 190122 - © CRISARTECH 2019 - Page 26 / 29... -
Page 27: 13 "Gravel Crew" Notes Announcement
Top right: add GPS coordinates to the file. Not necessary, see annoying for readability if the file is sent via SMS. The function is accessed by the button located in the ZR management screen: Firmware version 190122 - © CRISARTECH 2019 - Page 27 / 29... -
Page 28: Firmware Updates
Insert the USB drive into the connector, the dash read it. In the configuration screen a button appears if both files are found at the "root" of the drive: Firmware version 190122 - © CRISARTECH 2019 - Page 28 / 29... -
Page 29: Welcome Picture Update
Insert the USB drive into the connector, the display reads and updates the welcome picture (first and longest part only). Note: on RR420, picture has to be drawn upside down. Firmware version 190122 - © CRISARTECH 2019 - Page 29 / 29...
