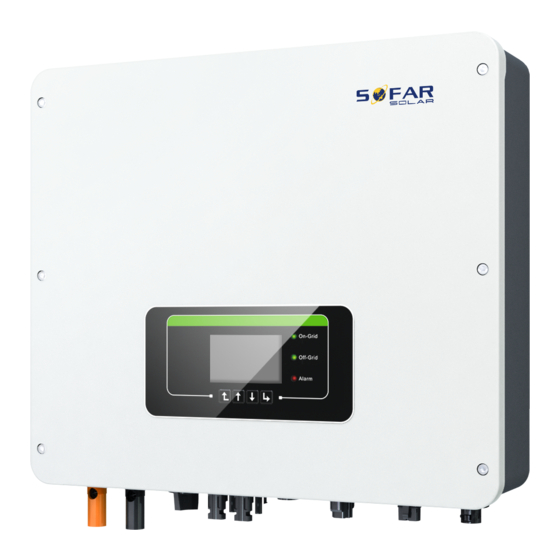

Sofarsolar HYD 4000-EP User Manual

Energy storage integrated inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
Energy storage integrated inverter
Product Model: HYD 3K~6K-EP
S h e n z h e n S O FA R S O L A R C o . , L t d .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYD 4000-EP and is the answer not in the manual?

Questions and answers

Related Manuals for Sofarsolar HYD 4000-EP

Summary of Contents for Sofarsolar HYD 4000-EP

  • Page 1 User manual Energy storage integrated inverter Product Model: HYD 3K~6K-EP S h e n z h e n S O FA R S O L A R C o . , L t d .

  • Page 2: Table Of Contents

    User manual HYD 3K~6K-EP Content Preface......................II 1. Basic safety information..............- 1 - 1.1. Safety instructions..............- 1 - 1.2. Symbols and signs..............- 4 - 2. Product characteristics................ - 6 - 2.1. Product informations...............- 6 - 2.2. Size description............... - 6 - 2.3.
  • Page 3 Copyright Declaration The copyright of this manual belongs to Shenzhen SOFARSOLAR Co.,Ltd.Any corporation or individual should not plagiarize, partially copy or fully copy it (including software, ect .),and no reproduction or distribution of it in any form or by any means.All right reserved.

  • Page 4: Preface

    User manual HYD 3K~6K-EP Preface If you have any question or problem when you read the following information, please contact Shenzhen SOFARSOLAR Note Co., Ltd. Outline Please read the product manual carefully before installation,operation or maintenance.This manual contains important safety instructions and installation instructions that must be followed during installation and maintenance of the equipment.
  • Page 5 User manual HYD 3K~6K-EP Danger indicates a hazardous situation which, if not avoided, will result in death or serious injury. Danger Warning indicates a hazardous situation which, if not avoided, could result in death or serious injury. Warning Caution indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

  • Page 6: Basic Safety Information

    / or has demonstrated skills and knowledge in construction and in operation of this unit, can install this inverter. Shenzhen SOFARSOLAR Co., Ltd. does not take any responsibility for the property destruction and personal injury because of any incorrect use.
  • Page 7 You can ask solar equipment installation contractor or Shenzhen SOFARSOLAR Co.Ltd. for help if necessary. Transport of the equipment, especially by road, must be carried out with by suitable ways and means for protecting the components (in particular, the electronic components) from violent shocks, humidity, vibration, etc.
  • Page 8 Can’t open the internal components of inverter without authorized. Shenzhen SOFARSOLAR Co., Ltd. Does not take any Attention responsibility for the losses from that. EMC / noise level of inverter...

  • Page 9: Symbols And Signs

    Caution, risk of electric shock. Caution hot surface. Comply with the Conformite Europeenne (CE) certification. Grounding point. HYD 3K~6K-EP Please read this manual before install - 4 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 10 This side up, HYD 3K~6K-EP inverter must always be transported, handled and stored in such a way that the arrows always point upwards. RCM (Regulatory Compliance Mark) The product complies with the requirements of the applicable Australian standards. - 5 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 11: Product Characteristics

    In the period of continuous power supply and emergency power supply demand in mountainous areas or base stations without power grid. Fig. 2-1 HYD 3K~6K-EP inverter system diagram 2.2. Size description Fig. 2-2 Size chart - 6 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 12: Function Characteristics

    1 strings of battery input with maximum 100A charge and discharge current. Wide battery voltage range(90-580V). AC Multi-parallel function, more flexible system solution. Smart monitoring, RS485/WiFi/Bluetooth/GPRS(Optional). 2.4. Electrical block diagram Fig. 2-3 Electrical block diagram - 7 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 13 User manual HYD 3K~6K-EP - 8 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 14: Installation

    After unpacking the inverter, check whether deliverables are intact and complete. If any damage is found or any component is missing, contact the dealer. Table3-1 Components and mechanical parts that should be delivered Picture Description Quantity Inverter 1pcs - 9 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 15 M8*80 Expansion bolts used to secure the wall-mount 4pcs bracket to the wall AC Grid connector 1pcs Load Output connector 1pcs Link port connector 1pcs 8 pin terminal Matching terminal resistance 1pcs （parallel system） - 10 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 16: Product Overview

    HYD 3K~6K-EP inverter is 100% strictly inspected before package and delivery. It is forbidden to put the HYD 3K~6K-EP inverter upside down during delivery. CAUTION Please check the product package and fittings carefully before installation. Fig.3-2 HYD 3K~6K-EP inverter overview - 11 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 17: Tools

    Screwdriver Wiring Remove and install AC terminal Cross screwdriver screws Removal tool Remove PV terminal Wire stripper Strip wire 4mm Allen Turn the screw to connect rear panel Wrench with inverter. - 12 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 18: Installation Environment

    3.5. Determining the Installation Position Determine an appropriate position for installing the HYD 3K~6K-EP inverter. Comply with the following requirements when determining the installation position. Fig. 3-3 Installation Position of HYD 3K~6K-EP inverter - 13 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 19: Moving The Hyd 3K~6K-Ep

    3.6. Moving the HYD 3K~6K-EP Step 1 Open the packaging, insert hands into the slots on both sides of the inverter and hold the handles, as shown in Fig.3-4. Fig. 3-4 Moving the inverter - 14 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 20: Installing Hyd 3K~6K-Ep

    M6 hex screw. Step 5 You can secure the inverter to the rear panel and protect if from stealing by installing an anti-theft lock (this action is optional). Fig. 3-5 Installing HYD 3K~6K-EP - 15 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 21 User manual HYD 3K~6K-EP ① ② ③ ④ ⑤ - 16 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 22: Electrical Connections

    Table 4-1 Relevant current parameters of each model IscPV(absolute Maximum output over current Model maximum) protection HYD 3000-EP HYD 3680-EP HYD 4000-EP HYD 4600-EP 18A/18A 20.9A HYD 5000-EP 21.7A HYD 5500-EP HYD 6000-EP 27.3A - 17 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 23: Wire Instructions

    Conductor Outdoor cross-sectional Load multi-core copper cable area:4mm ～6mm Conductor Outdoor cross-sectional multi-core copper cable area:5mm ～8mm 4.2. Connecting PGND Cables Connect the inverter to the grounding electrode using protection ground - 18 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 24 Note 2: The cavity formed after crimping the conductor crimp strip shall wrap the core wires completely. The core wires shall contact the terminal closely. Fig.4-1 Connecting PGND cable Note： L2 is 2 to 3mm longer than L1 ② ① 1.Screw 2.OT Terminal 3.Tapped hole ③ - 19 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 25: Pv Connection

    Before removing the positive and negative connectors, ensure that the DC SWITCH is OFF. Fig.4-2 Connect PV 1: Positive metal contact 3: Positive connector ② 2: Negative metal contact 4: Negative connector ① ③ - 20 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 26: Battery Connection

    User manual HYD 3K~6K-EP ④ ⑤ ⑥ Disconnect PV connectors ⑦ 4.4. Battery Connection Fig. 4-3 Install battery connection ② ③ ① ⑥ ⑤ ④ - 21 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 27: Load Connection

    , Make sure the grid is disconnected before removing the load ⑦ connector . Fig.4-4 Grid connection A:15~25mm B:6~8mm ② ① - 22 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 28: Grid Connection

    ① Step 2 Pass the wire through the terminal, as shown in Fig. ② Step 3 According to the mark, lock the wire into the keyhole on the terminal - 23 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 29 Need to dismantle the end connection, to use the tool, as shown in figure attending ⑩⑪ 。 Fig.4-5 Load connection A:30~50mm B:3~5mm ② ③ ① ④ ⑤ ⑥ ⑨ ⑦ ⑧ - 24 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 30: External Communication Interface

    The USB power supply is USB data + 5V/1A; Cannot be used for USB data - external device charging VBUS USB power + Refer to the figure shown below. Fig 4-7 - 25 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 31 DRMS1/5 applicable to the following safety standards: DRMS2/6 Logic interface connections Australia (AS4777), DRMS3/7 European General (50549), DRMS4/8 Germany (4105) DRMS0 The current sensor outputs a Connect current sensor of power - 26 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 32 TX+ and TX- of the RS485→ USB adapter, and connect the USB port of the adapter to the computer.(NOTE ： The length of the RS485 communication cable should be less than 1000 m) Fig 4-10 - 27 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 33 The inverter can be connected to a RRCR (Radio Ripple Control Receiver) in order to dynamically limit the output power of all the inverters in the installation. Fig.4-12 Inverter – RRCR Connection - 28 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 34 . The 1/2 and 3/4 on the electricity ② meter are connected to voltage signals L and N respectively. And the current needs to be connected through the current transformer,5,6 correspond to the current - 29 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 35 ④ If you need to use the CT alone, attach the CT to PIN13 and PIN14. There are two ways to get grid current information : Plan A:CT Plan B:Meter +CT - 30 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 36 User manual HYD 3K~6K-EP Fig. 4-15 Electrical connections (Plan A:CT) - 31 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 37 User manual HYD 3K~6K-EP Fig. 4-16 Electrical connections (Plan B:Meter +CT ) - 32 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 38 AC Grid. When inverters in parallel, All AC gird should be Shared a total air switch; All AC LOAD should be Shared another total air switch . Fig.4-18 parallel system - 33 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 39: Buttons And Indicator Lights

    Press “OK” to select the current menu option or switch to the next digit.  5.2. Indicator lights and status On Grid Off-Grid Alarm Status Green light Green light Red light On-grid Standby (On-Grid) Flashing Off-Grid Standby (Off-Grid) Flashing Alarm - 34 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 40: Operation

    Turn ON AC circuit breaker between the inverter LOAD port & critical load. Inverter should start to operate now. You need to set the following parameters before inverter starts to operate. - 35 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 41 Please consult qualified electrical engineer or personnel from electrical safety authorities about this. Shenzhen SOFARSOLAR Co., Ltd. is not responsible for any consequences arising out of incorrect country code selection. *4.Set battery parameters (Take the default input channel configuration as an - 36 - Copyright ©...

  • Page 42: Menu

    6.3. Menu Fig 6-1. Main interface In the main interface, press “Down” button to enter grid/battery parameters page. Main interface Down↓ Grid Output Information Grid(V) ......***.*V AC Current ....**.**A Frequency....**.**Hz - 37 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 43 1. System Setting 1.Language Settings 2.Time 3.Safety Param. 4.Energy Storage Mode 5.Auto Test(Only for Italy) 6.EPS Mode 7.Communication Addr. 1. Language Settings Used to set the menu display language. 1.Language Settings 1.中文 2.English - 38 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 44 Note:To enable this feature, please contact the Sofarsolar technical support . 4. Energy Storage Mode 4.Energy Storage Mode 1.Self-use Mode...
  • Page 45 Time-of-use mode in this case. Outside the effective date, inverter is working in Auto Mode. You can set multiple Time-of-use rules to meet your more complex requirement. Right now we support 4 rules maximum (rule 0/1/2/3). - 40 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 46 Testing 59.S1... ↓ Wait Test 59.S1 OK! ↓ Wait Testing 59.S2... ↓ Wait Test 59.S2 OK! ↓ Wait Testing 27.S1... ↓ Wait Test 27.S1 OK! ↓ Wait Testing 27.S2... ↓ Wait - 41 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 47 27.S2 threshold 34.5V 200ms ↓ Press “Down” 27.S2: 227V 205ms ↓ Press “Down” 81>.S1 threshold 50.5Hz 100ms ↓ Press “Down” 81>.S1 49.9Hz 103ms ↓ Press “Down” 81>.S2 threshold 51.5Hz 100ms ↓ Press “Down” - 42 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 48 If PV generation < LOAD consumption If PV generation is normal,but LOAD (ΔP ＞ 100W), inverter will discharge consumption=0, the surplus power will be battery. stored in the battery. - 43 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 49 In case of blackout: Inverter will work in EPS mode (if EPS mode is enabled) & keep discharging the battery till battery SOC is less than 20%. 7.Depth of Discharge Discharge Depth EPS Discharge Depth EPS Restore Depth - 44 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 50 2..Clear Events Clear Events? Parallel setting Please refer to <4.7.3 Link Port 0&1-Cascade communication interface> for the connection method of the parallel system. 6.Parallel setting 1.Parallel Control 2.Parallel Primary-Replica 3.Parallel Address 4.Save - 45 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 51 3.Energy Statistic Today PV ......***KWH Load ......***KWH Export ......***KWH Import.......***KWH Charge.......***KWH Discharge....***KWH Down↓ Month PV ......***KWH Load ......***KWH Export ......***KWH Import.......***KWH Charge.......***KWH Discharge....***KWH Down↓ Year PV ......***KWH Load ......***KWH Export ......***KWH - 46 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 52 EPS Mode Down↓ Inverter Info (4) IV Curve Scan Logic Interface Control PF Time Setting QV Time Setting Down↓ Inverter Info (5) Power Factor Anti Reflux Insulation resistance 2.Battery Info Battery1/2 info(1) - 47 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 53 List 2.History Event List 2.History 1.ID001 2020-4-3 14:11:45 1.ID001 GridOVP Event List 2.ID005 2020-4-3 11:26:38 2.ID005 GFCI 6.3.6 Software Update HYD 3K~6K-EP inverters offer software upgrade via usb flash drive to - 48 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 54 LCD screen extinguish, then restore the WiFi connection and then turn on the DC breaker and AC breaker again,the inverter will enters the running state. User can check the current software version in Systemlnfo>>SoftVersion. - 49 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 55: Troubleshooting

    For the machine installed with WiFi/GPRS, the alarm information can be seen on the corresponding monitoring website, and can also be received by the APP on the mobile phone. EventList information  - 50 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 56 GFCIDeviceFault Leakage current ID021 (DC) sampling error (DC) GFCIDeviceFault Leakage current ID022 (AC) sampling error (AC) Error in dc component ID023 HwADFaultDCV sampling load voltage input current ID024 HwADFaultIdc sampling error - 51 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 57 Unbalanced bus voltage Internal faults of inverter, switch OFF ID065 inverter, wait for 5 minutes, then switch ON inverter. Check whether the problem is VbusInstantUnba The transient value of ID066 solved. lance voltage - 52 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 58 Please check whether the inverter is operating under overload. ID111 Overload2 Overload protection 2 ID112 Overload3 Overload protection 3 ID113 OverTempDerati Internal temperature is Make sure the inverter is installed where - 53 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 59 Check the bluetooth connection of the ID147 BluetoothFault inverter ID148 RTCFault RTC clock failure Internal faults of inverter, switch OFF inverter, wait for 5 minutes, then switch ON ID149 CommEEPROM Communication board - 54 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 60 OFF. Wait at least for 5 minutes before the Cleaning. Inverter cleaning  Please clean the inverter with an air blower, a dry & soft cloth or a soft bristle - 55 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 61 Please clean the heat sink with an air blower, a dry & soft cloth or a soft bristle brush. Do NOT clean the heat sink with water, corrosive chemicals, detergent, etc. - 56 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 62: Technical Data

    Maximum discharging 100A 100A 100A 100A current Depth of 0-90% DOD adjustable（Lithium-ion） discharge 0-50% DOD adjustable （ Lead-acid ） BMS（Lithium-ion） Charging curve 3-Stage adaptive with maintenance （ Lead-acid ） Communication CAN(RS485) - 57 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 63 Full power MPPT voltage 160-520 180-520 200-520 230-520 250-520 250-520 300-520 range(V) Number of MPP trackers Max. input current per 13A/13A MPPT Max. input short circuit current 18A/18A per MPPT - 58 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 64 Nominal grid L/N/PE, 220Vac, 230Vac,240Vac voltage Grid voltage 180Vac~276Vac(According to local standard) range Nominal 50/60Hz frequency Grid Frequency 45Hz~55Hz/55Hz~65Hz range Power factor 1 default (adjustable+/-0.8) Output THDi (@Nominal <3% output) - 59 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 65 Peak output 3600VA, 4400VA, 4800VA, 5520VA, 6000VA, 6000VA, 6000VA, power,Duration Max. output 13.6A 18.2A 20.9A 22.7A 22.7A 22.7A current Nominal voltage,Frequen L/N/PE, 220V/230V/240V 50/60Hz THDv (@Liner <3% load) Switch time 10ms(default) - 60 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 66 DC switch PV reverse polarity protection Over current protection Over voltage protection PV insulation detection Ground fault monitoring Firm frequency response Optional function SPD protection MOV:Type III standard - 61 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 67 High frequency insolation (for bat) Standby self-consumptio <10W Ambient temperature -30℃~60℃（Above 45℃ Derating） range Allowable relative 0~100% humidity range Noise <25dB Max. operating <4000m altitude Cooling Natural Degree of IP65 protection - 62 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 68 TR321,TR322, EN 50438/EN50549, UTE C15-712-1, NRS 097-2-1, UNE 206 007-1 Safety IEC 62109-1/2, IEC 62040-1, IEC 62116, IEC 61727, IEC 61683, IEC 60068(1,2,14,30) standards EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 61000-3-11, EN 61000-3-12 - 63 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...

  • Page 69: Quality Assurance

    Invalid warranty clause Equipment failure caused by the following reasons is not covered by the warranty: The "warranty card" has not been sent to the distributor or our company; - 64 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 70 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. - 65 - Copyright © Shenzhen SOFARSOLAR Co., Ltd。...
  • Page 71 ADD: 401, Building 4, AnTongDa Industrial Park, District 68,XingDong Community, XinAn Street, BaoAn District, Shenzhen, GuangDong.P.R. China Email: service@sofarsolar.com Tel: 0510-6690 2300 Web: www.sofarsolar.com...
