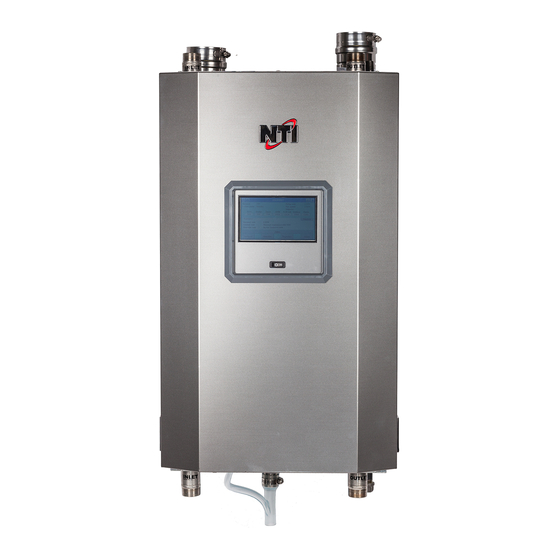

NTI Trinity Tft340 Installation And Operation Manual

Trinity Tft
Model Numbers: Tft60 - 399
Version Date: 2018-09-07
INSTALLATION AND OPERATION MANUAL FOR
TRINITY Tft BOILER

TABLE OF CONTENTS

1.0 INTRODUCTION ................................................................................................................ 3
2.0 SPECIFICATIONS .............................................................................................................. 6
3.0 BOILER LOCATION .......................................................................................................... 7
4.0 GENERAL VENTING ....................................................................................................... 10
5.0 VENT/AIR-INLET TERMINATION CLEARANCES ..................................................... 25
6.0 CONDENSATE DRAIN .................................................................................................... 27
7.0 INSTALLING GAS PIPING .............................................................................................. 27
8.0 LIGHTING THE BOILER ................................................................................................. 32
9.0 GAS VALVE AND BURNER SET-UP ............................................................................ 34
10.0 BOILER AND HEATING SYSTEM PIPING ................................................................... 38
11.0 LEAD LAG INSTRUCTIONS ........................................................................................... 50
12.0 FIELD WIRING ................................................................................................................. 53
13.0 WIRING SCHEMATICS ................................................................................................... 58
14.0 INSTALLATION CHECKLIST ........................................................................................ 60
15.0 ANNUAL MAINTENANCE AND INSPECTION ........................................................... 61
16.0 TROUBLESHOOTING ..................................................................................................... 63
17.0 PARTS LIST ...................................................................................................................... 86
HAZARD SYMBOLS AND DEFINITIONS
Danger Sign: Indicates a hazardous situation which, if not avoided, will
result in serious injury or death.
Warning Sign: Indicates a hazardous situation which, if not avoided,
could result in serious injury or death.
Caution Sign plus Safety Alert Symbol: Indicates a hazardous situation
which, if not avoided, could result in minor or moderate injury.
Caution Sign without Safety Alert Symbol: Indicates a hazardous
situation which, if not avoided, could result in property damage.
Notice Sign: Indicates a hazardous situation which, if not avoided,
could result in property damage.
unit may result in property damage, serious injury to occupants, or possibly death.
This Boiler must be installed by a licensed and trained Heating
Technician or the Warranty is Void. Failure to properly install this
H
Visit us
online
NTI # 84535
