Rolls

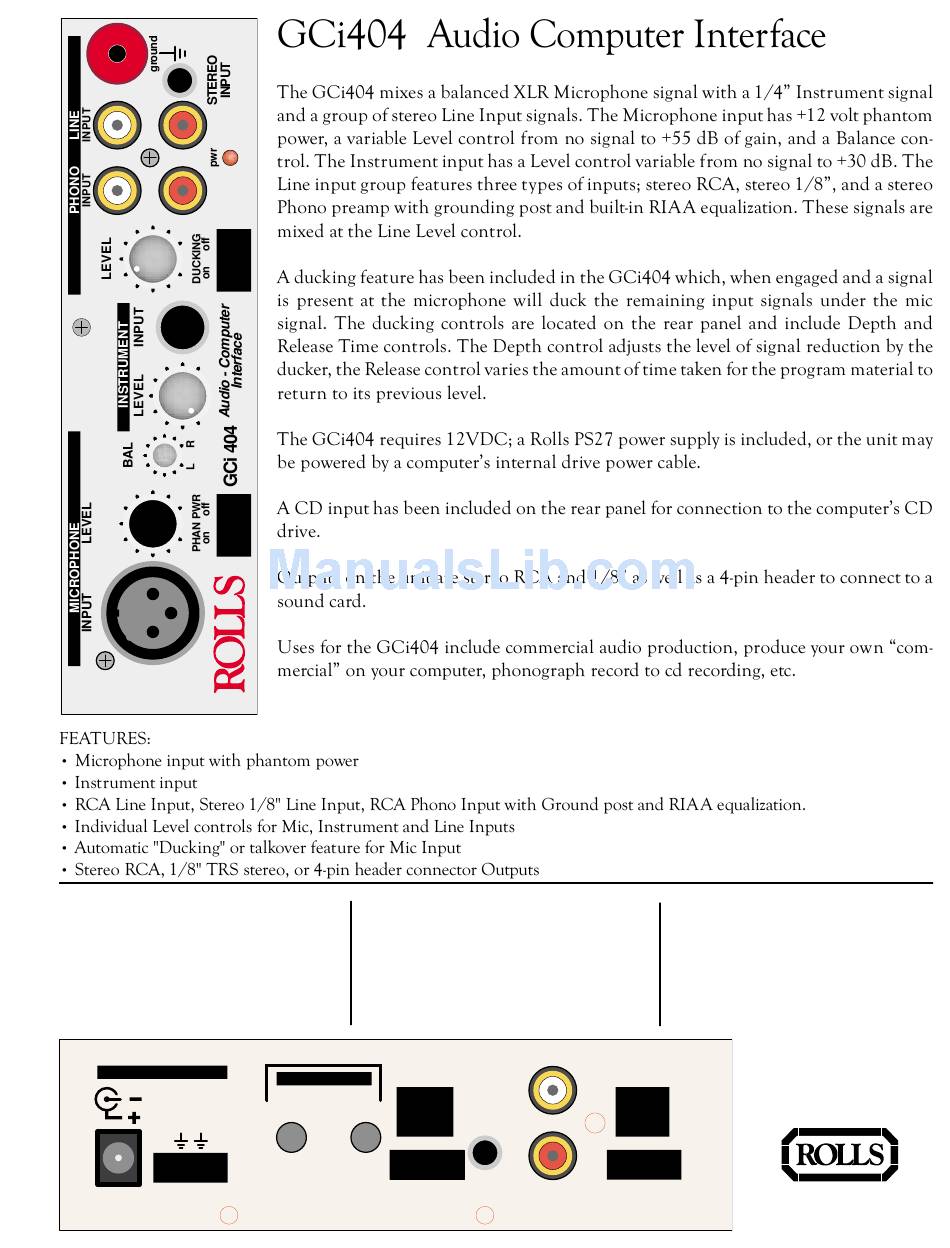

GCi404 Specifications

SPECIFICATIONS
MIC INPUT
10K 9 bal, unbal.
Input Impedance:
Max Input Level: +4 dBV XLR bal, +10 dBV unbal.
Max Gain: 60 dB/XLR, 54 dB 1/4"
EIN: -108 dB max.
THD: <.01%
POWER 12 VDC
+12 +5
Phantom Power:
LINE INPUTS
Input Connectors:
Input Sensitivity:
Input Capacitance: 5pf + cable capacitance
Input Impedance:
Output Impedance: 100 9
Max Output Level: >10dB @ 1kHz at at 1% dist.
DUCKING
LINE
OUTPUT
DEPTH REL
R gnd L
+21 Volts, 6 mA
RCA, 1/8" TRS Stereo
30 dB gain @ 1kHz, 47kW Input Z
50k 9
CD
INPUT
STEREO
OUTPUT R gnd L
LINE
OUTPUT
Frequency Response:+ / - 1.5dB 100 - 10K Hz
(Conforms to RIAA Equalization)
THD: .02% @ 1KHz
S/N Ratio :>80 dB unweighted
INSTRUMENT INPUT
50k 9
Input Impedance:
Max Gain: 30dB
Output Connectors: RCA, 1/8" TRS
Stereo, 4-pin hdr.
Dimensions: 1.7"H x 5.9" W x 3.7" D
Weight: 1 lb.
Power: 12VDC (Rolls PS27 Incl.)
Salt Lake City, UT
info@rolls.com
www.rolls.com
