Texas Instruments TPD1E10B06DPY User Manual

DESCRIPTION
The "ESD EVM" features a series of ESD protection diodes and can be used for destructive electrostatic
discharge (ESD) pass/fail ESD strike, continuity, and signal pass-through tests. Specifically, it could be
used for both IEC-61000-4-2 air and contact discharge tests. The procedure outlined below ensures
proper testing setup and method for both discharge tests.
ESD EVM FEATURED DEVICES
• D1 – TPD4E101DPW*
• D2 – TPD1E10B09DPY (0402)
• D3 – TPD1E6A14DPL (0201)*
• D4 – TPD1E10B06DPY (0402)
• D5 – TPD1E6B06DPL (0201)*
• D6 – TPD1E05U06DPY (0402)*
• D7 – TPD1E05U06DPL (0201)*
• D8 – TPD5E003DPF*
• D9 – Empty
• D10 – Empty
*currently unpopulated
D2 and D4 are currently populated with other devices to follow soon
SLVU702 – March 2012
Submit Documentation Feedback
ESD Protection Diodes EVM

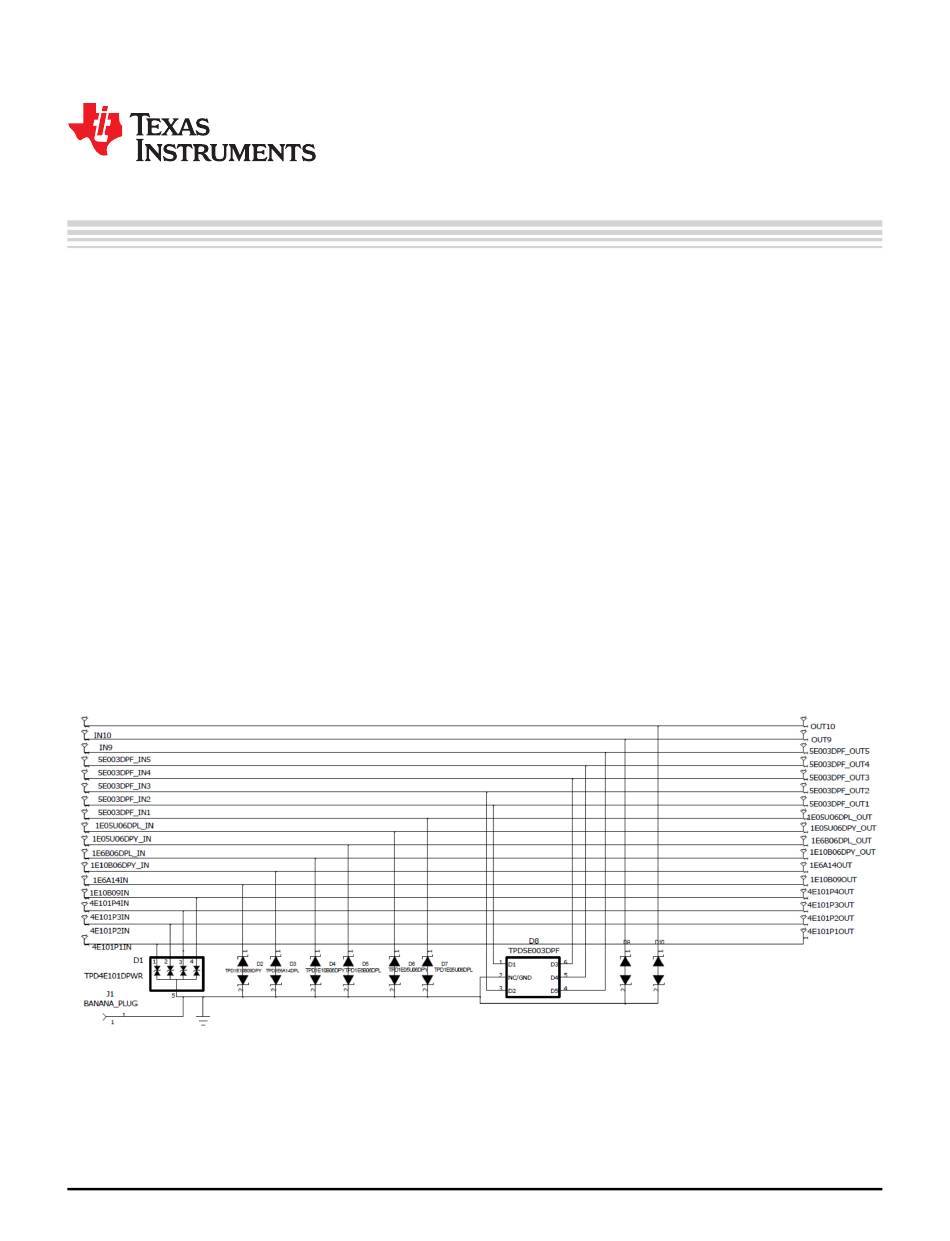

Figure 1. ESD EVM Schematic
