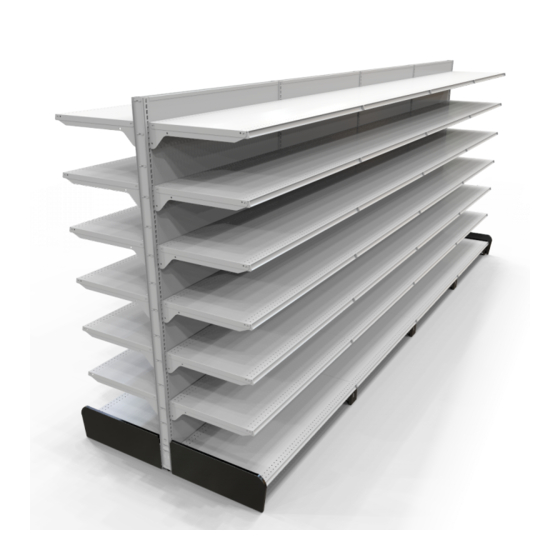

- Page 1 S- SERIES SHELVING INSTALLATION MANUAL GONDOLA WALL UNIT...
- Page 2 COMPONENTS ITEM #5 ITEM #9 BASE SHOE OPEN KICK PLATE ITEM #1 ITEM #2 ITEM #6 ITEM #10 UPRIGHT END SS HD POST UPPER SHELF MASONITE BACK COVER (UPRIGHT) PLAIN/PERFORATED ITEM #3 ITEM #7 LEFT SHOE BRACKET COVER ITEM #4 ITEM #8 ITEM #11 RIGHT SHOE...
- Page 3 COMPONENTS ITEM #12 ITEM #13 ITEM #14 TOP CROSS-BAR CENTER CROSS-BAR BOTTOM CROSS-BAR ITEM #15 ITEM #17 ITEM #16 INTERMEDIATE CROSS-BAR PLASTIC CAP WALL ANCHOR BRACKET TOOLS DRILL LEVEL RUBBER MALLET LEVELER KEY DRAWING PAGE S- SERIES SHELVING 3 OF 12 INS-201004...
-
Page 4: Exploded View
EXPLODED VIEW S- SERIES WALL UNIT PART LIST ITEM DESCRIPTION UPRIGHT END COVER SS HD POST (UPRIGHT) LEFT SHOE COVER RIGHT SHOE COVER BASE SHOE SS-LB UPPER SHELF BRACKET BASE SHELF OPEN KICK PLATE MASONITE BACK PLAIN/ PERFORATED MASONITE BACK PLAIN/ PERFORATED TOP CROSS-BAR CENTER CROSS-BAR BOTTOM CROSS-BAR... - Page 5 STEP 1 TRACE A CHALK LINE ON THE FLOOR FOR DESIRED LOCATION OF GONDOLA AND LAY DOWN THE FEET (ITEM#1), POSTS (UPRIGHT) (ITEM#2), OPEN KICK PLATE (ITEM#9) AND THE CROSS-BARS (ITEM#10-11-13) ALONG THE CHALK LINE. ITEM#2 ITEM#10 ITEM#3 ITEM#13 CHALK LINE ITEM#9 ITEM#11 STEP 2...
- Page 6 INFORMATION FOR ANCHOR ONLY REQUIRE FOR THE WALL UNIT INSTALL THE WALL ANCHOR BRACKET (ITEM#15) ON THE WALL AT THE TOP OF EACH POST (UPRIGHT). INSERT THE TOOTH OF THE ANCHOR IN THE FIRST SLOTS FROM THE BACK BY TURNING IN THE POSITION UPRIGHT. AS SOON THE TOOTH IS IN PLACE, PUT IT BACK ON THE HORIZONTAL POSITION AND FIX IT WITH THE WOOD SCREW NO 8 X 1 1/2"...
- Page 7 STEP 3 ADJUST THE BASE FOOT LEVELING SCREW AT 3/4" AND THE UPRIGHT POST LEVELING SCREW AT 1/2". NOTE ENGINEERING MAY SUGGEST THE USE OF THE ANCHOR FOOT BRACKETS SECURED WITH ANCHORS BOLT 1/4" X 2 1/4"L FOR IMPORTANT EACH POST, INTO THE FLOOR. THE GONDOLA MUST BE LEVELED AND CORRECTLY ADJUSTED.
- Page 8 STEP 5 INSTALL THE OPEN KICK PLATE (ITEM#9) IN THE FRONT OF THE BASE SHOES TO STABILIZE THE UNIT BY SLIDING THE FRONT FRAME FROM THE TOP INTO THE BRACKETS. ITEM#9 STEP 6 LEVEL THE UNIT HORIZONTALY, BY ADJUSTING THE LEVELERS IN THE FRONT AND IN THE BACK OF THE FEET TO ENSURE THE STRUCTURES ARE LEVELED AND PLUMB.
- Page 9 STEP 8 INSTALL THE UPRIGHT END COVER (ITEM#1) ON BOTH UPRIGHT ENDS, SLIDE THE SHOE COVERS (ITEM#4-5) ON TO THE BASES SHOES AND INSERT THE PLASTIC CAP (ITEM#17) ON THE TOP OF EACH POST (UPRIGHT). ITEM# 17 ITEM#1 ITEM#1 LEFT SHOE COVER (ITEM#4) ITEM#17...
- Page 10 MASONITE BACK PANEL SIZING CHART DRAWING PAGE S- SERIES SHELVING 10 OF 12 INS-201004...
-
Page 11: For Your Safety
FOR TECHNICAL ASSISTANCE, CALL MIDWEST RETAIL SERVICES T 800-876-7577 FOR YOUR SAFETY: Install all shelving according to installation Never install shelves or accessories onto the instructions. side of an upright that has no base foot to support it. Assembly or movement of any parts should... - Page 12 UNBALANCED LOAD CALCULATION FOR A WALL SECTION HEAVY LOADED OR WHEN LOADING OR UNLOADING AN ISLAND. IT IS VERY IMPORTANT TO DETERMINE THAT YOU WILL NOT CREATE AN UNBALANCED LOAD THAT WILL EXCEED THE LIMIT PERMITTED. THE EXAMPLE SHOWN BELOW WILL SHOW YOU HOW TO CALCULATE IF YOU HAVE AN UNBALANCED LOAD IN LBS/INCH.
