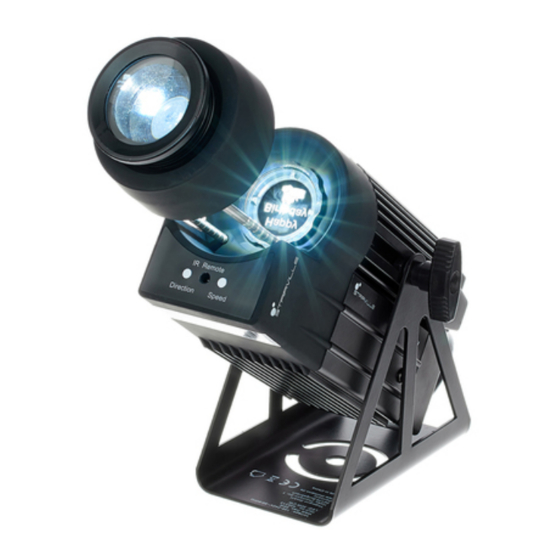

- Page 1 GP30-W LED, GP30-C LED Gobo Projector...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 29.04.2022, ID: 400313, 400315 (V2)
-
Page 3: Table Of Contents
1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 8 Safety instructions..........................10 Features............................... 15 Installation..............................16 Connections and controls........................20 Maintenance.............................. 25 Technical specifications........................28 Cleaning............................... 32 Protecting the environment......................33 GP30-W LED, GP30-C LED Gobo Projector... - Page 4 GP30-W LED, GP30-C LED Gobo Projector...
-
Page 5: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. GP30-W LED, GP30-C LED Gobo Projector... -
Page 6: Further Information
Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. GP30-W LED, GP30-C LED Gobo Projector... -
Page 7: Notational Conventions
The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. GP30-W LED, GP30-C LED Gobo Projector... -
Page 8: Symbols And Signal Words
NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. GP30-W LED, GP30-C LED Gobo Projector... - Page 9 General information Warning signs Type of danger Warning – high-voltage. Warning – hot surface. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. GP30-W LED, GP30-C LED Gobo Projector...
-
Page 10: Safety Instructions
Extend the operating life of the device by regular breaks and by avoiding frequent switching on and off. The device is not suitable for continuous operation. GP30-W LED, GP30-C LED Gobo Projector... - Page 11 Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. WARNING! Eye damage caused by high light intensity Never look directly into the light source. GP30-W LED, GP30-C LED Gobo Projector...
- Page 12 15 minutes before you start any maintenance activities. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. GP30-W LED, GP30-C LED Gobo Projector...
- Page 13 Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. NOTICE! Risk of fire due to incorrect polarity Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting bat‐ teries. GP30-W LED, GP30-C LED Gobo Projector...
- Page 14 The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐ sary, i.e. felt-pad floor protectors or similar. GP30-W LED, GP30-C LED Gobo Projector...
-
Page 15: Features
For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. GP30-W LED, GP30-C LED Gobo Projector... -
Page 16: Installation
Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. GP30-W LED, GP30-C LED Gobo Projector... - Page 17 Ensure that proper polarity is observed when inserting batteries. NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. GP30-W LED, GP30-C LED Gobo Projector...
- Page 18 The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). Please note that this device must not be connected to a dimmer. GP30-W LED, GP30-C LED Gobo Projector...
- Page 19 Slide the battery holder back into the remote until it clicks into place. When shipping, the battery is already installed in the remote and protected against discharge by a transparent plastic foil. Remove the plastic foil prior to first use. GP30-W LED, GP30-C LED Gobo Projector...
-
Page 20: Connections And Controls
Connections and controls Connections and controls & IR Remote Direction Speed ö # $ GP30-W LED, GP30-C LED Gobo Projector... - Page 21 5 Projection optics. Carefully pull out the optics guided on a carriage to roughly adjust the distance. For fine adjust‐ ment and focus, turn the optics. 6 Locking screws for the mounting bracket. 7 Mounting bracket with opening for a safety rope. GP30-W LED, GP30-C LED Gobo Projector...
- Page 22 Connections and controls Remote control ON/OFF ON/OFF Blackout Fade Strobe Blackout Fade Strobe Fullon Green Blue White Amber 100% Pink Cyan Yellow GP30-W LED, GP30-C LED Gobo Projector...
- Page 23 11 [+], [–] Increases or decreases the speed of gobo rotation. Stops the gobo rotation. 13 [Fade] Turns the Fade effect on or off. 14 [Strobe] Turns the Strobe effect (flash) on or off. GP30-W LED, GP30-C LED Gobo Projector...
- Page 24 [20%] … [100%] Button to select the brightness. GP30-C [Fullon] … [Yellow] Buttons to select a colour: 16 [Blackout] Button to turn the blackout on or off. 17 Button to select the direction of rotation. GP30-W LED, GP30-C LED Gobo Projector...
-
Page 25: Maintenance
Maintenance Maintenance Gobo exchange GP30-W LED, GP30-C LED Gobo Projector... - Page 26 Completely disconnect the device from the power supply before you open or remove covers. Mount all covers and attach them firmly before connecting the device again. Do not use the device if covers, protectors or optical components are missing or damaged. GP30-W LED, GP30-C LED Gobo Projector...
- Page 27 Insert the gobo so that the subject appears mirror-inverted when you look at the optics from the front. Screw the lock ring firmly inside the gobo holder. Replace the magnetic gobo holder back into the unit. GP30-W LED, GP30-C LED Gobo Projector...
-
Page 28: Technical Specifications
Technical specifications Technical specifications 216 mm 133 mm IR Remote Direction Speed GP30-W LED, GP30-C LED Gobo Projector... - Page 29 Optical properties Beam angle 17° Gobo Size Diameter 37.5 mm Diameter of the image 30 mm Width 3 mm Control Infrared remote control Buttons on the unit Input connections Power supply IEC chassis plug C14 GP30-W LED, GP30-C LED Gobo Projector...
- Page 30 Wall mounting, floor mounting Dimensions (W × H × D) 133 mm × 216 mm × 157 mm Weight 2.0 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) GP30-W LED, GP30-C LED Gobo Projector...
- Page 31 Technical specifications Further information Item no. 400313 Item no. 400315 GP30-W GP30-C Type Gobo projector Gobo projector Rechargeable battery operation GP30-W LED, GP30-C LED Gobo Projector...
-
Page 32: Cleaning
The fan grids of the device must be cleaned of any contamination, such as dust, etc. on a reg‐ ular basis. Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. GP30-W LED, GP30-C LED Gobo Projector... -
Page 33: Protecting The Environment
Protect used lithium batteries against short circuits, for example by covering the poles with adhesive tape. Permanently built-in lithium batteries must be disposed of together with the device. Please inquire about an appropriate collection point. GP30-W LED, GP30-C LED Gobo Projector... - Page 34 Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. GP30-W LED, GP30-C LED Gobo Projector...
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
