Installation and operation manual

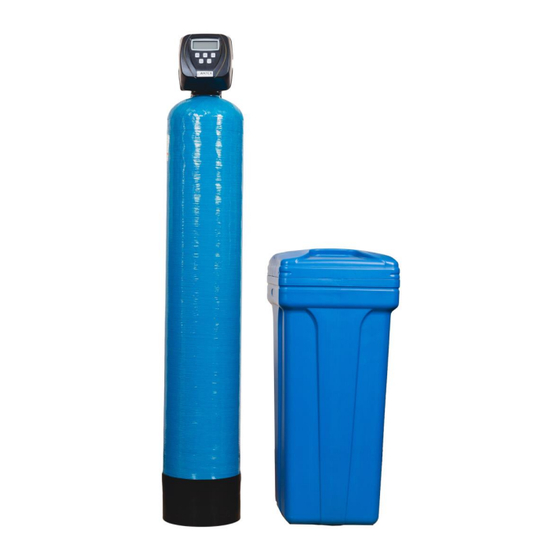

WATEX CMS-8/9/10/12/13/14
WATER SOFTENER
Watch CMS water
softener start-up video:
More info:
https://watex.eu/en/softeners/cms
Read the instructions carefully before use!
WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu
Advertisement
Related Manuals for Watex WATEX CMS-10
Summary of Contents for Watex WATEX CMS-10
- Page 1 Installation and operation manual WATEX CMS-8/9/10/12/13/14 WATER SOFTENER Watch CMS water softener start-up video: More info: https://watex.eu/en/softeners/cms Read the instructions carefully before use! WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ............................3 REQUIREMENTS………………………………………………………………………………………….3 SPECIFICATIONS…………………………………………………………………………………………4 SYSTEM MAIN COMPONENTS…………………………………………………………………………5 OPERATION MODES……………………………………………………………………………………..7 INSTALLATION……………………………………………………………………………………………8 START UP……………………………………………………………………………………………………15 PROBLEMS AND SOLUTIONS……………………………………………………………………………17 WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu... -
Page 3: Introduction
These units will deliver conditioned water for many years to come, when installed and operated properly. Please study this manual carefully and understand the cautions and notes before installing. This manual should be kept for future reference. If you have any questions regarding your water softener, contact your local dealer or WATEX. REQUIREMENTS Please note that the water SOFTENER is heavy and fragile;... -
Page 4: Specifications
** Softener Capacity depends on water hardness and iron, turbidity, ammonium concentration and should be calculated for each water separately to get the best results and to reduce salt consumption and water for regeneration. Please contact to your local dealer or WATEX to program the right capacity. Important notes: Softener does not remove smell, organics, bacteria or viruses. -
Page 5: System Main Components
SYSTEM MAIN COMPONENTS The softener has three main basic components: resin tank, Clack control valve and brine tank. 2.1.1. Control valve WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu... - Page 6 The filter tank is filled with ion exchange resin (cationic), which reduces hardness and iron concentration in water. Capacity of filter material is calculated according to amount of resins and raw water quality. When capacity is exhausted, regeneration by salt is performed. WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu...
-
Page 7: Operation Modes
During the regeneration process, hardness ions on the resin beads are replaced or exchanged for sodium ions from the brine solution. WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu... -
Page 8: Installation
In order to enhance the durability of the filter first it is recommended to install a mechanical filter that prevents sand particles, which can be lifted out of the hole and to lead to clogging the parts of the filter. WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu... - Page 9 Important: To prevent the sewer smell come into the filter and cause bacteriological contamination of the filter before entering the sewage system it is recommended to create hydro seal or siphon. WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu...
- Page 10 2, 3 and 4. When the equipment is connected to the water supply, drainage and reagent tanks, in the reagent container, fill salt tablets (NaCl) in Brine tank. WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu...
- Page 11 Radial seals allow side-to-side and up/down minor plumbing misalignments, connections need only hand tightening. • One internally lubricated O-ring on rotor creates less friction. Bypass Valve Operation WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu...
- Page 12 The rest of the cable should be placed along side the frame of the motherboard behind the specially designed clamps. Push back the motherboard-mounting frame to fastening tab and secure it in the original position. Install the front button cover. WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu...
- Page 13 By pressing the above buttons in order you can Lock (LoC) or to Unlock (UnLoC) someone from accessing the OEM setup screens Setting Time of Day Setting Time of Day WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu...
- Page 14 Setting Time of Day Installer Display Settings WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu...
-
Page 15: Start Up
START UP Usually all key operating parameters of the WATEX CMS series filter have already been set at the service center. The only thing that is planned to set for the first run is the time setting. Regeneration cycles and capacity programming Press and hold the “NEXT”... - Page 16 If desired, regeneration at preset time (default 2:00), press the REGEN button. REGEN TODAY will appear on screen. If desired, immediate regeneration, press and hold the REGEN button for five seconds until a regeneration begins. WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu...
-
Page 17: Problems And Solutions
(transformer) damaged c. Replace transformer d. electronic plate damaged d. Replace electronic plate e. Faulty actuator or drive cover e. Replace actuator or drive cover part part WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu... - Page 18 NEXT and REGEN buttons have been pressed to re-reset control valve. WATEX Ltd., Latvia, Riga, Ganibu dambis 27 k-5, info@watex.eu, Tel. +371 67381989, www.watex.eu...
