Stealth Racer
_W017
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W017 and is the answer not in the manual?

Questions and answers

Related Manuals for Gill W017

Summary of Contents for Gill W017

  • Page 1 Stealth Racer _W017 Instruction Manual...
  • Page 2 This watch comes with a 2 year warranty. For warranty issues please contact your nearest stockist. Proof of purchase required.

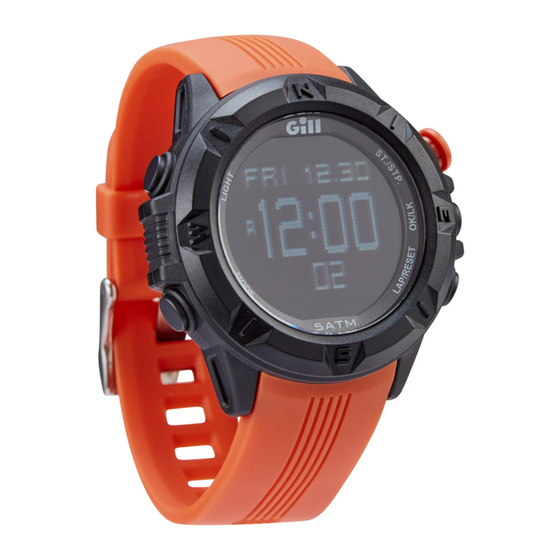

  • Page 3 1.0 Introduction Thank you for purchasing the Stealth Racer Watch. This watch features real time, dual time, race countdown timer, stopwatch and compass modes in addition to many other functions. Your watch will be supplied in Power Down Mode in order to preserve battery life. To exit, press and hold any button for 5 seconds.
  • Page 4 2.0 Buttons Operation Summary Mode Button [M] - In Regatta Mode & Chronograph Mode: Press and hold for 2 seconds to reset - Press to scroll through Function Modes when stopped. - In any Function Mode: Press to return to Function Mode Menu.

  • Page 5: Major Function Modes

    3.0 Major Function Modes Regatta Mode. Compass Mode Section 5 Section 6 Clock Mode. Section 4 Settings Mode Chronograph Mode Section 8 Section 7...

  • Page 6: Clock Mode

    4.0 Clock Mode [S/S] [O/L] [O/L] Or wait 2 Seconds Home Time Display Function Menu [S/S] Dual Time Home Time Dual Time Display * ST.STP Button [S/S] - Press to toggle Home & Dual Time Display for 5 seconds. - Press and hold for 2 seconds changed display will be kept.
  • Page 7 3.0 Regatta Mode 5.0 Regatta Mode Countdown mm:ss [S/S] Start/Stop [S/S] [O/L] [O/L] Lock/Unlock [O/L] Or wait 2 Seconds Hours [L/S] [L/S] Reset Countdown Display Function Menu Elapse Time Bearing Lock Home Time Indicator Race Display Sub 1 Min Display * Lap/Reset Button [L/S] - When timer is stopped press and hold for 2 seconds to reset.

  • Page 8: Compass Mode

    6.0 Compass Mode [O/L] Bearing [O/L] Or wait 2 Seconds Home Time Compass Display Function Menu...

  • Page 9: Chronograph Mode

    7.0 Chronograph Mode 7.0 Chronograph Mode [S/S] Start/Stop [S/S] [O/L] [O/L] Lap Recall [O/L] Or wait 2 Seconds [L/S] [L/S] Lap/Reset Chronograph Display Function Menu [S/S] Lap No. Flashes Lap No. [L/S] Lap Time Elapsed Time Lap Time Display Running Display Auto return after 10 sec * Lap/Reset Button [L/S] - When timer is running press to set lap time.
  • Page 10 7.0 Chronograph Mode _ cont. [S/S] Lap No. UP [S/S] [O/L] [L/S] Lap No.Down Stopped Display Recall Display Running Display [O/L] Addition display information: Minute Second 1/100 S Hour Minute Second Less than 1 Hour Over 1 Hour Maximum Time: 23H 59M 59S Maximum Lap Count: 99...

  • Page 11: Settings Mode

    8.0 Settings Mode [S/S] UP [S/S] [O/L] [O/L] Select [O/L] Or wait 2 Seconds [L/S] [L/S] Down Function Menu Settings Menu Display * Mode Button [M] - In any setting display: Press to exit and return to previous level.
  • Page 12 8.1 Regatta Settings _ Timer [S/S] [S/S] [S/S] [O/L] [L/S] [L/S] [L/S] Hour Regatta Menu Display [O/L] [O/L] [O/L] [S/S] [S/S] [S/S] [O/L] [L/S] [L/S] [L/S] Seconds Minute...
  • Page 13 8.1.1 Regatta Settings _ Alert [S/S] [S/S] [S/S] [O/L] [O/L] [O/L] [O/L] [L/S] [L/S] [L/S] Sound Sound ON/OFF Regatta Menu Display [S/S] [S/S] [O/L] [O/L] [O/L] [L/S] [L/S] Vibration Vibration ON/OFF Countdown Alert: - The Countdown Alert can be set to Sound, Vibrate or a combination of Both. - Once set the Alert will activate as follows: Alert once per minute for the last 10 minutes, once per 10 seconds for the final minute and once per second for the last 5 seconds.
  • Page 14 8.1.2 Regatta Settings _ Auto Lock [S/S] [S/S] [O/L] [O/L] [L/S] [L/S] Regatta Menu Display Auto Lock ON/OFF...
  • Page 15 8.2 Clock Settings _ Time [S/S] [S/S] [S/S] [O/L] [L/S] [L/S] [L/S] Clock Menu Display Seconds [O/L] [O/L] [O/L] [S/S] [S/S] [S/S] [O/L] [L/S] [L/S] [L/S] Hours Minute...
  • Page 16 8.2.1 Clock Settings _ Date [S/S] [S/S] [S/S] [O/L] [L/S] [L/S] [L/S] Clock Menu Display Year [O/L] [O/L] [O/L] [S/S] [S/S] [S/S] [O/L] [L/S] [L/S] [L/S] Month...
  • Page 17 8.2.2 Clock Settings _ Dual Time [S/S] [S/S] [S/S] [O/L] [L/S] [L/S] [L/S] Clock Menu Display Minutes [O/L] [O/L] [S/S] [S/S] [L/S] [L/S] Hour...
  • Page 18 8.2.3 Clock Settings _ Format [S/S] [S/S] [S/S] [O/L] [O/L] [O/L] [O/L] [L/S] [L/S] [L/S] Time Time Format Clock Menu Display [S/S] [S/S] [O/L] [O/L] [O/L] [L/S] [L/S] Date Date Format...

  • Page 19: Alarm Settings

    8.3 Alarm Settings [S/S] [S/S] [O/L] [O/L] [O/L] [L/S] [L/S] Alarm ON/OFF Hour Minutes...
  • Page 20 8.4 System Settings _ Keytone [S/S] [S/S] [O/L] [O/L] [L/S] [L/S] System Setting Menu Keytone ON/OFF...
  • Page 21 8.4.1 System Settings _ Contrast [S/S] [S/S] [O/L] [L/S] [L/S] System Setting Menu Contrast...
  • Page 22 8.4.2 System Settings _ Compass [S/S] [S/S] [S/S] [O/L] [O/L] [L/S] [L/S] [L/S] Declination* Tme Format Clock Menu Display [S/S] [O/L] [L/S] Calibration *Declination: Declination accounts for the difference between True North and Magnetic North and should be set according to your current location ** To Calibrate Compass rotate watch through 360 degrees until boarder is complete.
  • Page 23 8.4.3 System Settings _ Standby Mode [S/S] [S/S] [O/L] [O/L] [L/S] [L/S] System Setting Menu Standby ON/OFF...

  • Page 24: Power Modes

    9.0 Power Modes. This watch includes three power saving Functions designed to help the battery last longer: Standby Mode. - When no key is pressed for 1 hour, the watch will enter Standby Mode. - When in Standby Mode only the current time will be shown - To exit Standby Mode: press any key - Standby Mode can be set On/Off in System Settings Standby Mode...
  • Page 25 9.0 Power Modes _ Cont. Power Down Mode. - Power Down Mode can be only entered while in Clock Mode ST./ STP Button [S/S] & Mode - To enter Power Down Mode: press and hold Button [M] for 5 seconds - To exit Power Save Mode: press any key press and hold 5 seconds When in Power Saving Mode or Power Down Mode the display will be off but all timers will continue running.

  • Page 26: Specifications

    10.0 Specifications Clock Mode: Daily Alarm - Hour, minute, second, am, pm, month, - 1 Daily Alarm day, and day of week - Sounds for 30 seconds at alarm time - Dual Time mode - 12-hour or 24-hour format Others - Auto-Calendar pre-programmed from the - Electro-Luminescent (EL) backlight year 2000 to 2099...
  • Page 27 gillmarine.com...
