GRASS VALLEY 7600REF Datasheet

76 7600REF Reference and Test Signal Generator
4 3
LEVEL SYNC
3 2
ETHERNET

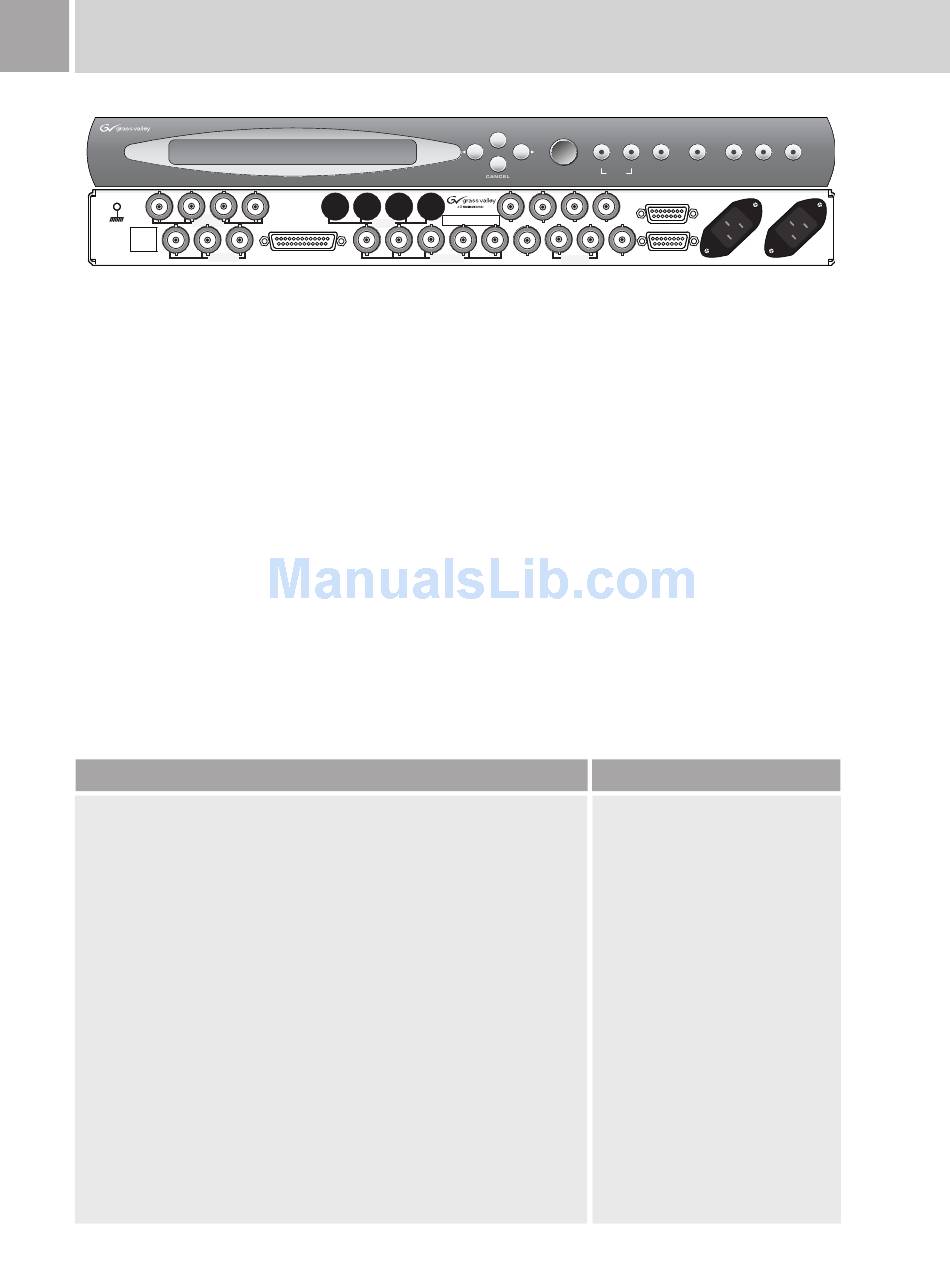

The 7600REF reference and test signal
generator is a high-stability standalone 1 RU
unit for providing system timing. It has a
complete set of reference signals, including a
master Genlock reference loop-through input.
It can be used in either master or slave roles.
A powerful feature is timecode generation, as
well as a complete set of reference signals,
allowing for a very compact timing solution.
Reliability is a top feature of the 7600REF with
dual-redundant power supplies and the ability
to interface to the 7620PX changeover unit for
backup.
Key Features
• High-stability reference generator for
system master or local slave roles
• Sophisticated timecode generator option
for a complete compact timing solution
• Five individually timed analog black/burst
outputs
• Four Tri-level sync outputs with 7600HD
option – all co-timed with one selectable
Black Burst output of the same frame rate
• High stability outputs (0.5 Hz accuracy)
• Redundant power supplies standard
• Can be used with 7620PX changeover for
fully redundant operation
Specifications
Inputs
Genlock: One input (with loop-through)
5/10 MHz reference: One input
Outputs
Analog video: Five standard outputs 625/525 (black
burst and test)
SD/HD SDI: Three (SD/HD test) SD standard, HD optional
AES: Two balanced (AES 2003-11) 32/44.1/48.96 kHz,
two unbalanced with 7600MHD-REF version
Analog audio: Two channels
27 MHz/10 MHz/word clock: One standard
LTC/VITC: Two (optional)
GPS Receiver (7600MHD-REF)
• One 5V antenna input
• One PPS output
Performance
Accuracy: <±0.5 Hz (0.1 ppm)
Temperature stability: < 0.1 ppm
Aging: <3 Hz per year
Genlock offset: ±4 fields in 1 ns step
Genlock phase: 0-350° in 0.1° steps
Black burst and test signal: ±4 fields in clock steps
2 1 4 3
TRI-
TEST
SIGNALS
5
1
ANALOG AUDIO/REMOTES
SD/HD SDI
For versatility, the 7600REF has no less than
five individually timed analog black and burst
reference outputs. In addition, three SDI feeds
provide individual test signals, including full-
field signals where each can be separately
configured. A full set of audio test signals are
provided with analog audio available as well as
unbalanced AES and embedded audio outputs.
The 7600HD option provides for an additional
four Tri-level sync outputs and a full set of HD
test signals.
• Simultaneous multi-standard outputs
• Three dedicated individual SDI black/test
signal outputs, with HD signals through
7600HD option
• Full-field test patterns (including FuBK)
• Analog audio, AES (including GLITS), and
embedded audio test signals
• GPS receiver option
• Optional NTP server for locking IT system
and video system
• Set-up and control via simple-to-use front
panel display
• Ethernet TFTP client for easy software
upgrade and new test pattern download
SDI back and test signal: ±2 fields in clock steps
Tone frequency: 100 Hz to 10 kHz in 100 Hz steps
Tone amplitude: 0 dB to -40 dB in 1 dB steps (L&R)
Control and Monitoring
Front panel display with configuration menu
access
GPI:
• Two configurable inputs
• Two configurable outputs
Network interface: TFTP download
Slave configuration retrieval from master
Power
90 to 260 VAC, 47 to 63 Hz, 75 VA
Weight
Max. 5.2 kg fully equipped
Dimensions
Height: 44 mm (1 RU)
Width: 483 mm
Depth (excluding connectors): 400 mm
Environmental
Operating temperature: +0° to +50°C
OK OK
ADJUST ADJUST
CANCEL
2 1
AES 1 AES 2
4 3 2 1
TEST
BB/ANALOG 10/27/WC OUT GENLOCK
REFERENCE SIGNAL GENERATOR REFERENCE SIGNAL GENERATOR
SDI SDI ANALOG ANALOG AUDIO AUDIO OPTIONS OPTIONS LOCK LOCK
MODE MODE
VIDEO VIDEO
AES 90-260V
2A-1A
GPS 1 PPS
47-63Hz
LOOP
LTC
AC ONLY
5/10 REF IN
The timecode generator options allow for a
versatile solution to timecode. Longitudinal and
vertical interval timecode LTC and VITC can be
output.
The 7600REF can act as an NTP server
ensuring IT-based units keep in step with the
broadcast infrastructure. The time generated
can be set from GPS satellites through the
7600GPS option. This makes the 7600REF an
ideal unit for OB operation.
Applications
• Dual-redundant master reference
generator
• Local slave reference generation
• Compact complete timing solution with
reference and timecode generation
• Reference generation for locking IT
system and video system together
Ordering Information
7600SD-REF
SD video (analog and SD-SDI) and audio reference and
test signal generator with dual power supplies
7600HD-REF
SD/HD video (analog and SD/HD-SDI video) and audio
reference and test signal generator with dual power
supply – includes 7600SD-REF features plus TLS
output HD-SDI test pattern
7600MHD-REF
SD/HD master timing generator – includes
7600HD-REF features plus GPS receiver, unbalanced
AES, timecode generator, and NTP client/server
7620PX
Changeover unit for use with two 7600REF generators
(see 7620PX datasheet for details)
For detailed specifications, installation, and setup
instructions see:
www.grassvalley.com/docs/modular
