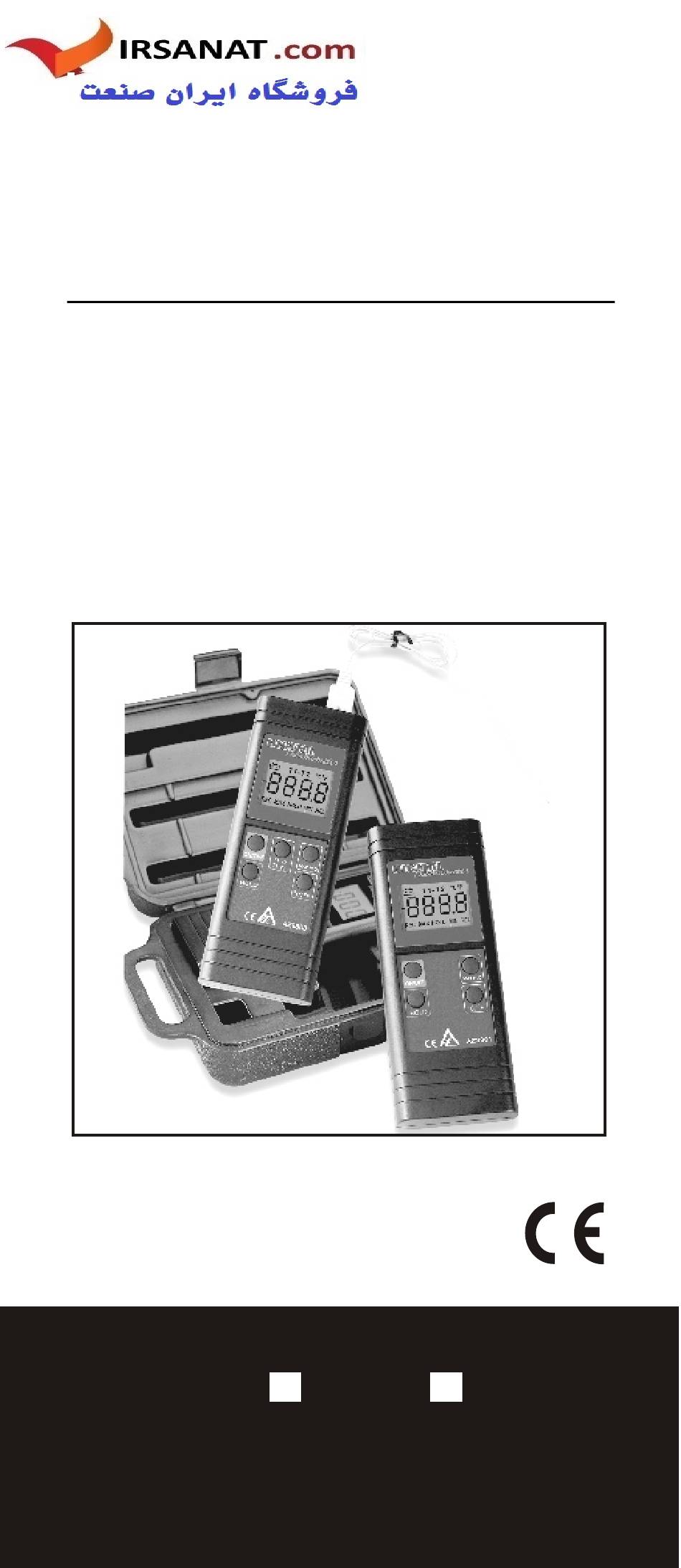

  • Page 1 INSTRUCTION MANUAL K TYPE THERMOMETER Model: 8801 8803...
  • Page 2 INTRODUCTION The 8801 and 8803 are 3 1/2 digit, hand -held thermometer designed to use K- type thermocouple as temperature sensor. 8801 For 1 K-type Thermocouple input 8803 For 2 K-type Thermocouple input SAFETY To avoid electrical shock, disconnect the thermocouple connectors from the...

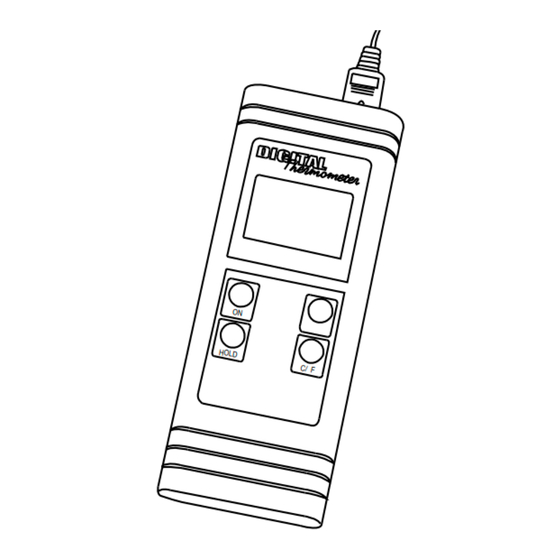

  • Page 3: Button Description

    Model: 8801 Model: 8803 Single Input Dual Input BUTTON DESCRIPTION ON/OFF Power ON and Power OFF C/ F Unit selectable C or F Freeze the current reading HOLD MAX HLD Record Maximum reading T1.T2 T1 temperature or T1-T2 T2 temperature or differential temperature between T1&...
  • Page 4 SELECTING C / F Press C/ F button to select C or F. The display will show " C" or " F" to indicate which scale has been selected. See Fig.3 and Fig.5 ,an example to toggle unit from C to F. NO-SLEEP MODE DISABLEMENT Press ON/OFF button to turn off the meter.
  • Page 5 The display will show T1,T2 or T1-T2 in turns by pressing the same button. Note: Model 8801 can only display one temperature. Only make sure the thermocouple is plugged at the left side on the top . No reading but 4 dashes (--- -) (Fig.6) will be appeared until you plug...

  • Page 6: Hold Function

    To release the MAX HOLD function, press the MAX HLD button again. When the MAX function is set, the meter is recording and will update the maximum measurement display with a new maximum reading . Fig.10 MAX HOLD HOLD FUNCTION Press the HOLD button to apply data HOLD Function.

  • Page 7: Material Supplied

    MATERIAL SUPPLIED This package contains: 1. The meter x 1 2. Type K thermocouple probe x 1 3. Battery 9.0volt x 1 4. Instruction manual x 1 SPECIFICATION -50 C to 1300 C RANGE (-58 F to 2000 F) + + - - to 1000 0.3% rdg + 1 + + - -...

  • Page 8: Warranty

    To replace the battery: 1. Lay the instrument face-down on a clean, flat surface.(See Fig.13) 2. Remove the battery by screw driver follow the arrow sign and observe indicated polarity and close the cover after replacing with a new battery. Fig.12 Fig.13 Remove battery from instruments that...

  • Page 9: Return Authorization

    RETURN AUTHORIZATION Authorization must be obtained from the supplier before returning items for any reason. When requiring a RA (Return Authorization) , please include data regarding the defective reason, the meters are to be returned along with good packing to prevent any damage in shipment and insured against possible damage or loss .
