AZ 9881 Operation Manual

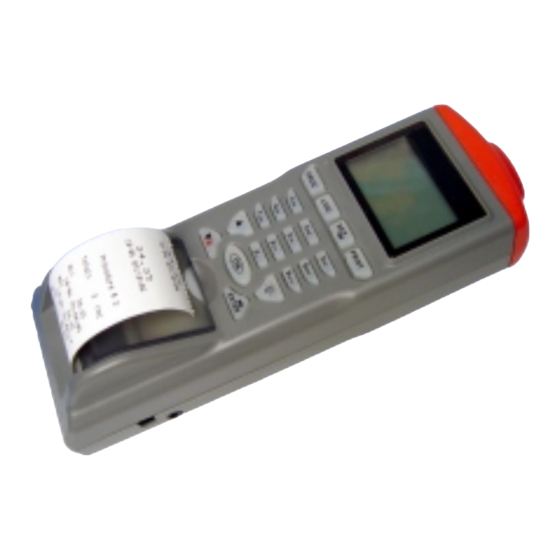

Multi-function datalogger with printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

MULTI-FUNCTION DATALOGGER
MULTI-FUNCTION DATALOGGER
9811
9812
WITH
9861
PRINTER
9871
9881
OPERATION MANUAL
WITH PRINTER
WITHOUT PRINTER
9882
9832
9851
9833
9680
9835
9831
98315
9611
9612
WITHOUT
9661
PRINTER
9671
9681
9682
9632
9651
9633
9660
9635
9631
96315

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9881 and is the answer not in the manual?

Questions and answers

Related Manuals for AZ 9881

Summary of Contents for AZ 9881

  • Page 1 OPERATION MANUAL MULTI-FUNCTION DATALOGGER WITH PRINTER MULTI-FUNCTION DATALOGGER WITHOUT PRINTER 9882 9682 9811 9832 9611 9632 9851 9651 9812 9612 9833 9633 WITH WITHOUT 9680 9660 9861 9661 9835 9635 PRINTER PRINTER 9831 9631 9871 9671 9881 98315 9681 96315...

  • Page 2: Table Of Contents

    Top cover of meter ....... Meter setting ....... Single measurement ..... Multiple measurement ......Automatic logging Diagram ..9811/9611/9812/9612 IR thermometer ..9871/9671 Anemometer +Psychrometer ..9881/9882/9681/9682 Thermometer ....9861/9661 pH/mV Meter ....9680/9660 IrDA Receiver ....983X /963X Manometers .....

  • Page 3: Material Supplied

    INTRODUCTION Thank you for purchasing this multiple function printer! This unit has been developed to meet your max.satisfaction by its user- friendly design. Please review the entire manual for a complete overview of how to operate this meter. MATERIAL SUPPLIED Check for damaged or missing parts in your meter before starting.

  • Page 4: Comparison Table

    9832/ 9632 +/- 2 psi Mamometer 9835/ 9635 +/- 5 psi Mamometer Pressure Differential +/- 15 psi Mamometer 98315/ 96315 9833/ 9633 +/- 30 psi Mamometer 9831/ 9631 +/- 100 psi Mamometer Compatible IrDA receiver 9680/ 9680 with AZ IrDA products...
  • Page 5 Single Point Single point No Memory Measurement measurement File name editable Multiple Point multiple point 99 points Measurement measurement 12000 points(9811/9611) 6000 points (9812/9612) 4000 points(9861/9661) 2400 points(9871/9671) 4000 points(9881/9681) 4000 points(9882/9682) Automatic Programmable 3000 points(9851/9651) Logging datalogging function 12000 points(9832/9632)
  • Page 6 Comparison table of multiple points and datalogging measurements MULTIPLE POINT DATALOGGING MEASUREMENT At most 12000 points 99 points RECORD (Note 4) Editable or FILE Default with date Default (Note 2) NAME and time (Note 1) Press "ON/OFF" key to Automatically measure measure and store and store according to MEASURING /...

  • Page 7: Meter Keypad-With Printer

    METER KEYPAD-WITH PRINTER Top Cover Based on different functions, the top cover connector and color are different. Welcome MEAS Corresponding Function keys Keypad SYM. stands for"1,*,.,:,$,+,-,=" stands for"2,a,b,c,A,B,C" PQRS WXYZ stands for"3,d,e,f,D,E,F" stands for"4,g,h,i,G,H,I" stands for"5,j,k,l,J,K,L" ON/OFF stands for"6,m,n,o,M,N,O" LINE FEED stands for"7,p,q,r,s,P,Q,R,S"...

  • Page 8: Meter Keypad-Without Printer

    METER KEYPAD-WITHOUT PRINTER Top Cover METER KEYPAD Based on diff. functions, the top cover connector and color are different. Keypad Big dot stands for"1,*,.,:,$,+,-,=" matrix LCD stands for"2,a,b,c,A,B,C" stands for"3,d,e,f,D,E,F" Corresponding stands for"4,g,h,i,G,H,I" Function keys stands for"5,j,k,l,J,K,L" stands for"6,m,n,o,M,N,O" Press F1~ stands for"7,p,q,r,s,P,Q,R,S"...

  • Page 9: Accessory Photo

    pH connector Temp. connector ACCESSORY 9861 9871 9661 9671 When first time using or the probe The temperature and humidity hasn't been used for a long time, sensors are built in the fan, so please calibrate the probe first remember to rotate the cover by following the procedure in before using to get accurate page 20.

  • Page 10: Top Cover Of Meter

    TOP COVER -CONNECTOR The following illustrations are the connectors for different printers: 9871/9671 Anemometer 9811/9812/9611/9612 9851/9651 Infrared Thermometer Hygro-thermometer 9881/9681 K Thermometer 9832/9835/98315/9833/9831 9632/9635/96315/9633/9631 9882/9682 KJTRSE thermometer Manometer 9861/9661 pH meter 9680/9660 IrDA printer REMARKS: Welcome any OEM for different kind of parameters .
  • Page 11 An IrDA like module is built in the meter 9680/9660 at the top , better target the IrDA within 30 degree angle toward any of AZ IrDA meters for receiving data . Make sure you have disabled Auto power off from both AZ IrDA meter (transmitter )and IrDA receiver when you need to have long-term measurement.

  • Page 12: Meter Setting

    METER SETTING Before measuring, please check the meter setting first to confirm the basic settings of the meter are what you need. To enter each command, just press the corresponding F1 to F4 key. Welcome MEAS F4 :Meter Setting Pressing key to shift the cursor.

  • Page 13: Single Measurement

    F1 :Single Measurement Welcome MEAS Definition Press ON/OFF key to measure the temperature for 9811 and 9611( No printer function ). Press F1 (MEAS) to proceed single measurement for other meters . On 9812/9612, the external probe temp. is displayed on LCD once the probe is plugged.

  • Page 14: Multiple Measurement

    F2 :Multiple measurement Welcome MEAS Definition Press ON/OFF ( IR models 9811/9611/9812/9612) or MEAS (other models) to measure the parameters. Select F1(ABORT) or F4(SAVE) to exit the measurement or memory the record . Press F3 ( Edit ) to edit the file name of recorded value .

  • Page 15: Automatic Logging

    AUTOMATIC LOGGING This is to automatically record what you set up before measurement with real time, first to set records start/stop date and time, sample rate , memory points. The screen content shows Expect memory points and Remain memory points while in setting. F3 :Datalogging Welcome MEAS...
  • Page 16 9811/9611 Infrared thermometer Setting / Single measurement Welcome MEAS Emi. Rate: 0.95 LCD Cont.(1-5): T:30.5 Prn Cont. (1-9): Unit: Laser: Enable Auto Off: 20mins Press ON to Measure Enable EXIT EXIT EDIT NEXT Set Clock: MM-DD-YY HH:MM:SS 06 30 05 18 29...
  • Page 17 9812/9612 IR meter w/ probe Setting / Single measurement Welcome MEAS Emi. Rate: 0.95 Ext:30.5 LCD Cont.(1-5): Prn Cont. (1-9): Unit: Laser: Enable Auto Off: 20mins Press ON to Ir Meas Enable CALI EXIT EXIT EDIT NEXT Press on/off key Set Clock: Ext:30.5 MM-DD-YY...
  • Page 18 9811/9611 Infrared thermometer Multiple measurement Welcome MEAS 01:06-30 02:28:29 01:06-30 02:28:29 T:-0.3C T:-0.3C 02:06-30 02:28:45 T:26.7C 03:06-30 02:28:55 03:06-30 02:28:55 T:111C T:111C Press ON to Measure Press ON to Measure EXIT EDIT EXIT EDIT 01:06-30 02:28:29 From Point: T:-0.3C From Point: 02:USER name 11 11 T:26.7C...
  • Page 19 9812/9612 Infrared thermometer Multiple measurement Welcome MEAS 01:06-30 02:28:29 01:06-30 02:28:29 Ext:-0.3C Ext:-0.3C Ir: 15.0C Ir: 15.0C 02:06-30 02:28:45 02:06-30 02:28:45 Ext: Ext: Press ON to Measure Press ON to Measure EXIT EDIT EXIT EDIT 01:06-30 02:28:29 From Point: Ext:-0.3C From Point: Ir: 15.0C USER name 11 11...

  • Page 20: 9811/9611/9812/9612 Ir Thermometer

    9811/9611/9812/9612 IR Thermometer Datalogging measurement Welcome MEAS Begin: 30-06-05 00001: 06-30 02:28:55 Start: 02:28:55 T:-0.3C End: 02-07-05 00002: 06-30 02:29:55 Suspend: 03:28:55 T:-0.5C Rate: 60Sec(s) (EX:9811) 00003: 06-30 02:30:55 Expect: 12000Point(s) T:-0.6C Remain: 11997Point(s) One Page = 100 points EXIT...
  • Page 21 9812/9612 External Temp. Probe Calibration procedure Welcome MEAS Ext:30.5 Press ON to Ir Meas CALI EXIT Long press Probe Cali Data Input Cali Data Step 1 :0 at 5C Step 2 :+ Step 2: -5 at 40C Step 3: -6 at 85C Note: Unit is 0.1C EXIT SAVE...

  • Page 22: 9871/9671 Anemometer +Psychrometer

    9871/9671 Anemometer +Psychrometer Setting/Single measurement Welcome MEAS LCD Cont.(1-5): Prn Cont. (1-9): 73.7% 29.7C Auto Off: 20mins 0.7MPS Enable WBT: VOL: 26.1C 0.1CMM EXIT EXIT INPUT EDIT NEXT Set Clock: MM-DD-YY HH:MM:SS Please select type 06 30 05 18 29 :2 0 Set ID: Disable...
  • Page 23 9871/9671 Anemometer +Psychrometer Multiple meas/Datalogging Welcome MEAS 0001: WBT: WBT: VOL: VOL: MEAS EDIT EXIT NEXT EXIT START SET NEXT Begin: 30-06-05 Start: 02:28:55 End: 02-07-05 73.7% 29.7C Suspend: 03:28:55 0.7MPS Rate: 60Sec(s) WBT: VOL: Expect: 2400Point(s) 26.1C 0.1CMM Remain: 2400Point(s) ABORT SAVE...
  • Page 24 9881/9882/9681/9682 Thermometer Setting/Single measurement Welcome MEAS T1-T2:: LCD Cont.(1-5): 10.0C 29.7C Prn Cont. (1-9): Auto Off: 20mins 39.7C 9881 WBT: Enable EXIT TYPE K EXIT EDIT NEXT Set Clock: T1-T2:: MM-DD-YY HH:MM:SS 10.0C 29.7C 06 30 05 18 29 :2 0 Set ID: Disable WBT:...
  • Page 25 9881/9882/9681/9682 Thermometer Multiple measurement /Datalogging Welcome MEAS 0001: T1-T2: T1-T2: 0002: 02: T1: START SET MEAS EXIT NEXT EXIT EDIT NEXT Begin: 30-06-05 Start: 02:28:55 T1-T2: End: 02-07-05 86.1F Suspend: 03:28:55 56.1F Rate: 60Sec(s) Expect: 4000Point(s) Remain: 4000Point(s) ABORT SAVE EXIT EDIT VIEW...
  • Page 26 9861/9661 pH/mV Setting / Single measurement Welcome MEAS Volt: Temp: LCD Cont.(1-5): -34.9mV Prn Cont. (1-9): Unit: Metric 7.60 Date: YY-MM-DD Auto Off: 20mins Enable EXIT EXIT EDIT NEXT Long press Set Clock: "CALIBRATION" MM-DD-YY HH:MM:SS Volt: -3.6mV 06 30 05 18 29 :2 0 Set ID: Disable...
  • Page 27 9861/9661 pH/mV Probe Calibration procedure-1 Welcome MEAS Note This is to calibrate under Volt: Temp: -34.9mV ATC( Temperature probe is 7.60 plugged side by pH probe ) To calibrate under NonATC, EXIT please see procedure -3) Long press CALIBRATION CALIBRATION Volt: -3.6mV 7.00...
  • Page 28 9861/9661 pH/mV Probe Calibration procedure-2 Continuing from last page Ex. PTS's value is 75% CALIBRATION CALIBRATION PTS: 75.0% PTS: 100.0% TEMP: 27.0C TEMP: 27.0C EXIT SAVE ENTER EXIT SAVE ENTER Back to Auto judging CALIBRATION next point cal. CALIBRATION Quit with save? Quit without save? ( Quit with save? ) Press EXIT ,"Quit without save?"...
  • Page 29 9861/9661 pH/mV Probe Calibration procedure-3 Welcome MEAS Note 1: This is to calibrate under NonATC ( No Temperature probe is plugged Volt: Temp: side by pH probe ) -34.9mV Note 2: 7.60 If you always see "--.--" pH in auto- NonATC juddge, please refer to trouble TEMP...
  • Page 30 9861/9661 pH/mV Multiple measurement Welcome MEAS Volt: Volt: Temp: Temp: 02: PH: 02: PH: Volt: Volt: MEAS EDIT EXIT NEXT EXIT BACK Note: Temp: Volt: After saving #01 memory, press 86.1F -35.6mV 7.49 for next measurement #02 with a cursor will be highlighted. ABORT SAVE 06-30 23:56:49...
  • Page 31 9861/9661 pH/mV Datalogging Welcome MEAS 0023: 06-30 02:28:55 0023: 06-30 02:28:55 4.88 4.88 Volt: 127.0mV Volt: 127.0mV Temp:28.8C Temp:28.8C 0024: 0024: Volt: Volt: P-PG N-PG BACK EXIT START NEXT Begin: 30-06-05 Start: 02:28:55 End: 02-07-05 Suspend: 03:28:55 Rate: 60Sec(s) Expect: 4000Point(s) Remain: 3977Point(s)
  • Page 32 STOP HIGH at one time 2. The IrDA data receiver may receive any AZ IrDA meters through any of 4 receiving modes. 3. Set ID : Enable ( print with ID ) or Disable ( print without ID ) 4. ID :The identification of the meter .
  • Page 33 9680/9660 IrDA Multiple and Datalogging data Receiving Welcome MEAS NEXT 08-05 15:13:50 08-05 15:13:50 A i r : 2 4 . 9 C A i r : 2 4 . 9 C R H : 6 0 . 1 % R H : 6 0 .
  • Page 34 9680 Receiving & Printing up to 99 points at one time IrDA meter example: 8726 Welcome Psychrometer MEAS NEXT Welcome BACK Expect: Received: Remain: EXIT After receiving data from IrDA meter Expect: Received: Remain: EXIT Automatically start to print REMARKS: 1.
  • Page 35 9680/9660 IrDA Multiple data Receiving with IrDA meters There is no problem for single data transmitted from IrDA meter to IrDA receiver even you change the meter frequently. However it might happen " Inconsistent " if you try to change the IrDA meters from one model to the other model during the ] Multiple and Datalogging IrDA receiving .
  • Page 36 9680/9660 IrDA Datalogging Receiving with IrDA meters No IrDA meter is targeting to the 9680/9660 data receiver. (Press LOG w/o IrDA meter) 08-05 15:13:50 A i r : - - - - - - - - Press R H : - - - - - - - - Logging ..

  • Page 37: 983X /963X Manometers

    983X /963X Manometers Setting / Single measurement Welcome MEAS Temp: LCD Cont.(1-5): Prn Cont. (1-9): P: 0.1psi Auto Off: 20mins Enable EXIT Cali EXIT EDIT NEXT Set Clock: MM-DD-YY HH:MM:SS 06 30 05 18 29 :2 0 CALIBRATION Set ID: Disable ID: User Name ZERO...
  • Page 38 983X / 963X Manometer Calibration Procedure Welcome MEAS Temp: Range: xx ~ xx psi P: 0.1psi Cali: * * * (remak3) Cali EXIT SAVE ENTER Long press Cali: * * * (remak3) CALIBRATION Wait ZERO After 5 seconds Range: xx ~ xx psi (remark2) Cali: * * *...
  • Page 39 While in calibration HI mode, the default HI value will be displayed on LCD as 1.600 or 4.000... based on different models. While in the calibration LOW mode, the default LOW value will be displayed as well. 2. If your standard calibrator is not the same as meter default value, press up/down or number keys to adjust.
  • Page 40 983X/963X Manometer Multiple measurement Welcome MEAS EXIT MEAS EDIT NEXT EXIT BACK Note: After saving #01 memory, press 0.100psi for next measurement #02 with a cursor will be highlighted. ABORT SAVE 06-30 23:56:49 06-30 23:56:49 P:0.100psi P:0.100psi EXIT MEAS EDIT NEXT EXIT BACK...
  • Page 41 983X/963X Manometer Datalogging Welcome MEAS 0023: 06-30 02:28:55 0023: 06-30 02:28:55 P: 0.1 psi P: 0.1 psi 0024: 0024: 0025: 0025: P-PG N-PG BACK EXIT START NEXT Begin: 30-06-05 Start: 02:28:55 End: 02-07-05 Suspend: 03:28:55 Rate: 60Sec(s) Expect: 12000Point(s) Remain: 11977Point(s) EXIT EDIT...

  • Page 42: 9851 /9651 Hygo-Thermometer

    9851 /9651 Hygo-Thermometer Setting / Single measurement Welcome MEAS Temp: LCD Cont.(1-5): Prn Cont. (1-9): 60.8% 17.4C Auto Off: 20mins Temp:25.5C Enable 20.0C Cali EXIT EXIT EDIT NEXT Set Clock: RH Cali Mode Select MM-DD-YY HH:MM:SS 06 30 05 18 29 :2 0 Input probe cali data Set ID:...
  • Page 43 9851/ 9651 Hygro-Thermometer Calibration Procedure Note: "Input cali.data" method is for RH probe replacement. Welcome "Manual calibration" method is for RH probe replacement & old probe MEAS re-calibration. (Need to plug probe into salt bottles) RH Manual Calibration Temp: 60.8% 17.4C Temp:25.5C 60.8%...
  • Page 44 9851/9651 Hygro-Thermometer Multiple measurement Welcome MEAS Temp: Temp: WBT: WBT: EXIT MEAS EDIT NEXT EXIT BACK Note: Temp: After saving #01 memory, press 60.8% 17.4C for next measurement #02 Temp:25.5C with a cursor will be highlighted. 20.0C ABORT SAVE ROOM1 06-30 23:56:49 Temp: 25.5C Temp: 25.5C...
  • Page 45 9851/9651 Hygro-Thermometer Datalogging Welcome MEAS 0001: 0001: Temp: Temp: WBT: WBT: 0002: 0002: P-PG N-PG BACK EXIT START NEXT Begin: 30-06-05 Start: 02:28:55 End: 02-07-05 Suspend: 03:28:55 Rate: 60Sec(s) Expect: 3000Point(s) Remain: 3000Point(s) EXIT EDIT VIEW NEXT Begin: 0001: 06-30 02:28:55 30-06-05 Start: 02:28:55...

  • Page 46: Software

    SOFTWARE The enclosed software is a quick tool for you to download the memorized data to PC for further analysis or upload the pre-edited file names to meters, this may save your setting time. Material & O/S Software CD and RS232 cable with D-sub plug are needed. Operating system need to be WIN98/2000/NT/XP or above.

  • Page 47: Mode

    Print Load MODE There are two data modes. One is Memory, the other one is Logger. To select the mode from main menu or quick selection window. In logger mode, you may select from "Goto" to choose logged data range. There are 100 points in one page. Mode-Memory Mode-Logger...

  • Page 48: Port

    PORT Select the correct Com. port to ensure the meter is communicated with PC. I n connecting mode, "PC Mode" will appear on the LCD and "COM #" & Edit will show on the left bottom corner of screen. For most PCs, the Com. port number is COM1. There are 8 COM ports for selection in this software.

  • Page 49: Print

    1. Print only Logger Data 2. Print only Memory Data 3. Print all ( Both Logger Data and Memory Data in sequel ) Example: (If you choose Print all from 9811 IR meter ) Page1 << DataLogging Printer Report Date:07-12-2005 TIME:17:26:30 >>...
  • Page 50 98XX SERIES SPECIFICATION SHEET 10~90%RH 10~90%RH...
  • Page 51 96XX SERIES SPECIFICATION SHEET...
  • Page 52 MANOMETER SPECIFICATION SHEET TYPE 9832/9632 9835/9635 9833/9633 9831/9631 98315/96315 Unit Resolution Resolution Resolution Resolution Resolution 0.001 0.003 0.01 0.02 Inch of H2O 27.680517 0.01 0.068948 0.001 0.001 0.001 0.002 0.004 mbar 68.948253 mm of Hg 51.712016 Inch of Hg 2.035907 0.01 0.01 0.02...

  • Page 53: Trouble Shooting

    If yes , replace with new batteries . For 9811/9611 IR datalogging printer 1) E2 . Problem : The value is underflow . For 9812/9612 IR datalogging printer 1) E 2.
  • Page 54 b)PTS of some calibration points are out of 85%-105%. c)Replace with new batteries and solution, then try again. d)If it fails again, return the meter to the dealer for repairing. 2) E2. Problem: The value is underflow. 3) E3. Problem: The value is overflow. 4) E4.
