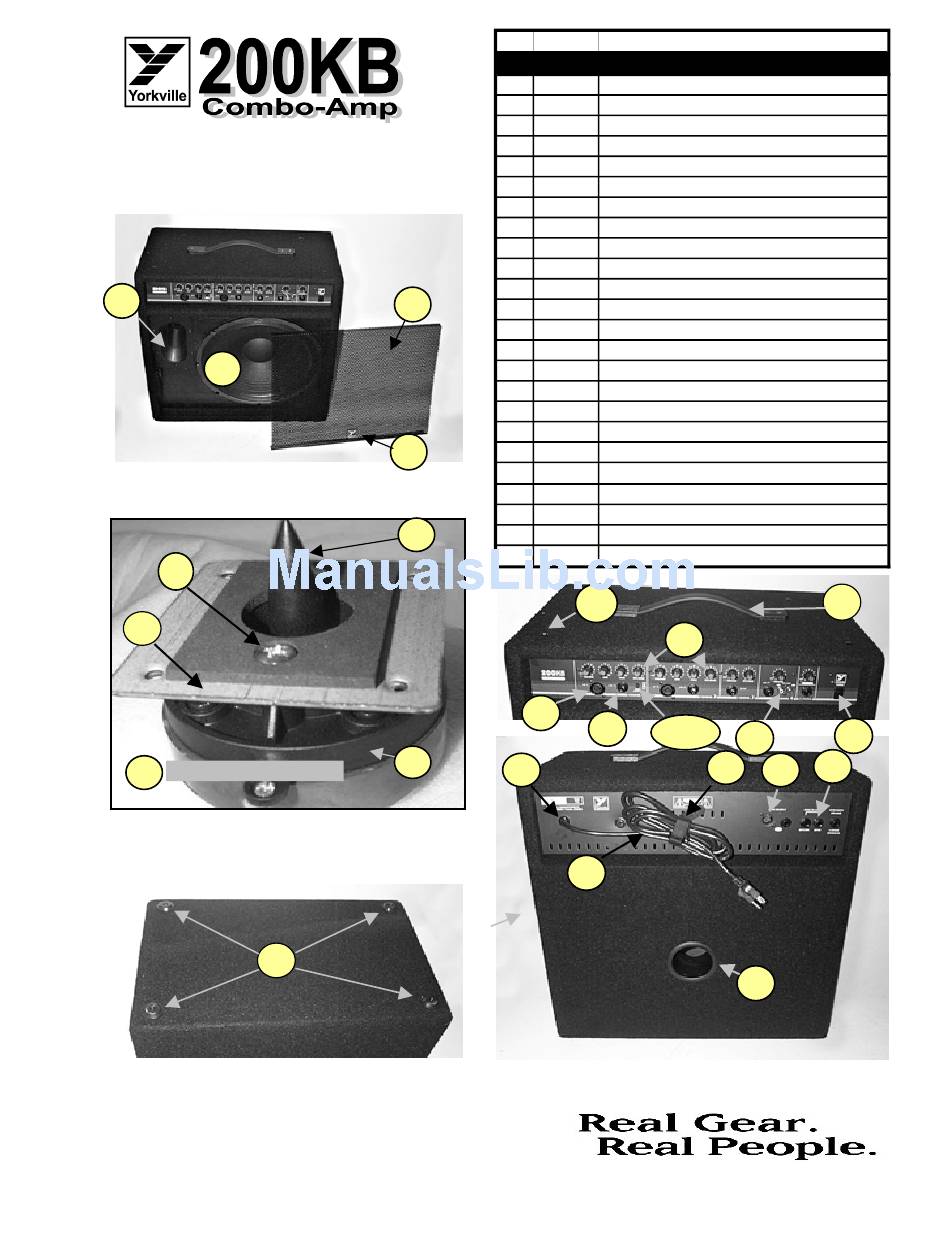

YORKVILLE 200KB Parts List

1
2

Front view of 200KB

5
6
9 diaphram not shown
HF Driver shown with mounting plate

Bottom view of the 200KB

*NOTE: Replacement grills & HF Driver supports are 'Special-Order' and are only available while the model is in production.
Parts-Serv-200kb-1v0.xls
3
4
7
8
10
ftp.yorkville.com
#

Part#

Description

Labeled Components

1 H05B HORN 60 X 40 1/8" STY
2 7279 12" 8R 150WPGM SPEAKER
3 Z341 200KB GRILL*
4
8241D "Y" LOGO SMALL DOMED
5 8879 M5 X 10 DIN 7985 MS ZINC SCREW
6 M694 GENERIC DRIVER SUPPORT*
7 N252PP N252 REPLACEMENT PHASE PLUG
8 N252XN 8R 30W 1"DRIVER RCF-N252XN
9 M-73 N252 REPLACEMENT DIAPHRAM
10 8547 PLASTIC FOOT BLACK
11 8770 BOLT 1/4-20 X 1 5/16 TRUSS PH MS JS500
12 8458 10.5" STRAP HANDLE, PLASTIC COVERS
13 8641 AQUA KNOB
14
3660 XLR FEMALE PCB MT HORZ
15 3450 1/4" JCK PCB MT HORZ GOLD
16 8636 BUTTON KNOB - FLAT BLACK
17 3425 SWITCH DPDT PUSH SW PCMT MAKE B4 BREAK
18 3460 RCA DUAL PCB MT VERT GOLD 0.475"
3698 PWR SW SPST ROKR SW QUIK AC PWR BL/BL
19
20 3834 HEYCO #1214 STRAIN RELIEF
21 3481 8' 3/18 SJT AC LINE CORD 250 CLIPS
22 8468 VELCRO STRAP 3/4"X22CM (VELSTRAP)
23 3923 XLR MALE PCB MT HORZ MTHOLE-V SNAP
24 8578 PORT TUBE 3X3 ROLLED EDGE 1 TR-PP3R843
11
13
14
15
16/17
20
21

Front and rear view

12
19
18
15
22
23
24
Speaker Enclosure
