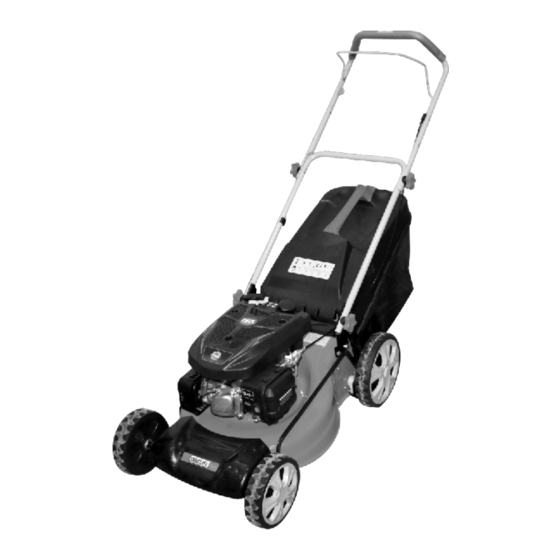

- Page 1 MOWERS Mower-P Mower-S Operating & Maintenance Manual...
-
Page 3: Table Of Contents
SPECIFICATIONS 2. SYMBOLS & WARNINGS 3. OPERATION 3.1. Operating Controls 3.2. Assembly Instruction 3.3. Engine Starting 4. MAINTENANCE & STORAGE 4.1. Engine 4.2. Blade 5. TERMS OF WARRANTY © Davis & Shirtliff Ltd 2022 Contents herein are not warranted... -
Page 4: Specifications
Dayliff MOWERS are high specification rotating blade type mowers suitable for general lawn maintenance in residential and small commercial applications. They are available in either self-propelled or push versions. Hand push MOWER-P models feature a 45cm grass cutting width while for powered MOWER-S models it is 50cm. Other features include:- •... -
Page 5: Symbols & Warnings
Model Mower-P Mower-S Engine Model GK150FE GK170FE Displacement (cc) Max/Rated Power (HP) 4/3.5 4.5/4 Self Propelled Drive Hand Push Cutting Width (”) Dimensions (LxW) mm 850x575 954x610 Dry Weight (Kg) 2. SYMBOLS & WARNINGS User must read the instruction manual before operation of the Dayliff mower. - Page 6 The lawn mower is to be used exclusively for cutting natural grass. Any other use can cause danger to the user and damage to the mower. WARNING The mower is to be operated by a qualied personnel without mental incapacitation. WARNING The user is responsible for the safety of other people in the working area.
- Page 7 Turn off the engine if the mower is to be left unattended. Do not lift the rear of the mower while starting the engine. Also do not place hands and feet underneath the deck or into the rear discharge chute while the engine is running. Do not interfere with the rated speed of the engine.
-
Page 8: Operation
Do not start the engine if there is some gasoline spread around, take the mower away from the area where gasoline has been spilt and avoid any contact from a hot source until WARNING spilt gasoline is completely removed Tighten the fuel tank cap and close tightly the jerry can cap. WARNING 3. -
Page 9: Assembly Instruction
3.2 Assembly Instructions Grass Catcher • Put the metallic frame inside the grass catcher and fit in position. • Pull the deflector and place the grass catcher in its place. Grass Catcher Grass Catcher Deflector Mulcher Metallic Frame Fig 2 Mulching Option •... - Page 10 Once the mower has been set up properly, start the engine as follows: • Put the throttle control on the START position. • Take the engine control bar and maintain it against the superior handle, pull on the recoil starter handle until you can feel resistance and then pull hard •...
-
Page 11: Maintenance & Storage
4. MAINTENANCE & STORAGE 4.1 Engine Stop the engine and unplug the spark plug before any repair or maintenance operation which includes removing and emptying grass catcher, chute, changing blades adjusting WARNING cutting heights among others. Make sure that all nuts, bolts and screws are kept well tightened to keep the lawn Ÿ... - Page 12 If the blade does not stay horizontal, balance it by taking off some metal on the lower side. Fig 5 Use only Dayliff original spare parts. Any other spares parts can lead to serious damage to the lawn mower and void the warranty. WARNING •...
-
Page 13: Terms Of Warranty
5. TERMS OF WARRANTY I) General Liability • In lieu of any warranty, condition or liability implied by law, the liability of Davis & Shirtliff (hereafter called the Company) in respect of any defect or failure of equipment supplied is limited to making good by replacement or repair (at the Company's discretion) defects which under proper use appear therein and arise solely from faulty design, materials or workmanship within a specified period. - Page 16 INS482A-01/22...
