Operation and Servicing Manual

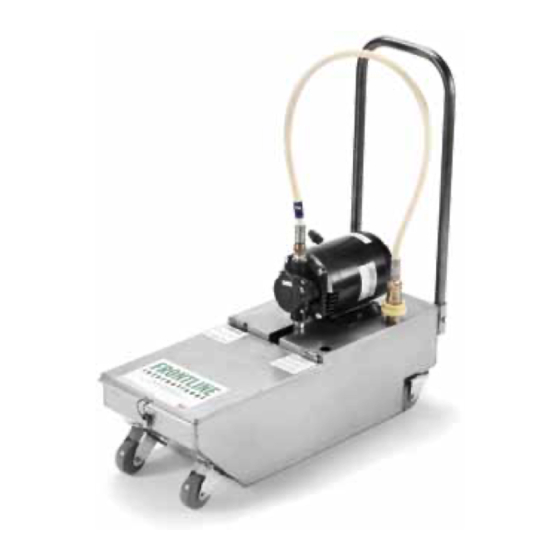

Waste Oil Caddy
!
DANGER: Please read this operation
and servicing manual thoroughly
before installing, servicing or using
this equipment. Failure to properly
install, service or use this equipment, or
alteration of this equipment, can cause
serious property damage, injury or death.
Models
10SS-NA – Transport Caddy (10Gal/37.8 l)
10SS-NA-LP – Low Profile Transport Caddy (8Gal/30.28 l)
16SS-NA – Transport Caddy (16Gal/60.5 l)
20SS-NA – Transport Caddy (20Gal/ 75.7 l)
16SS-NA-W5 – Transport Caddy with 5" (12.7 cm) Castors
(16Gal/60.5 l)
20SS-NA-W5 – Transport Caddy with 5" (12.7 cm) Castors
(20Gal/75.7 l)
Advertisement
Table of Contents
Related Manuals for FrontLine 16SS-NA
Summary of Contents for FrontLine 16SS-NA
- Page 1 Models DANGER: Please read this operation and servicing manual thoroughly 10SS-NA – Transport Caddy (10Gal/37.8 l) 10SS-NA-LP – Low Profile Transport Caddy (8Gal/30.28 l) before installing, servicing or using this equipment. Failure to properly 16SS-NA – Transport Caddy (16Gal/60.5 l) install, service or use this equipment, or 20SS-NA –...
-
Page 2: Table Of Contents
About this manual Store this manual in a safe place for future reference. About Frontline International, Inc. • Through a dedication to the development, manufacture, and delivery of quality cooking oil management systems, Frontline International, Inc. remains a leading global source for equipment solutions that safely and efficiently dispense, contain, monitor, extract, transport, or filter cooking oil for immediate on-premise recycling and use. • A stakeholder focused organization, our sustainability relies on initiatives that benefit associates, customers and community – from responsible manufacturing techniques to conservation of resources and performance metrics. • With our valued network of service and installation experts our branded and custom products enhance productivity, improve operations and save costs for professionals within foodservice, hospitality, and other markets around the world, every day. About our Waste Oil Caddy models Frontline offers several different caddy models and upgrades to meet your needs. Table of contents Parts View ....................1 Operation .................... -
Page 3: Parts View
Waste Oil Caddy | Frontline International Inc. Parts View 60020044 60090000 10030008 60012010 60020001 60030010 60030009 60030000 70020011 60030002 40010021 60030008 40010033 20SS-70010059 16SS-70010056 10SS-70020007 10010007 10020001 70020010 10020002 60020070 10010086 10010079 40010040 10SS-70020000 16SS-70010054 40010039 20SS-70010057 Caddy Part Numbers and Part Descriptions... -
Page 4: Operation
Frontline International Inc. | Waste Oil Caddy DANGER: This filtering unit is intended for use with oil at temperatures between 100° F (38° C) and 375° F (190°C). Always wear protective, heat-resistant gloves, heat-resistant apron and goggles when using this equipment. Failure to properly use this equipment can lead to serious injury or death. - Page 5 Waste Oil Caddy | Frontline International Inc. DANGER: The caddy lid is designed to prevent hot oil spills when transporting the caddy. Failure to use the lid or properly secure the lid may result in hot oil spills, which can lead to serious injury or death.
- Page 6 Frontline International Inc. | Waste Oil Caddy The caddy motor switch is located on the rear of the motor, and will need to be in the “ ON” position. CADDY MOTOR RESET BUTTON 6'' MOLDED MOTOR CADDY MOTOR POWER CORD ON/OFF SWITCH 13. Push in and HOLD the black button on the control panel labeled “ PUSH TO PUMP”. PUSH TO PUMP BUTTON CADDY CORD RECEPTACLE 14. When the caddy is empty of waste shortening, continue to hold the button and run the pump for an additional 30 seconds. When finished, release the black button on the control panel face. Note that the pump will make a different sound when the caddy is empty. 15. Use gloves to disconnect the hose from the tank and place the female fitting onto the male fitting on top of the caddy. IMPORTANT – The hose will be HOT. Use gloves! 16. Push the black button on the control panel again to drain any oil left in the hose back into the caddy. 17. Disconnect the power cord from the tank control panel and secure the power cord to the caddy. 18. Clean the filter basket with hot soapy water or degreaser. 19. Dry and replace filter basket back inside the caddy.
-
Page 7: Troubleshooting
Waste Oil Caddy | Frontline International Inc. Troubleshooting See the following table to troubleshoot problems PROBLEM PROBABLE CAUSE CORRECTIVE ACTION The caddy motor is not Turn the motor ON with the switch located on the back of the turned ON. motor. Caddy motor reset switch Press the motor reset switch on the back of the caddy motor. has tripped. The caddy power cord Ensure the caddy power cord is completely plugged into the is not making proper motor and the control panel receptacle . Caddy motor will not run. connection. Ensure the tank or fill station control panel are plugged in. Ensure the outlet that the tank or fill station control panel is The tank or control panel plugged into has not lost power. at the fill station has lost If there is no power to the outlet make sure the circuit breaker power. has not tripped or that the outlet is not on a switch that has been turned off. Disconnect fittings are not Make sure the female disconnect fitting is properly connected properly connected. to the male fitting. -
Page 8: Cautions And Notes
Frontline International Inc. | Waste Oil Caddy Cautions and notes Follow these cautions and notes. 1. A lways keep the screen in place when draining oil into the cart. Draining oil into the caddy without the filter basket in place will cause serious damage to the pump and storage tank. This will void the warranty on the equipment. 2. N ever attempt to pump solid or cold grease – this will clog the pump. Make sure oil is warm and liquid before pumping. 3. D o not attempt to pump oil if green light on the control panel is not lit. 4. G rill grease or chicken drippings maybe pumped if placed in filter basket and mixed with hot oil. Failure to mix with hot oil will clog pump and filter basket and could damage both. Caddy options You can update all caddy models with the following filters: Stainless Steel Paper Carbon Fiber If you have one of these filter update kits, see the attached instructions. -
Page 9: Warranty
Waste Oil Caddy | Frontline International Inc. Warranty Limited Warranty for Frontline International, Inc. Appliances Subject to the following conditions, Frontline International Inc. makes the following limited warranties to the original purchaser only for Frontline International appliances and replacement parts: NEW EQUIPMENT: Any non-user part of a new appliance, except lamps, which proves to be defective in material or workmanship within one (1) year from date of original shipment, will be repaired or replaced without charge F.O.B. factory, Cuyahoga Falls, Ohio, or F.O.B. authorized distributor. Non-user parts on systems specifically include heater, level switch, and the control panel. Motors, pumps, and customer abuse will not be covered by this warranty. REPLACEMENT PARTS: Any appliance part, except lamps, which proves to be defective in material or workmanship within ninety (90) days from the date of original installation, will be repaired or replaced without charge F.O.B. factory, Cuyahoga Falls, Ohio or F.O.B. authorized distributor. This warranty for new equipment parts covers the repair or replacement of the defective part, and any labor charges for the removal and installation of any non-user part specified above. Replacement parts do not have any labor coverage. Any claim must be represented to either Frontline International or the distributor from whom the appliance was purchased. No allowance will be granted for repairs made by anyone else without Frontline International’s written consent. If damage occurs during shipping, notify the sender at once so that a claim can be filed. THE ABOVE LIMITED WARRANTY SETS FORTH THE SOLE REMEDY AGAINST FRONTLINE INTERNATIONAL FOR ANY BREACH OF WARRANTY OR OTHER TERM. BUYER AGREES THAT NO OTHER REMEDY (INCLUDING CLAIMS FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES) SHALL BE AVAILABLE. The above warranty does not apply (a) to damage resulting from accident, alteration, misuse, or abuse; (b) to cold oil in storage tank due to main power being removed or unplugged from a system; (c) if the equipments serial number is removed or defaced; or (d) for lamps. THE ABOVE LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING MERCHANTABILITY AND FITNESS, AND ALL OTHER WARRANTIES ARE EXCLUDED. FRONTLINE INTERNATIONAL NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY. - Page 10 Frontline International Inc. | Portador de aceite de desecho Frontline International, Inc. | 187 Ascot Parkway | Cuyahoga Falls, | Ohio 44223 | Phone 330 861 1100 | Fax 330 861 1105 | www.frontlineii.com...
