Aussie Traveller Double Step Installation Manual

Drop down single and double 12 volt steps
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

DROP DOWN SINGLE AND
DOUBLE 12 VOLT STEPS
INSTALLATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Double Step and is the answer not in the manual?

Questions and answers

Related Manuals for Aussie Traveller Double Step

Summary of Contents for Aussie Traveller Double Step

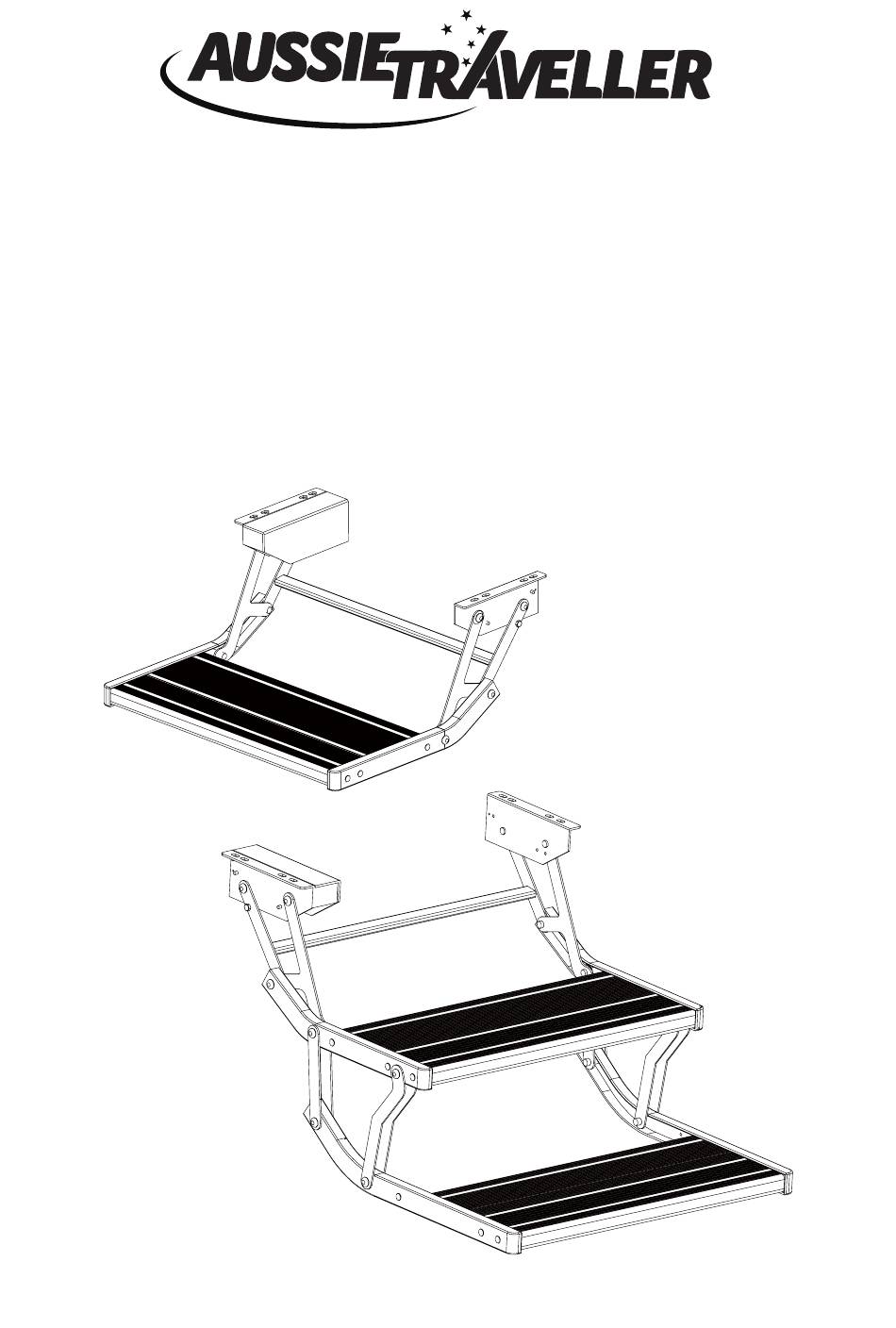

  • Page 1 DROP DOWN SINGLE AND DOUBLE 12 VOLT STEPS INSTALLATION MANUAL...

  • Page 2: Product Introduction

    Incorrect use or operation may cause serious injury. PRODUCT INTRODUCTION The Aussie Traveller range of folding 12 Volt single and double drop down steps are designed to used as high quality equipment which can help passengers get into a full range of Recreational Vehicles, including Caravans, Campers, Motorhomes and Emergency Vehicles.

  • Page 3: Installation

    NOTE: Depending on the specific installation, position of the steps and specific installation process may change. INSTALLATION OF THE AUSSIE TRAVELLER DROP DOWN STEP (CONTINUED): 1. Prior to installation, extend the step by connecting the 12V DC to the step motor.

  • Page 4: Wiring Diagram

    WIRING DIAGRAM PIN & WIRING LOCATIONS AT DROP DOWN 12 VOLT STEP PIN AND WIRING LOCATIONS Red Wire: Motor Negative PIN 1 Yellow Wire: Battery Positive PIN 6 Green Wire: Connect to PIN 5 PIN 4 (Blue Wire) Blue Wire: Connect to PIN 4 Motor Positive + PIN 3 PIN 2...
  • Page 5 OPERATING THE 12V DROP DOWN STEP The Aussie Traveller 12 Volt Drop Down step is operated by the supplied in/out switch, mounted as per the installation instructions. IMPORTANT: When operating the step, hold the switch in the OUT position until the step is completely extended.
  • Page 6 TECHNICAL PARAMETERS - 12V DROP DOWN STEP SINGLE PART NUMBER: 40600000005000 1300 663 868 | enquiries@aussietraveller.com.au | aussietraveller.com.au BRISBANE SHOWROOM: 11-15 Oasis Court, Clontarf QLD 4019 | MELBOURNE SHOWROOM: 235 Barry Road, Campbellfield VIC 3061...
  • Page 7 TECHNICAL PARAMETERS - 12V DROP DOWN STEP DOUBLE PART NUMBER: 40600000006000 1300 663 868 | enquiries@aussietraveller.com.au | aussietraveller.com.au BRISBANE SHOWROOM: 11-15 Oasis Court, Clontarf QLD 4019 | MELBOURNE SHOWROOM: 235 Barry Road, Campbellfield VIC 3061...

  • Page 8: Warranty Statement

    Product to the wholesale purchaser. 3. If the Product is purchased directly from Aussie Traveller for use by final retail customer and not to be on sold in any way, the Warranty will commence at the time of the original purchase.
  • Page 9 Product, the final retail customer must pay Aussie Traveller’s usual costs of service work and testing. The final retail customer must bear the cost of the transport of the Product to and from Aussie Traveller or the authorised repair agent, and all insurance of the Product.
