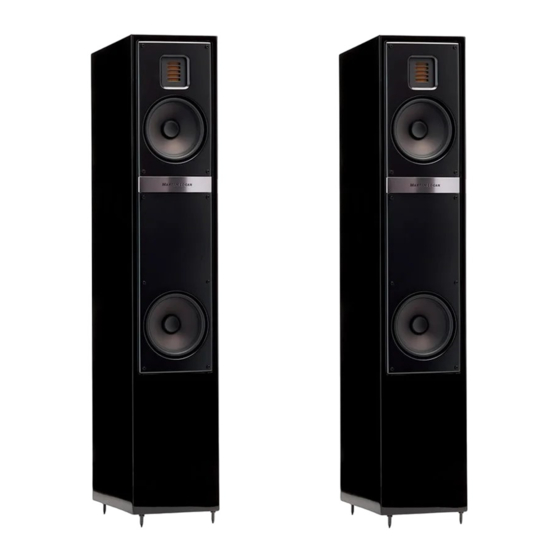

Motion 60XTi Manual
  1. Manuals
  2. Brands
  3. Motion Manuals
  4. Stereo System
  5. 60XTi
  6. Manual

Motion 60XTi Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60XTi and is the answer not in the manual?

Questions and answers

Related Manuals for Motion 60XTi

Summary of Contents for Motion 60XTi

  • Page 2 WARNING! AVERTISSEMENT! • Refer servicing to a qualified • Pour les réparations, faites appel à technician. un technicien compétent. • To prevent fire or shock hazard, • Pour éviter les risques d’incendie ou do not expose this module to moisture. de décharge électrique, n’exposez pas ce mod- •...

  • Page 3: Table Of Contents

    Raccord à Un Fil (Motion 30i/15i) ....8 (Motion 30i/15i) ....22 Single Wire Connection Raccord à...
  • Page 4 Motion 60XTi Motion 40i / 20i Motion 40 only / Motion 40 seulement...
  • Page 5 Motion 50XTi Motion 30i...
  • Page 6 Motion 35XTi Motion 15i...
  • Page 7 u s e r ’ s m a n u a l...

  • Page 8: Connection

    We have verified this in many cases, SINGLE WIRE CONNECTION and the improvements available are often more (MOTION 30i/15i) noticeable than the differences between wires of dif- ferent gauge. The effects of cables may be masked Connect the (+) wire from your amplifier to either if equipment is not of the highest quality.

  • Page 9: Single Wire Connection (Motion 60Xti/50Xti/40I/35Xti/20I)

    SINGLE WIRE CONNECTION BI-WIRE CONNECTION (MOTION 60XTi/50XTi/40i/35XTi/20i) (MOTION 60XTi/50XTi/40i/35XTi/20i) Please take note of the jumper clips installed under This connection method replaces the jumper clips the binding posts. These clips attach the high-fre- installed under the binding posts with individual runs quency and low-frequency sections of the crossover of speaker wire from your amplifier.

  • Page 10: Active Bi-Amplification

    Horizontal Passive Bi-Amplification Vertical Passive Bi-Amplification Horizontal bi-amping allows you to use two differ- The very nature of vertical bi-amping dictates that ent types, models or brands of amplifiers (i.e. tubes both amplifiers be identical. With vertical bi-amp- on top, transistor on the bottom). However, we rec- ing, each of the stereo amplifiers is dedicated to ommend that you use two identical amplifiers (i.e.

  • Page 11: Assembly And Placement

    2–3 feet from the Allow approximately 72 hours of break-in at 90 front wall and 2 or more feet from the side walls dB (moderate listening levels) before any critical (Fig. 5). listening. Fig. 5: Motion 60XTi/40i/35XTi/20i/15i...

  • Page 12: Toe-In

    To install this speaker’s magnetic grill covers simply 2) Remove existing feet or spikes. move them into place (Fig. 6). 3) Motion 60XTi: Use the 4mm Allen tool and the SOLID FOOTING four bolts provided with the speaker to attach (MOTION 60XTi/40i/20i) the outriggers to the bottom of the speaker.

  • Page 13: Installting On A Flat Surface

    The 3/8 - 16 threaded insert on the back of the If you have a surface that provides a wide, level, Motion 15i is not intended to bear the full weight and stable platform, the speaker can be placed of the speaker in a free-hanging installation. It is directly on top.

  • Page 14: Frequently Asked Questions

    4, 6 and 8 Ohm out- put ratings have been thoroughly tested with all of Is there likely to be any interaction our Motion series products and we have found no between my speakers and the televi- compatibility issues except under extreme listening sion in my A/V system? conditions.

  • Page 15: General Information

    enerAl nFormAtion WARRANTY INFORMATION SERVICE Your speakers are provided with an automatic Should you use your MartinLogan product in a Limited 90 Day Warranty coverage. You have country other than the one in which it was originally the option, at no additional charge, to receive a purchased, we ask that you note the following: Limited 5 Year Warranty coverage.

  • Page 16: Specifications

    High Frequency Driver . . . . . . . . . . . . . . . . . . . 1.25” x 2.4” (3.2cm x 6.1cm) Folded Motion Transducer with 4.5”...
  • Page 17 500 & 2,600 Hz 500 & 2,600 Hz 1” x 1.4” (2.6cm x 3.6cm) Folded Motion 1” x 1.4” (2.6cm x 3.6cm) Folded Motion Transducer with 5.25” x 1.75” (13.3cm x 4.4cm) Transducer with 5.25” x 1.75” (13.3cm x 4.4cm) diaphragm.
  • Page 18 High Frequency Driver . . . . . . . . . . . . . . . . . . . 1.2” x 2.4” (3.2cm x 6.1cm) Folded Motion Transducer with 4.5”...
  • Page 19 400 & 2,600 Hz 2,200 Hz 1” x 1.4” (2.6cm x 3.6cm) Folded Motion 1.2” x 2.4” (3.2cm x 6.1cm) Folded Motion Transducer with 5.25” x 1.75” (13.3cm x 4.4cm) Transducer with 4.5” x 2.75” (11.4cm x 7cm) diaphragm.
  • Page 20 High Frequency Driver . . . . . . . . . . . . . . . . . . . 1” x 1.4” (2.6cm x 3.6cm) Folded Motion Transducer with 5.25”...
  • Page 21 47.95” (1217.93mm) 47,95 po (1217,93 mm) 44.8” (1137.93mm) 44,8 po (1137,93 mm) 39.68” (1007.93mm) 39,68 po (1007,93 mm) 25.63” (650.93mm) 25,63 po (650,93 mm) 16.77” (425.93mm) 16,77 po (425,93 mm) 1.89” (47.93mm) 1,89 po (47,93 mm) 12.6” (320mm) 9.06” (230mm) 12,6 po (320 mm) 9,06 po (230 mm) 14.67”...

  • Page 22: Raccordement

    42.49” (1079.12mm) 42,49 po (1079,12 mm) 39.73” (1009.12mm) 39,73 po (1009,12 mm) 35.48” (901.12mm) 35,48 po 901,12 mm) 22.33” (567.12mm) 22,33 po (567,12 mm) 15.44” (392.12mm) 15,44 po (392,12 mm) 1.15” (29.12mm) 1,15 po (29,12 mm) 11.1” (282mm) 11,1 po (282 mm) 7.56”...

  • Page 23: Raccord À Deux Fils (Motion 60Xti/50Xti/40I/35Xti/20I)

    36.56” (928.74mm) 36,56 po (928,74 mm) 33.81” (858.74mm) 33,81 po (858,74 mm) 29.56” (750.74mm) 29,56 po (750,74 mm) 15.03” (381.74mm) 15,03 po (381,74 mm) 1.13” (28.74mm) 1,13 po (28,74 mm) 10.08” (256mm) 10,08 po (256 mm) 6.81” (173mm) 6,81 po (173mm) 12.07”...

  • Page 24: Bi-Amplification Active

    22.83” (580mm) 22,83 po (580 mm) 11.02” (280mm) 11,02 po (280 mm) 13.29” (337.65mm) 13,29 po (337,65 mm)

  • Page 25: Montage Et Positionnement

    16.54” (420mm) 16,54 po (420 mm) 8.66” (220mm) 8,66 po (220 mm) 10.81” (274.7mm) 10,81 po (274,7 mm)

  • Page 26: Orientation

    13.5” (343mm) 13,5 po (343 mm) 10.35” (263mm) 10,35 po (263 mm) 4.78” (121.5mm) 4,78 po (121,5 mm) 9.63” (244.65mm) 9,63 po (244,65 mm)

  • Page 28: Foire Aux Questions

    ® L a w r e n c e , K a n s a s , U S A t é l . 7 8 5 . 7 4 9 . 0 1 3 3 t é l é c . 7 8 5 . 7 4 9 . 5 3 2 0 w w w .
