Operating and service manual

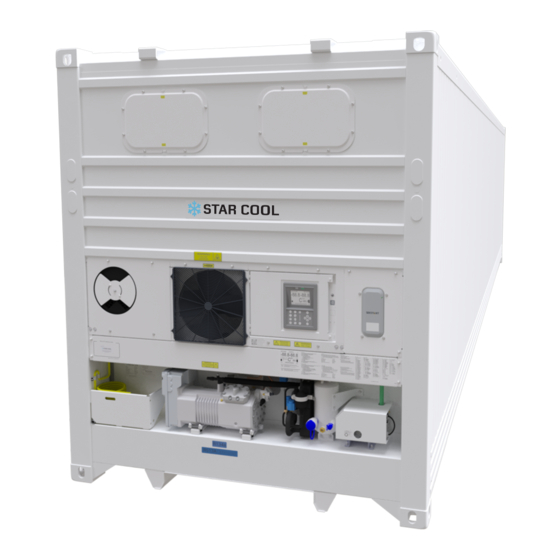

Star Cool refrigeration unit Model SCU-20/40 and SCI-20/40
Version 810900C April 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCI-40 and is the answer not in the manual?

Questions and answers

Related Manuals for Star Cool SCI-40

Summary of Contents for Star Cool SCI-40

  • Page 1 Operating and service manual Star Cool refrigeration unit Model SCU-20/40 and SCI-20/40 Version 810900C April 2015...

  • Page 2: Preface

    Operating and service manual Preface This version of the manual is dated April 2015, edited by Maersk Container Industry AS. All rights reserved. This user’s manual is valid for software version 0353 or newer versions. The information herein is subject to change without notice and does not represent a commitment on any part of Maersk Container Industry AS.

  • Page 3: Table Of Contents

    Operating and service manual Contents Preface ................................1 Warnings ................................. 1 Legend ................................6 General description ............................8 Function description ............................9 Start-up procedure ............................. 9 Climate Control Function ........................... 10 Temperature Control ..........................10 Capacity Control and Limiter ........................10 Expansion Valve ............................
  • Page 4 Operating and service manual Water cooled condenser (optional) ......................24 Defrosting ............................... 24 Fresh air exchange ........................... 25 Refrigeration controls ..........................25 Electrical data ............................25 Circuit Breaker ............................25 Contactors .............................. 25 Fuses ..............................25 Power plug .............................. 25 Power Cable ............................
  • Page 5 Location of motors, temperature sensors, humidity sensor and air exchange potentiometer ...... 55 Location of pressure transmitters, high pressure switch and oil outlet port ..........56 General trouble shooting ..........................56 Trouble shooting for Star Cool main controller ..................... 57 Detailed alarm description ..........................57 Alarm list ..............................58 Events ................................
  • Page 6 Temperature Sensor - Voltage Table ......................186 Pressure/Temperature table for R134a ..................... 187 Tightening torques ..........................188 Controller Unit Illustration ......................... 189 Star Cool Unit, installation dimensions ....................... 190 P & I diagram .............................. 191 Overall Wiring Schematic ..........................192 Overall wiring schematics (optional) ......................193...

  • Page 7: Legend

    Operating and service manual Legend Short name Name Short name Name AirEx Air Exchange Pdis Discharge Pressure AirEx mo Air exchange motor Power used by Frequency Converter Alarm Alarm PhDir Phase Direction Danfoss pressure transmitter Psuc Suction Pressure Battery Ptot Power Total CalAex Calibration value AirEx...
  • Page 8 Operating and service manual Prefix Description Frequency Heater Current Motor Pressure Power Relative humidity Switch / contact / key Super heat Temperature Saturated suction temperature Voltage Valve Contraction Full name Ambient Battery Cond Condenser Compressor Discharge Economizer Evap Evaporator Frequency converter Motor Compressor motor Power...

  • Page 9: General Description

    Operating and service manual General description units, models SCU-40 and SCI-40 are electric powered picture frames, cooling and heating units operating on refrigerant R134a. The unit is designed to maintain cargo temperatures in a range from –30°C (-22°F) to +30°C (86°F).

  • Page 10: Function Description

    Operating and service manual The unit is equipped with a dual system for defrosting. There is installed a hot gas valve, in the refrigeration system, for hot gas defrosting of the evaporator coil. Furthermore the heating elements, mounted under the evaporator coil, are energized during defrost. This dual system for defrosting ensures a fast defrost sequence and thereby only a very small input of heat to the container.

  • Page 11: Climate Control Function

    Operating and service manual Climate Control Function Temperature Control This function incorporates the container temperature controller. The function has 2 modes: Chill and Frozen. • Chill If Tset more than (>) -5°C (23°F) the chill mode is activated. If Standard Tact = Tsup if cooling need, and Tact = Tret if heating is needed. If QUEST is activated, see QUEST •...

  • Page 12: Expansion Valve

    Operating and service manual Below figure indicates the ranges for the capacity and compressor speed (frequency). System Capacity Heating % -100 Capacity % Cool eco Cool PWM Heat -20% +10% -100% 100% cooling heating Cooling % The limiter function secures that the controller operates with valid settings to protect the unit in order to maintain the conditions for the cargo.

  • Page 13: Economizer Valve

    Operating and service manual Function output is the expansion valve opening rate (Vexp). At start-up the opening rate is 0%. The electronic expansion valve is an on/off valve controlled on the basis of opening rate with a constant cycle time. MOP function The MOP function prevents the suction pressure from getting too high.

  • Page 14: Condenser Fan

    Operating and service manual Condenser Fan Condenser fan control will reduce condenser pressure through condenser ventilation. The condenser pressure control also monitors the compressor outlet pressure in case of water-cooling. This function is activated when control is being in the automatic mode. Condenser pressure control has two primary modes: Air-cooled Water-cooled...
  • Page 15 Operating and service manual Wait In the wait mode the time is refreshed for the next defrost provided that the following conditions are satisfied: • Compressor is running • T0 is less than (<) T0min. Wait mode termination can be due to: •...

  • Page 16: Quest (Optional)

    If O03 does not contain QUEST, QUEST is not installed. Star Cool is responsible for the QUEST function operating within the parameters and the run- ning pattern defined by the protocol. Star Cool is however not liable for any consequent damages caused by the QUEST functionality.

  • Page 17: Communication To Data Logger

    Operating and service manual Communication to Data Logger In the datalog the following will be recorded as an event: 1. Bulb mode ON 2. Bulb mode OFF The Bulb setup parameters will be logged as parameters to the event (RHset, Ventilation, Defrost termination criteria, Type of Bulb Mode (either Hi, Low or Alt )).

  • Page 18: Function Test

    Operating and service manual During function and PTI test the normal alarm system remains active. If an alarm is triggered during test operation, it appears in the display and will be written in the log as it is the case during normal operation.

  • Page 19: Full Pti

    Operating and service manual Vhg (hot gas valve) Max. duration 5 min When Pdis ≥ 5 Bar: Testing capacity Max. change in Pdis ± 0.75 When Pdis < 5 Bar: Max. change in Pdis ± 0.3 When Tret ≥ -15°C: Min.
  • Page 20 Operating and service manual The logged data in the data log can be seen: • On the display menu L01, the viewable temperatures are listed. • On the display menu L03, the logged temperatures can be viewed graphically. • Retrieved via the program RefCon and the RMM modem and the power line. •...

  • Page 21: Alarm Action System (Aas)

    StarView. Extended Log Type 1 can only be retrieved by Logman and StarView and shown in LogView and StarView. Extended Log Type 2 can only be retrieved by StarView and viewed in StarView. StarView is the unique program designed for communication with a Star cool unit through a serial connection to a PC.

  • Page 22: Condenser Fan Control

    Operating and service manual Condenser fan control Defective sensor(s) Substitution sensor / Action Alarm Pdis Start up: Condenser fan speed = slow Chill/Freeze mode: Condenser fan speed depends on ambient temperature. Tamb Tamb = Tinternal Tret, Tevap and Tsup1 Tact = Tsup2 + constant Tamb and Tinternal Tcmin Dehumidification control...

  • Page 23: Refrigeration System Data

    Operating and service manual Frequen- AL417, AL429 AL427 AL428 AL429 AL414, cy (f) AL418, at voltage at voltage at voltage at voltage AL415, [Hz] AL419 (U) [V] (U) [V] (U) [V] (U) [V] AL416 Min. voltage Fatal Alarm Fatal Alarm Max.

  • Page 24: General Specification

    Operating and service manual General specification Total unit weight Range from 400 to 460 kg depending on model Dimensions Height: Width: 2235 mm 2025 mm Noise level Less than 75 dB(A) in 250 Hz band. Measured 1.5 m in front of unit and 1.2 m above the ground, with the unit operating at 50 Hz.

  • Page 25: Condenser Coil

    Operating and service manual Condenser coil Tube material Copper, inner grooved Fin Material Aluminium Fin spacing 2.0 mm Coating, tube/fin Cataphoresis treatment, with additional acrylic resin Evaporator fan Material Polypropylene, glass fibre reinforced Type Axial Number of fans / blades 2 pcs / 7 pcs Pitch 25°...

  • Page 26: Fresh Air Exchange

    Operating and service manual Fresh air exchange Fresh air exchange Adjustable 0 – 225 m3/h (0 – 132 CFM) at 60 Hz. adjustable by steps of 5 m3/h. Equivalent to 0 - 170 m3/h (0 – 100 CFM) at 50 AV+ controlled (optional) 0 - 75 m3/h (50 Hz) controlled by the controller Refrigeration controls...

  • Page 27: Usda Socket Requirements

    Operating and service manual USDA socket requirements Location Rear left side Number 3 pieces + 1 cargo sensor Type Deutsch HD 10, female socket. Tin Plated Evaporator fan motor Manufacturer Grundfos dahlander motor ABB dahlander motor Type Enclosed, non–vented Frame size 071B14 Shaft material Stainless steel, X20CrNi172...

  • Page 28: Evaporator Coil Heaters

    Operating and service manual Evaporator coil heaters Type ø8,5 mm in stainless steel AISI 304 Number Rating 750 W each at 400 V (750 W ±10 W) Temperature sensors, including USDA Type NTC, 10 kOhm at 25°C (77°F) 10K3A1 Operating temp. -40°C to 100°C (-40°F to 212°F) Accuracy ±0.15°C, range -30°C to 100°C (±0.5°F,...

  • Page 29: Display

    Operating and service manual Display Temperature and pressure unit selection C / F Celsius + Bar or Fahrenheit + Psi Pre Trip Inspection or Function Test is running Unit is operated in service mode Humidity control is activated Water cooled condenser is activated Defrosting is running Heater elements are switched on Alarms are present in the alarm menu...

  • Page 30: Key Pad

    Operating and service manual Key pad Navigation keys Use these keys to move menu display up / down and to change parameter values Cancel Leave active sub menu Cancel active parameter adjustment Move menu one line up Increment parameter value in menu Increment setpoint on main display page Zoom out (graphical view) Down...

  • Page 31: Menu Overview

    Operating and service manual Function keys Direct activation and deactivation of commonly used func- tions Unit As long as the button is pressed, °F is shown instead of °C and Psi is shown instead of Bar in the display. Otherwise °C and Bar is shown when pressed if software is set to °F/Psi default Toggle Shortcut to graphical view of logged temperatures.

  • Page 32: Using The Cursor

    Operating and service manual Using the cursor The parameter ID is only used for identifying each displayed line of the menu system. Pressing the arrow keys will move the highlighted cursor one menu line up or down. In the upper right corner of the display is shown the actual line number of the cursor together with the total number of lines in the current menu.

  • Page 33: Operation

    Operating and service manual Operation Menu Structure MAIN PAGE INFORMATION PROGRAMS Relative humidity Active program Air exchange Multi. Temp setp. > Cold treatment > CO2* Last defr interval AIR EXCHANGE USDA 1 temp USDA 2 temp 888m USDA 3 temp COLD TREATMENT Cargo temp Time to defrost...

  • Page 34: General Operation

    When no main power is present the controller is switched off. The controller includes a battery for “Star Cool” operation when no external voltage supply is present. For battery saving in this situation, controller will turn itself off upon disappearance of external voltage supply.

  • Page 35: Pti Or Function Test Execution

    Operating and service manual PTI or Function Test execution The test menu is opened by pressing . In the test menu, press keys to scroll the menu. For a complete PTI test START must be highlighted by pressing at menu item T01. Pressing once more initiates the test.
  • Page 36 Operating and service manual Value: For starting function test, START must be highlighted by pressing . Pressing once more initiates the test. T04 Abort the running test (Abort the test) Function: Stop the running PTI or function- test. Value: To stop the running test, STOP must be highlighted by pressing .
  • Page 37 Operating and service manual T12 Test result: 80 Compressor (80 Compressor) Function: Shows the status of the test of the compressor. Value: “-“ if not done yet. “RUN” if still running test. “PASS” if test finished successfully. “FAIL” if the test failed. “ABORT”...

  • Page 38: Info Menu Viewing

    Operating and service manual Info Menu Viewing By pressing the info menu is selected. The icon is displayed. The info menu includes the following parameters: I01 Relative humidity (Relative humidity) Function: Shows current relative humidity in the container. Value: Shown as a percent value. I02 Air exchange in m3/h (Air change m3/h) Function: Shows current opening of air exchange valve.
  • Page 39 Operating and service manual I12 Supply air 1 temperature (Supply air 1 temp) Function: Shows current temperature for supply 1 sensor. Value: Shown in temperature scale °C or °F. Switch by pressing I13 Supply air 2 temperature (Supply 2 air temp) Function: Shows current temperature for supply 2 sensor.
  • Page 40 Operating and service manual Value: Shown in temperature scale °C or °F. Switch by pressing . Value is only user-changeable with system in the service mode. I22 Compressor frequency (Compressor freq) Function: Shows current compressor frequency. Value: Shown in units of Hz. I23 Power frequency (Power frequency) Function: Shows current power (net) frequency.

  • Page 41: Operation Parameter Setting

    Operating and service manual Value: Shown as voltage. I32 Frequency Converter temperature (FC temp) Function: Shows current converter temperature. Value: Shown in temperature scale °C or °F. Switch by pressing I33 Condenser fan speed (Condenser fan) Function: Shows current speed for condenser fan. Value: Shown as OFF, LO, HI or OH (overheat).

  • Page 42: Programs

    Operating and service manual Value: Function set to NORMAL, HIGH, QUEST. Default is NORMAL or QUEST (customer dependent). O04 Reference relative humidity setting (Humidity setpoint) Function: Setting of reference relative humidity. Note that container relative humidity is only reducible. Value: Shown as ‘Off’...

  • Page 43: Cold Treatment Program, Ct

    Operating and service manual If the duration (hours) is set to OFF or it is the last step, the program is terminated. After this the unit continues with the temperature set as last step in the MTS. The Multiple Temperature Set points program stops automatically if the unit has been powered off for more than 48 hours, or if the user stops the program or if PTI or Cold Treatment is initiated.

  • Page 44: Alarms

    Operating and service manual Value: -30.0°C to +30.0°C. The setpoint must be chosen so that all USDA sensors show a temperature below the maximum USDA temperature during treatment. B04 Final temperature (Final temperature) Function: Setting of final setpoint Value: Value: -30.0°C to +30.0°C. After the treatment period the cargo might need to be warmed up to a higher temperature.

  • Page 45: Service Function Setting/Viewing

    Operating and service manual Alarm type Datalog Alarm list Red LED Cargo risk No risk for the cargo Warning No risk for the cargo Alarm SLOW FLASH Risk for the cargo 2% ON, 98 % OFF Duty time of 3 sec Fatal Alarm QUICK FLASH Serious risk for the...

  • Page 46: Manual Operations

    In menu item M05 compressor frequency is set. In case of no keyboard activities for 5 min., manual mode is automatically deactivated and unit starts automatically up. Note that the “Star Cool” should only be set in the manual mode by trained service personnel! Value: Set to MANUAL or AUTOMATIC.

  • Page 47: Datalog View

    Operating and service manual M08 Setting of economizer valve % opening (Economizer valve) Function: Manual setting of economizer valve % opening. Note that value is only accepted if control is in the manual mode (menu item M01 is MANUAL). Value: Set from 0 to 100%.

  • Page 48: Run Time Counters

    Setting of min. Note: when min. are set, sec. are set to 00. Value: Set from 0 to 59. Run time counters: R01 Viewing of operation hours for the Star Cool unit (Unit) Function: Viewing of Star Cool unit operation hours. Value: Shown as hours.

  • Page 49: Configuration

    Operating and service manual Configuration: F01 Container ID viewing (Container) Function: Viewing of container ID. Value: Shown in the lower display line. E.g. MCID 000 001 2 F02 Software version viewing (Software version) Function: Viewing of software version and revision Value: F03 Compressor FC type setting (FC type) Function:...

  • Page 50: Serial Numbers

    Operating and service manual F10 Model code Function: Model Value: F11 Freshair type Function: Type Value: 35 CMH or 75 CMH Serial Numbers N01 SMC Function: Main controller Value: Main controller serial no. N02 SUP Function: User panel Value: User panel serial no. N03 SPM Function: Power meas...

  • Page 51: C And °F Temperature Scale Showing, Alternately

    Operating and service manual °C and °F Temperature Scale Showing, Alternately While button is pressed, °F is shown instead of °C and Psi is shown instead of Bar. If software is default °F/Psi, then °C and Bar is shown instead while is pressed.

  • Page 52: Emergency Operation

    Operating and service manual Emergency Operation Warning: High Voltage. Unit must be disconnected from power. Only to be done by trained personnel. FC defective If FC is defect and no replacement part is available, compressor may be run in the on / off mode. Defect FC is dismounted and the 3 phases are directly applied to the compressor supply terminals.

  • Page 53: External Interfaces

    Operating and service manual External interfaces The Star Cool controller can be accessed externally in the following ways: StarCool Unit RefCon / Slave Master GRASP RS 232 Powerline RS 485 modem modem RCCU-6 Controller & Datalogger Binary Retriever LogMan LogView...

  • Page 54: Functions Overview

    Operating and service manual Functions overview It is defined in the table below, which Star Cool functions each device and system will support. Function LogMan LogView RefCon StarView Controller Display basic data Display alarm list Display controller information Change container ID...

  • Page 55: Location Of Valves

    Operating and service manual Location of valves Position Description Discharge service valve Economizer suction service valve Hot gas valve Service valve, economizer Electronical expansion valve, evaporator Electronical expansion valve, economizer Suction service valve Liquid charging valve Evacuation valve Evacuation valve 54 of 194 pages...

  • Page 56: Location Of Motors, Temperature Sensors, Humidity Sensor And Air Exchange Potentiometer

    Operating and service manual Location of motors, temperature sensors, humidity sensor and air exchange potentiometer Description Short Number Location Accessibility name Suction temperature sensor Tsuc Inside Through inspection hatch Relative humidity sensor Inside Through inspection hatch Evaporator temperature sensor Tevap Inside Through inspection hatch Supply temperature sensor...

  • Page 57: Location Of Pressure Transmitters, High Pressure Switch And Oil Outlet Port

    Operating and service manual Location of pressure transmitters, high pressure switch and oil outlet port Description Short Number Location name Discharge Pressure transmitter Pdis Outside High pressure switch Outside Suction Pressure transmitter Psuc Outside Oil outlet port Outside General trouble shooting Hints for general trouble shooting.

  • Page 58: Trouble Shooting For Star Cool Main Controller

    Tevap is not working properly. 5. Display is blank. Adjust contrast ( “Contrast adjustment of the display” p. 33) Trouble shooting for Star Cool main controller A method to check if the controller is performing correct readings. If there is a problem with a sensor or a transmitter, the X22, X23, X24 and X25 cable on the main controller must be disconnected to see if the defective is with the sensor/transmitter or the main controller.

  • Page 59: Alarm List

    Operating and service manual Alarm list The following list includes a view of all alarms as listed on the display and a longer text. This list is subject to constant updates. Be sure to visit www.mcicontainers.com/Service/Pages/alarmlists.aspx for latest update. Display text Description Alarm type 1.
  • Page 60 Operating and service manual 515 FC over volt FC Voltage High Fault Alarm Alarm 516 FC phase loss FC Phase Loss Fault Alarm Alarm 517 FC over temp FC Over temperature Fault Alarm Alarm 518 FC inrush FC Inrush Fault Alarm Alarm 519 FC internal error FC Internal Error Fault Alarm...
  • Page 61 Operating and service manual 842 Expansion valve Expansion Valve Fault Alarm 843 Economizer valve Economizer Valve Fault Alarm 844 Hot gas valve Hot gas Valve Fault Alarm 845 Cpr pump down Compressor pump down fault Alarm 846 FC check FC internal fault Alarm 850 PTI test failed PTI Test Fault...

  • Page 62: Events

    Operating and service manual Events Name Parameter explanation No. 1 No. 2 No. 3 No. 4 No. 5 Temperature set- Old set-point New set-point SW revision point Humidity set-point Old set-point New set-point Watercool deselect Watercool select FT start Version Alarms count FT step OK Step ID...
  • Page 63 Operating and service manual CT period start Actual temp. Tusda1 Tusda2 Tusda3 Tcargo CT Passed Duration CT setpoint CT high limit Final setpoint [min.] temp. temp. CT ramp up Tact Tusda1 Tusda2 Tusda3 Tcargo Multiple Step number Step duration Step setpoint Step temp.

  • Page 64: Temperature Sensor Alarms (Al 1Xx)

    Resistance Table” p. 180, the temperature sensor and cable are defective and should be replaced. b) If the resistance is within range, perform main controller check “Trouble shooting for Star Cool main controller” p. 57 before replacing main controller. Criteria Sensor is defective and the missing sensor reading has been substituted by a value from AAS system.
  • Page 65 Resistance Table” p. 180, the temperature sensor and cable are defective and should be replaced. b) If the resistance is within range, perform main controller check “Trouble shooting for Star Cool main controller” p. 57 before replacing main controller. Criteria Value is below alarm limit -60°C (-76°F) or above +140°C (284°F) or difference...
  • Page 66 Resistance Table” p. 180, the temperature sensor and cable are defective and should be replaced. b) If the resistance is within range, perform main controller check “Trouble shooting for Star Cool main controller” p. 57 before replacing main controller. Criteria Value is below alarm limit -60°C (-76°F) or above +140°C (284°F) or difference between...
  • Page 67 Resistance Table” p. 180, the temperature sensor and cable are defective and should be replaced. b) If the resistance is within range, perform main controller check “Trouble shooting for Star Cool main controller” p. 57 before replacing main controller. Criteria...
  • Page 68 Resistance Table” p. 180, the temperature sensor and cable are defective and should be replaced. b) If the resistance is within range, perform main controller check “Trouble shooting for Star Cool main controller” p. 57 before replacing main controller. Criteria...
  • Page 69 Resistance Table” p. 180, the temperature sensor and cable are defective and should be replaced. b) If the resistance is within range, perform main controller check “Trouble shooting for Star Cool main controller” p. 57 before replacing main controller. Criteria...
  • Page 70 Resistance Table” p. 180, the temperature sensor and cable are defective and should be replaced. b) If the resistance is within range, perform main controller check “Trouble shooting for Star Cool main controller” p. 57 before replacing main controller. Criteria...
  • Page 71 Resistance Table” p. 180, the temperature sensor and cable are defective and should be replaced. b) If the resistance is within range, perform main controller check “Trouble shooting for Star Cool main controller” p. 57 before replacing main controller. Criteria Value below alarm limit -60°C (-76°F) or above +140°C (+284°F).
  • Page 72 Operating and service manual Tsuc invalid Alarm Description Suction Temperature Sensor Invalid Cause Indication of defective suction temperature sensor or its measuring circuitry Trouble Possible causes: shooting • Active alarms AL 124, AL 125 or AL 901 (if CIM5 software) •...
  • Page 73 Resistance Table” p. 180, the temperature sensor and cable are defective and should be replaced. b) If the resistance is within range, perform main controller check “Trouble shooting for Star Cool main controller” p. 57 before replacing main controller. Criteria Value below alarm limit -60°C (-76°F) or above +140°C (284°F).

  • Page 74: Pressure Transmitter Alarms (Al 2Xx)

    NSK: If the voltage is between 0.37 V DC and 4.0 V DC and this alarm is still active, replace main controller. 6. Before replacing main controller see “Trouble shooting for Star Cool main controller” p. 57 Criteria Value below alarm limit 0.1 BarE (2 Psi) or above 30/31.9 BarE (435/462 Psi).
  • Page 75 NSK: If the voltage is between 0.37 V DC and 4.0 V DC and this alarm is still active, replace main controller. 6. Before replacing main controller see “Trouble shooting for Star Cool main controller” p. 57 Criteria Value below alarm limit -0.9 BarE (-13 Psi) or above 11.8 BarE (171 Psi).
  • Page 76 Operating and service manual Press sensor type Alarm Description Saved FC ID (controller) does not match the current FC ID Cause Controller or FC has been replaced, requires manually setting of pressure transmitter (NSK / ASK) Trouble Possible causes: shooting •...

  • Page 77: Other Sensor Alarms (Al 3Xx)

    5. Mount signal wire. Measure voltage between SIGNAL and GND. If voltage is between 0.5 V DC and 10 V DC and this alarm is still active, replace main controller. 6. Before replacing main controller see “Trouble shooting for Star Cool main controller” p. 57 Criteria Value below alarm limit 10% RH or above 110% RH.
  • Page 78 5. Mount signal wire. Measure voltage between SIGNAL and GND. If the voltage is between 0.2 V DC and 4.0 V DC and this alarm is still active continue to 6). 6. Check controller, see “Trouble shooting for Star Cool main controller” p. 57 before replacing main controller. Criteria...
  • Page 79 If the cable is defective, replace cable and high pressure switch. Check if pressure transmitter is according to “Configuration:” p. 48 (F08) and set controller according to transmitter type AKS/NSK. 10. Check controller, see “Trouble shooting for Star Cool main controller” p. 57 before replacing main controller. Criteria Pressure is above high pressure switch safety limit.
  • Page 80 Operating and service manual Replace CO2 sensor Alarm Description Replace CO2 sensor Cause CO2 measurement after calibration (PTI) is out of range Trouble Possible causes: shooting • Sensor measurement out of range from last PTI (calibration) and CA/AV+ is active •...

  • Page 81: Power Alarms (Al 4Xx)

    Operating and service manual Power Alarms (AL 4XX) Mevap 1 overheat Warning Description Evaporator Motor 1 Overheat Cause Indication of an overheated motor or a loose thermistor cable connection Trouble Possible causes: shooting • Evaporator motor 1 defective. • Cable for measuring evaporator motor 1 overheat defective. •...
  • Page 82 Operating and service manual Mevap 2 overheat Warning Description Evaporator Motor 2 Overheat Cause Indication of an overheated motor or a loose thermistor cable connection Trouble Possible causes: shooting • Evaporator motor 2 defective. • Cable for measuring evaporator motor 2 overheat defective. •...
  • Page 83 Operating and service manual Mcond overheat Warning Description Condenser Motor Overheat Cause Indication of an overheated motor or a loose thermistor cable connection Trouble Possible causes: shooting • Condenser motor defective. • Cable for measuring condenser motor overheat defective. • Main controller defective.
  • Page 84 Operating and service manual Over voltage Fatal Alarm Description U1-2 and U1-3 and U2-3 over voltage Cause Indication of error in container supply voltage between phases Trouble Possible causes: shooting • The unit is supplied with a voltage above specified level. Trouble shooting: 1.
  • Page 85 Operating and service manual Under voltage Fatal Alarm Description U1-2 and U1-3 and U2-3 under voltage Cause Indication of error in container supply voltage between phases Trouble Possible causes: shooting • The unit is supplied with a voltage below specified level. •...
  • Page 86 Operating and service manual Over current Description I1-2 and I1-3 and I2-3 over current Cause Indication of short circuit in electric installations of Star Cool unit Trouble Possible causes: shooting • The unit is using too much power on one phase.
  • Page 87 Operating and service manual No phase direction Fatal Alarm Description Phase direction not detectable Cause Phases may be lacking or there may be extremely high noise in one or more phases in the detection moment Trouble Possible causes: shooting • The unit is supplied with an unstable voltage.
  • Page 88 Operating and service manual Power frequency Description Phase frequency error Cause Indication of error on StarCool unit power supply Trouble Possible causes: shooting • The unit is supplied with an unstable voltage. • The power frequency is out of specified range. Trouble shooting: 1.
  • Page 89 Operating and service manual Frequency too high Warning Description Power Frequency Too High Alarm Cause Power generator adjusted to too high frequency Trouble Possible causes: shooting • The power frequency is out of specified range. Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 90 Operating and service manual Cpr connection Alarm Description Power Cable From FC to Compressor is Faulty Cause Indication of error with power cable between FC and compressor. The compressor is not using any power Trouble Possible causes: shooting • The power cable between the FC and the compressor motor is defective. •...

  • Page 91: Frequency Converter (Fc) Alarms (Al 5Xx)

    Operating and service manual Frequency Converter (FC) Alarms (AL 5XX) For some of the alarms in this section, the FC may be faulty and must be replaced. For continuing operation until replacement is possible, the unit can be rewired and started for emergency opera- tion: See “Emergency Operation”...
  • Page 92 Operating and service manual Compr connection Alarm Description FC Short Circuit Alarm Cause Indication of defective “cable”, compressor motor or FC Trouble Possible causes: shooting • Short-circuit on the FC power output. (A16) • Damaged cable and/or plugs. Trouble shooting: 1.
  • Page 93 Operating and service manual FC 24 V fault Alarm Description FC Internal 24 V Supply Fault Alarm Cause Indication of problems with FC Trouble Possible causes: shooting • Internal fault in the FC. (A15) Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 94 Operating and service manual FC over current Alarm Description FC Overcurrent Alarm Cause Indication of problems with compressor Trouble Possible causes: shooting • The compressor motor draws too much current. (A13) • Defective FC. • Condenser blocked due to dirt and residue. Trouble shooting: 1.
  • Page 95 Operating and service manual Compr overload Alarm Description FC Overload Alarm Cause Indication of problems with compressor Trouble Possible causes: shooting • The FC cannot deliver enough power to the compressor. (A9) • Insufficient cooling for the FC. • Defective FC. Trouble shooting: At very high ambient temperatures and very low setpoint temperatures, the FC may get too hot to generate enough power.
  • Page 96 Operating and service manual FC under volt Alarm Description FC Undervoltage Fault Alarm Cause Indication of problems with supply voltage Trouble Possible causes: shooting • The FC is supplied with too low voltage for continuous operation. (A9) • Defective FC. Trouble shooting: 1.
  • Page 97 Operating and service manual FC phase loss Alarm Description FC Phase Loss Fault Alarm Cause Indication of lack of phase or defective FC Trouble Possible causes: shooting • One or more phases are not applied to the FC. (A4) • Unstable power supply (generator).
  • Page 98 Operating and service manual FC over temp Alarm Description FC Overtemperature Fault Alarm Cause Indication of problems with compressor or FC Trouble Possible causes: shooting • FC operates at operating limits. (A36) • Insufficient cooling for the FC. • Defective FC. Trouble shooting: 1.
  • Page 99 Operating and service manual FC inrush Alarm Description FC Inrush Fault Alarm Cause Indication of problems with supply voltage Trouble Possible causes: shooting • The FC has had too many restarts within short time. (A36) • Manual activation of contactor (K8) on/off too many times. •...
  • Page 100 Operating and service manual FC internal error Warning Description Frequency converter high voltage fault warning Cause Indication of problems with supply voltage Trouble Possible causes: shooting • Defective FC (W7) Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 101 Operating and service manual FC phase loss Description FC Phase Loss Fault Warning Cause Indication of defective FC or missing phase Trouble Possible causes: shooting • One or more phases are not applied to the FC. (W36) • Unstable power supply (generator). •...
  • Page 102 Operating and service manual Compr current limit Description FC Current Limit Fault Warning Cause Indication of problems with compressor. Error may be seen during pull-down Trouble Possible causes: shooting • The compressor motor draws too much current. (A12) • Defective FC. Trouble shooting: 1.
  • Page 103 Operating and service manual FC overload Description FC Overload Warning Cause Indication of problems with compressor Trouble Possible causes: shooting • The FC cannot supply enough power to the compressor. (W9) • Insufficient cooling for the FC. • Defective FC. Trouble shooting: At very high ambient temperatures and very low setpoint temperatures, the FC may get too hot to generate enough power.
  • Page 104 Operating and service manual FC setup error Warning Description FC Setup Warning Cause The setup of the FC is rejected by the FC. Either communication problems or phase fault Trouble Possible causes: shooting • Defective FC. (A37) Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 105 Operating and service manual FC Trip Lock Description The FC has tripped and stopped Cause Alarm indicates problem with compressor or frequency controller Trouble Possible causes: shooting • Other alarms have tripped (stopped) the FC. • Defective FC. Trouble shooting: 1.

  • Page 106: Operation Alarms (Al 6Xx)

    Operating and service manual Operation Alarms (AL 6XX) No control sensors Fatal Alarm Description Supply Air Sensor 1, Supply Air Sensor 2, Return Air Sensor and Evaporator Sensor are all malfunctioning. Cause Alarm indicates that all control-relevant sensors are defective or unreliable. See also “Temperature control”...
  • Page 107 Operating and service manual No water cooling Alarm Description Water-cooling fault Cause Lack of water-cooling Trouble Possible causes: shooting • Water cooling selected and no water cooling active. • Insufficient water cooling capacity. • If program is chosen, warning can occur in units without water cooling. Trouble shooting: 1.
  • Page 108 Operating and service manual In range fault Fatal Alarm Description In-range fault Cause Indication of insufficient yield or defective controller Trouble Possible causes: shooting • Container doors are open or gasket defective. • Not enough refrigerant for the compressor. • Insufficient airflow though evaporator.
  • Page 109 Operating and service manual High press trouble Fatal Alarm Description High Pressure Switch is active Cause Hot gas valve, expansion valve and economizer valves are all closed and compressor is running Trouble Possible causes: shooting • Repeated high pressure alarms. Trouble shooting: 1.
  • Page 110 Operating and service manual Config AirEx type Alarm Description AirEx type missing Cause AirEx type not set Trouble Possible causes: shooting • AirEx type is set to NONE in Settings Trouble shooting: Go to Settings and Configuration, and choose either 35m3/h or 75m3/h depending on valve type.
  • Page 111 Operating and service manual Defrost Trouble Alarm Description Defrost is running Cause Defrost terminated on Tsuc Trouble Possible causes: shooting • Hot gas valve not working probably. • Defective Psuc. • Defective Tevap. Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 112 Operating and service manual Defrost time exceed Description Max. defrost time exceeded Cause Defrost terminated on time > 45 minutes Trouble Possible causes: shooting • There has been too much ice in the evaporator. • The heaters are not working/defective. •...
  • Page 113 Operating and service manual Too many sensor errors Alarm Description Too many (controlling) sensors have errors Cause If too many (controlling) sensors have errors, the controller cannot maintain correct temperature. See also “Temperature control” p. 20 and “Expansion valve control” p. 20 Trouble Possible causes: shooting...
  • Page 114 Operating and service manual Mcond trouble Alarm Description Condenser fan motor overheated several times Cause Condenser fan motor is overheating either permanently or has repeatedly generated overheat alarm within the last 30 min. Trouble Possible causes: shooting • Repeated condenser fan motor trouble Trouble shooting: 1.
  • Page 115 Operating and service manual Mevap trouble Alarm Description Evaporator fan motor(s) overheated several times Cause Evaporator fan motor(s) is overheating either permanently or has repeatedly generated overheat alarm within the last 30 min. Trouble Possible causes: shooting R epeated evaporator fan motor(s) trouble •...
  • Page 116 Operating and service manual Cpr restarted Description The compressor has been restarted Cause No signal from FC that motor is running Trouble Possible causes: shooting • Too high discharge pressure at start up, unit will restart after a delay. • Unit in emergency mode, but cables not rewired for emergency mode.
  • Page 117 Operating and service manual Loss of cooling Fatal Alarm Description The refrigeration systems tries to cool down but Tsup is above Tret Cause No cooling capacity Trouble Possible causes: shooting • System leak – loss of refrigerant • Defective compressor valve plate(s) •...
  • Page 118 Operating and service manual CT outrange Alarm Description Cold Treatment out of range Cause Indication of insufficient yield or defective controller Trouble Possible causes: shooting • Difference between treatment setpoint and maximum USDA temperature too small. • Container doors are open. •...
  • Page 119 Operating and service manual Manual phase dir Warning Description Manually Selected Phase Direction Cause Indication of insufficient yield or defective controller Trouble Possible causes: shooting • The user has selected a manual phase direction. Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.

  • Page 120: Communication Alarms (Al 7Xx)

    Operating and service manual Communication Alarms (AL 7XX) No FC/Contr com Fatal Alarm Description FC Missing Cause Indication of defective FC, lack of or improper connection Trouble Possible causes: shooting • Communication with FC broken. • Power voltage to the FC not applied (wired for emergency operation?). •...
  • Page 121 Operating and service manual No userpanel com (Seen in Star View) Warning Description No communication with display Cause Indication of defective display, lack of or improper connection Trouble Possible causes: shooting • Communication with display broken. • Defective display. • X11 cable is defective.
  • Page 122 Operating and service manual No SPM com Alarm Description No communication Cause Indication of defective power module, lack of or improper connection Trouble Possible causes: shooting • Communication with power module SPM6 broken. • 12 V DC to the power module SPM6 not applied. •...
  • Page 123 Operating and service manual No RH sens com Description RH sensor communication missing Cause Indication of defective RH sensor, or lack of or improper connection Trouble Possible causes: shooting • Communication with RH sensor broken. • Defective RH sensor. • X10 cable is defective.

  • Page 124: Test Alarms (Al 8Xx)

    Operating and service manual Test Alarms (AL 8XX) Func test failed Alarm Description Function Test Fault Cause Trouble Possible causes: shooting • One or more of the individual test steps have failed. Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 125 Operating and service manual Controller Alarm Description Controller Internal Voltage Reference Fault Cause Trouble Possible causes: shooting • Power supply for main controller is not sufficient. • Main controller defective. Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 126 Operating and service manual Idle current Alarm Description Unit idle overcurrent fault Cause Trouble Possible causes: shooting • There is a short-circuit in the main controller. • The power module PCB is defective. Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 127 Operating and service manual Mevap cur HI speed Alarm Description Evaporator motor high speed current fault Cause Indication of defective motor or defective supply cables to motor Trouble Possible causes: shooting • Evaporator motor jammed or defective. • Evaporator motor cables defective. •...
  • Page 128 Operating and service manual Mevap direction Alarm Description Not implemented yet Mcond cur LO speed Alarm Description Condenser Motor Low Speed Current Fault Cause Indication of defective motor or defective supply cables to motor Trouble Possible causes: shooting • Condenser motor jammed or defective. •...
  • Page 129 Operating and service manual Mcond cur HI speed Alarm Description Condenser Motor High Speed Current Fault Cause Indication of defective motor or defective supply cable to motor Trouble Possible causes: shooting • Condenser motor jammed or defective. C ondenser motor cable defective. •...
  • Page 130 Operating and service manual Hevap current ON Alarm Description Evaporator Heater On Current Fault Cause Indication of defective heater(s) or defective supply cables to heater Trouble Possible causes: shooting • Heaters defective. • Heater power cable defective. Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 131 Operating and service manual Valve leaks Alarm Description Valve Leak Fault Cause Indication of leakage of one or more of the valves or problems with the compressor Trouble Possible causes: shooting • One or more valves have leaks (defective) Trouble shooting: 1.
  • Page 132 Operating and service manual Expansion valve Alarm Description Expansion Valve Fault Cause Indication of non-operating electronic expansion valve Trouble Possible causes: shooting • Cable for expansion valve mounted on wrong valve. • Cable for expansion valve defective. • Expansion valve defective. •...
  • Page 133 Operating and service manual Economizer valve Alarm Description Economizer Valve Fault Cause Indication of non-operating economizer valve Trouble Possible causes: shooting • Cable for economizer valve mounted on wrong valve. • Cable for economizer valve defective. • Economizer valve defective. •...
  • Page 134 Operating and service manual Hot gas valve Alarm Description Hot gas Valve Fault Cause Indication of non-operating hot gas valve Trouble Possible causes: shooting • Cable for hot gas valve mounted on wrong valve. • Cable for hot gas valve defective. •...
  • Page 135 Operating and service manual Cpr pump down Alarm Description Compressor pump down fault Cause Indication of insufficient performance in the compressor Trouble Possible causes: shooting S ensor defective (high pressure transmitter and or high pressure switch) • • O ne or more valves defective. C ompressor needs repair.
  • Page 136 Operating and service manual PTI test failed Alarm Description PTI Test Fault Cause Normal function will be affected Trouble Possible causes: shooting • There is one or more alarms. Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 137 Operating and service manual PTI Tset 0 Alarm Description PTI 0°C Set Fault Cause Indication of insufficient performance Trouble Possible causes: shooting • Doors are open. • The heaters do not operate normally. • There may not be enough refrigerant in the unit. •...
  • Page 138 Operating and service manual PTI defrost Alarm Description PTI Defrost Fault Cause Trouble Possible causes: shooting • Defective Tevap temperature sensor. • Defective Psuc pressure transmitter. • Defective heaters. • Defective hot gas valve. • Evaporator was filled with too much ice. Trouble shooting: 1.

  • Page 139: Controller Alarms (Al 9Xx)

    Operating and service manual PTI Tset -18 Alarm Description PTI –18°C Set Fault Cause Indication of insufficient performance Trouble Possible causes: shooting • Doors are open. • There may not be enough refrigerant in the unit. • The cooling capacity is too limited. •...
  • Page 140 Operating and service manual Battery malfunction Alarm Description Battery Malfunctioning Cause Indication of defective battery Trouble Possible causes: shooting • The battery used for logging is defective. Trouble shooting: The battery is defective. Dismount main controller, replace battery and remount main controller.
  • Page 141 Operating and service manual Database corrupt Description SCCU6 Database Faulty Cause Failed validation of EEPROM backup Trouble Possible causes: shooting • Main controller defective. Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 142 Operating and service manual Temp ref 1 LO Warning Description Controller Internal Voltage Reference Fault Cause Indication of controller internal voltage reference fault Trouble Possible causes: shooting • Defective power supply for main controller. • Defective sensor pulling power supply down. •...
  • Page 143 Operating and service manual Temp ref 1 HI Warning Description Controller Internal Voltage Reference Fault Cause Indication of controller internal voltage reference fault Trouble Possible causes: shooting • Defective power supply for main controller. • Defective main controller. Trouble shooting: 1.
  • Page 144 Operating and service manual Pdis sens sup LO Description Controller Internal Voltage Reference Fault Cause Indication of controller internal voltage reference fault Trouble Possible causes: shooting • Defective power supply for main controller. • Defective Pdis pressure transmitter. • Defective main controller. Trouble shooting: 1.
  • Page 145 Operating and service manual Pdis sens sup HI Description Controller Internal Voltage Reference Fault Cause Indication of controller internal voltage reference fault Trouble Possible causes: shooting • Defective power supply for main controller. D efective main controller. • Trouble shooting: 1.
  • Page 146 Operating and service manual Psuc sens sup LO Description Controller Internal Voltage Reference Fault Cause Indication of controller internal voltage reference fault Trouble Possible causes: shooting • Defective power supply for main controller. • Defective Psuc pressure transmitter. • Defective main controller. Trouble shooting: 1.
  • Page 147 Operating and service manual Psuc sens sup HI Description Controller Internal Voltage Reference Fault Cause Indication of controller internal voltage reference fault Trouble Possible causes: shooting D efective power supply for main controller. • D efective main controller. • Trouble shooting: 1.
  • Page 148 Operating and service manual Controller sup HI Description Controller Internal Voltage Reference Fault Cause Indication of controller internal voltage reference fault Trouble Possible causes: shooting • Defective power supply for main controller. • Defective main controller. Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 149 Operating and service manual AirExMot sup LO Description Controller Internal Voltage Reference Fault Cause Indication of controller internal voltage reference fault Trouble Possible causes: shooting • D efective power supply for main controller. D efective sensor pulling power supply down. •...
  • Page 150 Operating and service manual AirExMot sup HI Description Controller Internal Voltage Reference Fault Cause Indication of controller internal voltage reference fault Trouble Possible causes: shooting • Defective power supply for main controller. • Defective main controller. Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 151 Operating and service manual AirEx sens sup LO Description Controller Internal Voltage Reference Fault Cause Indication of controller internal voltage reference fault Trouble Possible causes: shooting • D efective power supply for main controller. D efective sensor pulling power supply down. •...
  • Page 152 Operating and service manual AirEx sens sup HI Description Controller Internal Voltage Reference Fault Cause Indication of controller internal voltage reference fault Trouble Possible causes: shooting • Defective power supply for main controller. • Defective main controller. Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 153 Operating and service manual Sensor bus sup LO Description Supply voltage sensor bus low Cause Indication of controller voltage reference fault Trouble Possible causes: shooting D efective 12 V power supply on main controller. • D efective main controller. • S hort circuit on sensor •...
  • Page 154 Operating and service manual Sensor bus sup HI Description Controller Internal Voltage Reference Fault Cause Indication of controller internal voltage reference fault Trouble Possible causes: shooting D efective 12 V power supply on main controller. • D efective main controller. •...
  • Page 155 Operating and service manual SUP6 SPM6 sup LO Description Supply voltage SUP6 SPM6 low Cause Indication of controller voltage reference fault Trouble Possible causes: shooting D efective 12 V power supply to SUP6 or SMP6. • D efective main controller. •...
  • Page 156 Operating and service manual Sensor bus sup HI Description Controller Internal Voltage Reference Fault Cause Indication of controller internal voltage reference fault Trouble Possible causes: shooting D efective 12 V power supply to sensor bus. • D efective main controller. •...
  • Page 157 Operating and service manual Internal sup LO Description 12 V supply voltage low on SMC6 Cause Indication of 12 V power supply fault Trouble Possible causes: shooting D efective 12 V power supply on SMC6. • D efective main controller. •...
  • Page 158 Operating and service manual Internal sup HI Description 12 V supply voltage high on SMC6 Cause Indication of controller internal voltage reference fault Trouble Possible causes: shooting D efective 12 V power supply. • D efective main controller. • S hort circuit between 24 V DC and 12 V DC •...
  • Page 159 Operating and service manual Tinternal HI Description Controller Internal Temperature Sensor High Temperature Fault Cause Indication of controller internal temperature sensor fault Trouble Possible causes: shooting • Defective power supply for main controller. • Defective main controller. Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 160 Operating and service manual Powermeas calibrat Warning Description Powermeas calibration not possible Cause Voltage difference between powermeas and frequency converter too large Trouble Possible causes: shooting • Defective powermeas • Defective frequency converter. Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 161 Operating and service manual Firmware update fail Alarm Description Failed to activate firmware Cause Hardware or operation miss match Trouble Possible causes: shooting • Operating software is not compatible with hardware (SUP6, SMC6, SPM6) Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.
  • Page 162 Operating and service manual Req min SW352-11 Alarm Description The software which has been uploaded to the controller is not compatible with the current hardware version, please use software 0352 rev. 10 or newer. Cause Software not compatible Criteria Update failed Controller action Alarm...
  • Page 163 Operating and service manual Keyboard Failure Warning Description Indication of defective keyboard Cause Keys on the keyboard pressed without user interaction Trouble Possible causes: shooting • Defective keyboard, defective user panel Trouble shooting: 1. Try to correct the error by uploading the latest software version to the controller.

  • Page 164: Calibration Of Air Exchange Sensor

    Operating and service manual Calibration of air exchange sensor Air exchange sensor calibration: 1. Close the fresh air cover plate. 2. In the “Service menu” line “F06 “Air exchange calibration” select “START” and press the “Enter button” 3. Calibration is done. Sensor calibration using StarView USDA and Cargo temperature probe offset adjustment.

  • Page 165: Replacing Of Unit

    Operating and service manual Replacing of unit Handling of SCU unit during replacement is done by means of a special yoke, see below sketch. Depending on the model, use either position 1, 2 or 3 for the yoke. Pos. 1 Pos.

  • Page 166: Replacement Evaporator Motor And Fan

    Operating and service manual Replacement Evaporator motor and fan Note: Turn off main power supply for unit before replacing evaporator motor and fan. Note: Due to high aerodynamic requirements (decreased energy consumption) beware of sharp edges is located in this area! Disconnect the power supply to the motor by removing the motor cover and unscrew the earth wire placed directly on the motor.

  • Page 167: Replacement Of Evaporator

    Operating and service manual Replacement of evaporator Position Description Back plate, unit Evaporator The replacing of evaporator is done in the following steps: 1. Evacuate refrigerant as described in this manual (see “Evacuation of refrigerant” p. 171) 2. Remove pos. 1. 3.

  • Page 168: Replacement Of Heating Elements

    Operating and service manual Replacement of heating elements Dismount the upper back plate for the unit and replace the defective heating element. After replacing heating elements reinstall back plate for unit. Please note that the illustrated model may be different from the actual model. 167 of 194 pages...

  • Page 169: Replacement Of Fc

    Operating and service manual Replacement of FC Position Description Cover for FC Motor cable The procedure for replacing the FC is as follows: (Please ensure correct tightening torque is used throughout replacement) 1. Remove the cover for FC, pos. 1. 2.

  • Page 170: Replacement Of Compressor

    Operating and service manual Replacement of compressor Position Description Compressor Bracket for compressor Cover for FC Motor cable The procedure for replacing the compressor is as follows: (Please ensure correct tightening torque is used throughout replacement) If the compressor is NOT running, close all 3 stop valves and evacuate refrigerant, and proceed from pt.

  • Page 171: Replacement Of Compressor Valve Plate / Cylinder Head Gasket

    Operating and service manual 9. Reinstall all pressure transmitters and high pressure switch. 10. Fasten all bolts for all 3 compressor stop valves. 11. Reinstall motor cable, please observe that the motor cable is not damaged and squeezed between compressor and FC. 12.

  • Page 172: Service And Maintenance

    Operating and service manual Service and maintenance Evacuation of refrigerant Evacuation of refrigerant for the unit is done by the following procedure: 1. Connect a service gauge manifold to the evacuation point, pos. 6 and 27 (P & I – diagram) on the compressor.

  • Page 173: Compressor Pump Down, Operation

    Operating and service manual Compressor pump down, operation Pump down of the compressor is done by the following procedure: 1. Connect a service gauge manifold to the two evacuation points, pos. 6 and 27 (P & I – diagram) on the compressor. 2.

  • Page 174: Pump Down Of Unit

    Operating and service manual Pump down of unit Main power supply to unit shall be switched off during pump down of unit. Pump down of unit is done by the following procedure: 1. Connect a service gauge manifold to the evacuation points, pos. 6 and 27 (P & I – diagram) on the compressor.

  • Page 175: Charging Of Refrigerant

    Operating and service manual Charging of refrigerant Charging of an empty unit The power to the unit must be off. The charging of an empty unit is done by weight, by the following procedure: 1. Pump down unit as described in this manual. 2.

  • Page 176: Leakage Detection

    Operating and service manual 10. Close the service gauge manifold valves and remove them! 11. Open the Service valve economizer pos. 14 (P & I – diagram). 12. Run the unit ½ h and check the R134a level in the receiver. 13.

  • Page 177: Drying Filter

    Operating and service manual Drying filter Replacing of drying filter Before replacing the drying filter, the power plug to the unit has to be disconnected. The drying filter has to be changed every time the compressor is changed or if the moisture indicators indicate too much moisture is in the refrigerant circuit.

  • Page 178: Charging Of Oil

    Operating and service manual Charging of oil If during normal operation is has been observed that there is too little oil charge on the compressor, additional oil may be charged. The compressor is filled with 1,5 L Reniso Triton SEZ 55 or equivalent oil from the factory.

  • Page 179: Soldering

    Operating and service manual Soldering When soldering and desoldering components on the unit, please observe the following: Use the following material for soldering: For Copper - Copper (all pipes): Soldering rod: L - Ag15P according to DIN 8513 or B - CuP5 according to AWS A 5.8.
  • Page 180 Operating and service manual Extended data: Name Value Unit Psuc pressure Suction pressure (effective) BarE Pdis pressure Discharge pressure (effective) BarE Fpower frequency Power frequency (Reserved) Upower voltage Highest power voltage of U1, U2, U3 Name Value Unit I1 current Current I1 I2 current Current I2...

  • Page 181: Temperature Sensor [°C] - Resistance Table

    Operating and service manual Temperature Sensor [°C] - Resistance Table Resistance Temp Resistance Temp Resistance Temp Resistance Temp Resistance Temp [Ω] [°C] [Ω] [°C] [Ω] [°C] [Ω] [°C] [Ω] [°C] 3,095,611.00 138,322.00 13,682.60 2,315.20 570.82 2,851,363.00 130,243.00 13,052.80 2,234.70 554.86 2,627,981.00 122,687.00 12,493.70...

  • Page 182: Temperature Sensor [°F] - Resistance Table

    Operating and service manual Temperature Sensor [°F] - Resistance Table Resistance Temp Resistance Temp Resistance Temp Resistance Temp Resistance Temp [Ω] [°F] [Ω] [°F] [Ω] [°F] [Ω] [°F] [Ω] [°F] 3,095,611.00 138,322.00 13,682.60 2,315.20 570.82 2,851,363.00 130,243.00 13,052.80 2,234.70 554.86 2,627,981.00 122,687.00 12,493.70...

  • Page 183: Air Exchange Sensor Table Voltage - M3/H For 35 Cmh

    Operating and service manual Air exchange Sensor table Voltage - m3/h for 35 CMH There is an offset of 0.2 V due to mechanical design. The air exchange must be properly calibrated before measuring. Voltage Air exchange Voltage Air exchange Voltage Air exchange Voltage...

  • Page 184: Air Exchange Sensor Table Voltage - M3/H For 75 Cmh

    Operating and service manual Air exchange Sensor table Voltage - m3/h for 75 CMH There is an offset of 0.2 V due to mechanical design. The air exchange must be properly calibrated before measuring. Voltage Air exchange Voltage Air exchange Voltage Air exchange Voltage...

  • Page 185: Voltage - Pressure Table, High Pressure Transmitter (Nsk)

    Operating and service manual Voltage – Pressure Table, High pressure transmitter (NSK) Vcc = 5 V. Pressure is relative Voltage Pressure Pressure Voltage Pressure Pressure Voltage Pressure Pressure [BarE] [Psi] [BarE] [Psi] [BarE] [Psi] 0,00 1,55 10,50 152,334 21,00 304,668 0,55 0,50 7,254...

  • Page 186: Voltage - Pressure Table, High Pressure Transmitter (Aks)

    Operating and service manual Voltage – Pressure Table, High pressure transmitter (AKS) Vcc = 5 V. Pressure is relative Voltage Pressure Pressure Voltage Pressure Pressure Voltage Pressure Pressure [BarE] [Psi] [BarE] [Psi] [BarE] [Psi] 0.50 0.00 0.00 1.85 10.80 156.64 3.20 21.60 313.28...

  • Page 187: Temperature Sensor - Voltage Table

    Operating and service manual Temperature Sensor - Voltage Table Temperature sensors except for reference temperature sensor. Vcc = 3 V Voltage Temp Temp Voltage Temp Temp Voltage Temp Temp [°C] [°F] [°C] [°F] [°C] [°F] 3.00 -40.0 2.03 15.8 0.85 71.6 2.98 -38.2...

  • Page 188: Pressure/Temperature Table For R134A

    Operating and service manual Pressure/Temperature table for R134a °F °C °F °C °F °C -0,5 -7.3 2,13 30.9 10,29 149.2 -0,45 -6.5 2,36 34.3 10,89 157.9 -0,38 -5.6 2,61 37.8 11,52 -0,32 -4.6 2,86 41.5 12,17 176.5 -0,25 -3.6 3,13 45.4 12,84 186.2...

  • Page 189: Tightening Torques

    Operating and service manual Tightening torques Description Type Torque [Nm] ± 5% General Hex Head Bolt + Nut, M5 Hex Head Bolt + Nut, M6 Hex Head Bolt + Nut, M8 Hex Head Bolt + Nut, M10 Hex Socket Counters. Head Bolt, M6 Hex Socket Counters.

  • Page 190: Controller Unit Illustration

    Operating and service manual Controller Unit Illustration 9 10 Setup may vary depending on model 189 of 194 pages...

  • Page 191: Star Cool Unit, Installation Dimensions

    Operating and service manual Star Cool Unit, installation dimensions Type: SCU 2025 1974,7 117,15 6x298,45 (1790,7) 1937 Type: SCI 190 of 194 pages...

  • Page 192: P & I Diagram

    Operating and service manual P & I diagram 191 of 194 pages...

  • Page 193: Overall Wiring Schematic

    Operating and service manual Overall Wiring Schematic 192 of 194 pages...

  • Page 194: Overall Wiring Schematics (Optional)

    Operating and service manual Overall wiring schematics (optional) 193 of 194 pages...
  • Page 195 Operating and service manual 194 of 194 pages...
  • Page 196 24-hour hotline support Call us at +45 7364 3500 or send us an e-mail at service@starcool.com. Our service department is available 24 hours a day, 7 days a week - providing easy access to the answers You need. For further troubleshooting help, go to our website URL: m.starcool.com or simply scan the QR code with Your smartphone Bjerndrupvej 47, 6360 Tinglev, Denmark...
