Dynamics 3 Series Manual

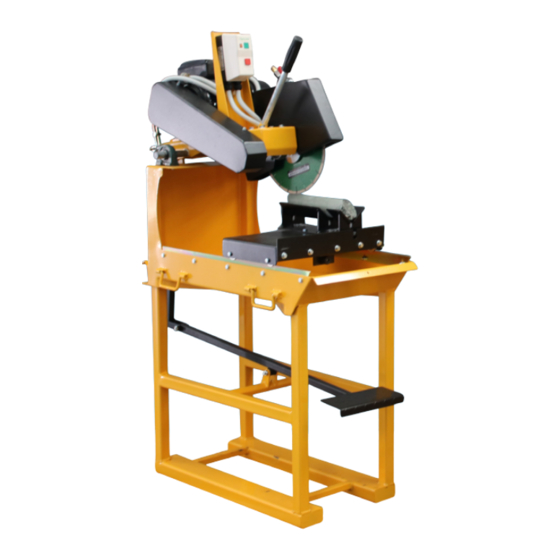

Core saw
Hide thumbs

Advertisement

Table of Contents

USER'S MANUAL
Manual
Core Saw
Series 1
Series 2
Series 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dynamics 3 Series

Summary of Contents for Dynamics 3 Series

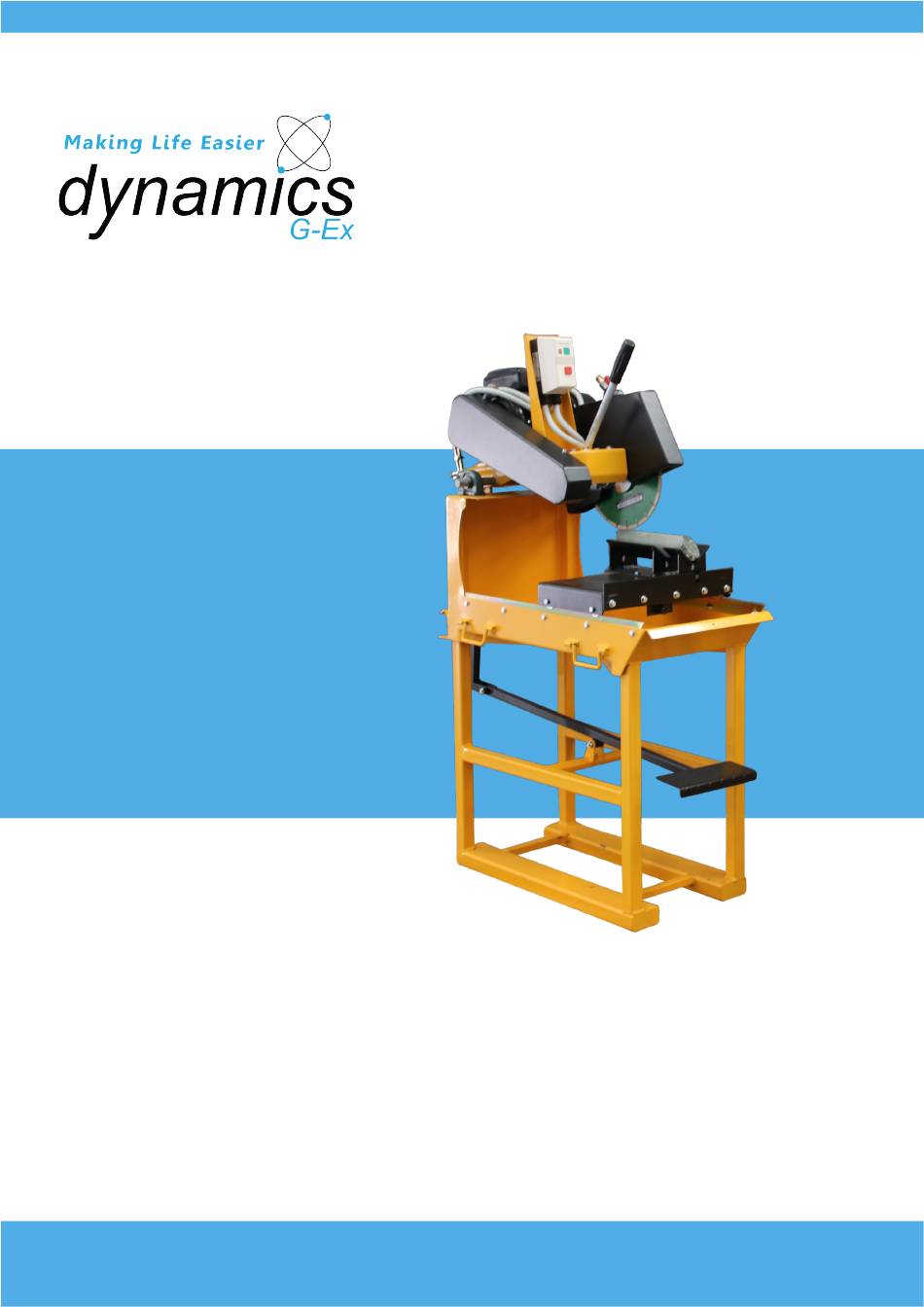

  • Page 1 USER’S MANUAL Manual Core Saw Series 1 Series 2 Series 3...

  • Page 2: Table Of Contents

    Table of Contents SAFETY INFORMATION PRODUCT SPECIFICATIONS PRE-START INFORMATION (CHECK) PRE-START INFORMATION (SETUP) OPERATING INSTRUCTIONS CONTACT INFORMATION...

  • Page 3: Safety Information

    2. The appropriate diamond blade and bores should always be used. Contact dynamics g-ex for this information. 3. Jamming material into the blade is dangerous and should be avoided. 4. When operating this saw, always wear safety goggles or other protective eye wear.

  • Page 4: Product Specifications

    Product Specifications Series 1 & 2 Core Saw: Dimensions (without stand): 700H x 470W x 980L mm (Series 1 Only) With Portable Stand (S1) or Fixed Legs (S2): 1530H x 550W x 980L mm Blade Capacity: 300 - 350mm (12 - 14inch) Max Cutting Depth: 110mm Max Cutting Length: 420mm Tool Speed RPM: 2800min...

  • Page 5: Pre-Start Information (Check)

    Pre-Start Information (CHECK) Check: • Check head shaft bearing • Check Blade guards, V-belt guards are tight. bolts and grub screws are tight. • Check that rotating blade screw is tight and blade spinning in clockwise direction • Check all motor plate bolts towards operator.

  • Page 6: Pre-Start Information (Setup)

    Pre-Start Information (SETUP) Setup: • Plug-in to the • Connect the water power source injector to water and turn to the source. Water ‘on’ position on connection should the switch. be attached to reduce the mechanical heat on the blade. •...

  • Page 7: Operating Instructions

    3. The parts of which machine consists are kept to a minimum and standardised. This allows easy maintenance. Frame, cutting head and conveyor cart are aligned by Dynamics G-Ex. Misalignment can occur through handling damage or moving saw. This will dramatically shorten blade life.
  • Page 8 7. Diamond blades are easily damaged, so ensure they are adequately protected if being transported. 8. If diamond blade is chipped or missing segments, return to Dynamics G-Ex for repair/ replacement. Always inspect blades regularly. 9. This machine takes 350mm (14”) diamond blades which will provide 110mm cutting depths.
  • Page 9 Operating Instructions To MAINTAIN THE CORE SAW Cleaning: 1. Reservoir pan is to be cleaned at least once a day with clean water (twice a day during heavy use) as accumulated waste is abrasive. Failure to do this will shorten the life of the submersible water pump.

  • Page 10: Contact Information

    Contact Information Contact Nos. 1800 105 584 Websites www.dynamicsgex.com.au 07 5482 6649 www.coretrays.net Warehouses Perth: 50 Mulgul Road, MALAGA WA 6090 | Australia Kalgoorlie: 15 Cunningham Drive, West Kalgoorlie WA 6430 Gympie: 37 Langton Road, GYMPIE QLD 4570 | Australia Mt Isa: 34 Barkly Highway, MT ISA QLD 4825 | Australia Other Warehouses: Adelaide, Melbourne &...
