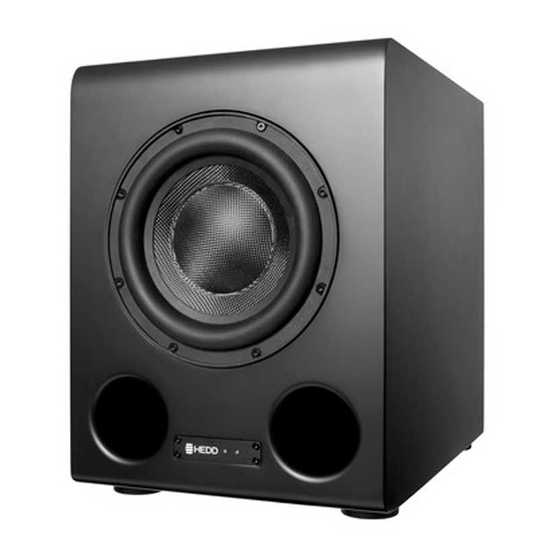

- Page 1 Heinz Electrodynamic Designs OPERATION MANUAL HEDD BASS 08 HEDD BASS 12 last updated: 2021-05-20 © 2021 HEDD Audio GmbH | Heinz Electrodynamic Designs | www.hedd.audio...
-
Page 2: Table Of Contents
Table of Contents Introduction and Quickstart Box Contents Product Overview Status LED CoP: Closed or Ported HEDD Lineariser® Control Settings Safety Instructions Warranty Troubleshooting Technical Specifications A Brief History of Time - 2 -... - Page 3 Please unpack your new loudspeaker carefully. If you discover any damage to the packaging or the speaker itself, don’t operate the speaker and contact your HEDD dealer for solving the problem. We suggest that you allow the speaker to acclimate to the temperature of your room for about an hour before using it.
-
Page 4: Box Contents
Q U I C K S T A R T How to switch between Closed and Ported Box Contents The complete set includes: • one active subwoofer HEDD BASS 08 or BASS 12 • one power cable compatible with the region from where it was sold • quickstart guide •... -
Page 5: Product Overview
Please refer to the section Getting Started or Positioning to find out more. Due to their similar nature, this operation manual equally covers the HEDD BASS 08 and HEDD BASS 12 subwoofers. This manual uses illustrations of the different variants, which thus might not match your exact version in terms of appearance. - Page 6 LEFT RIGHT OUTPUTS TO SATELLITES factory use only 85V - 264V 50Hz/60Hz MADE IN GERMANY - www.hedd.audio Power Switch integrated universal mains, compatible with 85V - 264V at 50/60 Hz appropriate power cable supplied In- & Output Connections XLR analog & AES digital input XLR analog output &...
-
Page 7: Status Led
• Avoid placing subwoofers near walls. • Definitively avoid subwoofers in corners. • Try to watch a minimum distance of 50 cm between subwoofers and adjacent walls. © 2021 HEDD Audio GmbH | Heinz Electrodynamic Designs | www.hedd.audio... -
Page 8: Cop: Closed Or Ported
«CoP» Closed or Ported The HEDD Type 20 MK2 and Type 30 MK2 can be used in either closed or in ported mode. These are two fundamentally different systems that are available for the user to compare and choose. There is no definite better between the two systems. We recommend to compare carefully to find the optimal option for your environment and listening habits. - Page 9 Closed Mode In closed mode the HEDD BASS subwoofer functions as an infinite baffle speaker. This results in a cleaner sound and increased resolution. However, a 6-10 dB reduction in maximum sound pressure level (depending on the audio material) for low frequencies is the consequence.
-
Page 10: Hedd Lineariser
The phase-linearisation will improve transients and imaging. To be noted: the correction necessarily will introduce a latency of around 30 ms. To avoid the delay that might affect live recordings or instrument playing the HEDD Lineariser® can be switched off. - 10 -... -
Page 11: Control Settings
The output volume allows to match the speakers to the audio chain, e.g. lowering SNR or THD. The default setting is 0 dB. © 2021 HEDD Audio GmbH | Heinz Electrodynamic Designs | www.hedd.audio... - Page 12 For more information, please refer to the section Closed or Ported. Satellite Offset With HEDD MK2 monitors and HEDD BASS subwoofers it is possible to build completely linear phase Satellite-Subwoofer set-ups. This works best when satellites and subs have the same distance with respect to the listener. For more details please read the “ A Brief History of Time”...
- Page 13 Due to the now much bigger amplitudes the woofer has to manage the maximum sound pressure level SPLmax is reduced by 6-12 dB depending on the kind of music. © 2021 HEDD Audio GmbH | Heinz Electrodynamic Designs | www.hedd.audio...
- Page 14 Analog/AES This 4-position rotary switch functions as input selection. “Analog” takes an analog signal from a symmetrical source. The other 3 positions refer to an incoming digital AES signal. Left, Right or Mono can be extracted from the data. Input Sensitivity The “Input Sensitivity”...
-
Page 15: Safety Instructions
– also if you intent to clean the surface or single components. Never use flammable or combustible chemicals for cleaning audio components. • HEDD studio monitors are equipped with universal mains, meaning that the speakers work within a voltage range from 85–265V. This makes the usual voltage switches unnecessary. •... - Page 16 If you need to send your speakers postal, use the original packaging. It’s the safest way to get your speakers from A to B. HEDD Audio GmbH cannot be held responsible for any damage due to improper packaging. Environmental Information All our products comply with RoHS and WEEE.
-
Page 17: Warranty
Accessories and any parts that are subject to wear and tear are covered for six (6) months. The latest updates to our warranty will be accessible online at hedd.audio/warranty/ Please always contact your point of sale first: Please check our list of authorized resellers: https://hedd.audio/store-locator/... -
Page 18: Troubleshooting
Reduce the input audio level either on the source or with the constantly Inp. Sens. control and increase the Vol. instead. If none of these advices solves the problem, the speaker might be faulty. If you need further assistance, please contact us directly: info@hedd.audio - 18 -... -
Page 19: Technical Specifications
Dimensions (H x W x D) 392 x 290 x 400 mm 595 x 380 x 610 mm Weight 17 kg 32.1 kg Warranty 2 years 2 years © 2021 HEDD Audio GmbH | Heinz Electrodynamic Designs | www.hedd.audio... -
Page 20: A Brief History Of Time
A Brief History of Time (within subwoofers, this time) by Klaus Heinz Subwoofer are in use since many decades, their integration into the reproduction chain allows to add fundamental frequencies where small speakers meet their limits. However, the use of separate bass units often shows two typical unwanted side effects: the woofer section appears to be separated or not really integrated into the overall sound image, and the low frequencies themselves tend to sound somewhat boomy or weakened. - Page 21 Impulse Response (IR) of the subwoofer under consideration. The IR’s of BASS 08 and BASS 12 have been measured in the big anechoic chamber of the Technical University Berlin and implemented in the DSP boards to deliver that information.
- Page 22 We think we have found and eliminated the main reasons for inhomogeneous and boomy sound in Satellite-Sub systems. We at HEDD would be happy if you take the time for an audition, the proof as we do know is in the listening.
- Page 23 Be sure to follow us on all major platforms (click for URL hyperlink): Instagram: @heddaudio YouTube: HEDD Audio GmbH Facebook: @HEDDaudio LinkedIn: HEDD | Heinz Electrodynamic Designs Twitter: @HEDDaudio Contact us: info@hedd.audio © 2021 HEDD Audio GmbH | Heinz Electrodynamic Designs | www.hedd.audio...
