* The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight.
WARNING: If the information in these
instructions is not followed exactly, a fire or
explosion may result causing property damage,
personal injury, or death.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
- Installation and service must be performed by a
qualified installer, service agency or the gas supplier.

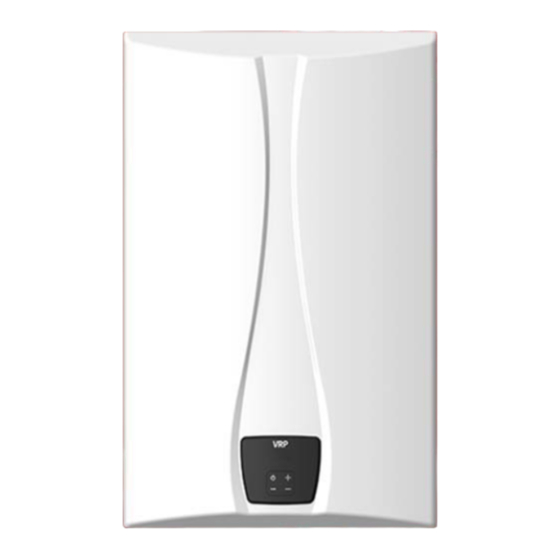

REVOLUTION WATER
HEATER
Installation
Manual
Model
VRP-150 VRP-199
VRS-150 VRS-199
Keep this manual near the water heater for future reference
whenever maintance or service is required.
- The installation must conform with local codes or, in
the absence of local codes, the National Fuel Gas Code,
ANSI Z223.1/NFPA 54 and/or CSA B149.1, Natural Gas
and Propane Installation Code.
- When applicable, the installation must conform with
the Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280 and/or CAN/CSA Z240
MH Series, Mobile Homes.
* Lead Free
