Müthing MU-H 140 Operating Manual

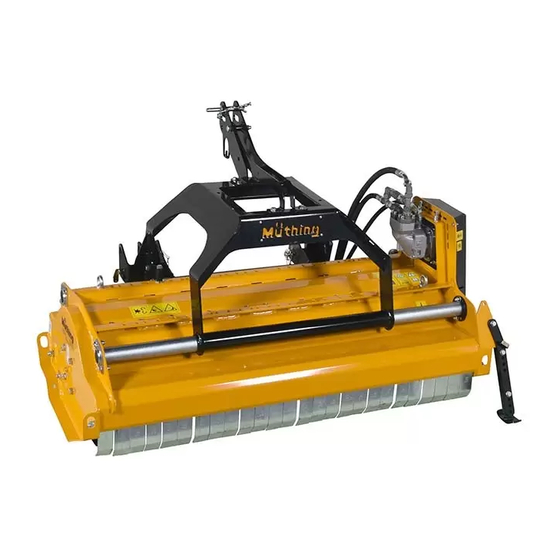

Front and rear flail-mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating manual
Replacement Parts List
MU-H 100-200
www.muething.com
www.shop.muething.com
F
Edition
08.2016
Version
1.0
Reference number
MU-H_BA-ET_1-0_2016-08_EN
EN
Original

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MU-H 140 and is the answer not in the manual?

Questions and answers

Related Manuals for Müthing MU-H 140

Summary of Contents for Müthing MU-H 140

  • Page 1 Operating manual Original Replacement Parts List MU-H 100-200 Edition 08.2016 Version Reference number MU-H_BA-ET_1-0_2016-08_EN www.muething.com www.shop.muething.com...
  • Page 3 Front and Rear Flail-Mower MU-H Instruction Manual Replacement Parts List For tractors up to 64 KW ( 85 HP) Please read before initial use and retain for future reference. Müthing GmbH & Co KG Soest Am Silberg 23  D - 59494 Soest Tel.

  • Page 4: Table Of Contents

    Contents Page 1. Introduction  Registering the equipment  CE – Compliance declaration  Warranty registration  Instructions for use and reasons for retaining the Instruction Manual 2. General Safety Precautions  Appropriate applications  Traffic regulations  Safety and accident prevention ...

  • Page 5: Introduction

    1. Introduction Dear Customer, We would like to congratulate you on your choice of Flail-Mower from the Müthing range and wish to thank you for placing your trust in us. We will reward this trust by providing you with a Flail-Mower with good performance, high reliability and an excellent customer service.

  • Page 6: Registering The Equipment

    Registering the Equipment Please register the information of your equipment and that of the fitted drives which is to be found on the serial plates. The serial plate for the drive is on the gearbox and the serial plate for the Flail-Mower is on the left-hand outer side at the rear of the casing and is in the following format.

  • Page 7: Ce -Compliance Declaration

    CE –Compliance declaration EC – Declaration of conformity -Original- pursuant to EC Guideline Machines 2006/42/EG, Appendix IIA Product: Flail mower Type: MU-H For mulching grass and light vegetation and for chopping organic crop residues (maximum finger-thick) above ground. Manufacturer: Müthing GmbH & Co KG Soest Address:: Am Silberg 23 - D 59459 Soest We confirm that the above product conforms to the following guidelines and standards:...

  • Page 8: Warranty Registration

    Warranty Registration (to remain with the customer) Surname: ……………………………………… First Name: …………………………………….. Address: …………………………………………………………………………..……………………….. Postcode (Zip code): ……………………………. Country: …………………………………… Telephone: ..…………………………………….. Fax: ……………………………..…….. E-Mail: ……………………………………… Date: ……………………………………. Customer copy (Please keep this copy attached to the Instruction Manuel.) I hereby confirm that I have purchased a Müthing-Flail-Mower. The delivery was complete and included an Instruction Manual with Replacement Parts List and Instructions for Use.
  • Page 9 Warranty Registration (Please return to Müthing) Surname: ……………………………………….. First Name: ………………………………….. Address: ………………………………………..…………………………………..…………………… Postcode (Zip code): ………………………... Firma Country: ………………………………….. Müthing GmbH & Co KG Am Silberg 23 Telephone: ………………………………….. D – 59494 Soest Fax: ………………………………….. E-Mail: ………………………………….. Date: ………………………………….. I hereby confirm that I have purchased a Müthing-Flail-Mower.

  • Page 11: Instructions For Use And Reasons For Retaining The Instruction Manual

    Instructions for use and reasons for keeping this Instruction Manual  This Instruction Manual and Replacement Parts List should be considered as an important part of your Flail-Mower and as such kept in a safe place. In the event of the Flail-Mower being sold on, the Instruction Manual should be included in the sale.

  • Page 12: General Safety Precautions

    2. The following words “Attention!” and “Please Note!” are often used in the following chapters and carry the following meaning. Attention Special functions, information, instructions or restrictions for the protection of persons, materials and the prevention of accidents. On seeing this word there is a possibility of personal injury or damage. Please read the paragraph closely and pass on the information to all other persons.
  • Page 13 Children, teenagers or other persons who are not familiar with the Instruction Manual must never use the Flail-Mower. Attention ! The carrying of persons on the Flail-Mower is not permitted even without the motor running. No one should stand on the Flail-Mower without the Flail-Mower being suitably supported.

  • Page 14: Traffic Regulations

    Traffic Regulations As soon as the fitted Flail-Mower ventures onto the public roads it must comply with the relevant National Road Regulations. Tractors with fitted Flail-Mower must be checked before entering onto a public road in respect to weight and axle loads. Attention If the Flail-Mower is fitted on the rear, the front axle might be under loaded and require an additional front weight fitted.

  • Page 15: Safety And Accident Prevention

    Safety and Accident Prevention The majority of accidents that happen during working, transport, fitting, removal and servicing are a consequence of ignoring the most elementary rules. Therefore it is necessary that all persons who are to use the Flail-Mower, whether they be the buyer, a family member, an employee or from an external source must fully understand the following safety rules, recognise the warning signs fitted to the machine and follow the safety instructions to the letter.
  • Page 16  Before engaging the Flail-Mower`s drive and during use always ensure that the danger area behind the Flail-Mower is clear. Please give special consideration to children. Attention Danger from flying parts or foreign objects! Inform all persons that you are about to engage the drive to the Flail- Mower and that the danger area of 80m behind the Flail-Mower is clear.
  • Page 17  Before beginning any work, always place the Flail-Mower on the ground, disengage the drive, turn the tractor off, remove the key and ensure all turning parts have come to a standstill. When working or inspecting the Flail-Mower ensure that it is not possible for the machine to be turned on.

  • Page 18: Warning And Information Signs

    Warning and Information Signs Please take a note on all Operation Warning Signs on the Flail-Mower. Please note the Information Signs for all service and maintenance of the Flail-Mower such as grease points, oil level and the drive belt tensions. Damaged Warning and Information Signs should be immediately replaced with spare signs located within the Replacement Parts List.
  • Page 19 Serial plate Important information. Read and take note. Read the Instruction Manual Keep a distance of 80m. Danger Area! Rotary Parts, risk of injury, keep hands and feet clear. Before operation read the Instruction Manual. Park the tractor and remove key. Rotary parts/drive belt, do not touch, risk of injury.

  • Page 20: Useful Information For Mowing Work

    3. Useful information for Mowing Work Mowing is a method of cutting vegetation, which combines several processes in one with the reduction of the vegetation which is to remain on the ground in an energy, work and cost saving way. This provides quick rotting and composting of the biological substance ensuring the re-circulation of the nutrients directly into the soil leading to an additional build up of humus.
  • Page 21 force. The feature of this flail is that noticeably more flails of this type would be required for the same amount of work. Due to the different number of cutting flails required for the “M” Hammer Please Note! Flail and the ”L” Flail different rotor shafts must be installed for each flail type.

  • Page 22: Shredding Bars Usage

    Shredding bars usage The number and shape of shredding bars fitted define the level to which the vegetation is to be mulched. Important features influencing the mowing levels are the shape of the housing with the fixed cutting edges/impact bars as well as permanent or removable U-shaped fixed shredding bars in combination with the active cutting circle and rotational speed of the cutting shaft and cutting flails.

  • Page 23: Engaging

    Engaging P.T.O. Before engaging the P.T.O. of the Flail-Mower please check that the Flail-Mower is securely mounted, that all of the safety devices are fitted and that you are certain that nobody is in the danger area (80m behind the Flail-Mower). Please remember to keep sufficient distance between you and all rotating parts and to keep this safe distance until you are sure that all of the components have come to a complete stand still.
  • Page 24 It is therefore important that the height of the Flail-Mower is so adjusted that it sits parallel to the ground, hence not tilting forwards or backwards. If the Flail-Mower is not sitting parallel to the ground then the effectiveness of the work will suffer and even cause damage to the ground and roots.

  • Page 25: Operation

    4. Operation Your Müthing Flail-Mower will have been handed over to you by our sales partner in a fully assembled condition and will be ready for use. You will also be provided with instruction in its use Below you will find the essential information for the check list, the controls, settings and for working with the Flail-Mower.

  • Page 26: Installation Of Optionals And Modifications

    Installation of optionals and modifications These notes will explain to you which optionals may be fitted and which conversions are permissible. The Müthing-Flail-Mower MU-H is equipped with a multi position Head Stock Cat. I + II for front and rear mounting with mechanical side shift. (Hydraulic side shift optional, one double acting hydraulic connector needed.) Moreover the MU-H is available with a fixed Head Stock for front and rear mounting, mountable in different positions.

  • Page 27: Mounting Operations On To Tractor/Vehicle

    Mounting operations on to tractor / vehicle Select a suitable tractor for the Flail-Mower and ensure that the maximum power allowed is not exceeded. Attention Please note the maximum tractor power is allowed for the Flail-Mower. If a more powerful tractor is used, the damage caused will not be covered by the warranty.

  • Page 28: Installation Of P.t.o. Shaft

    Installation of P.T.O. drive A P.T.O. shaft is normally included with the sale of a Müthing-Flail-Mower. If you already own a P.T.O. shaft and wish to use it, or you wish to use a P.T.O. supplied at a later date, please note that only P.T.O.

  • Page 29: Hydraulics

    Hydraulics The side shift of the Flail-Mower MUH is always done manually. Optional a hydraulical shifting device can be delivered. This requires one double acting hydraulic connector. When connecting the hydraulic hoses, remove from the holders provided, remove the protective caps and correctly fit to the tractor's hydraulic couplings.

  • Page 30: General Checks And Service Information

    General checks and service information The majority of the following points have already been covered. More detailed information is covered in the following chapters about servicing and maintaining the Flail-Mower such as grease points and schedule, oil and grease qualities and tensioning of the drive belts. The following check list is immediately to be done: Any damages noted must be immediately reported to the manufacturer in writing! Any warning signs missing must be reported as in no.
  • Page 31 Attention If during the test run any abnormal sounds or movements are heard, such as vibrations, clattering etc. turn the Flail-Mower off immediately and contact us or a specialised workshop. Attention Please remember to re-tension the drive belts no later than thirty minutes after their initial use (Drive belts usually stretch after their initial use) and after one hour's use ensure that all nuts and bolts are secure (retighten where required).

  • Page 32: Transport Of The Flail-Mower

    Transport of the Flail-Mower Before transporting the Flail-Mower ensure that the Flail-Mower has been correctly fitted and that the Flail-Mower is in the middle position, centrally located between the tractor wheels so that the centre of gravity of the tractor is not impaired and the Flail-Mower is not protruding from the sides. Please take special care that the tractor lights are not obscured by the Flail-Mower which will not happen when the Flail-Mower is transported in the middle position.

  • Page 33: Operational Setting

    Operational setting The cutting height is defined by the setting of the side or rear mounted support rollers/wheels. The optimal cutting height is 6-8cm, which corresponds to the middle hole on the side plate for securing the support roller/wheels. The lower hole should be used when cutting dense material or driving at higher speeds.
  • Page 34 Remove the upper pulley from the P.T.O.. Repeat the above procedure to remove the lower drive pulley Exchange the upper pulley with the lower pulley and locate on their new respective positions. Refit both bushes and secure the bolts to a torque setting of ( manufacturer's value of 90Nm) To ensure that the bushes are properly seated use a plastic or wooden hammer (to prevent damage to the pulley) to knock the pulley.

  • Page 35: Operational Instructions

    Operational Instructions Never start work with the Flail-Mower unless all protective devices are fitted and fully functional on both the Flail-Mower and the P.T.O.. Check that that all connecting bolts are secured by a split pin or Lynch pin. Make sure that all plate guards, covers or chain guards are complete and fully functional. Before starting work slowly lower the Flail-Mower from the transport position and carefully place on the ground and into the working position.
  • Page 36 Take special care of objects such as large stones, curb stones, tree stumps, plastic sacks and debris which could lie on the ground and cause an obstruction. These objects could cause a blockage of the rotor and subsequent damage to the Flail-Mower and/or cause a dangerous situation.

  • Page 37: Demounting The Flail-Mower

    Demounting the Flail-Mower Before putting the Flail-Mower away at the end of a working session, be sure to give the Flail-Mower a good wash down in a suitable place and then spray with a suitable preserving substance or preserving oil. Always grease the bearings and the other grease points as recommended in the lubrication schedule and check that grease extrudes from the appropriate grease points.

  • Page 38: Cleaning, Servicing And Maintenance

    5. Cleaning, Servicing and Maintenance Through regular cleaning, servicing and maintenance the life of the Flail-Mower can be considerably extended and the reliability and quality of the cut will also be improved. The responsibility for carrying out thorough and regular servicing lies in your hands. ...

  • Page 39: General Service Information

    General Service Information Tasks that belong to the general service and which should be regularly carried out are: Checking and greasing of the bearings, support rollers, the rotor and all other moving components at the indicated greasing points. (See Lubrication and Maintenance Schedule) Checking for damage from foreign objects or other obstructions as well as removing cable or strips of plastic which have wrapped themselves around the rotor or support wheels/roller.

  • Page 40: Lubrication And Maintenance Schedule

    Lubrication and Maintenance Schedule When What Comments Always grease the support Grease rotor and support After every four rollers until grease appears roller/wheel bearings through the hours use out of the far end. ( use grease nipples normal Lithum grease) In the case that wheels not Grease the support wheel bearing roller are fitted...
  • Page 41 Cutting Flails Conversion If the cutting flails are to be exchanged (M type or L type) the Flail-Mower must be placed on the ground, removeed from the tractor, raised using a suitable machine and supported and secured using a suitable stand. If such a suitable stand is not available please let the work be carried out by a fully equipped specialised workshop.

  • Page 42: Tensioning And Replacing The Drive Belt

    Tensioning and replacing the drive belt A drive belt is generally included in the drive chain of all products in the Müthing range. The elastic properties of the drive belt reduce the effects of sudden peak loads such as are experienced when starting, meeting foreign objects or the force required to reduce large qualities of dense material.
  • Page 43 New drive belts have a tendency to stretch after initial use. The amount varies with their quality. It is therefore necessary to check the tension regularly after first use. Thereafter the inspection interval can be extended to the normal period. Please note! After the initial fitting the drive belt tension should be checked after 30 minutes work.

  • Page 44: Oil Level Check And Oil Change

    Oil Level Check and Oil Change The gearbox fitted to your Flail-Mower and the extension drive shaft mounted between the gearbox and drive belts are lubricated by oil. The extension drive shaft is fitted to all Flail-Mowers which are not fitted with a direct drive to the gearbox-drive belts.
  • Page 45 Topping up Oil in the Gearbox: Lower the Flail-Mower and remove the Flail-Mower from the tractor. Use the support feet to level the Flail-Mower. Remove the oil level check plug from the side of the gearbox. (Place a container under the gearbox to catch any oil leakage).

  • Page 46: Overhaul Work

    Overhaul Work As well as carrying out the maintenance tasks listed it is also essential to check that the plate guards or chain guards and the rudder guard are regularly checked to make sure that they are intact, damage free and fully functional. The plate guards or the double chain guard mounted at the front of the Flail-Mower prevent objects from flying out towards the driver.
  • Page 47 In the event that welding work is to be carried out on the Flail-Mower when fitted to the tractor, please do not forget to remove the alternator and battery first to prevent possible damage. Always use the correct flails, suitable working footwear and clothing and, where necessary, wear gloves.

  • Page 48: Description Of The Flail-Mower, Technical Information

    Description of the Flail-Mower, Technical information and Torque Settings Table Your Müthing Flail-Mower can be divided into various Component Groups which can be seen in the drawing below. These components groups have been separately illustrated and used in the replacement parts list to aid you in finding the required components. The Flail-Mower MU-H in component groups.
  • Page 49 Technical Information Technical MUH- MUIH description Working Width cm Max. Tractor allowed 47 kW (65 HS) 64 kW (85 HP) Number of “M” Cutting Flails Number of drive 3 x XPB 1320 4 x XPB 1500 belts Weight 360 kg 380 kg 400 kg 410 kg...
  • Page 50 Torque Settings Table Included in the following table are the middle minimum recommended torque wrench settings for class II solid bolts in new (unused) condition. New bolts should generally be fitted with self locking nuts. Middle Minimum Torque settings for class II Bolts All values in Nm Size 10,9...

  • Page 51: Replacement Parts List

    7. Replacement Parts List On the following pages a complete list of all components integrated on the Müthing Flail-Mower MU-H can be found. The parts have been separated into relevant Assemblies and are illustrated in Diagram Form and have been designated with position numbers. Next to the position number is the component Number and Description.
  • Page 52 Diagram 01A/01: Drive, Rotor, Support Roller...
  • Page 53 Diagram 01A/01: Page 1 Part Number: Description MUH00181 100er Support Roller MUH00170 120er Support Roller MUH00159 140er Support Roller MUH00153 150er Support Roller MUH00091 160er Support Roller MUH00139 180er Support Roller MUH00001 200er Support Roller MU980840 Ball Bearing MU980808 Retaining Ring MU980825 Shaft Retaining Ring MUH00014...
  • Page 54 Diagram 01A/01: Drive, Rotor, Support Roller...
  • Page 55 Diagram 01/01: Page 2 Pos. Part Number: Description 36 MU980827 Drive Belt 37 MU980833 Small Drive Belt Pulley 38 MU980829 Taperlock 39 MU980317 Grub Screw 40 MU980826 Taperlock 41 MU980814 Guard 42 MU980105 Cheese-Head Screw 43 MU980102 Washer 44 MU980832 P.T.O.
  • Page 56 Diagram 02A/01: Flail-Mower Housing, Mounting...
  • Page 57 Diagram 02A/01 – Page 1 Pos. Part Number Description MUH00172 Housing - 100 MUH00161 Housing - 120 MUH00155 Housing - 140 MUH00141 Housing - 150 MUH00096 Housing - 160 MUH00135 Housing - 180 MUH00049 Housing - 200 MUH00178 Rubber Guard - 100 MUH00167 Rubber Guard - 120 MU000301...
  • Page 58 Diagram 03/01: Linkages, Mechanical Sideways Shift Mechanism...
  • Page 59 Diagram 03/01 Pos. Part Number Description MUH00033 Side Shift Head Stock MUH00066 Upper Linkage MUH00090 P.T.O. Stay MU980907 Upper Linkage Pin MU980507 Washer MU980307 Hex Bolt MU980301 Hex Nut MUH00099 Lower Linkage Pin MUH00070 Pin Guide 10 MU980307 Hex Bolt 11 MU980301 Hex Nut 12 MU980319...
  • Page 60 Diagram 04/01: GB M31 T3...
  • Page 61 Diagram 04/01: GB M31 T3 Part Number Description MUH000200310403001 Gearbox housing MUH000200310403002 Gearbox Cover MUH000200310403003 face gear Z30 M4.15 MUH000200310403004 Pinion Shaft Z10 M4.15 MUH000200310403005 Bearing 30207 MUH000200310403006 Bearing 6207 MUH000200310403007 Circlip A MUH000200310403008 Shim MUH000200310403009 Circlip I MUH000200310403010 Bearing 6307 MUH000200310403011 Bearing 6208 MUH000200310403012 Through-Drive MUH000200310403013 Cover...
  • Page 62 Diagram 01B/01: Drive, Rotor, Support Roller...
  • Page 63 Diagram 01/01: Page 1 Pos. Part Number Description MU000152 220er Support Roller MU000026 250er Support Roller MU000146 220er Rotor MU000027 250er Rotor MU000028 Left Roller Mountings MU000029 Right Roller Mountings MU000033 Sealing Sleeve MU000034 Sealing Ring MU980803 Taper Roller Bearing MU980402 Washer MU980401...
  • Page 64 Diagram 01B/01: Drive, Rotor, Support Roller...
  • Page 65 Bildtafel 01B/01: Page 2 Pos. Part Number Desciption 46 MU980813 Taper lock 47 MU980814 Guard 48 MU980105 Cheese-Head Screw 49 MU980102 Washer 50 MU980832 P.T.O. Shaft Protection 51 MUH00047 Gearbox Support 52 MUH00048 Adjustment Tab 53 MU980300 Hex Nut 54 MU980302 Washer 55 MU980312 Hex Bolt...
  • Page 66 Diagram 02B/01: Flail-Mower Housing, Mounting...
  • Page 67 Diagram 02B/01 – Page 1 Pos. Part Number Description MUH00129 Housing - 220 MUH00103 Housing - 250 MU000191 Rubber Guard - 220 MU000134 Rubber Guard - 250 MU000193 Holding Strip - 220 MU000137 Holding Strip - 250 MU980106 Round Flat Screw with Squareneck MU980102 Washer MU980101...
  • Page 68 Diagram 03/01: Swingarm, Linkages, Mechanical Sideways Shift Mechanism...
  • Page 69 Diagram 03/01 Part Number Description MUH000250310301033 Side Shift Head Stock MUH000250310301066 Upper Linkage MUH000250310301090 P.T.O. Stay MUH000250310302907 Upper Linkage Pin MUH000250310302507 Washer MUH000250310302307 Hex Bolt MUH000250310302301 Hex Bolt MUH000250310301099 Lower Linkage Pin MUH000250310301070 BolzenRoller Support 10 MUH000250310302307 Hex Bolt 11 MUH000250310302301 Hex Nut 12 MUH000250310302319 Hex Bolt...
  • Page 70 Diagram 04/01: Gearbox GB M 49 T3...
  • Page 71 Diagram 04/01: Gearbox GB M 49 T3 Part Number Description MUH000250310403001 Gearbox Housing MUH000250310403002 Gearbox Cover MUH000250310403003 Pinion Shaft Z12 M4.25 MUH000250310403004 Face Gear Z36 M4.25 MUH000250310403005 Through-Drive MUH000250310403006 Circlip I MUH000250310403007 Hex Bolt MUH000250310403008 Bearing 32207 MUH000250310403009 Circlip A 10 MUH000250310403010 Oil-Seal Ring 11 MUH000250310403011...

  • Page 72: Faults, Fault Diagnosis And Solutions

    8. Faults, Fault Diagnosis and Solutions The table below contains a list of faults that we have collected through our experience, the possible causes of the faults and the normal action to be taken to solve the fault. If the fault is not solved by our solution or further problems arise please inform your supplier. This will help us to get to the root of the problem and find a suitable solution.
  • Page 73 Lower the support The cutting height is too low. roller/wheels and /or adjust the upper linkage. Unsatisfactory performance Raise the support from the Flail-Mower and /or roller/wheels and /or adjust poor cut the upper linkage. The cutting height is too high. Rotor is blocked by an Carefully remove the Rotor does not turn...
  • Page 74 Notes ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................© MU-H_BA-ET_1-0_2003-03_EN...
