Sony HDR-CX535 Service Manual

HDR-CX530E/CX535/CX610E/PJ530E/
SERVICE MANUAL
Ver. 1.0 2014.01

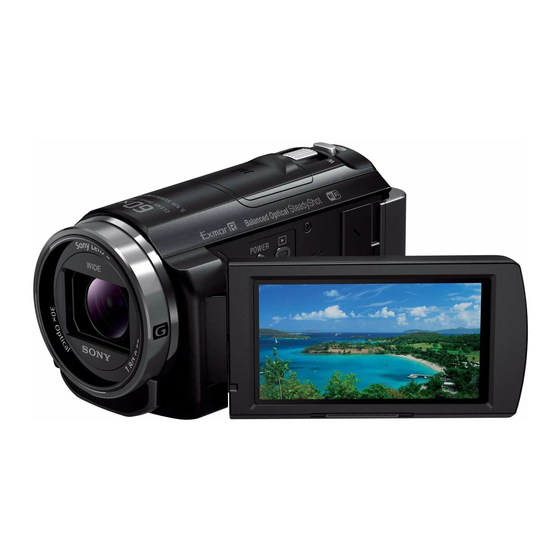

Photo: HDR-PJ540/BROWN
Check the SERVICE NOTE (LEVEL 2) before the service.
MODEL GROUP
Projector Model: PJ530E/PJ540/PJ540E/PJ610E
Non Projector Model: CX530E/CX535/CX610E
The components identified by mark Les composants identifiés par une
0 or dotted line with mark 0 are marque 0 sont critiques pour la
critical for safety. sécurité.
Replace only with part number Ne les remplacer que par une
specified. pièce portant le numéro spécifié.
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
9-834-773-11
PJ540/PJ540E/PJ610E
LEVEL
US Model
Canadian Model
AEP Model
UK Model
North European Model
E Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Tourist Model
Japanese Model
Digital HD Video Camera Recorder
Ver. Date History
3
1.0 2014.01 Official Release

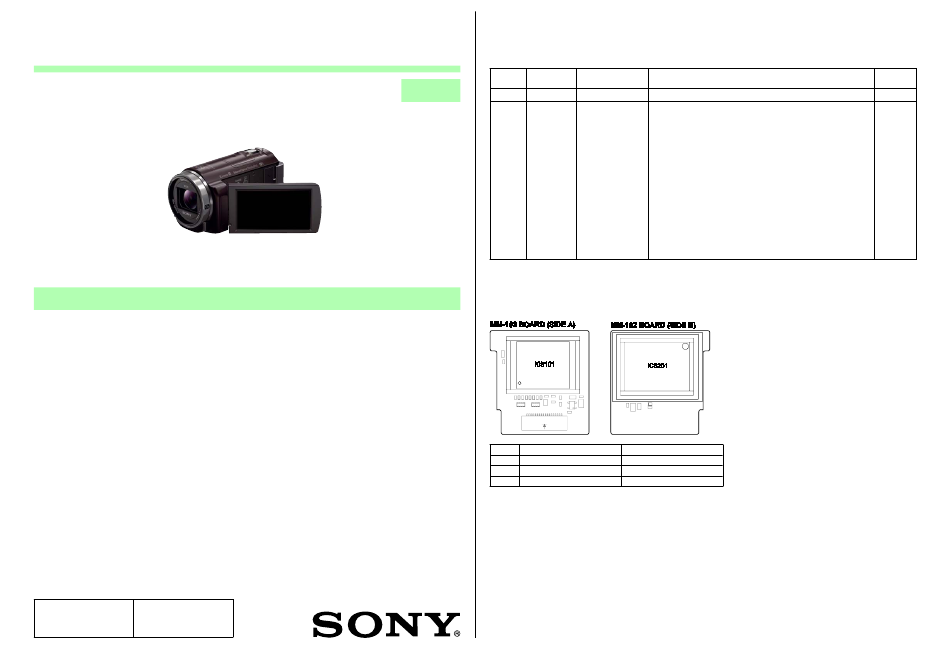

Distinguishing MM-102 Boards (HDR-CX610E/PJ610E)
Three types of MM-102 board are used in this unit.
When repairing an MM-102 board, identify its type by the IC model names printed on the surface of IC8101 and IC8201 on the MM-102 board.
IC8101
Type A KLMBG4WE4A-A001T01
Type B THGBM7G8T4JBAIRH10
Type C KLMCG8WE4A-A001T01
Note:
IC8101 and IC8201 cannot be replaced with any other type of IC. Be sure to replace them with the same type of IC.
When replacing Type A or Type B of IC8101 and IC8201, be sure to replace IC8101 and IC8201 together.
Sony Corporation
Revision History
Contents
—
IC8201
KLMBG4WE4A-A001T01
THGBM7G8T4JBAIRH10
No Mount
Published by Sony Techno Create Corporation
983477311.pdf
S.M. Rev.
issued
—
2014A08-1
© 2014.01
