Summary of Contents for exway Wave Riot

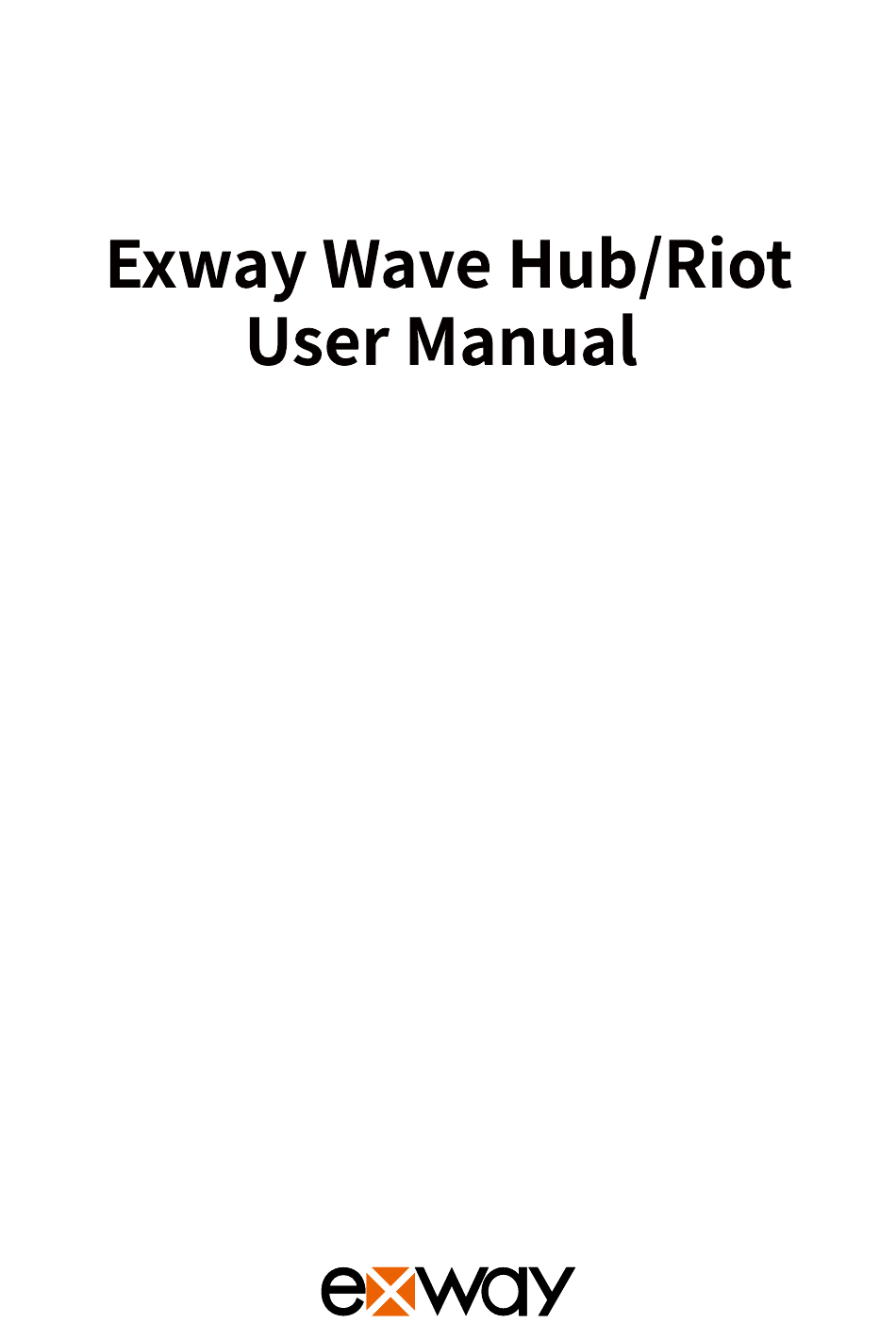

- Page 1 Exway Wave Hub/Riot User Manual...
- Page 2 100-240VAC,50 / 60Hz Front light Auxiliary Port Battery Capacity： 216Wh Charging Time： 3.5 hours (1h30mins with the fast charger) Motor Controller (ESC) Trucks： Exway Trist 45° 7” Brushless Motors Brakes： Regenerative Braking Rear Drive Wheel Recommended Age Range： 16-50 Years Max Load：...
- Page 3 Battery Swap: ②Slide Battery ② Slide Battery Forward to Backward to Install Remove The battery is also equipped with a USB port with 5V-2.1A to charge your ① Press and Hold Down the Battery Release Button devices like remote/ cell phone. Battery Installation: Align both the ports Battery Removal: Press and hold down the from the battery and deck.
- Page 4 1. The board will charge for around 3.5h with the standard charger. The indicator on the charger will turn green when the battery is full. 2. This version of the user manual may not be updated, check out the Exway App or www.exwayboard.com to read the most up-to-date version.
-
Page 5: Remote Control Operation
Acceleration (roll the throttle forward) Throttle Wheel Breaking (roll the throttle back) Multi-Button OLED screen Screen OLED 0.9” Wireless Frequency 2.4GHz Input Voltage Remote Control Operation: Switch Off Switch Gears (Standby Mode) Short press the Press the Multi-Button for Multi-Button. 3 seconds. -
Page 6: Remote Control Calibration
Pairing Remote to Board: Pairing Mode Setting Mode Completely turn off Long press the Multi-Button the board and long on the remote for 5 seconds press 8 sec on the to get into setting mode. board to turn on pair mode. - Page 7 WARNINGS LOW TEMPERATURE Temperature is below 0°C (Caution frost). LOW TEMPERATURE BATTERY TEMPERATURE WARNING Battery temperature is over 55°C BATTERY(55°) ESC HIGH TEMPERATURE WARNING ESC OVERHEAT ESC OVERHEATING WARNING ESC temperature is over 120°C. ESC OVERHEAT (Stop using your board immediately to allow it to cool) MOTOR HIGH TEMPERATURE WARNING Motor temperature is over 100°C.
- Page 8 REMOTE DISCONNECTED Remote is not connected to board. DISCONNECTED BMS ERROR BMS error or connection issue at battery communication port. BMS ERROR In the box： ① Exway Wave ② Remote ③ Standard charger ① ② ③ ④ ④ Remote Charging Cable ⑤...
-
Page 9: Warnings And Safety Information
Avoid night riding, areas with poor visibility, and narrow spaces. 3. Do not ride an Exway board in environments, on inclines, or at speeds where you would not be safely in control of an unpowered skateboard. - Page 10 Android · Scan the QR code to download the APP to get the electronic version of the manual · 扫描二维码下载APP获得电子版说明书 · 掃描二維碼下載APP獲得電子版說明書 · QRコードをスキャンしてAPPをダウンロードし、 電子版のマニュアルを取得します · QR 코드를 스캔하여 전자 버전의 설명서를 받으려면 APP를 다운로드하십시오. · Scannen Sie den QR-Code, um die APP herunterzuladen und die elektronische Version des Handbuchs zu erhalten.
- Page 11 FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
