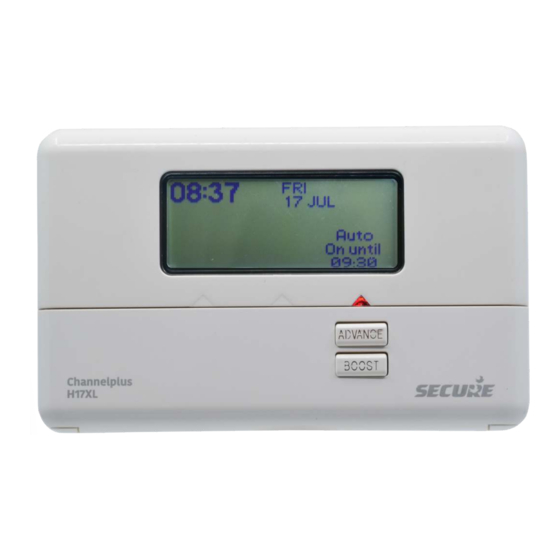

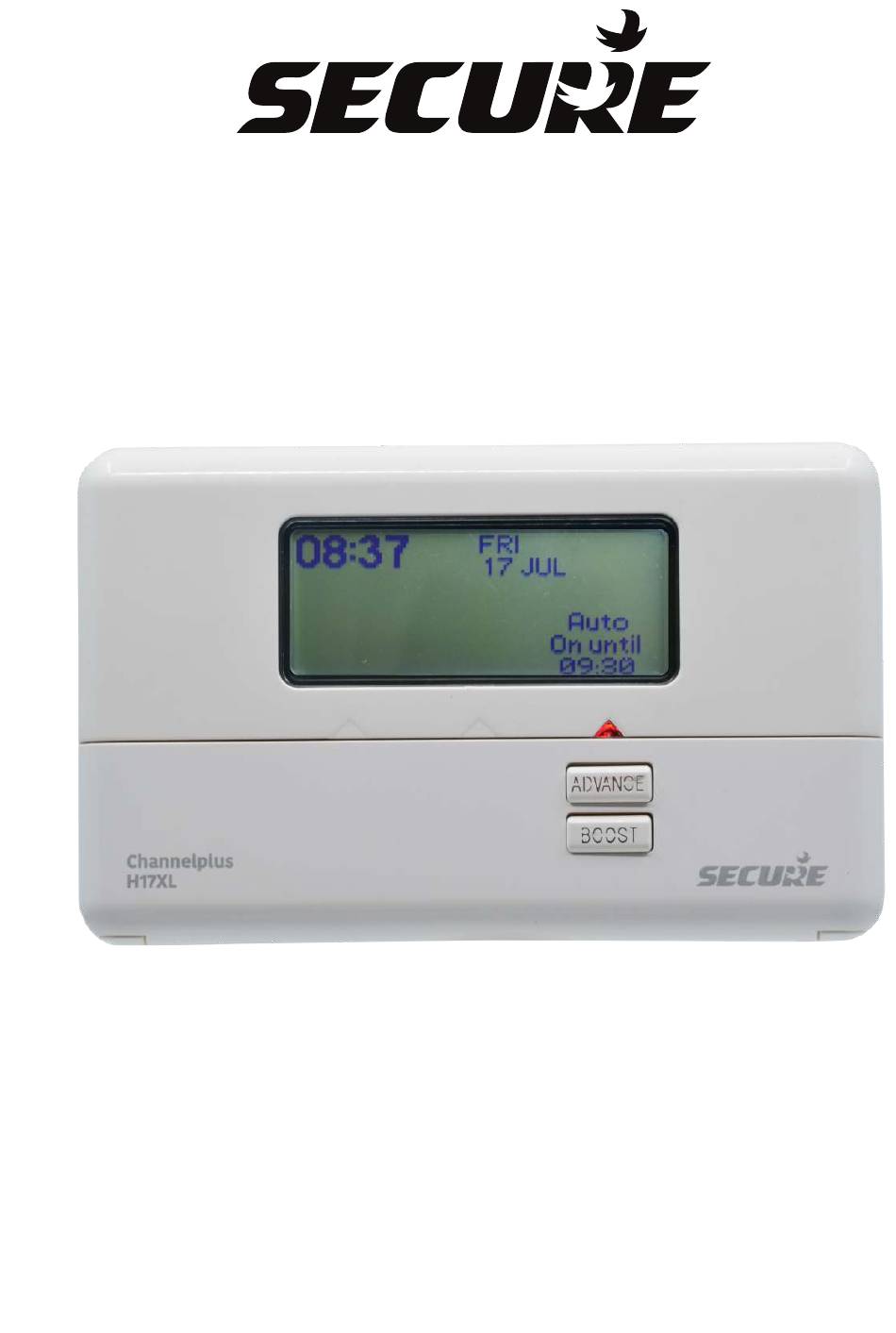

- Page 1 ChannelPlus H17XL Series 2 User Operating Instructions Single Channel 7 Day Timeswitch...
- Page 2 ChannelPlus H17XL The ChannelPlus family of electronic programmers offer a range of advanced features coupled with simplified 'menu driven' programming all designed to help save energy. The ChannelPlus H17XL is a single channel timeswitch allowing up to 3 On / Off settings per day for each day of the week.For day to day operation the H17XL has a manual 1 or 2 hour boost button as well as an advance button to bring forward the next programmed operation.
- Page 3 PRODUCT OVERVIEW - DETAIL SHOWN WITH THE FLAP LOWERED Current time of day Day of week and date Channel Heading Current Channel programme Next On / Off time Channel ON indicator ADVANCE and ENTER button (Illuminated When Active) BOOST and COPY button (Illuminated When Active) PLUS button 10 MINUS button 11 Programme Select buttons (Coloured Blue)
- Page 4 Display Information Holiday Time function Date active The ChannelPlus H17XL timeswitch has a fully graphical, back-lit display. The information 10:42 24 JAN displayed will change depending Channel header upon the settings made and which All day On untill mode you are in. During different 22.30 programming modes and / or setting screens the current time,...
-
Page 5: Manual Overrides
Manual Overrides Boost Function - 1 Or 2 Hour Temporary Override The boost facility will allow the user to either activate a channel which is currently ‘OFF’ for 1 or 2 hours, or to extend a current ‘on ’ period by 1 or 2 hours. To indicate the boost being activated the ‘BOOST’... - Page 6 Programme Override Facilities With the ChannelPlus H17XL timeswitch operating in the normal running mode it is possible to alter the functionality of the programme by means of the blue 'select' buttons under the front flap. The options include; AUTO - Timeswitch output follows all programmed ‘ON’...
- Page 7 Setting the Programme Times The programme times have been preset as shown in the chart below. Default Time Settings - AM/PM 1st ON 1st OFF 2nd ON 2nd OFF 3rd ON 3rd OFF Mon-Fri 6:30AM 8:30AM 12:00PM 12:00PM 4:30PM 10:30PM Sat/Sun 7:30AM 10:00AM 12:00PM 12:00PM 5:00PM 11:00PM If any changes are required to the programme times please complete the operation as described in the flowchart below.
- Page 8 Sample Displays Select ‘SET ON / OFF times’ SET ON / OFF TIMES SET HOLIDAY MODE SET DEFAULTS Select the day to set SET ON / OFF TIMES WEDNESDAYS Enter the required on and off times SETTING ON / OFF TIMES ON 06.30 ON 12.00 ON 16.30...
-
Page 9: Setting The Holiday Mode
Setting the Holiday Mode The holiday mode can be used to suspend the program function of the ChannelPlus timeswitch, it can be set in advance of your departure date and for as long a period as required. The holiday function operates from mid-day to mid-day, this means it can be easily set to ensure your home is warm for your return. -
Page 10: Adjusting Default Settings
Adjusting Default Settings The ChannelPlus H17XL has a number of default settings which are normally installed. These settings are designed to reduce the need for user intervention upon installation of the timeswitch. However it is possible to customise the user display by following the procedures in the following pages. -
Page 11: Adjusting Time And Date
Adjusting Time and Date ChannelPlus H17XL timeswitch has been set with the current time and date during manufacture. No alteration should be required to the time and date, however if any modification is required please refer to the flowchart below. PLEASE NOTE: Any alteration to the current time or date will cancel any Holiday programme set. - Page 12 Adjusting Clock Options The timeswitch has been preset to display the time in 24 hour clock format, should you prefer AM / PM format then please use the procedure given in the flowchart below. Open cover Sample Displays Use the + and - Press the green button to select ‘SET’...
-
Page 13: Set Defaults
Adjusting Channel Headings The timeswitch has been preset without a channel heading on the display. If you require either the 'Water' or 'Heating' options then please follow the flowchart below. Sample Display Open cover Use the + and - Press the green button to select ‘SET’... -
Page 14: General Information
General Information Battery The timeswitch is fitted with a non-rechargeable, non- serviceable long life battery, which will maintain the clock and programmed time settings with the mains supply disconnected. THIS RESERVE SHOULD BE SUFFICIENT TO COVER POWER INTERRUPTIONS DURING THE LIFE OF THE UNIT. During power interruptions the display will be blank. - Page 15 General Information Resetting The ChannelPlus H17XL Electronic equipment can in some circumstances be affected by electrical interference. If the display becomes frozen or scrambled; or if you wish to revert back to the default settings please use the following procedure: Reset Procedure PLEASE NOTE: Using this procedure will restore the ChannelPlus to the original factory programme settings, the time...
- Page 16 Secure Meters (UK) Ltd Secure House, Lulworth Close, NP0 0 8 2 7 2 0 0 0 0 Chandler's Ford, Eastleigh, SO53 3TL, UK t: +44 1962 840048 f: +44 1962 8410461 www.securemeters.com Part Number P82720 Issue Number 7...
