USER MANUAL

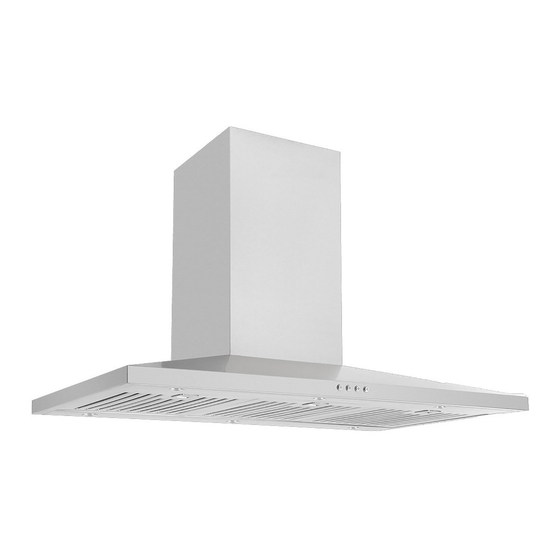

Stainless Steel Low Profile Rangehoods
Models: CK60SCF CK90SCF
IMPORTANT
This rangehood is for domestic applications. It is not suitable for
commercial applications of any kind. Do not install the rangehood if there
is any doubt. Contact Glem Gas Australasia if you require clarification.
This rangehood must be installed by a skilled installer in accordance with
the installation instructions and the relevant standards.
We will not service an incorrectly installed rangehood.
Retain these instructions for future reference.
SEVICE NUMBER 1 300 307 917
1
Advertisement
Table of Contents
Related Manuals for Emilia CK90SCF
Summary of Contents for Emilia CK90SCF
- Page 1 USER MANUAL Stainless Steel Low Profile Rangehoods Models: CK60SCF CK90SCF IMPORTANT This rangehood is for domestic applications. It is not suitable for commercial applications of any kind. Do not install the rangehood if there is any doubt. Contact Glem Gas Australasia if you require clarification. This rangehood must be installed by a skilled installer in accordance with the installation instructions and the relevant standards.
- Page 2 Dear Customer, By following the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Product Specification & Technical Parameters Model CK60SCF/CK90SCF Rated Voltage 240V Rated Power Frequency 50Hz Light Power 4x2W/6X2W...
-
Page 3: Using The Rangehood
USING THE RANGEHOOD • The rangehood has been designed only for internal domestic use. • Never use it for purposes other than what it has been designed for. • Never leave high naked flames under the hood when it is in operation. •... -
Page 4: Stainless Steel Baffle Filters
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction. b) Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. -
Page 5: Physical Characteristics
PHYSICAL CHARACTERISTICS DIMENSIONS INSTALLATION & USE OPERATION OF CONTROLS The hood is operated using the push button controls on the front panel. The on/off switch turns the hood on and off. The light switch turns the lamps on and off. The blower switch turns the blower on to three speed settings: 0 - OFF 1 - LOW SPEED... -
Page 6: Electrical Installation
INSTALLING THE DUCT WORK (DUCTED HOODS ONLY) Caution: To reduce the risk of fire, metal ductwork is preferred. 1. Decide where the ductwork will run between the hood and the outside. 2. A straight, short duct run will allow the hood to perform most efficiently. -
Page 7: Installing The Rangehood
INSTALLING THE RANGEHOOD Note 1 Carefully remove the plastic protective film from all exterior surfaces of the hood and chimney prior to final installation. Note 2: At least two people will be required to mount the hood. LOCATING THE RANGEHOOD The minimum hood distance above the cooktop must not be less than 650mm. - Page 8 MOUNTING THE RANGEHOOD ONTO THE WALL 1. There is a 1:1 installation hole position diagram for this model. It makes the installation easier. Drill the holes according to diagram. 2. Fix the discharge collar onto the air outlet adapter. 3. Attach an adequate length of 150mm round duct to the air outlet adapter.
-
Page 9: Install Filters
INSTALL FILTERS 1. To remove the baffle filter, push in on the metal latch tab. This will disengage the filter from the hood. Tilt the filter downward and remove. Be careful not to drop the filter. 2. To install the baffle filter, align rear filter tabs with slots in the hood. Push in the metal latch tab, push filter into position and release. -
Page 10: Product Warranty
PRODUCT WARRANTY Thank you for choosing an Emilia Glem rangehood, the purchase of this appliance is an important investment in your home and so to protect your investment we urge you to complete the registration card attached, please return it immediately. - Page 11 f) If damage is caused by foreign objects in or on the appliance or because of its use for purposes other than that for which it was delivered. g) If a repair has been made or attempted by the purchaser h) If you live outside the service area of the Glem Gas Australasia service agents this warranty does not cover the cost of transport of the appliance for service or the service agent’s travelling time.
- Page 12 SERVICE 1 300 307 917...
