Honeywell HD51 Brochure & Specs

HD51
SUPER HIGH RESOLUTION VANDAL DOME CAMERA WITH
VARI-FOCAL AUTO IRIS LENS
The Performance Series rounds out Honeywell's camera portfolio with a variety
of indoor, outdoor and low light cameras that lets end users pick the perfect
camera for virtually any installation. Ideal for a diverse range of applications, the
Performance Series includes a wide range of high performing IR bullet cameras
and mini-domes that are easy to install and even easier to use.

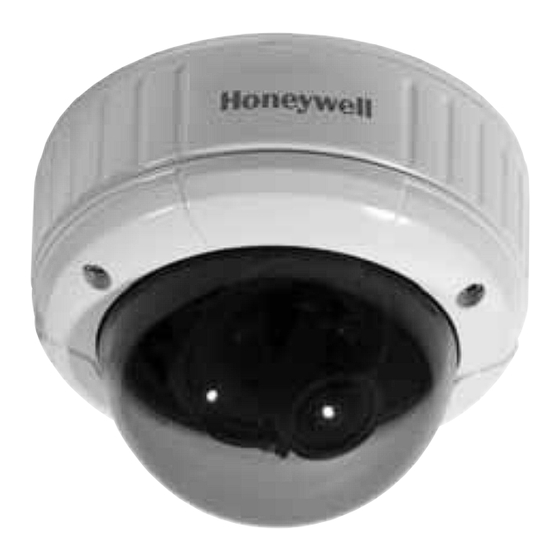

The HD51 is a rugged dome camera incorporating a 1/3" CCD that offers 550 TV
lines of crisp, clear horizontal resolution. The camera comes equipped with a
built-in 4-9 mm Vari-focal Auto Iris lens for increased optical versatility. The 3-D
axis gimbal allows versatile positioning and instant centering of the video image.
The HD51 installs quickly and easily. It comes standard with a two-conductor
pigtail that connects to the barrel connector so there is no need to cut wires
during installation. It also features a video out port for easy focus. The HD51 is
designed for use in challenging environments. It is IP66 rated for outdoor
installations, but can also be installed indoors, mounted directly to a ceiling or wall.
Market Opportunities
The HD51 is a cost effective surveillance solution for applications that experience
changing light conditions throughout the day. The HD51 offers a simple yet solid
design that provides optimum performance for both indoor and outdoor
applications including schools, colleges, universities, hospitals, commercial sites,
industrial parks, airports, gated entrances, foyers, loading docks and driveways.
Features
• Super high resolution color:
550 TVL - 1/3 Sony Super HAD CCD
• Built-in 4-9 Vari-focal Auto Iris lens
• User-friendly design for easy access
and adjustment of camera settings
• Vandal-proof and weather resistant
housing with IP66 rating
• 3-D axis gimbal
• AGC, BLC, flickerless (On/Off)
• Auto White Balance
• Video out port for setup
• Two-conductor pigtail is standard for
connection to barrel connector
• 12 VDC Input
www.honeywellvideo.com
