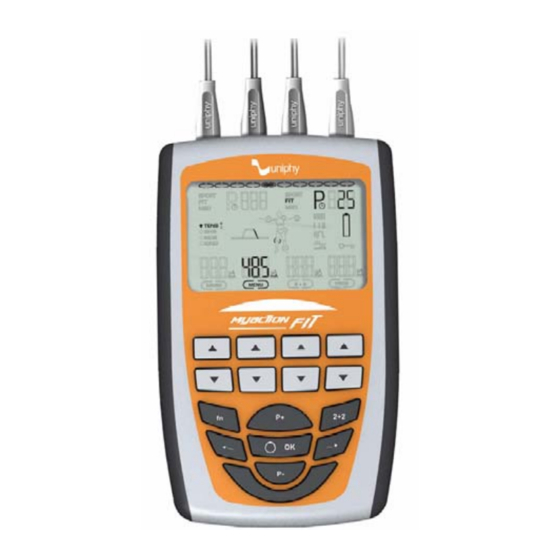

- Page 1 SERVICE INFORMATION Myaction FIT/SPORT/MED V01 (non-controlled version) Myaction FIT/SPORT/MED service manual V01 Page 1...
-
Page 2: Table Of Contents
Technical specifications ....................5 Most important information .................... 6 Display definitions........................6 Output connectors........................6 Keyboard definitions .......................7 Functional test Myaction FIT, Myaction SPORT and Myaction MED ......8 Amplitude ..........................8 Pulse duration ..........................8 Equipment test .........................8 Equipment check ........................9 Cables and output socket ......................9 Charging ..........................9... -
Page 3: General Information
Myaction SPORT Myaction MED This service manual gives a complete and accurate picture of the Myaction series. In doing so, it will help you to reach your goal: to form a correct diagnosis and to solve the client’s problem as thoroughly as possible. -
Page 4: Safety Aspects
Only use the original batteries supplied by GymnaUniphy nv. During the charging, the unit MAY NOT be connected to the electrodes. If the charger is connected with the stimulator switched on, it will automatically be switched off. Myaction FIT/SPORT/MED service manual V01 Page 4... -
Page 5: Technical Specifications
Power supply: AC-DC adaptor 230 V 50 Hz (model MA075D015CE) or 110V 50 Hz Rechargeable battery: rechargeable NiMH battery 7,2V 1500 mAh, Dimensions: 160 x 99x 35.4 mm Weight: 400 gr. MDD: conform with MDD 93/42/EEC Myaction FIT/SPORT/MED service manual V01 Page 5... -
Page 6: Most Important Information
5. Most important information This chapter gives an overview of the most important functions and keys of the Myaction. For more detailed information we refer to the user manual that is supplied with each unit. 5.1 Display definitions 5.2 Output connectors... -
Page 7: Keyboard Definitions
5.3 Keyboard definitions Press the OK key for 3 seconds in order to start the machine. Myaction FIT/SPORT/MED service manual V01 Page 7... -
Page 8: Functional Test Myaction Fit, Myaction Sport And Myaction Med
6. Functional test Myaction FIT, Myaction SPORT and Myaction 6.1 Amplitude Connect the stimulation to an oscilloscope. The measurement is made a 1000ohm load. Set the amplitude to 100mA. Tolerance +/- 20%. If not correct contact GymnaUniphy Select the following program:... -
Page 9: Equipment Check
Test so that the cable fits firmly into the output socket. 6.6 Charging If the battery needs to be recharged, in case of a rechargeable battery see Section: Battery charging in User Manual Myaction FIT/SPORT/MED service manual V01 Page 9... -
Page 10: Software Versions
7. Software versions During the start-up of the machine, the program set and firmware version is displayed. The first release of Myaction in 2004 is: Model: Program set Firmware Myaction FIT: Myaction SPORT: Myaction MED: Myaction FIT/SPORT/MED service manual V01... -
Page 11: Exchanging Boards
PCB! Important: when the lower housing has to be replaced, do not forget to remove the type shield from the old housing and to put it on the new one. Myaction FIT/SPORT/MED service manual V01 Page 11... - Page 12 Myaction FIT/SPORT/MED service manual V01 Page 12...
- Page 13 9. Spare parts To be completed. Myaction FIT/SPORT/MED service manual V01 Page 13...
