INSTRUCTION MANUAL
Installation and Operating

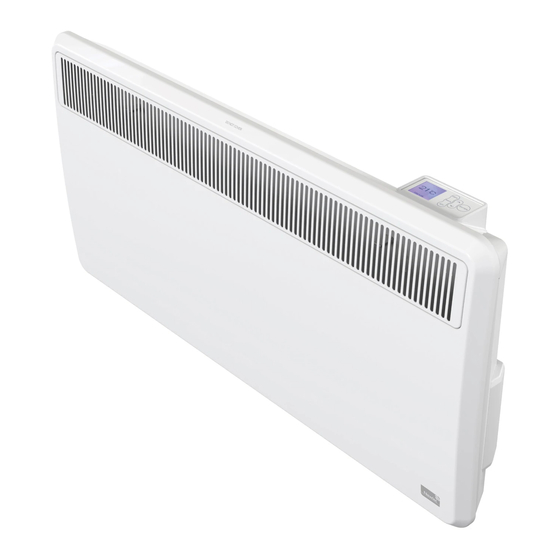

Newlec NLPH Panel Heater
Models: NLPH075E / NLPH125E / NLPH150E / NLPH200E / NLPH300E
These instructions should be read carefully and retained
for future use. Note also the information presented on the
appliance.
Newlec Helpline: 0800 783 6909
Newlec Helpline: 0800 783 6909
Instructions
1
08/53838/0
ISSUE: 1 Series: A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NLPH150E and is the answer not in the manual?

Questions and answers

Related Manuals for Newlec NLPH150E

Summary of Contents for Newlec NLPH150E

  • Page 1 Models: NLPH075E / NLPH125E / NLPH150E / NLPH200E / NLPH300E These instructions should be read carefully and retained for future use. Note also the information presented on the appliance. Newlec Helpline: 0800 783 6909 08/53838/0 ISSUE: 1 Series: A Newlec Helpline: 0800 783 6909...

  • Page 2: Important Safety Advice

    The display screen may flash red to indicate the product has overheated. To reset the display, remove the obstruction and hold Enter for 10 seconds. Newlec Helpline: 0800 783 6909...

  • Page 3: Suitable Applications

    CAUTION: Do not use if the heater’ s mains power lead is damaged. If the supply cord is damaged it must be replaced by the installer or an approved service partner. Newlec Helpline: 0800 783 6909...

  • Page 4: Electrical Installation

    Failure to follow this warning could result in the heater’ s thermal cut-off being inadvertently reset and could create a fire hazard. Cables/flexes that are supplied pre-fitted to the product must NOT be extended. Newlec Helpline: 0800 783 6909...

  • Page 5: Child Safety

    8 years shall not regulate and clean the appliance or perform user maintenance. This product contains a replaceable battery. WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN. WARNING - Packaging should be disposed off responsibly as the EPS used could be a potential choking hazard for children. Newlec Helpline: 0800 783 6909...

  • Page 6: Technical Details

    At nominal heat elmax 0.00 0.00 0.00 0.00 0.00 output At minimum heat elmin 0.00 0.00 0.00 0.00 0.00 output In standby mode elSB <0.0005 <0.0005 <0.0005 <0.0005 <0.0005 With open window detection With adaptive start control Newlec Helpline: 0800 783 6909...
  • Page 7 Colour / Finish Moulding - Traffic White (RAL 9016) Approvals CE, BEAB Warranty 2 years Country of Origin United Kingdom Newlec, Rexel UK Ltd., Eagle Court 2, Hatchford Brook, Hatchford Manufacturer Way, Sheldon, Birmingham, B26 3RZ Newlec Helpline: 0800 783 6909...

  • Page 8: General Information

    3. Present the heater to the wall bracket and engage bottom slots in the back with bracket hooks. 4. Press heater into locked position and ensure the clips on the top are engaged. WARNING: This product is heavy and care should be taken in installation Newlec Helpline: 0800 783 6909...
  • Page 9 Fig. 3 Minimum mounting clearance Shelf / Obstruction ‘C’ mm (min) mm (min) ‘E’ (min) ‘D’ Minimum front clear- ance mm (min) (min) *Please note correct product orientation is with controller facing top right side only Newlec Helpline: 0800 783 6909...
  • Page 10 Lock. To lock the controls press and hold both the Back button and Enter button together for 3 seconds. The Lock icon will appear on the screen. To unlock repeat the action by pressing both the Back button and Enter for three seconds. Newlec Helpline: 0800 783 6909...
  • Page 11 Whilst the noise produced is usually very quiet, certain environmental factors can make it more noticeable, such as hard flooring or minimal furnishings. Note: Should the heater fail to operate, this may be due to the room temperature being higher than the thermostat setting. Newlec Helpline: 0800 783 6909...

  • Page 12: Control Functions

    If the heater is in Comfort On and you don’t want heat, press the Advance button and it will go off until the beginning of the next Comfort On period. If the heater is in a constant mode of operation, Advance can be used to switch the heater on and off. Newlec Helpline: 0800 783 6909...

  • Page 13: Main Screen

    Press any button for its return. NOTE: NOTE: Pressing Enter will show the The display screen will return to Device Name as a 4 digit pin. the main screen after a period of 30 seconds inactivity. Newlec Helpline: 0800 783 6909...

  • Page 14: Setting The Date And Time

    • Press Down / Up to set the Day, then press Enter to confirm • Press Down / Up to set the Month, then press Enter to confirm • Press Down / Up to set the Year, then press Enter to confirm Newlec Helpline: 0800 783 6909...

  • Page 15: Mode Of Operation

    NOTE: It is recommended that the timer mode is used as doing so can reduce the running cost. Operating the appliance in the permanent heating modes may result in increased running costs. Newlec Helpline: 0800 783 6909...

  • Page 16: Setting A Timer

    Day 4 = Thursday Day 5 = Friday Day 6 = Saturday Day 7 = Sunday • Press Enter to Modify Day 1 or Press Up to navigate to the desired day and Press Enter to Select Newlec Helpline: 0800 783 6909...
  • Page 17 Press Enter to modify Programme P2, follow steps 1-8, Press Up to skip to P3 Press Enter to modify Programme P3, follow steps 1-8, Press Up to Skip to P4 Press Enter to modify Programme P4, follow steps 1-8 Newlec Helpline: 0800 783 6909...

  • Page 18: Setting Modes

    • Press Up twice to highlight the snowflake icon • Press Enter to access the Frost protect menu • Press Down or Up to adjust the Frost protect temperature setting • Press Enter to confirm Newlec Helpline: 0800 783 6909...
  • Page 19 If the heater is in the Comfort On and you don’t want heat, press the Advance button and it will go off until the beginning of the next Comfort On Period. Newlec Helpline: 0800 783 6909...
  • Page 20 • Press Enter when the Sound Icon is highlighted • Press Down or Up to toggle audio feedback on/off • Press Enter to confirm Comms - Choose to enable or disable Bluetooth pairing function. Bluetooth is disabled by default. Newlec Helpline: 0800 783 6909...

  • Page 21: Child Lock

    To Lock the controls press Back and Enter together for 3 seconds. The Lock icon will appear on the screen. To unlock the control, repeat the action of Back and Enter together for 3 seconds. NOTE: The controls cannot be adjusted when Child Lock is active. Newlec Helpline: 0800 783 6909...

  • Page 22: User Information

    • Press Enter to view the SP menu • Press Down or Up to toggle between C and • Press Enter button to Confirm • Press Down or Up to adjust the set point temperature • Press Enter button to Confirm Newlec Helpline: 0800 783 6909...
  • Page 23 • The Advance menu is displayed • Press Up three times to highlight the window icon • Press Enter to access the menu • Press Down or Up to toggle Open Window on/off • Press Enter to confirm Newlec Helpline: 0800 783 6909...
  • Page 24 • Press Down or Up to toggle between Y and N for reset. • Press Enter to confirm Factory reset sequence will now take place, you will then be prompted to reset the time/date, see “Setting the Date and Time” on page 16. Newlec Helpline: 0800 783 6909...

  • Page 25: Error Messages

    23 and 24 for further details. Error message 3 will be displayed on screen if the product has overheated. This error can be cleared by removing the obstruction from the heater then holding the Enter button for 10 seconds. Newlec Helpline: 0800 783 6909...

  • Page 26: Battery Replacement

    2. Slide the catch and pull module from the controls. 3. Remove the coin cell battery and replace with a new 3.3V type CR2032, T85°C coin cell battery. 4. Slide module back in place, ensuring clip is engaged. Fig. 5 Battery positive side up Newlec Helpline: 0800 783 6909...
  • Page 27 To release the heater from the wall bracket for cleaning or redecoration, depress the latch on both brackets (See Fig. 2) and hinge forward. Newlec Helpline: 0800 783 6909...
  • Page 28 0800 783 6909 or visit https://www.rexel.co.uk and complete the online form. We will need details of your Newlec product, its serial number and a description of the fault which has occurred. You can find the model number and serial number for your Newlec product on the heaters side.
  • Page 29 • Caused by repairs or alterations to your Newlec product not carried out by Newlec service personnel or its authorised dealer(s). • Caused by use of any consumables or spare parts for your Newlec product which are not Newlec -specified.
  • Page 30 • You must provide to Newlec or its authorised agents on request the original receipt as proof of purchase and - if required by Newlec - proof of delivery. If you are unable to provide this documentation, you will be required to pay for any repair work required.
  • Page 31 Instructions Newlec Helpline: 0800 783 6909...
  • Page 32 Rexel UK Ltd. A division of Rexel Group. This product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN61000-3-2 and EN61000-3-3. These cover the essential requirements of EEC Directives 2014/35/EU and 2014/30/EU Newlec Helpline: 0800 783 6909...
