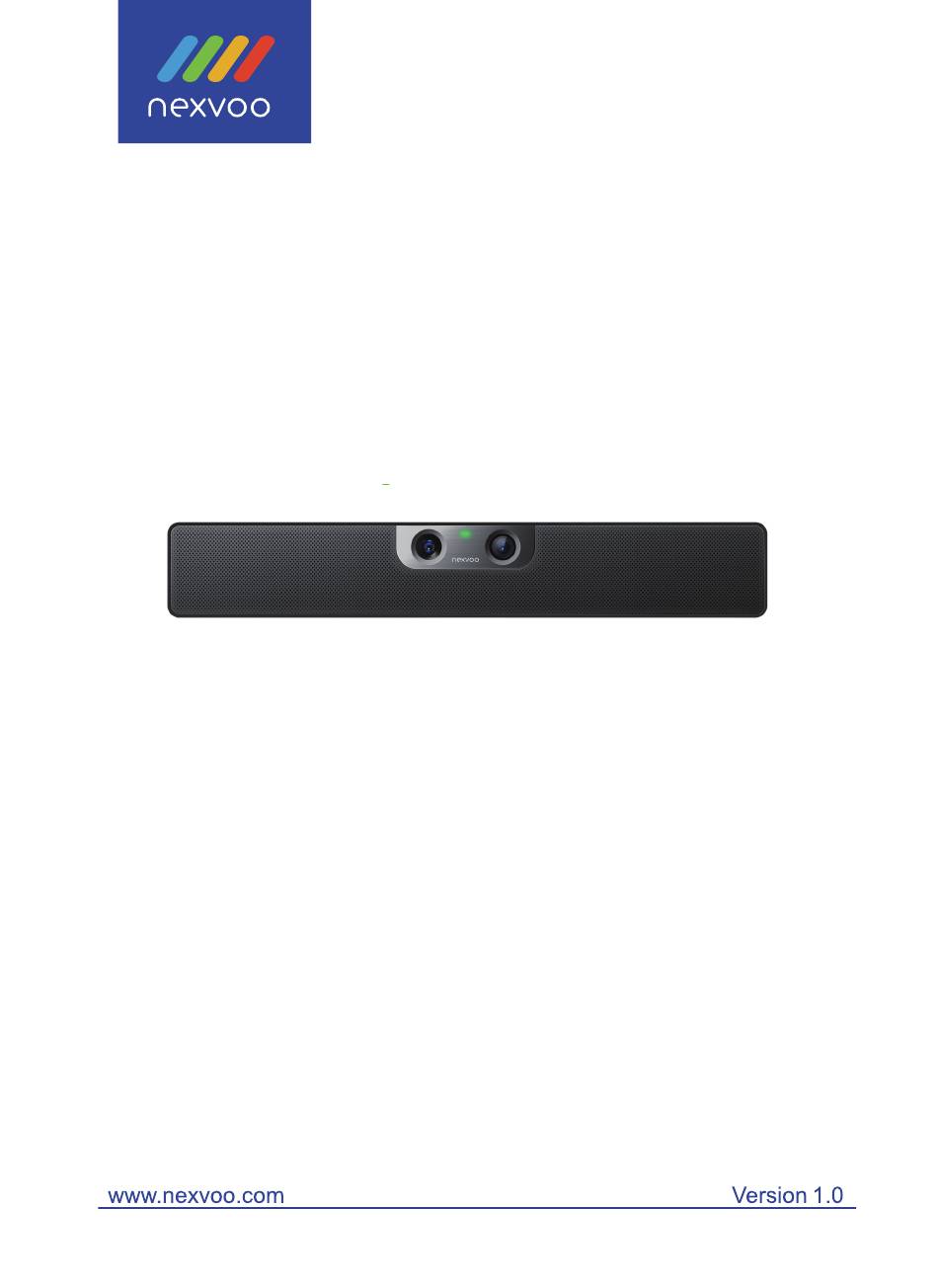

- Page 1 Nexvoo DoubleView Pro All-In-One Video Bar User Manual （Model: N120W）...
-
Page 2: Packing List
5. 1.5m USB-C to USB-A Cable 6. 1.8m HDMI Cable 7. 1.5m Ethernet Cable 8. Mounting Bracket and Accessories 9. Warranty Card 10. User Manual Note: We recommend that you use the accessories provided or approved by Nexvoo, using uncertified accessories may cause uncertain problems. -
Page 3: Product Introduction
Product Introduction Mic Arrays HDMI Output 2 Telephoto Camera HDMI Output 1 4K Ultra-Wide Camera USB-A Input 2 Speaker USB-A Input 1 Camera LED RJ45 Ethernet Port Power Connector(12V/2A) USB-C Output 3.5mm Audio Output Reset Port... -
Page 4: Camera Indicator
2. You can press and hold "VOL-" and "ZOOM-" for 3 seconds at the same time, while the indicator light flashes. DoubleView Pro N120W will be connected to the remote control automatically. Once connected, the indicator light of the remote control will be off and the display interface will prompt "Remote Control Connected". - Page 5 Button Name Function Description Press any button, the indicator light is on. Indicator Open the mouse function, the indicator light remains on. When the remote control is in pairing mode, the indicator light flashes quickly. Press the button to close the screen display, press the button again to open the Sleep screen display.
-
Page 6: Installation Instructions
Installation Instructions DoubleView Pro N120W H>3.937ft(120cm) H<3.937ft(120cm) Mount the DoubleView Pro N120W below the Mount the DoubleView Pro N120W above the TV when the mounting height of the lower TV when the mounting height of the upper side of the TV is higher than 3.937ft(120cm). - Page 7 DoubleView Pro N120W...
- Page 8 Adjust the device angle after switching to the telephoto camera.
-
Page 9: Powering On And Off
Powering On and Off DoubleView Pro N120W doesn’t have a power button. When you plug in the power cord, the device turns on. Connection and Usage 1. Connecting to the displayer • Connecting DoubleView Pro and displayer through HDMI 1 Output port. - Page 10 Join the meeting quickly through DoubleView Pro's Web Server: • Connect DoubleView Pro and your computer to the same LAN network. • Start the browser on your computer, enter the IP address of DoubleView Pro and open the Web Server (such as http://192.168.1.100).
- Page 11 2. Connecting to computer • Connecting DoubleView Pro to power adapter, the device turns on. • Connecting DoubleView Pro to computer through USB-C Output port • Open video conference platform on your computer (for example Microsoft Teams, Zoom, ...), successfully connected to the meeting achieved and turned on the camera when green light remains on.
- Page 12 3. System Update • Connecting DoubleView Pro and displayer through HDMI port to ensure network connected. System will pop up update notification, click "Update" button to update. 12:00 DioubleView Pro N120 Software V 1.0.0 Check for Update New Software Version: 1.0.1...
- Page 13 We are not liable for damage or loss resulting from the use of this product, or for any claim from a third party. We are not liable for problems with Nexvoo device arising from the use of this product; we are not liable for financial damages, lost profits, claims from third parties, etc., arising from the use of this product.
- Page 14 · · · ·...
-
Page 17: Product Information
Product Information Package Includes Audio • DoubleView Pro N120W • Audio processing technology • Cable package - Background noise elimination • Remote Control technology • Wall mount - Beamforming directional pickup • User manual technology - Multi-channel echo cancellation processing technology... - Page 18 Warranty Information Other Physical Properties • 2-year limited hardware • Power adapter: AC100~240V input, DC12V/2A • RAM/ROM: 4G / 32G • USB output: DC 5V/500mA • Dimensions (H.W.D): - 78 x 503 x 53 (MM) - 3.07 x 19.8 x 2.09 (Inches) •...
