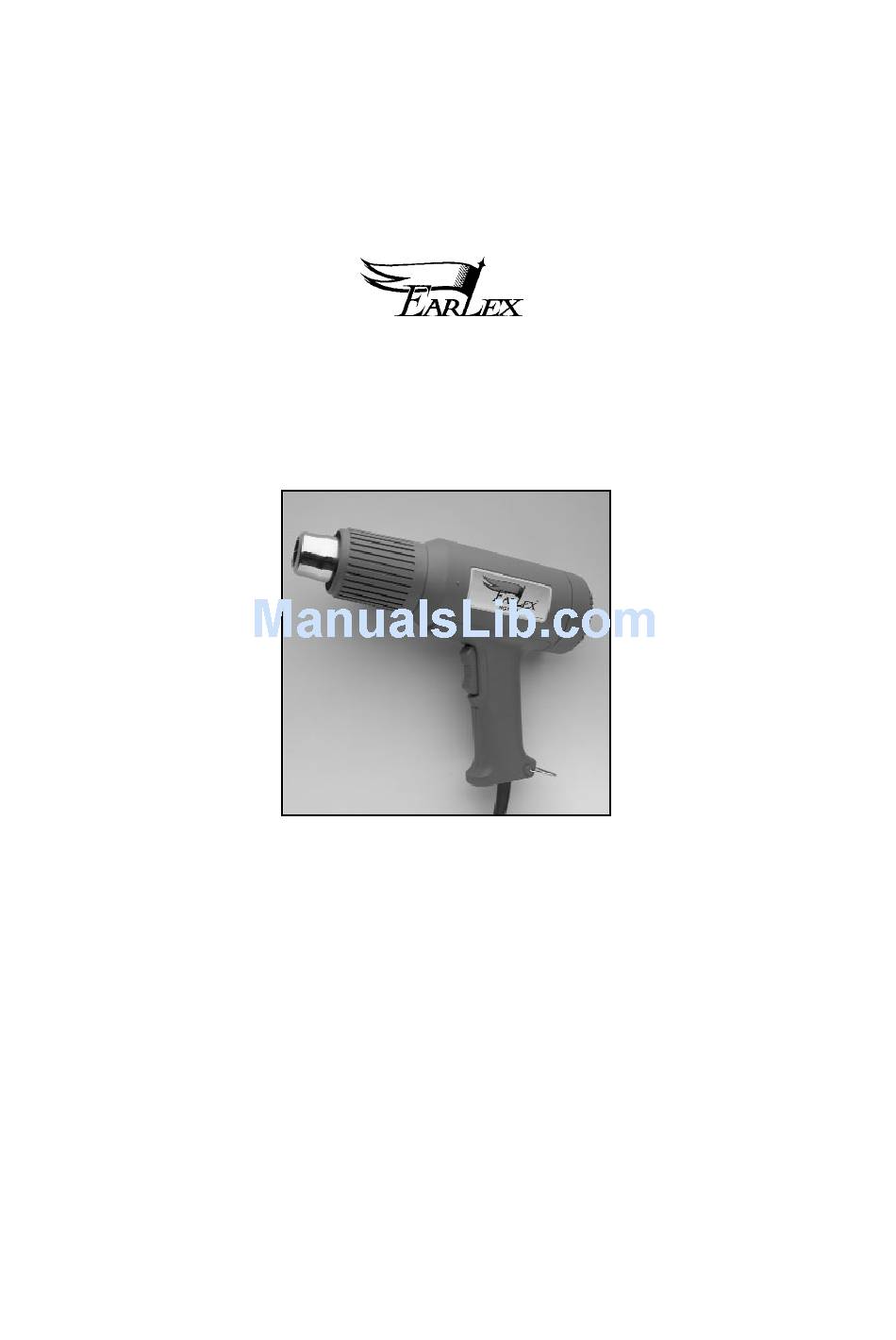

HEAT GUN KIT
HG 1600K

OPERATING INSTRUCTIONS

Thank you for purchasing the Earlex HG1600K Heat Gun Kit,
this is a highly versatile kit that can be used in a
variety of applications.
BEFORE USE - PLEASE READ THE SAFETY &
OPERATING INSTRUCTIONS
Please retain for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEAT GUN KIT HG 1600K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Earlex HEAT GUN KIT HG 1600K

  • Page 1: Operating Instructions

    HEAT GUN KIT HG 1600K OPERATING INSTRUCTIONS Thank you for purchasing the Earlex HG1600K Heat Gun Kit, this is a highly versatile kit that can be used in a variety of applications. BEFORE USE - PLEASE READ THE SAFETY &...
  • Page 2: Technical Specification

    SAFETY OPERATING INSTRUCTIONS . Do not restrict any air flow from the PLEASE READ BEFORE USE nozzle outlet or fan inlet louvres. . Danger of burns - Always wear a . Do not allow the machine to become pair of heavy grade work gloves, non damp or be operated in damp conditions.
  • Page 3: Heat Settings

    HEAT SETTINGS Nozzles The kit is supplied with 4 different The Heat Gun has two settings: shaped nozzles, which can be used 1.Low heat - for use where the as follows. workpiece or surroundings must not be allowed to get too hot. Concentrator Nozzle Setting~400°C.
  • Page 4: Removing Paint

    Hook Nozzle This nozzle disperses the heat flow evenly around the whole Heart Shavehook workpiece. It is ideal for defrosting Hook Nozzle frozen pipes, soldering pipe work, bending plastics and heat-shrinking electrical parts. Shavehooks Assembly of Shavehook Select the required blade from the set.
  • Page 5 Removing paint from window same type of plastic. The areas frames being welded must be clean and grease-free. Heat the seam until the Always use the glass protection plastic becomes tacky, then apply nozzle. Ensure you have the nozzle the other surface. facing the correct way to deflect the heat away from the glass before WARNING: Plastic can very...
  • Page 6: Maintenance

    Maintenance Unit fails to work: Check the fuse in the plug is sound and rated 13amps. Always allow the machine to cool down and disconnect from power If an extension cable is used it must supply. The heat gun should be be fully unwound and rated at least cleaned before being stored away 10amps capacity.
  • Page 7 As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
  • Page 8 OTHER PRODUCTS FROM EARLEX life. Kit includes 0.6mm & 1mm nozzles & 3 Steam Wallpaper Strippers: Designed to in 1 oil. Check the earlex website for up - to- remove all types of wallpaper, multi-layered date information on what you can spray.
