GreenTec HS 212 Handbook

Cutterbar
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1. edition 2020
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS 212 and is the answer not in the manual?

Questions and answers

Related Manuals for GreenTec HS 212

Summary of Contents for GreenTec HS 212

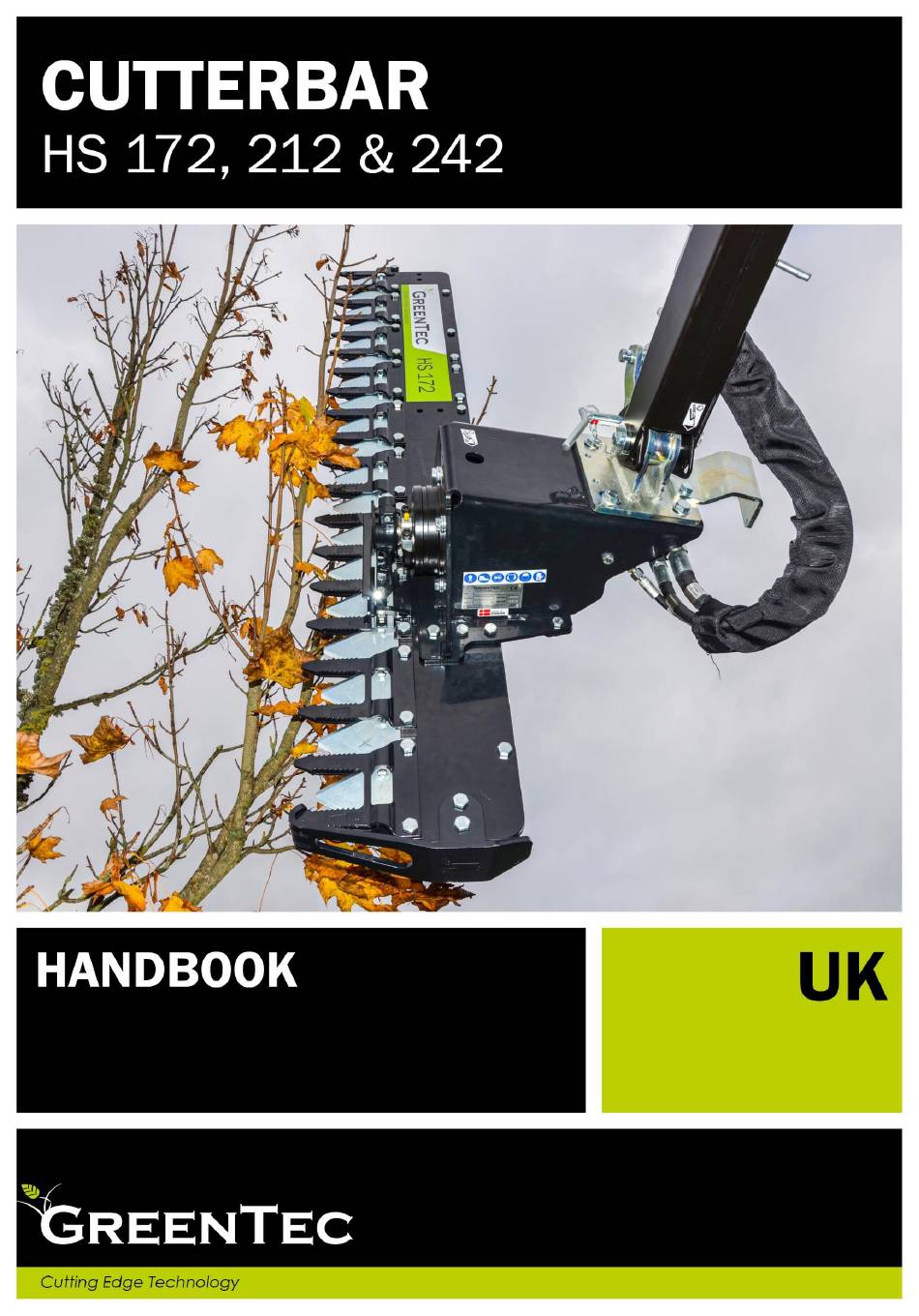

  • Page 1 1. edition 2020 GreenTec HS172-212-242 Cutterbar...
  • Page 2 Greentec HS172-212-242 Cutterbar...
  • Page 3 As our products are under continuous development and improvement, changes in the specifications will be made. If there is information that differs from the machine at hand, you can receive instructions from the GreenTec Aftersale department. Merkurvej 25 DK 6000 Kolding...

  • Page 4: Table Of Contents

    STORAGE AND MOVING THE MACHINE ________________________________________________ 24 Storage ______________________________________________________________________________ 24 Maintenance __________________________________________________________________________ 25 Maintenance schedule __________________________________________________________________ 26 Cleaning ______________________________________________________________________________ 27 Parts replacement ______________________________________________________________________ 28 Lubrication ___________________________________________________________________________ 42 Parts _________________________________________________________________________________ 42 TROUBLESHOOTING ______________________________________________________________________ 44 BILAG 1 _____________________________________________________________________________________ 45 Tightening torques _____________________________________________________________________ 45 Greentec HS172-212-242 Cutterbar...

  • Page 5: Preface

    Preface Dear Customer! Your new GreenTec machine is designed on the basis of more than 25 years of experience with tractor mounted machines for the maintenance of green areas. The machine is manufactured from the latest technology and in accordance with approved safety regulations, standards and requirements.

  • Page 6: Useful Information

    The following fields are filled in for use when ordering spare parts or other inquiries. Serial number Date of delivery Retailer Mail Phone Merkurvej 25 DK 6000 Kolding Danmark Tel: +45 75553644 Fax: +45 75554243 Email: info@greentec.eu web: www.greentec.eu Åbningstid: mandag-fredag 8-16 Greentec HS172-212-242 Cutterbar...

  • Page 7: Generel Information In The Use Of The Instruction Manual

    Generel information in the use of the instruction manual Read this instruction manual carefully before mounting and using a machine. If any doubts arise, contact your local retailer or the GreenTec Aftersale department. Only use original GreenTec spare parts on GreenTec machines and equipment.
  • Page 8 The symbols in this manual are for the sole purpose of instructing and informing and not illustrating the entirety of the components. Under special circumstances, the symbols may appear different from the current machine, when this occurs, the general procedure will be the same. Greentec HS172-212-242 Cutterbar...

  • Page 9: Declaration Of Conformity

    I, the undersigned manufacturer, am authorized to prepare the technical documentation for the machine and on due request, provide the technical dossier. Models Type Produkt Bemærkninger Olieflow behov 20- 32 l/min HS 172 Tool Cutterbar Olieflow behov 25- 40 l/min HS 212 Olieflow behov 25- 40 l/min HS 242...

  • Page 10: Safety

    Safety Intended use The GreenTec hedge trimmer is designed for general hedge trimming within landscaping, gardening, agriculture, forestry or similar areas of application. Trimming can be done vertically and horizontally. The thickness of branches to be cut must not exceed 40 mm.

  • Page 11: Safety Information For Operation

    • Beware of the effects the mounted hedge trimmer and counter-weight have on the driving behaviour and the steering and braking ability. • Only start the hedge trimmer up when all protective guards are demounted. Greentec HS172-212-242 Cutterbar...

  • Page 12: Safety Information For Assembly, Maintenance And Repair Work

    All safety and protective devices must be installed or activated again immediately after a work session is finished. • When starting up the machine again, you must follow the instruction book from the tool carrier or vehicle manufacturer. Greentec HS172-212-242 Cutterbar...

  • Page 13: Personal Safety Equipment

    The varying circumstances that may arise during work with this machine can not always be foreseen. No good advice can replace "common sense" and "attention" at all times, but the above-mentioned is a good start for the safe use of your GreenTec machine.

  • Page 14: Safety Labels

    Keep your distance until using this machine. the machine comes to a Follow all instructions complete standstill. and safety precautions Remember to use the when using the machine. hand brake and turn off the engine. Greentec HS172-212-242 Cutterbar...

  • Page 15: Description

    Description GreenTec cutterbar is intended only for normal use in agricultural and landscaping or similar work. The hedge trimmer is designed for general hedge trimming within landscaping, gardening, agriculture, forestry or similar areas of application. Overview of the cutterbar, type plate, warning plates and instruction plate Fig.1 –...

  • Page 16: Layout And Function

    Adapters come in left and right versions. Adapters for other tool carriers are also available, as well as quick-change adapters. See options on the www.greentec.eu website under Equipment for the HS Hedge Trimmer or in the spare parts book for the HS hedge trimmer.

  • Page 17: Technical Data

    Technical data Cutterbar HS Type HS 172 HS 212 HS 242 Working width 170 cm 210 cm 240 cm Cutting depth Maks. 60 mm Maks. 60 mm Maks. 60 Working speed Maks. 5 km/t Maks. 5 km/t Maks. 5 km/t Dimensions 178,8×63,8×...

  • Page 18: Attachment And Removal

    When attaching the hedge trimmer to the carrier vehicle or implement carrier and when working on the mechanical or hydraulic connection there is a danger of cutting injuries from the sharp knife sections. ► Make sure that the knife guard is mounted. ATTENTION! Greentec HS172-212-242 Cutterbar...

  • Page 19: Delivery

    Always bear in mind that the max. oil flow that the hedge trimmer needs is also the flow that the tool frame or hydraulic reach trimmer is able to supply. In this description, the HS 172 is mounted on a HXF 2802 (note that the oil flow on the HXF 2802 should be 40 l/min).
  • Page 20 Mount the 2 hydraulic hoses The drainage hose is NOT used. It should be 3 – 2 pcs. hydraulic hoses are mounted. capped off and secured with strips. Greentec HS172-212-242 Cutterbar...

  • Page 21: Start-Up

    Instruktion After the hedge trimmer is started up for the first time, you should check the tension torque on all screws after 10 minutes’ running. Greentec HS172-212-242 Cutterbar...

  • Page 22: Hedge Trimming

    All GreenTec hedge trimmers have an angle on the cutterbar in relation to the direction of travel. This ensures an optimal cut, as the branches often bend slightly in the direction of travel, and the newly cut branches easily “slip past”...

  • Page 23: Transport

    ► Demounting follows the procedure for mounting in reverse. IF QUICK COUPLINGS ARE NOT MOUNTED on the hydraulic hoses: Pay particular attention to cleanliness when the hydraulic hoses are demounted and capped. Avoid skin contact with the oil and collect oil seepages. Greentec HS172-212-242 Cutterbar...

  • Page 24: Storage And Moving The Machine

    ► The hedge trimmer must be secured so that there is no risk to other road users when in use. Instruktion To prevent damage and to facilitate loading and unloading, transport on euro pallets or expendable pallets is recommended. Greentec HS172-212-242 Cutterbar...

  • Page 25: Maintenance

    ► Wear cut-resistant safety gloves. ATTENTION! Danger of machine damage! Incorrect working methods can result in damage and malfunctions in the hedge trimmer and the carrier vehicle or implement carrier. ► Have all work carried out by trained and qualified personnel. Greentec HS172-212-242 Cutterbar...

  • Page 26: Maintenance Schedule

    • Tightening torque 81 Nm for bolts M12 x 35 (head bearing) • Tightening torque > 90 Nm for bolt M12 x 45 (knife head lug) ► Wrench set ►Socket set can be motorised or air-powered ►Open-end wrench set Greentec HS172-212-242 Cutterbar...

  • Page 27: Cleaning

    Check tightening torques ► Make sure all bolts and nuts on the hedge trimmer are tight. The specified tightening torques can be found in chapter Required tools and chapter Tightening torques see chapter Required tools Torque spanner Greentec HS172-212-242 Cutterbar...

  • Page 28: Parts Replacement

    INFO: As the cutterbar’s fingers are supplied with a double cutting edge (on the topside and the , the blade teeth can underside) be turned in both directions. Double fingers with double cutting edge (on the topside and the underside) Greentec HS172-212-242 Cutterbar...
  • Page 29 If the sections are excessively worn, the entire knife must be replaced. Removing knives ► Align the knife stroke so that the bolts on the head bearing are on top. ► Unscrew the bolts on the knife head. Greentec HS172-212-242 Cutterbar...
  • Page 30 ► Unscrew the bolts on the head bearing. ► Remove the knife head. ► Remove the three loose sections toward the rear between the two first guards ► Pull the knife carefully to the side to remove it from the finger bar. Greentec HS172-212-242 Cutterbar...
  • Page 31 ► Mount the knife connection on the new knife. ► Make sure that the protrusions of the press-in nuts point upward and are seated properly during assembly. ► Tighten the two bolts to the specified tightening torque. Greentec HS172-212-242 Cutterbar...
  • Page 32 ► Insert the three loose sections from the rear between the two guide fingers and push them into the mounting position. ► Place the knife head on the sections. ► Tighten the bolts to the specified tightening torque. Greentec HS172-212-242 Cutterbar...
  • Page 33 5.4 mm. Remove the double guard ► Unscrew the nuts on the damaged double guard and remove the bolts. ► Push the double guard to the side in order to access the knife bolts. Greentec HS172-212-242 Cutterbar...
  • Page 34 ► Remove the section from the knife. ► Push the double guard through the resulting gap in the knife. Mount the double guard ► Push the new double guard through the gap in the knife. ► Push the double guard aside. Greentec HS172-212-242 Cutterbar...
  • Page 35 ► Tighten the nuts to the specified tightening torque. Remove the first guard V/O ► Unscrew the nuts on the first guard V/O and remove the bolts. ► Remove the first guard V/O from the profile bar. Greentec HS172-212-242 Cutterbar...
  • Page 36 ► Remove the safety finger from the profile bar. Mount the safety finger ► Position the safety finger beneath the profile bar. ► Insert the bolt and tighten the nut to the specified tightening torque. Greentec HS172-212-242 Cutterbar...
  • Page 37 Mount the wear plater ► Push the new wear plate from the rear between the profile bar and guard. The arrow on the wear plate must point in the direction of travel. Greentec HS172-212-242 Cutterbar...
  • Page 38 ► Unscrew the bolts on the knife head. ► Unscrew the bolts on the head bearing. ► Remove the knife head from the sections. Watch out for loose sections. Greentec HS172-212-242 Cutterbar...
  • Page 39 ► Tighten the bolt hand-tight. Mounting the knife head ► Place the knife head on the sections. ► Tighten the bolts to the specified tightening torque. Greentec HS172-212-242 Cutterbar...
  • Page 40 ► Tighten the bolts on the headbearing to the specified tightening torque. ► Tighten the bolts on the head bearing to the specified tightening torque. ► Tighten the bolts on the head bearing to the specified tightening torque. Greentec HS172-212-242 Cutterbar...
  • Page 41 ► Check the cutting gap for parallelism. ► Observe the section while it runs very slowly. ► If the knife scrapes or does not run straight in the cutting gap, the cause must be determined and eliminated. Greentec HS172-212-242 Cutterbar...

  • Page 42: Lubrication

    You can purchase original parts from your local dealer or directly from GreenTec. When ordering parts, always specify the type designation, machine number and year of the respective machine. Parts lists Parts list and instructionsbook will follow the maschine. But are always on WWW.greentec.eu. Greentec HS172-212-242 Cutterbar...
  • Page 43 If you have questions about the materials used, you can contact our customer service department. Environmentally safe disposal of all parts requires that the parts be sorted properly. ► Sort parts based on the materials. Recycling ► Suitable parts should always be recycled. Greentec HS172-212-242 Cutterbar...

  • Page 44: Troubleshooting

    Replace defective parts Attach oil leakage pipe, if necessary Disruptions Check pressure-relief valve Extreme oscillation or Excessive speed at Consult an authorized vibration of the hedge hydraulic motor or knife repair shop trimmer drive Greentec HS172-212-242 Cutterbar...

  • Page 45: Bilag 1

    Bilag 1 Tightening torques Greentec HS172-212-242 Cutterbar...
  • Page 46 Greentec HS172-212-242 Cutterbar...
